K207721 K923766 Tie Rod End Fits Case/International Harvester David Brown 885 99
K207721 K923766 Tie Rod End Fits Case/International Harvester David Brown 885 99
Couldn't load pickup availability

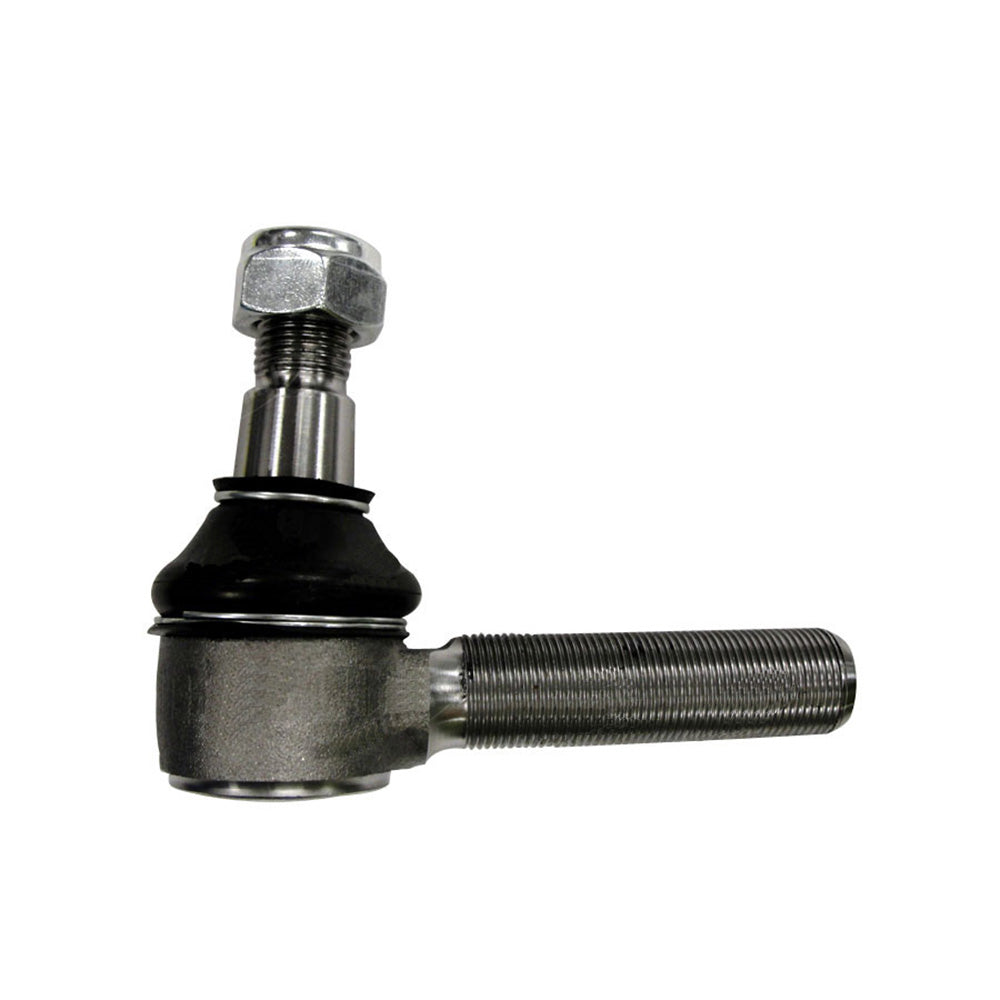

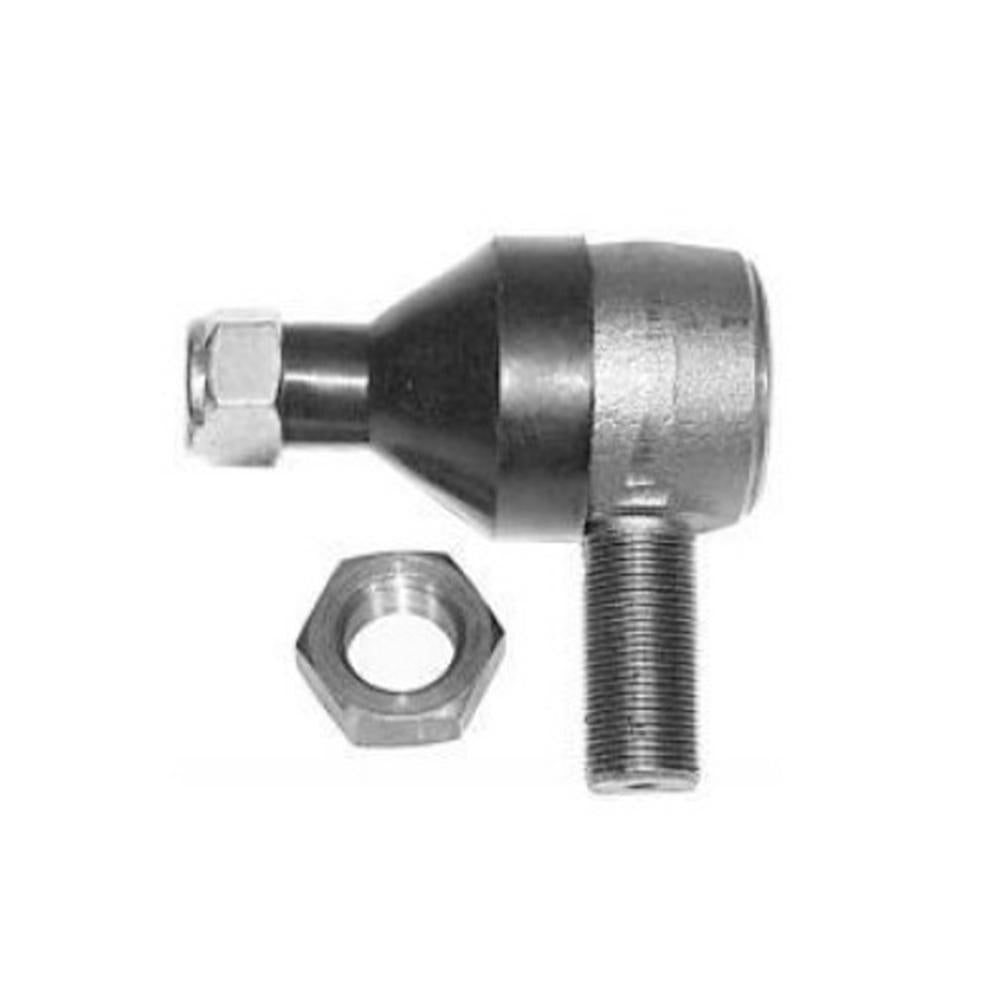

One New Aftermarket Replacement Power Steering Cylinder Inner Tie Rod End for David Brown and Fits Case/International Harvester Tractors
This aftermarket replacement inner tie rod end connects to the power steering cylinder on David Brown and Fits Case/International Harvester (IH) tractors. It is an inner end with right-hand (RH) external threads and is a direct replacement for the OEM part used in the transverse-mounted power steering cylinder assembly on these models.

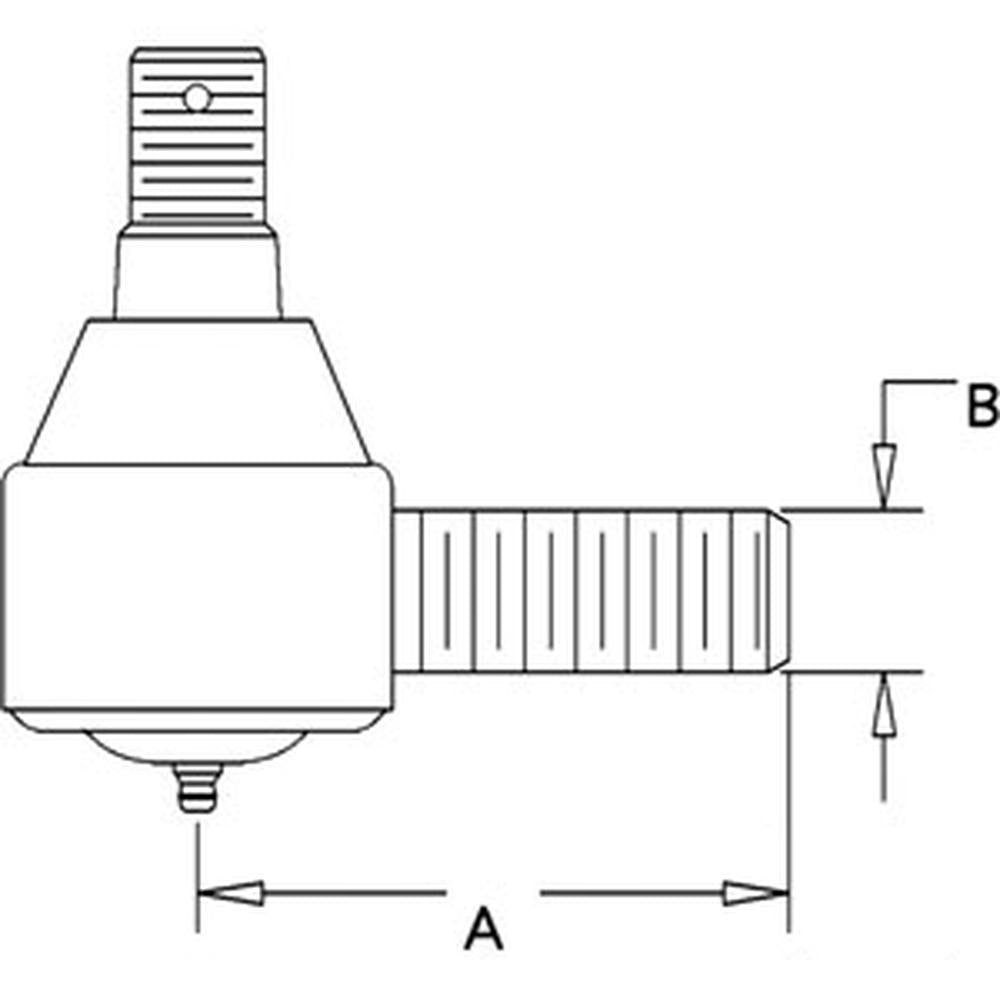

Specifications
- Thread: External 3/4" x 20 TPI, Right-Hand (RH)
- Knuckle: 5/8" x 18 TPI
- Taper: 20.46 mm - 18.48 mm
- Length to center of post: 2-1/2"
- Thread length: 66 mm
Compatible Models
David Brown Tractors: 885, 990, 995, 996, 1190, 1194, 1200, 1210 (with transverse mounted cylinder), 1212 (with transverse mounted cylinder), 1290, 1294, 1390, 1394, 1410, 1412, 1490, 1690
Fits Case/International Harvester (IH) Tractors: 1190, 1194, 1290, 1294, 1390, 1394, 1490, 1690
Note: On David Brown 1210 and 1212 models, this tie rod end fits tractors equipped with the transverse-mounted power steering cylinder. Verify cylinder configuration before ordering.
Replaces Part Number(s):
K207721, K923766, 104464
Aftermarket Interchange Numbers
K204347, K207721-A, K262849, K262850
New aftermarket replacement part - not remanufactured, not used.
