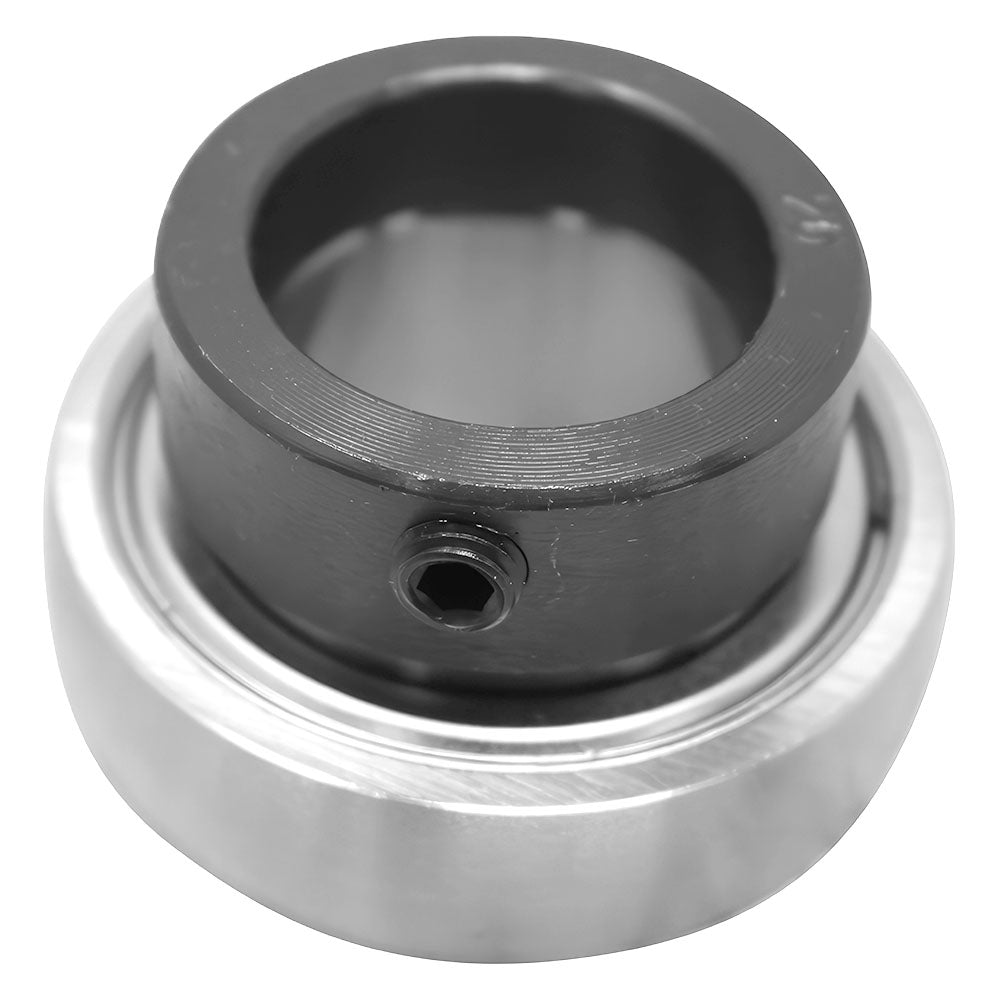

Insert Bearing W/Collar 1-1/4", RA103RRB2-IMP AN210541 SA20620 RA103RRB2

One New Aftermarket Replacement Insert Bearing with Eccentric Locking Collar - 1-1/4" Bore - Fits John Deere and Other Agricultural Equipment

This wide inner ring ball bearing insert with eccentric locking collar is a direct aftermarket replacement for John Deere (JD) combines, headers, forage harvesters, and mower conditioners, as well as a broad range of other agricultural machinery. The RA-RRB series features a double-sealed (contact) design with a self-locking eccentric collar, a molded nylon retainer for misalignment tolerance, and factory pre-lubrication for long service life in demanding field conditions.

Specifications

• Bore Diameter: 1-1/4 in. (straight bore)
• Outside Diameter: 2.4409 in. (62 mm)
• Overall Width: 0.9375 in. (18 mm outer ring width)
• Inner Ring Width: 23.83 mm
• Locking Device: Eccentric collar
• Sealing: Double-sealed, contact type (non-relubricatable)
• Cage Material: Nylon
• Duty: Medium duty
• Radial Dynamic Load Capacity: approx. 4,800-4,900 lbf
• Radial Static Load Capacity: approx. 2,280 lbf

Compatible Equipment

John Deere: Combines, headers, forage harvesters, mower conditioners (replaces JD part numbers AN210541, JD8545, JD8596)

Case / International Harvester (IH): Combines and related implements (replaces IH part numbers 156010C91, 156011C91, 156011C92, 1270174C91, 374101A1)

Allis-Chalmers: Compatible via cross-reference (replaces 1308984)

Massey Ferguson (MF): Compatible via cross-reference (replaces 022690X / 22690X)

Ford / New Holland (NH): Compatible via cross-reference (replaces 168264)

New Idea: Compatible via cross-reference (replaces K2751, K2751A)

Hesston: Compatible via cross-reference (replaces 050344)

Replaces Part Number(s):

HIB10-0254, HIB10-0260, RA103RRB2, RA103RRB2-IMP, AN210541, SA20620, JD8545, JD8596, 156010C91, 156011C91, 156011C92, 1270174C91, 374101A1, 1308984, 022690X, 22690X, 168264, K2751, K2751A, 050344, NPS103RP2C

Aftermarket Interchange Numbers

RA103NPPB2, RA103NPPB2-IMP, ANPS103RP2C, NPS103RP2C

New aftermarket replacement part - not remanufactured, not used.
