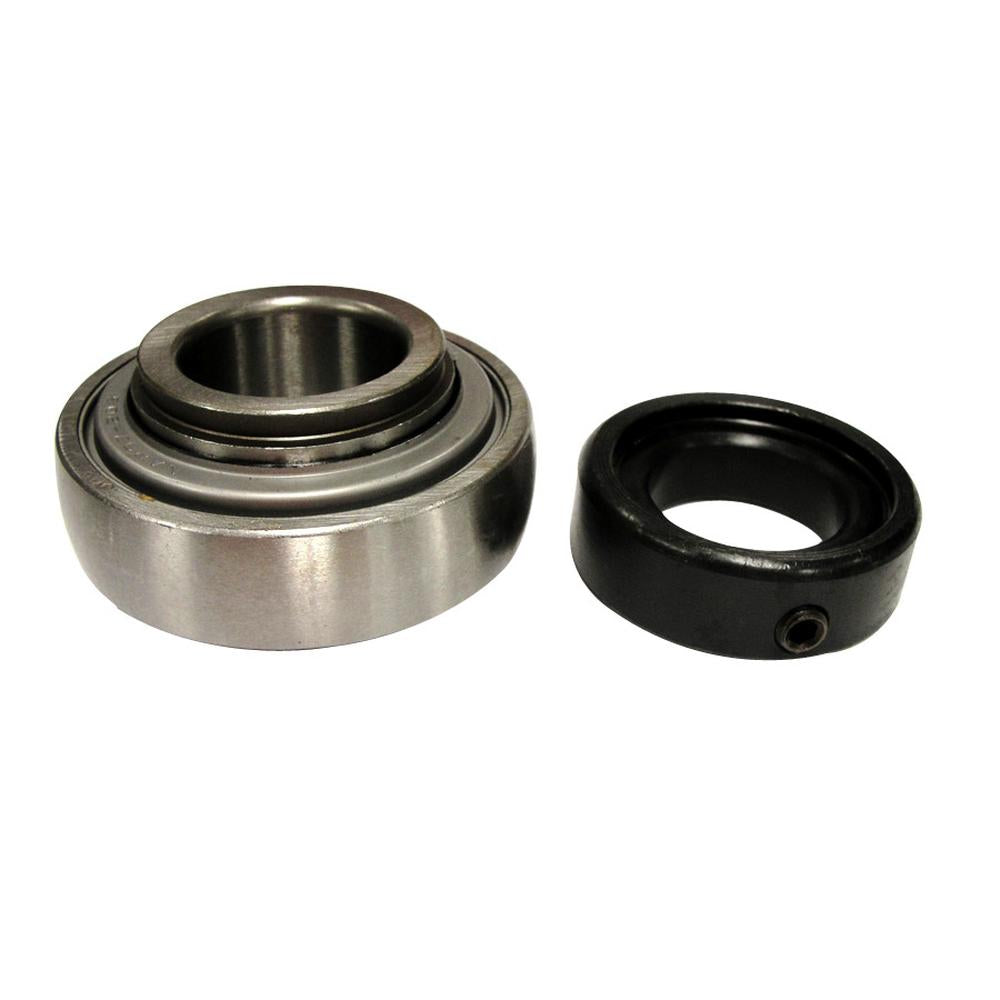

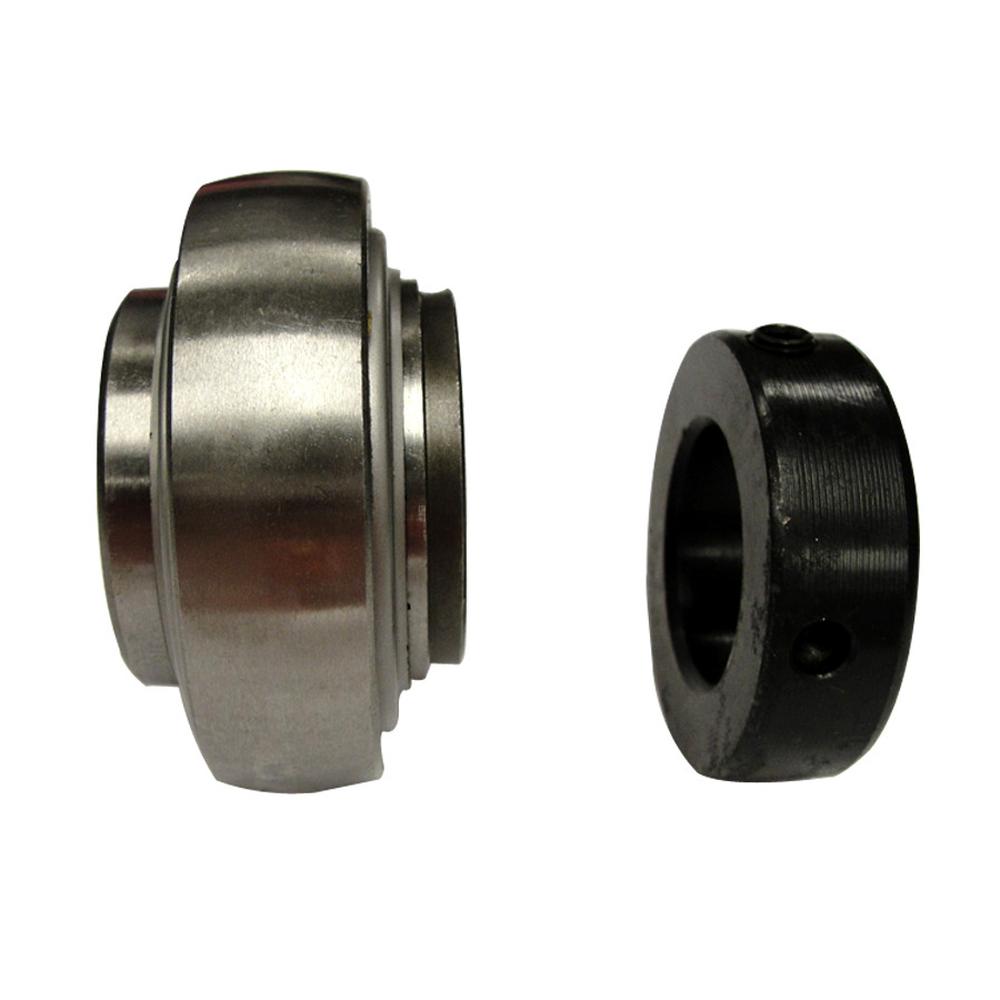

Insert Bearing W/Collar 1-1/4", G1104KRRB-IMP G1104KRRBIMP AG1104KRRB

One New Aftermarket Replacement Insert Bearing with Eccentric Collar - 1-1/4" Bore, G1104KRRB Series

This wide inner ring insert bearing with eccentric locking collar is engineered for agricultural and industrial applications where dirt, dust, and wet conditions demand superior sealing performance. The G-KRRB series features a spherical outside diameter for self-aligning capability and mounts on straight shafts with a slip fit, secured by two set screws. The double-sealed, relubricatable design makes it well suited for farm implement shaft applications including augers, conveyors, hay equipment, and other rotating assemblies exposed to field conditions.

Specifications

• Bore Diameter: 1-1/4 in (1.2500 in)
• Outside Diameter: 2.8346 in (72 mm)
• Overall Width: 2.013 in
• Inner Ring Width: 1.484 in
• O.D. Type: Spherical
• Seal Type: Double contact seal with Shroud-Seal (R-seals with flared lips)
• Locking Method: Eccentric collar with 2 set screws (5/16-18)
• Lubrication: Relubricatable (grease fitting provision)
• Dynamic Load Rating: 6,400 lb
• Static Load Rating: 3,440 lb (15,300 N)
• Maximum Speed: 3,270 RPM
• Operating Temperature Range: -50 to 120 deg C
• Cage Material: Nylon
• Bearing Material: Steel
• Weight: approx. 1.396 lb

Compatible Applications

This is a universal-fit agricultural and industrial insert bearing. Compatible with any equipment using a 1-1/4 in shaft with a standard G1104KRRB-series bore. Common applications include farm implement shaft assemblies, grain handling equipment, hay balers, augers, spreaders, planters, and general ag machinery requiring a relubricatable wide-inner-ring insert bearing with eccentric collar locking.

Replaces Part Number(s):

G1104KRRB-IMP, G1104KRRBIMP, AG1104KRRB, G1104KRRB

Aftermarket Interchange Numbers

Timken/Fafnir G1104KRRB; NTN WPS104GRC, WPS104GRNC, WPS104TRC; YEL207104; YG220N; YG220NL

New aftermarket replacement part - not remanufactured, not used.
