Ignition Starter Switch with Keys for Ariens, Gravely 03602300 Lawn Mower Engine
Ignition Starter Switch with Keys for Ariens, Gravely 03602300 Lawn Mower Engine
Couldn't load pickup availability

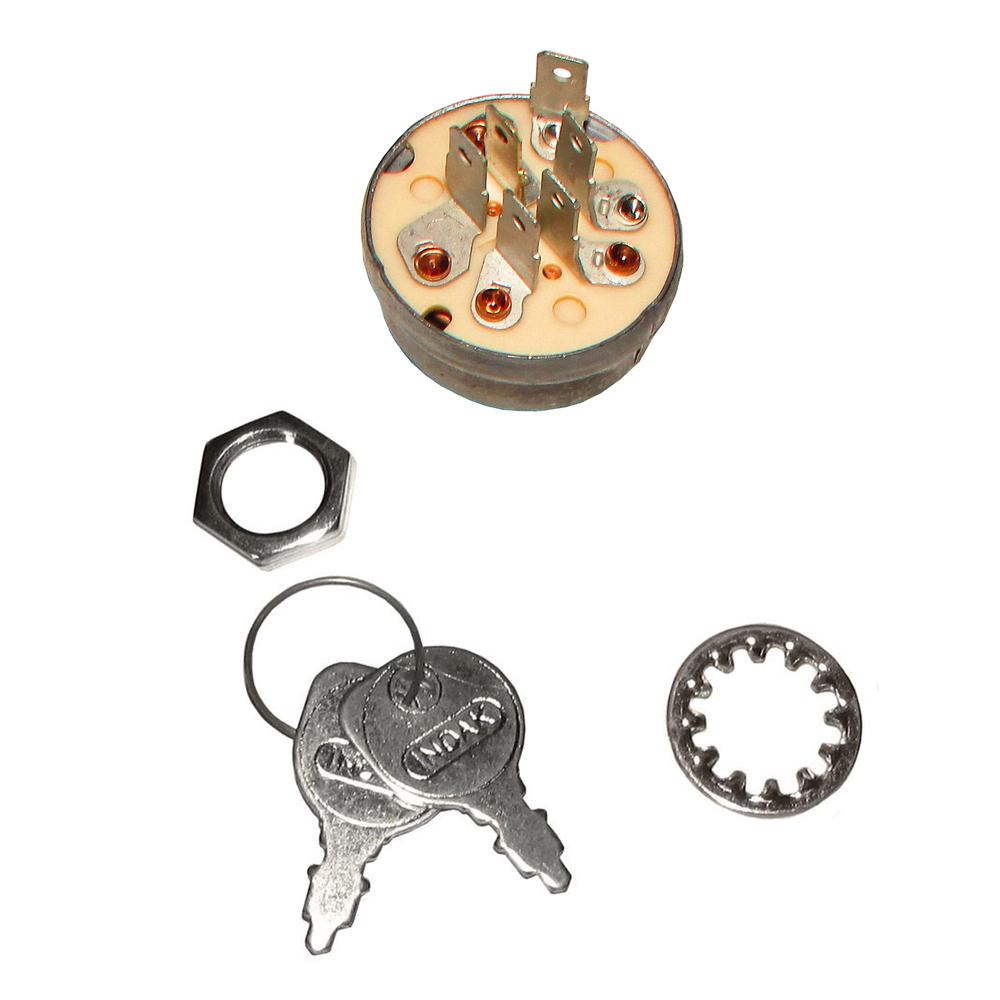

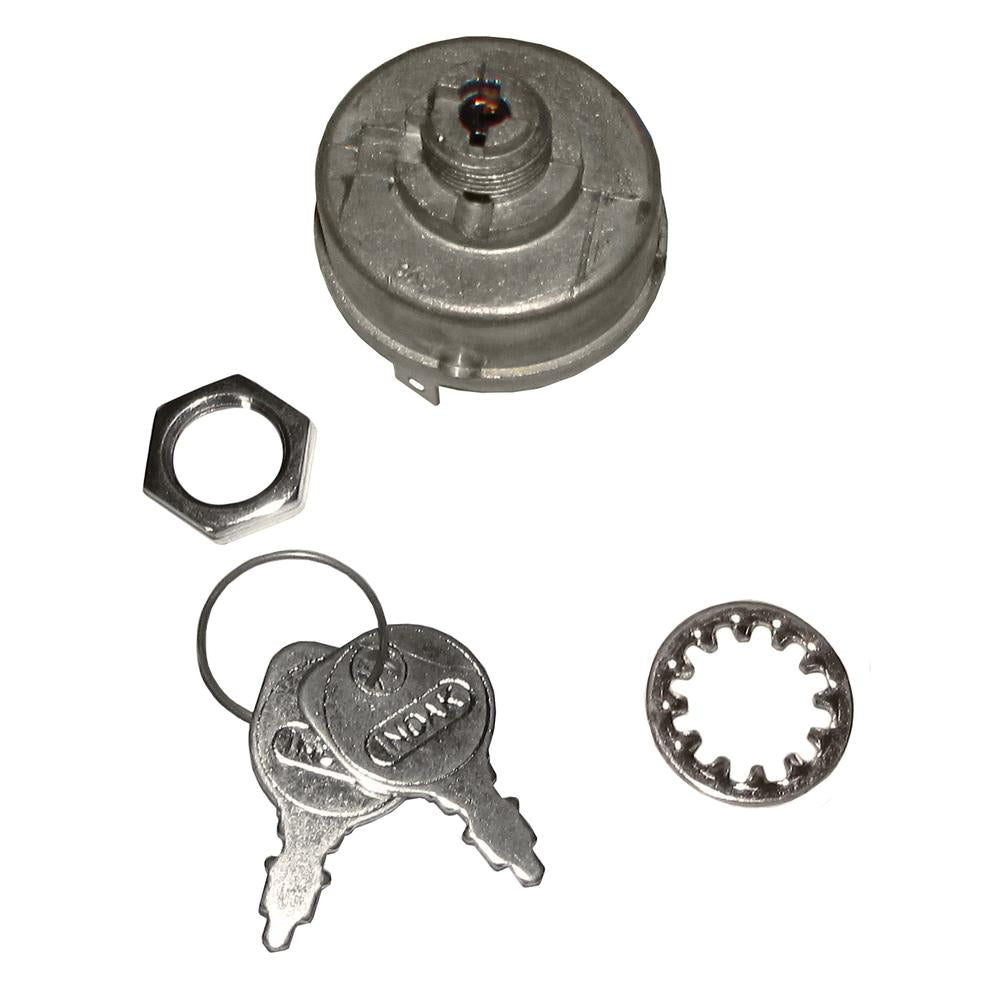

One New Aftermarket Replacement Ignition Starter Switch with Keys for Ariens, Gravely, and John Deere Lawn Mowers and Garden Tractors
This ignition starter switch replaces OEM part numbers 03602300 (Ariens/Gravely) and AM38227 (John Deere) and controls engine start, run, and stop functions in the magneto ignition circuit. The 3-position, 6-terminal Indak-style switch mounts via a 9/16-inch stem and includes 2 keys. Compatible with a wide range of Ariens, Gravely, and John Deere (JD) front mount mowers, lawn tractors, garden tractors, and walk-behind mowers.
Specifications
- Ignition Type: Magneto
- Number of Positions: 3
- Number of Terminals: 6
- Mounting Stem: 9/16 inch
- Includes: 2 keys
- Voltage: 12V
Compatible Models
Ariens / Gravely: 915001-915023, 915301-915308, 931037, 931038, 931302, 931303, 934023-934027, 934301, 936002-936026, 936301-936319, 988315-988321, 988811, 992028
John Deere (JD) Lawn Tractors: 108, 111, 111H, 112L, 116, 116H
John Deere Garden Tractors: 316, 318, 420
John Deere Front Mount Mowers: S910, S930, F910, F930
John Deere Compact/Walk-Behind: 7G18, 7H17, 7H19, G15, GS25, GS30, GS45, GS75, HD45, HD75, WG32A, WG36A, WG48A
John Deere 111 Series: Serial number 120000 and higher
Replaces Part Number(s):
03602300, AM38227
Aftermarket Interchange Numbers
430-110 (Stens/Oregon), 33-398, 2305951, 263-5500, 2954, 54800, 7-01893, 9166, B1JD120, B1SB2922, B1SB7280, EL-0009, MP9166, SB-2922, PP33398
New aftermarket replacement part - not remanufactured, not used.
