4050-3P pioneer female hyd quick coupler "FREE SHIPPING"
4050-3P pioneer female hyd quick coupler "FREE SHIPPING"
Couldn't load pickup availability

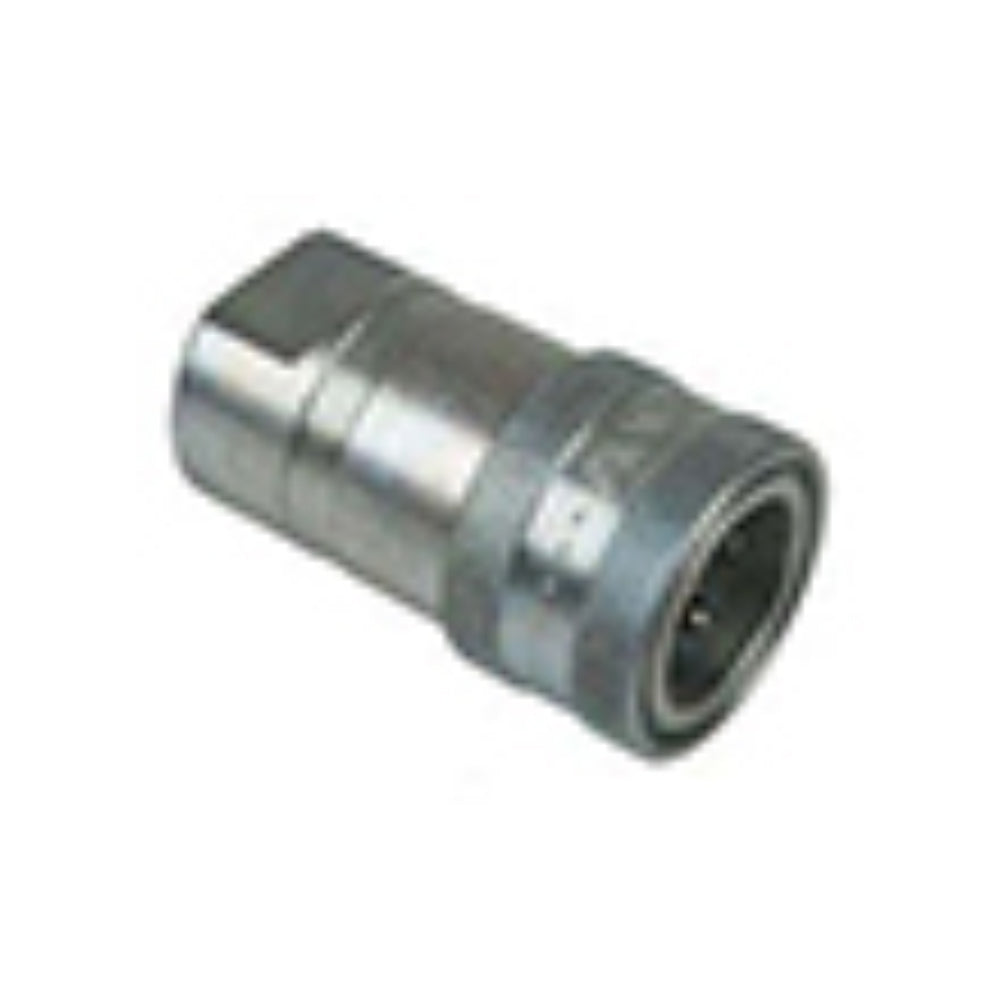

One New Aftermarket Replacement Pioneer 4050-3P Female Hydraulic Quick Coupler - Parker 4000 Series
This 3/8" female hydraulic quick coupler is a Pioneer/Parker 4000 Series body-half (socket) designed for fast, reliable connection and disconnection of hydraulic fluid lines on tractors, implements, loader attachments, and other mobile agricultural and construction equipment. It features a poppet-style internal valve with manual sleeve operation and a double shut-off design. The coupler mates with Parker/Pioneer 4000 Series male nipples (e.g., 4010-3P) and 1/2" 8010 Series nipples (ISO 5675 Pioneer-style male tips). Female body only - nipple/male half sold separately.
Specifications
- Body Size: 3/8 in
- Thread: 3/8"-18 NPTF Female
- Valve Type: Poppet (double shut-off)
- Locking Mechanism: Manual sleeve (ball lock)
- Max Working Pressure: 3,000 PSI
- Max Flow Rate: 6.0 GPM (22.71 lpm)
- Overall Length: 2-5/16 in (2.31 in)
- Max Outside Diameter: 1-21/64 in
- Operating Temperature Range: -40 to 250 degrees F
- Material: Steel
- Seal: Nitrile
- Series: Parker/Pioneer 4000 Series (ISO 5675)
- Component: Female coupler body half (socket) only
Compatible Applications
Universal - Agricultural and Mobile Equipment: Tractors, implements, loader attachments, construction equipment, forestry equipment, and other mobile hydraulic equipment using Pioneer-pattern ISO 5675 quick couplers in 3/8" body size. Compatible with Parker Pioneer 4000 Series and ISO 5675 male nipples.
Replaces Part Number(s):
25684050-3P, 4050 3P, 4050-3P, 40503, 40503P, 42503P, 4050-3
Aftermarket Interchange Numbers
A40503, A-4050-3, 40503PGV, 4050-3PGV, HYM40-1649
New aftermarket replacement part - not remanufactured, not used.
