Hydraulic Hose 36" x 1/2" with 1/2" NPT Rigid Male Ends 407436R1 45A536 45A5362
Hydraulic Hose 36" x 1/2" with 1/2" NPT Rigid Male Ends 407436R1 45A536 45A5362
Couldn't load pickup availability
One New Aftermarket Replacement Hydraulic Hose Assembly Fits John Deere (Fits JD) Agricultural Equipment

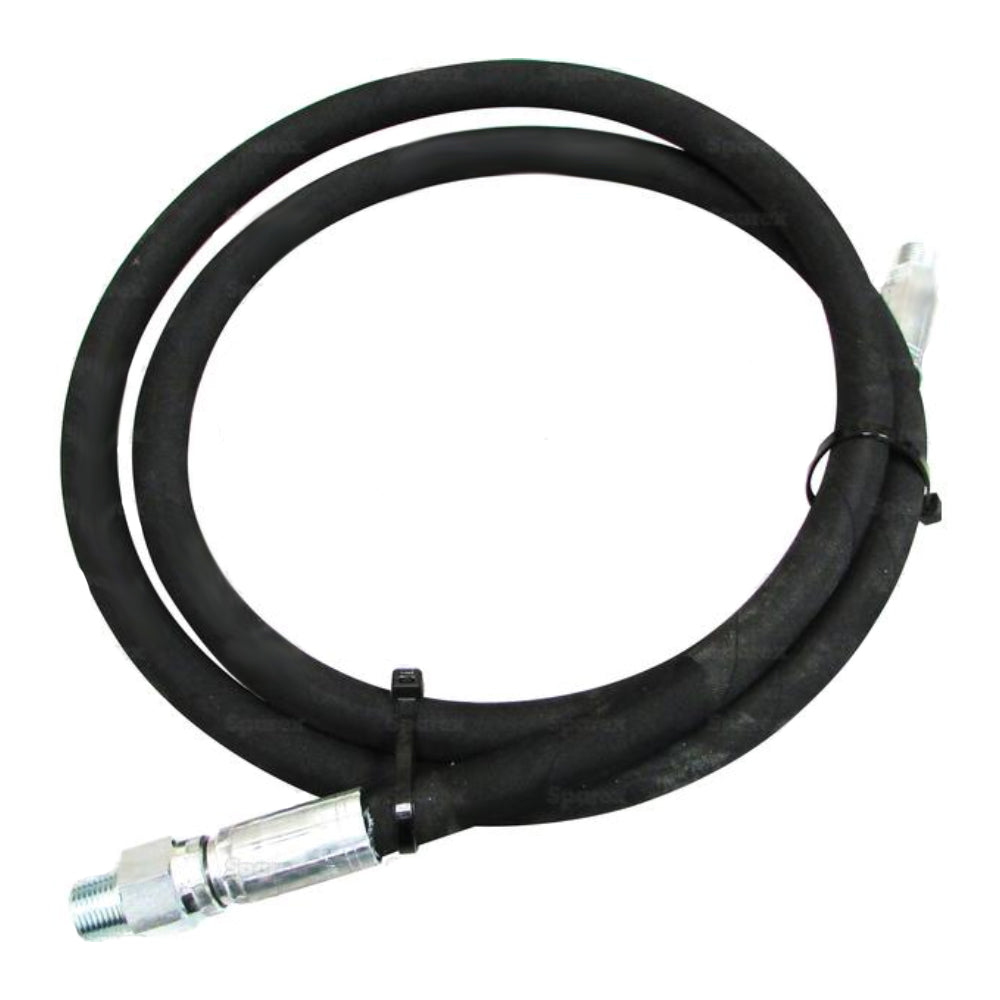

This 36" x 1/2" two-wire hydraulic hose assembly features rigid 1/2" NPT male ends on both sides and is built to SAE 100R16 specification. It is a direct-fit aftermarket replacement Fits John Deere (Fits JD) hydraulic systems requiring a 1/2" NPT rigid-end hose of this length, delivering a 4,000 PSI working pressure rating and a minimum burst pressure of 16,000 PSI for reliable, heavy-duty hydraulic performance.
Specifications
- Standard: SAE 100R16
- Hose Size: 1/2"
- Overall Length: 36"
- Wire Reinforcement: 2 Wire
- Thread: 1/2" NPT Rigid Male Ends (both ends)
- Working Pressure: 4,000 PSI
- Minimum Burst Pressure: 16,000 PSI
- Maximum Outside Diameter: 0.81"
- Bend Radius: 3.40"
Compatible With
This is a universal-fit 1/2" NPT hydraulic hose assembly Fits John Deere and other agricultural and construction equipment hydraulic systems requiring this hose specification. Verify thread type and length against your existing hose before ordering.
Replaces Part Number(s):
407436R1, 45A536, 45A5362, TY3009, TY3030
Aftermarket Interchange Numbers
82C36, 81C36, 8NP36, H412M36, H41-2M-36, H422M36, H42-2M-36
New aftermarket replacement part - not remanufactured, not used.
