New Seat Bar Shock Spring Fits Case 1840 1845C Skid Steer Lap Loader
New Seat Bar Shock Spring Fits Case 1840 1845C Skid Steer Lap Loader
Regular price
£19.00 GBP
Regular price
Sale price
£19.00 GBP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

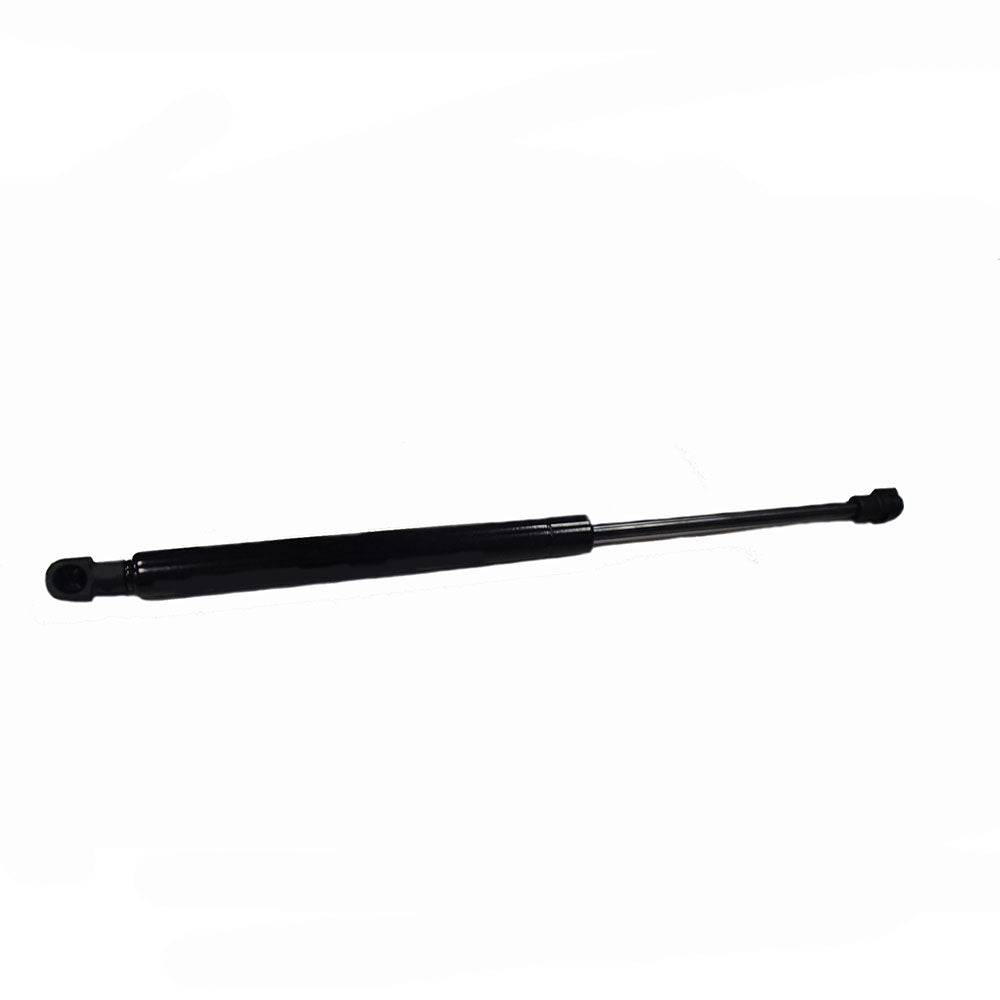

One New Aftermarket Replacement Seat Bar Gas Spring Fits Case (Fits Case/IH) Skid Steer Loaders
This gas strut spring cylinder assists in the smooth raising and lowering of the operator seat bar (lap bar) on Fits Case skid steer loaders. The gas-charged cylinder provides consistent force to lift the safety restraint bar around the operator compartment, keeping it fully raised when the operator exits the machine. Features a ball socket end type with clip for direct bolt-on installation.
Specifications
- Overall Length: 14.50"
- Stroke Length: 6.25"
- Cylinder Diameter: .715"
- Shaft Diameter: .315"

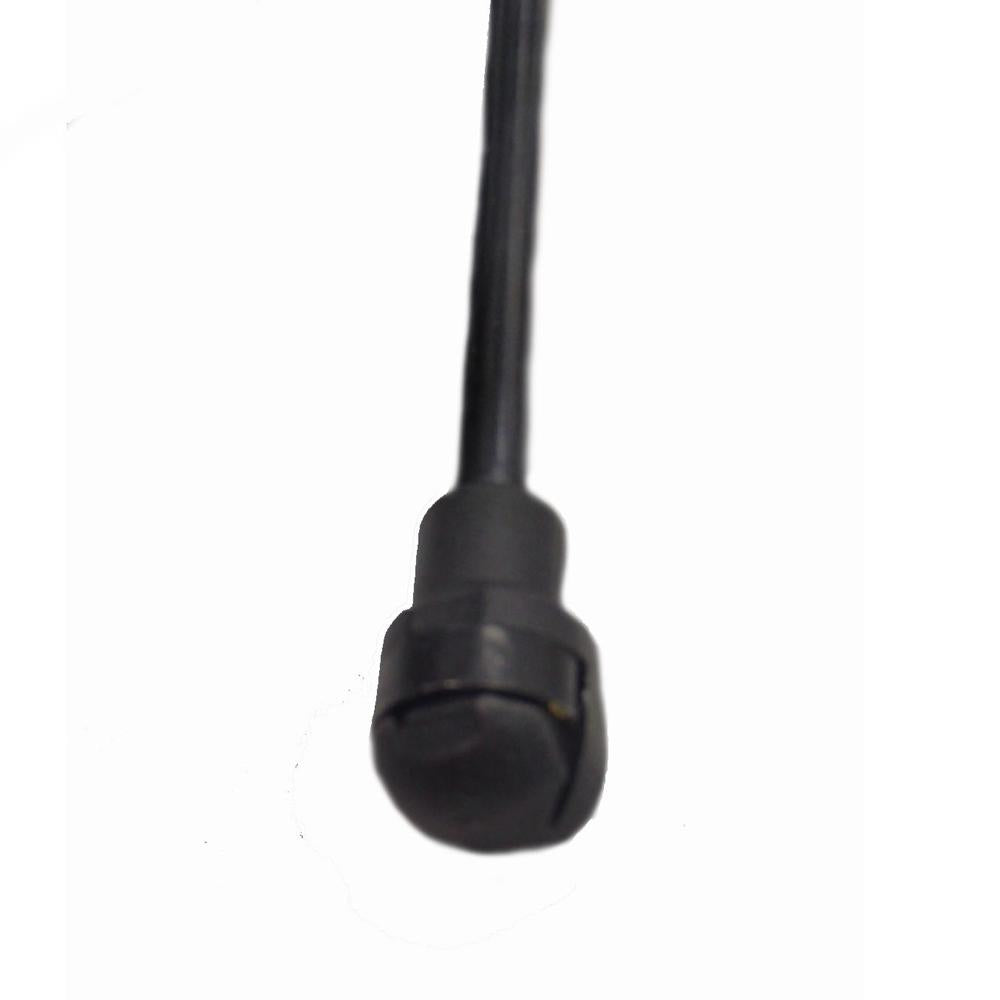

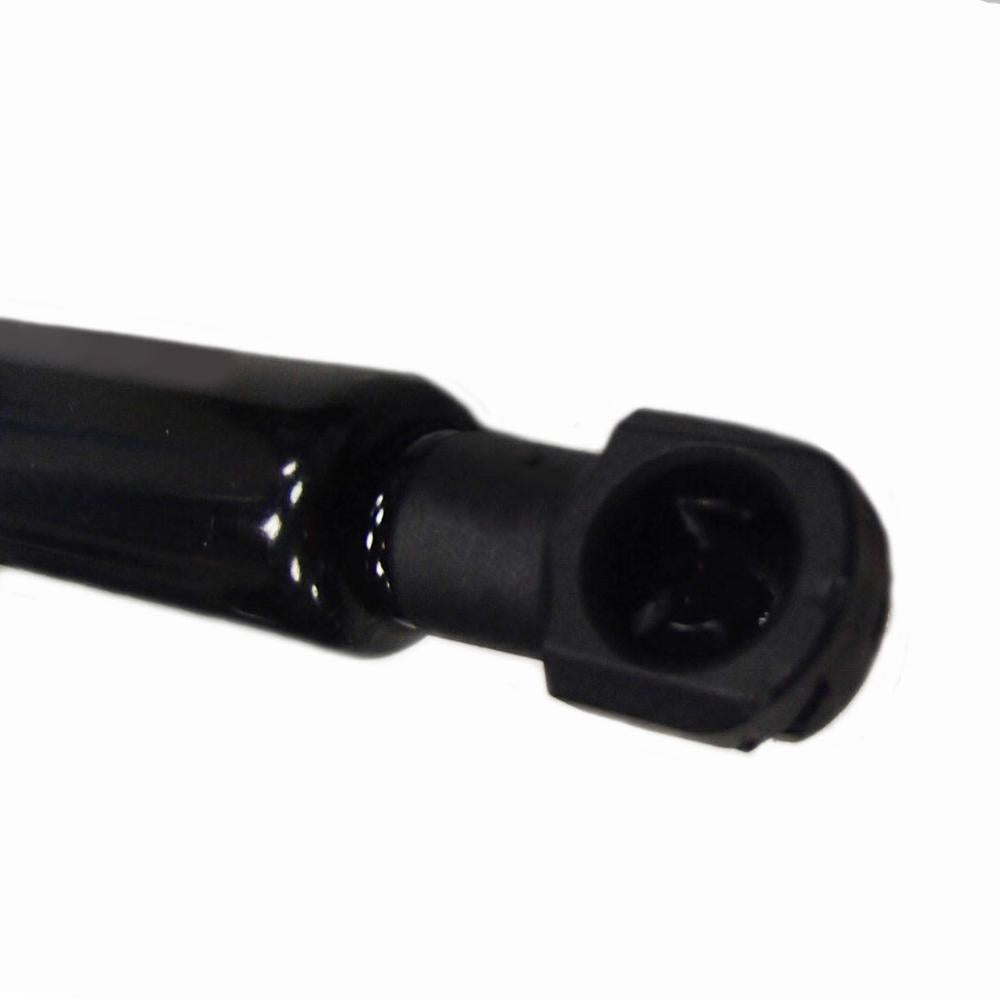

- End Type: Ball Socket with Clip
Compatible Models
Fits Case / Fits Case IH Skid Steer Loaders: 1835C, 1838, 1840, 1845C
Replaces Part Number(s):
128461A1, 128461A2, HC128461
Aftermarket Interchange Numbers
HYM40-0037, 128461A1-A, 128461A2-CL, 278326A1
New aftermarket replacement part - not remanufactured, not used.
