AM877525 Rear Hydraulic Pump Fits John Deere Models 870 970 1070
AM877525 Rear Hydraulic Pump Fits John Deere Models 870 970 1070
Regular price
£201.00 GBP
Regular price
Sale price
£201.00 GBP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

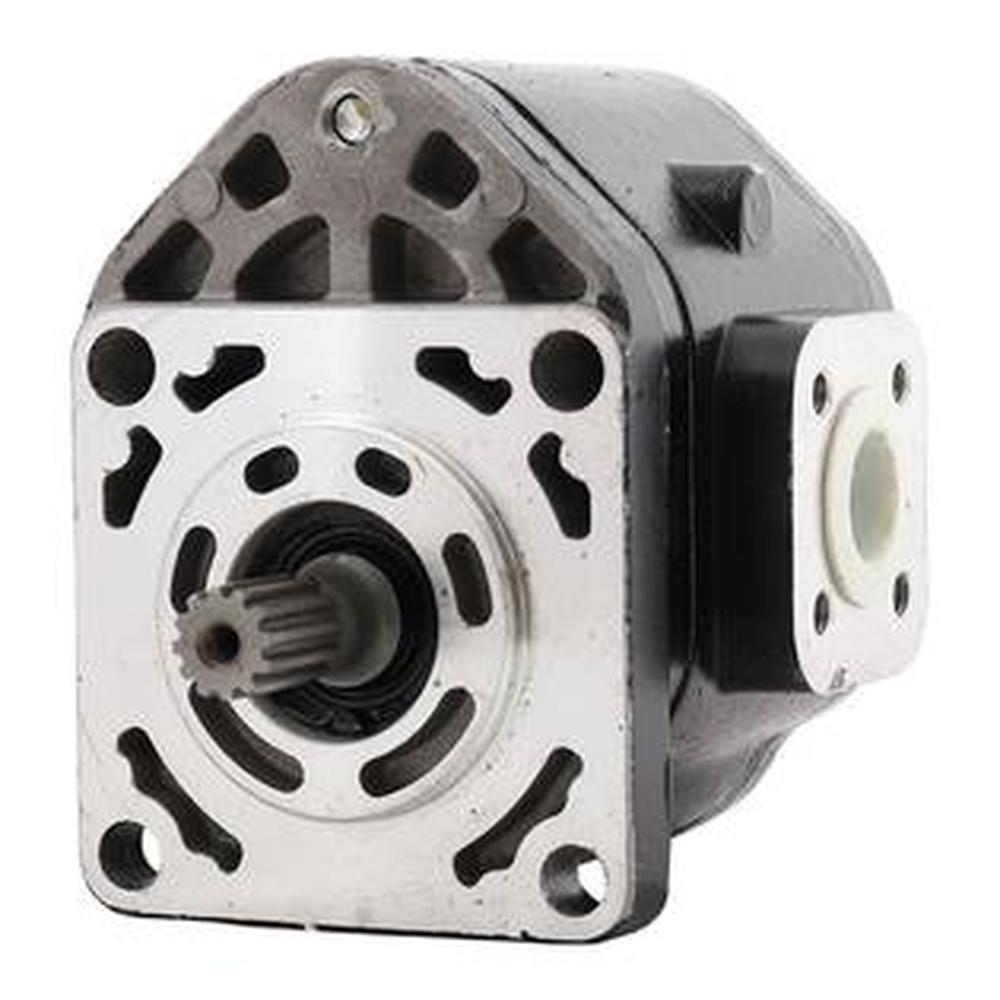

One New Aftermarket Replacement Rear Hydraulic Pump Fits John Deere Compact Tractors
This gear-type rear hydraulic pump supplies pressurized fluid to the hydraulic lift and implement control circuits on Fits John Deere compact tractors. It is a direct-fit replacement for the OEM AM877525 pump, featuring a 12-spline drive shaft, left-hand rotation, and a rated flow of 12.0 mL/r at up to 3,200 RPM and 200 bar (2,900 PSI) maximum pressure. The pump is a single gear-type unit with a 13 cc displacement volume.
Specifications
- Type: Single Gear Pump
- Drive: 12-Spline Shaft
- Displacement: 13 cc (12.0 mL/r)
- Max Pressure: 200 bar (2,900 PSI)
- Max Speed: 3,200 RPM
- Direction of Rotation: Left (counter-clockwise)
- Flow Rate: 14.7 GPM
Compatible Models
Fits John Deere Compact Tractors: 870, 970, 990, 1070, 4005
Replaces Part Number(s):
AM877525, 9217979, 3070013420, 307001-3420
Aftermarket Interchange Numbers
HYI60-0158
New aftermarket replacement part - not remanufactured, not used.
