1526485 New Angle Cylinder w/o Bushing made for Several Fits Caterpillar Models
1526485 New Angle Cylinder w/o Bushing made for Several Fits Caterpillar Models
Couldn't load pickup availability

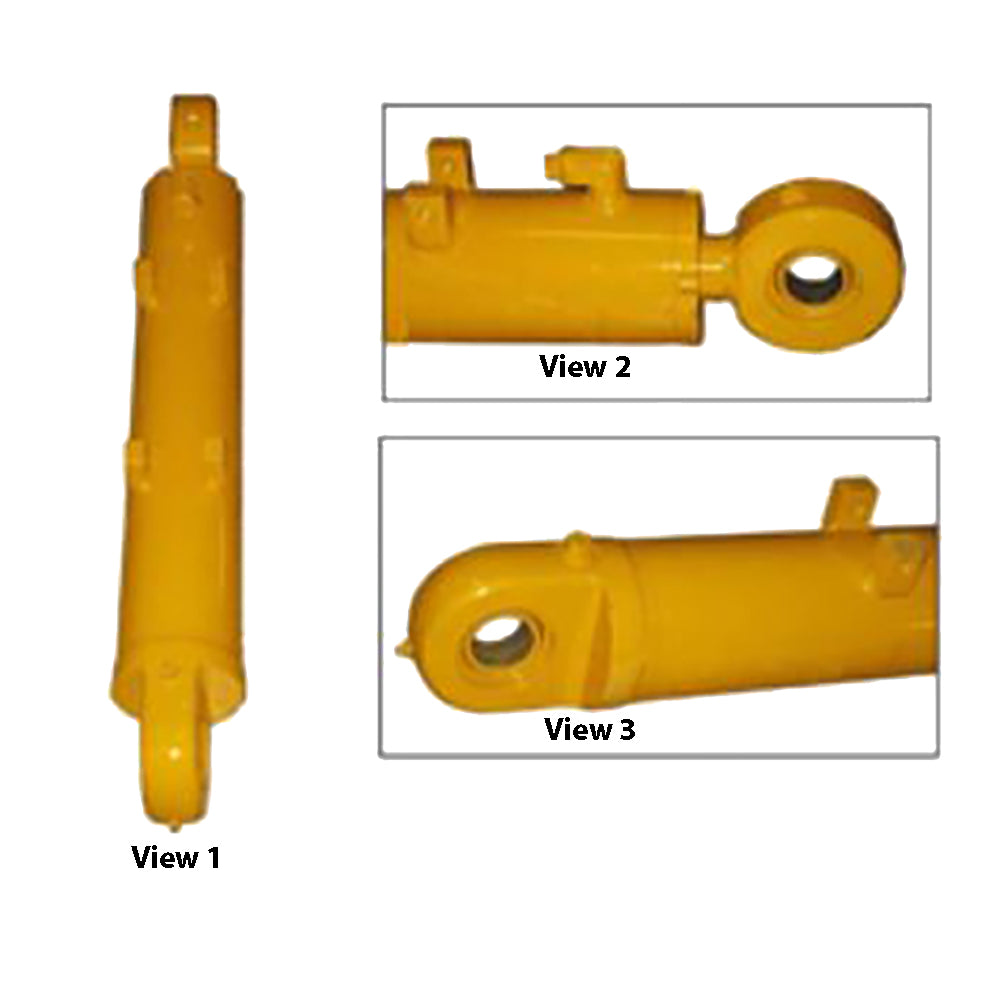

One New Aftermarket Replacement Angle Cylinder without Bushing Fits Caterpillar (Fits CAT) Crawler Dozers and Track Skidder
This aftermarket replacement dozer blade angle cylinder Fits Caterpillar (Fits CAT) D5H, D6M, and D6N crawler dozers as well as the 527 track skidder. The cylinder controls lateral blade angling on the dozer push-frame hydraulic circuit and is supplied without bushings -- order bushings separately if needed.
Specifications
- Rod Diameter: 2 in.
- Bore: 4 in.
- Supplied without bushings (bushings and snap rings sold separately)
- Note: Does NOT replace cylinder number 379-3507
Compatible Models
Fits Caterpillar Crawler Dozers: D5H, D5H XL, D5H LGP, D6M, D6M XL, D6M LGP, D6N, D6N XL, D6N LGP
Fits Caterpillar Track Skidder: 527 (Serial Number Prefixes: 3DS, BDW, JSR, PTR)
Serial Number Restriction (D6M and D6N): Serial number prefixes ALH and ALR confirmed; all serial numbers apply per additional sources. Verify serial number compatibility before ordering.
Replaces Part Number(s):
1526485, 152-6485, HYI40-0291
Aftermarket Interchange Numbers
CTC-1526485; also referenced alongside 137-5107 (1375107) and 390-0985 (3900985) for D6N applications -- verify exact cylinder number match before ordering.
New aftermarket replacement part - not remanufactured, not used.
