Hydraulic Pump Fits John Deere Tractor 1830 1850 1950 2020 2030 2040 AR103033

Name: Hydraulic Pump Fits John Deere Tractor 1830 1850 1950 2020 2030 2040 AR103033
SKU: AR103033_15
Price: 538.0 USD
Availability: InStock

Hydraulic Pump Fits John Deere Tractor 1830 1850 1950 2020 2030 2040 AR103033

£538.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

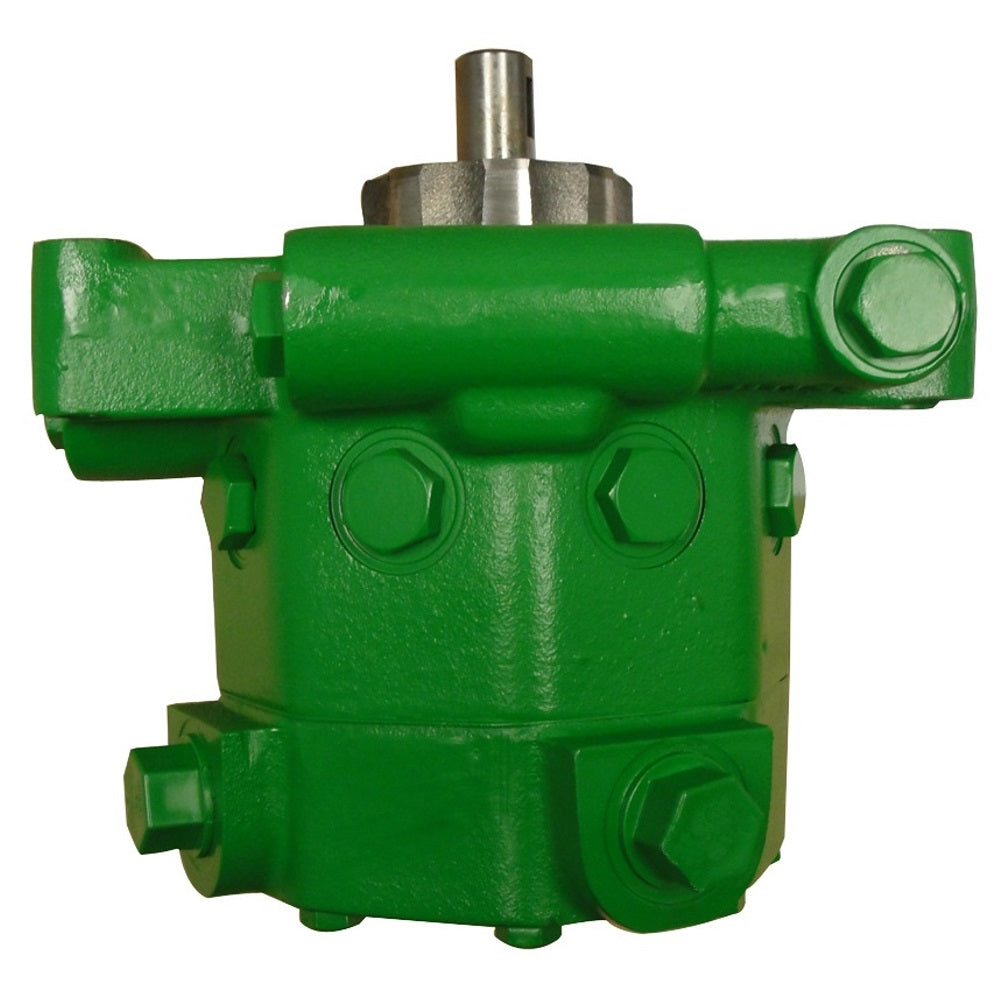

One New Aftermarket Replacement Hydraulic Radial Piston Pump Fits John Deere Tractors

This aftermarket replacement hydraulic radial piston pump Fits John Deere OEM part number AR103033. It is an 8-piston, single-type pump with a keyed input shaft and an included relief valve, supplying hydraulic pressure to the tractor's hydraulic lift and auxiliary systems. Prior to installation, the hydraulic system must be fully drained, flushed, and refilled with clean fluid, and the transmission pump must be verified as functional -- metal debris from a failed pump can cause a new pump to fail prematurely.

Specifications

Pump Type: Single, Radial Piston (8 Pistons)
Drive Type: Keyed Shaft
Displacement: 23 cc / 1.4 ci
Max PSI: 2600
Relief Valve: Included

Compatible Models

Fits John Deere Utility Tractors: 830, 840, 930, 940, 1020, 1030, 1030OU, 1040, 1040V, 1120, 1130, 1140, 1140F, 1140V, 1350, 1520, 1530, 1550, 1630, 1630OU, 1635, 1635EF, 1640, 1750, 1830, 1840, 1850, 1950, 1950N, 2020, 2030, 2035, 2040, 2040S, 2120, 2130, 2135, 2140, 2150, 2155, 2240, 2250, 2255, 2350, 2355, 2355N, 2440, 2450, 2550, 2555, 2630, 2640, 2650, 2750, 2755, 2840, 2850, 2855N, 2940, 2950, 3030, 3040, 3050, 3120, 3130, 3135, 3140, 3150, 3340, 3350, 3640, 3650, 4030, 4040, 4230, 4240, 4250, 4430, 4440, 4450, 4630, 4640, 4840, 4850, 8450

Fits John Deere Loaders/Industrials: 300, 301, 301A, 302, 400, 401, 401B, 401D

Fits John Deere Cotton Pickers/Strippers: 7440, 7445, 9920, 9930, 9940, 9950

Fits John Deere Backhoe/Loader Backhoe: 310A, 1035, 1035EF

Replaces Part Number(s):

AR103033, AR103035, AR103036, AR39019, AR39168, AR89061, AR89064, AL70641, 640-217B

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

2350, 4230, 4240, 2650, 9950, 3130, 1840, 1140, 1640, 940, 4440, 4840, 2040, 840, 4030, 1635EF, 2255, 4050, 1530, 2840, 3030, 4650, 4850, 2550, 2555, 2755, 8450, 1120, 300, 2140, 9930, 400, 1140F, 1350, 1035, 4040, 2850, 1020, 2120, 9940, 930, 3120, 401B, 2040S, 2150, 2355, 4250, 830 3 cylinder, 3150, 1630, 3650, 7445, 3340, 1035EF, 2355N, 4640, 2640, 1850, 2940, 1140V, 2630, 840 940 1040 1140 1350 1550 1640 1750 1840 1850 1950 1950N 2040 2040S 2140 2150 2155 2250 2255 2350 2355 2355N 2450 2550 2555 2650 2750 2755 2850 3040 3050 3140 3350 3640 3650, 3135, 301, 2450, 1750, 2020, 1635, 401D, 2135, 1950, 302, 1550, 2250, 3050, 1040, 1630OU, 9920, 1030OU, 2130, 2155, 7440, 3350, 2950, 4450, 401, 1830, 3640, 2750, 2855N, 4630, 1130, 3040, 2035, 1030, 2030, 2240, 4430, 1040V, 301A, 1950N, 1520, 3140, 830, 2440

Additional Information:

Keyed shaft The system needs be flushed and replaced with clean, new fluid Drive Type Keyed Max PSI 2600 Pump Type Single Relief Valve Included Volume 23 cc

Reference Numbers:

AR103033, AR103036, AR39019, AR39168, AR89064, AR103036, AR89064, AR103033, AR39168, AR103035, AR103036, AR89064, AR39019, AR103033, AR89061, AL70641, 640-217B, AR103036
