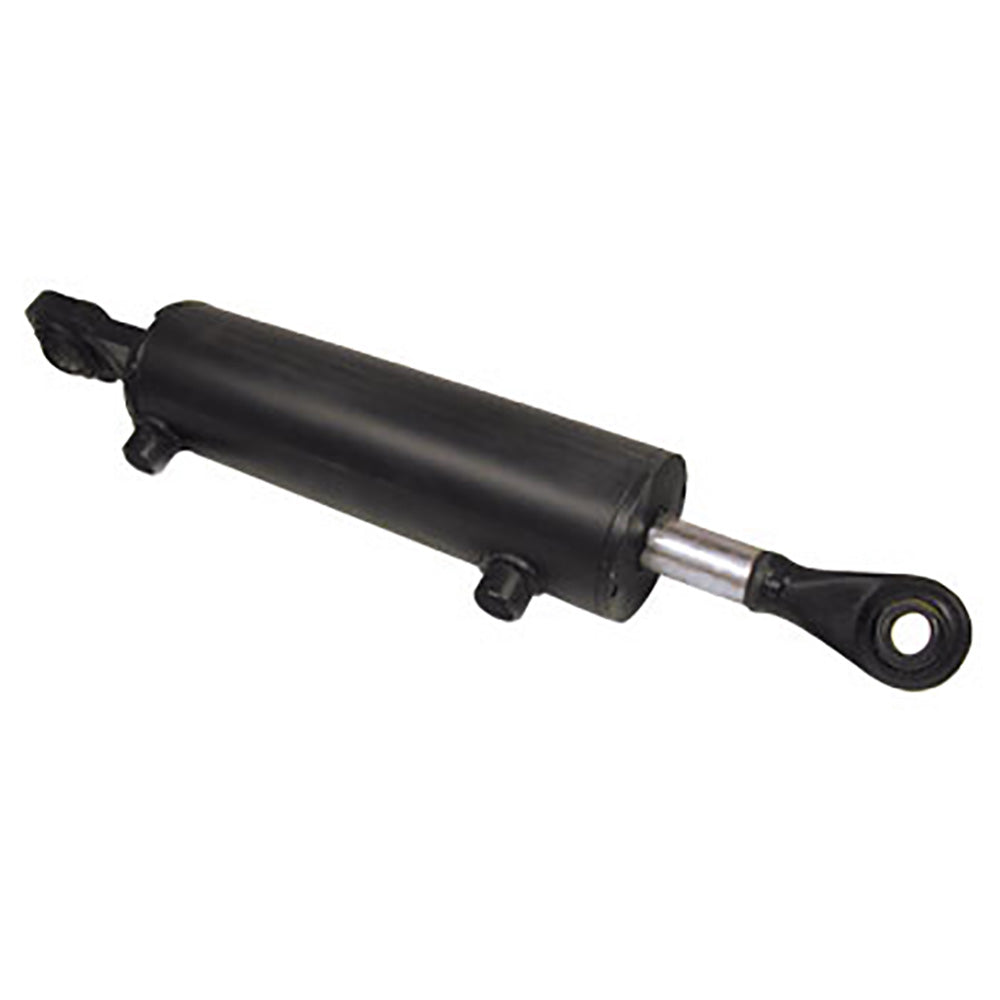

HTL3101 Hydraulic Top Link Fits Ford Tractor 501 515 530 545 600 700 800 900
HTL3101 Hydraulic Top Link Fits Ford Tractor 501 515 530 545 600 700 800 900
Regular price
£303.00 GBP
Regular price
Sale price
£303.00 GBP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
One New Aftermarket Replacement Hydraulic Top Link
Tech Info:
Replaces Part Number: Gannon 13-544
View full details
Tech Info:
Fits CAT I Rod / Fits CAT II Base, 3" Bore.
All ports 0.563"-18 ORB w/ Two Adapters 0.563" -18 ORBM X .250" NPTM 90 Degree Swivel.
1450.377 PSI
Barrel Length: 12.438"
Base End Ball Inside Diameter: 1"
Base End Ball Width: 1.750"
Base to Ball Center Length: 3.500"

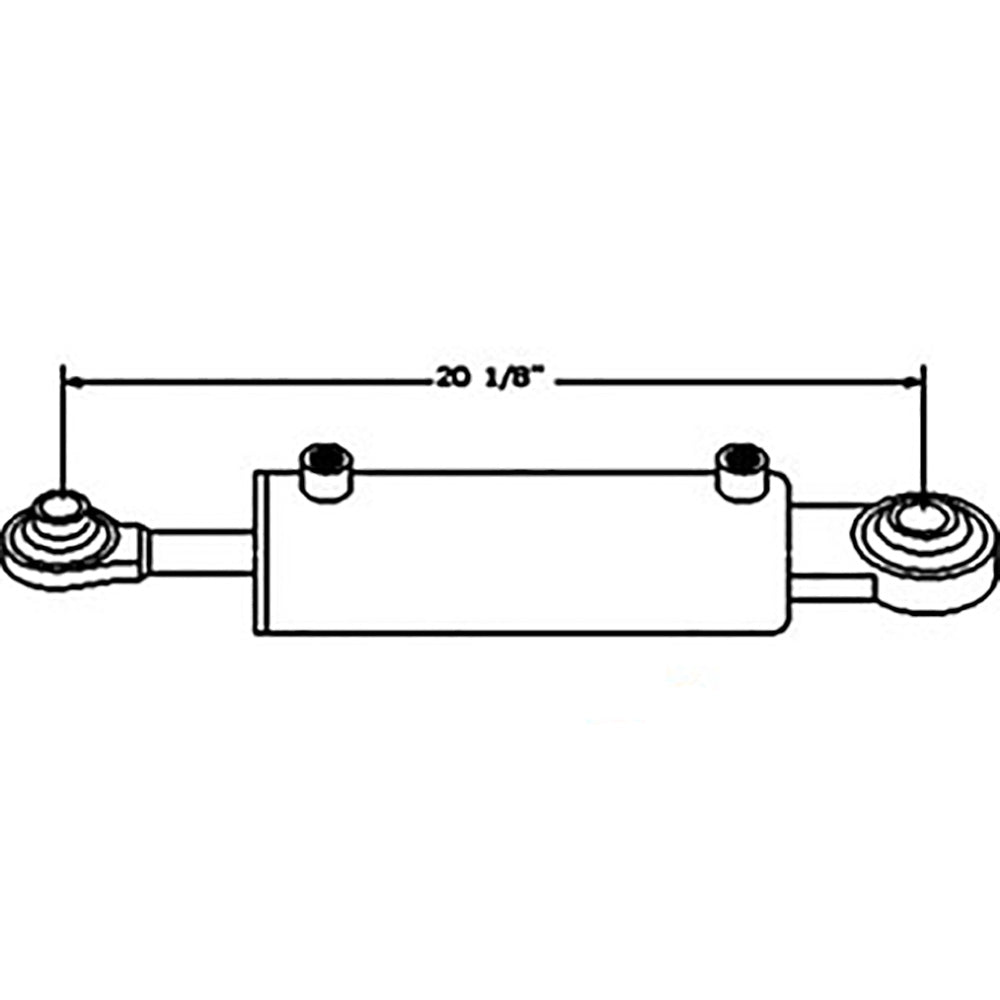

Compressed Length: 20"
Rod End Ball Inside Diameter: 0.750"
Rod End Ball Width: 1.750"
Stroke: 8"
Replaces Part Number: Gannon 13-544
