HLA-933332291-JN Hella Mini Relay

HLA-933332291-JN Hella Mini Relay

£31.00 GBP
£31.00 GBP
Sale Sold out
Shipping calculated at checkout.

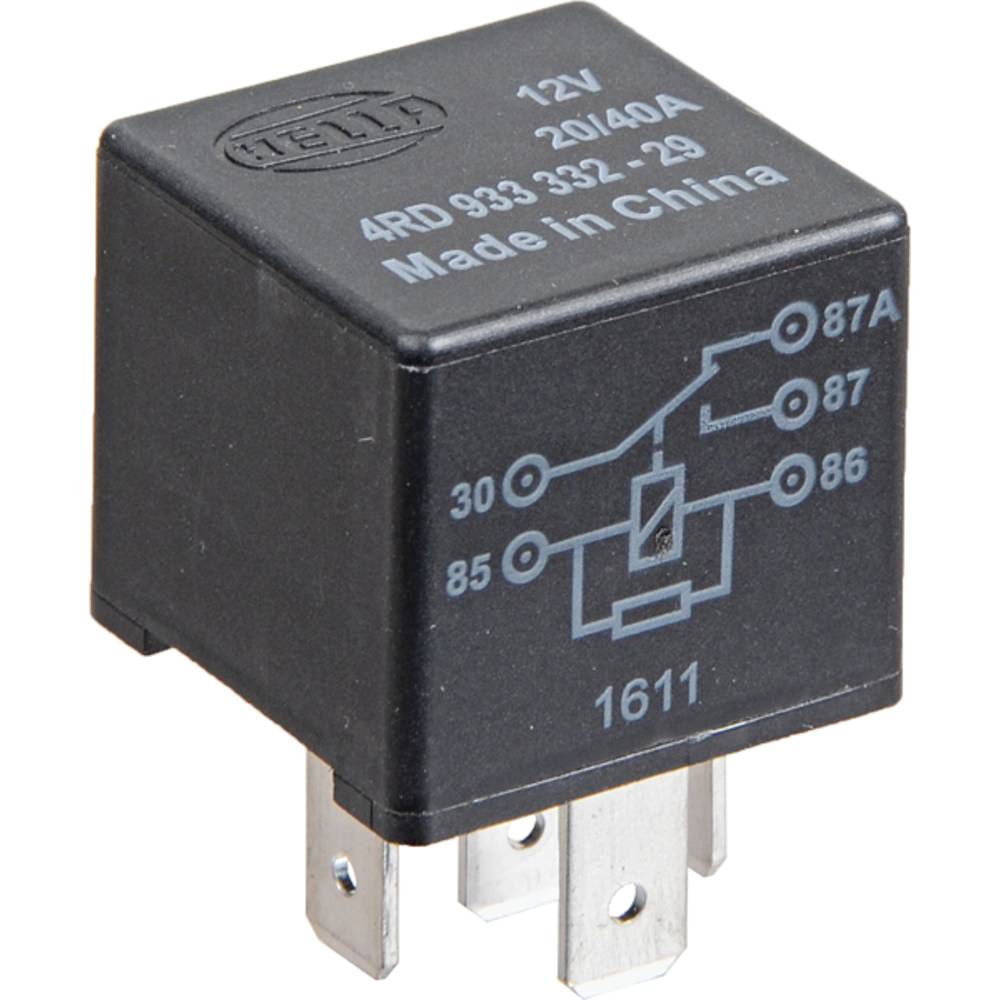

One New Aftermarket Hella Mini Relay

Tech Info:
-VOLT: 12, AMPS: 40, TERMINAL ID 2: 30, TERMINAL 2 SIZE: 6.3mm x 0.8mm, TERMINAL ID 3: 85, TERMINAL 3 SIZE: 6.3mm x 0.8mm, TERMINAL ID 4: 86, TERMINAL 4 SIZE: 6.3mm x 0.8mm, TERMINAL ID 5: 87, TERMINAL 5 SIZE: 6.3mm x 0.8mm, TERMINAL ID 6: 87a, TERMINAL 6 SIZE: 6.3mm x 0.8mm, CAP COMPOSITION: Plastic, CONTACT CONFIG: Single Pole, Double Throw (SPDT), DUTY CYCLE: Continuous, INCLUDES: Change Over Contacts, NO OF TERMINALS: 5, PLATED TERMINALS: FALSE, RESISTANCE TYPE: Resistor, RESISTANCE: 75 ohms
-Fits Bosch: 0332209159, 0332209159441, 0332209159BLK; Hella: 49401, 87404, 87423, 933332291, 933332297, H15991151, H41388101, H71004011; J&N Electrical Products: 240-01088

Replaces Part Number(s): HLA-933332291

Additional Information:

VOLT: 12, AMPS: 40, TERMINAL ID 2: 30, TERMINAL 2 SIZE: 6.3mm x 0.8mm, TERMINAL ID 3: 85, TERMINAL 3 SIZE: 6.3mm x 0.8mm, TERMINAL ID 4: 86, TERMINAL 4 SIZE: 6.3mm x 0.8mm, TERMINAL ID 5: 87, TERMINAL 5 SIZE: 6.3mm x 0.8mm, TERMINAL ID 6: 87a, TERMINAL 6 SIZE: 6.3mm x 0.8mm, CAP COMPOSITION: Plastic, CONTACT CONFIG: Single Pole, Double Throw (SPDT), DUTY CYCLE: Continuous, INCLUDES: Change Over Contacts, NO OF TERMINALS: 5, PLATED TERMINALS: FALSE, RESISTANCE TYPE: Resistor, RESISTANCE: 75 ohms, Bosch: 0332209159, 0332209159441, 0332209159BLK; Hella: 49401, 87404, 87423, 933332291, 933332297, H15991151, H41388101, H71004011; J&N Electrical Products: 240-01088

Reference Numbers:

HLA-933332291
