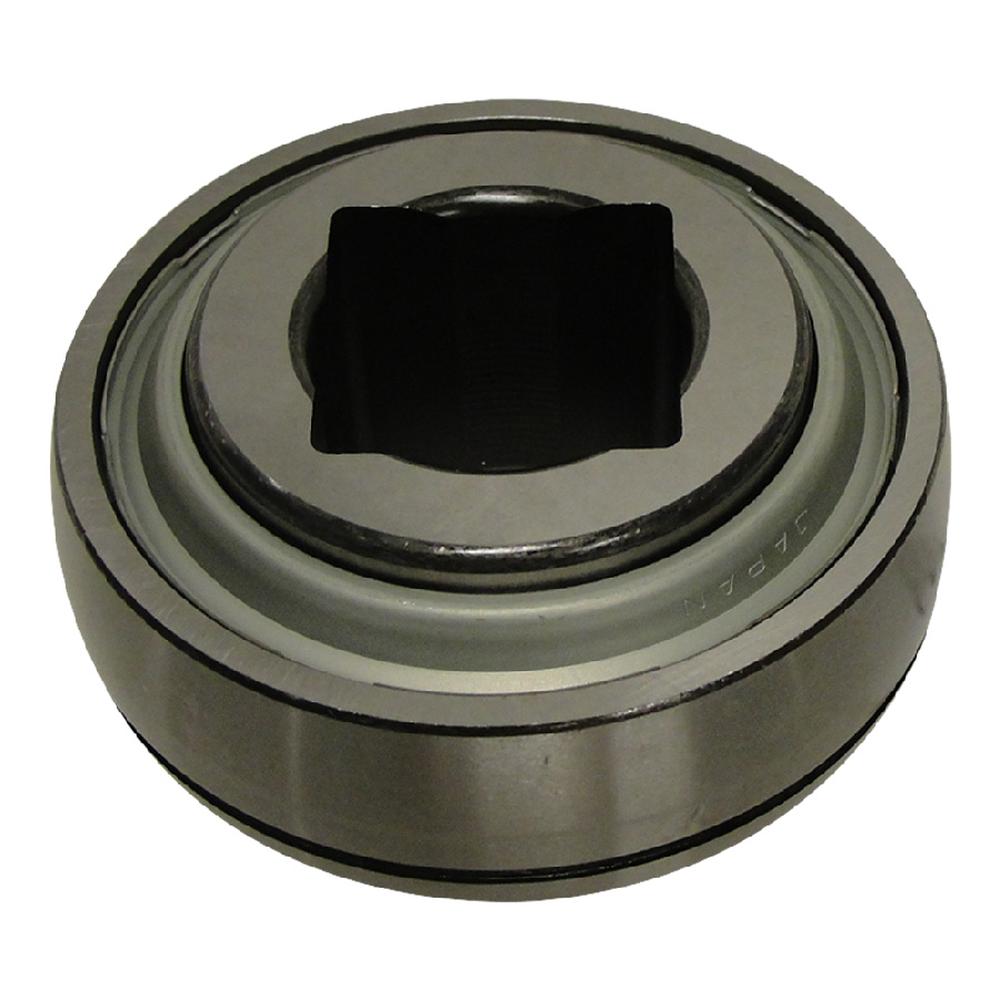

HIB10-0240 Bearing for Universal Products

One New Aftermarket Replacement Disc Harrow Bearing - 1-1/8" Square Bore, Spherical OD (GW208PPB5 / DS208TTR5)

This heavy-duty agricultural disc harrow bearing features a 1-1/8" square bore with a crowned (spherical) outer diameter, triple lip seals for protection in corrosive field environments, and a relubricatable design. It is a direct-fit replacement Fits John Deere disc harrow applications and is compatible with White equipment using part number 213778B. The triple lip seal is a one-piece shroud cover with three molded contact seals, keeping contaminants out and grease in during demanding field operation.

Specifications

• Bore: 1-1/8" (28.58 mm) - Square
• Outer Diameter: 3.150" (80 mm) - Spherical/Crowned
• Outer Ring Width: 1.438" (36.5 mm)
• Inner Ring Width: 0.827" (21 mm)
• Seal Type: Triple lip seal (relubricatable)
• Bearing Type: Deep groove radial ball bearing
• Pre-lubricated: Yes

Compatible Models

Fits John Deere Disc Harrows: 100, 110

White: Applications using part number 213778B

Amco: Applications using part number G10272

Replaces Part Number(s):

HIB10-0240, GW208PPB5, DS208TTR5, A20175, 213778B, 1AS08-1-5/32, 18SG7-2E08E3

Aftermarket Interchange Numbers

BCA/Federal Mogul: DS208TTR5, DS208TTR21 | Fafnir/Torrington: GW208PPB5 | Link Belt: 18SG7-2E08E3 | NTN: 1AS08-1-5/32 | NDH: RAS4508BJ | GSQ-208-102A | Amco: G10272 | Fits John Deere OEM: A20175

New aftermarket replacement part - not remanufactured, not used.
