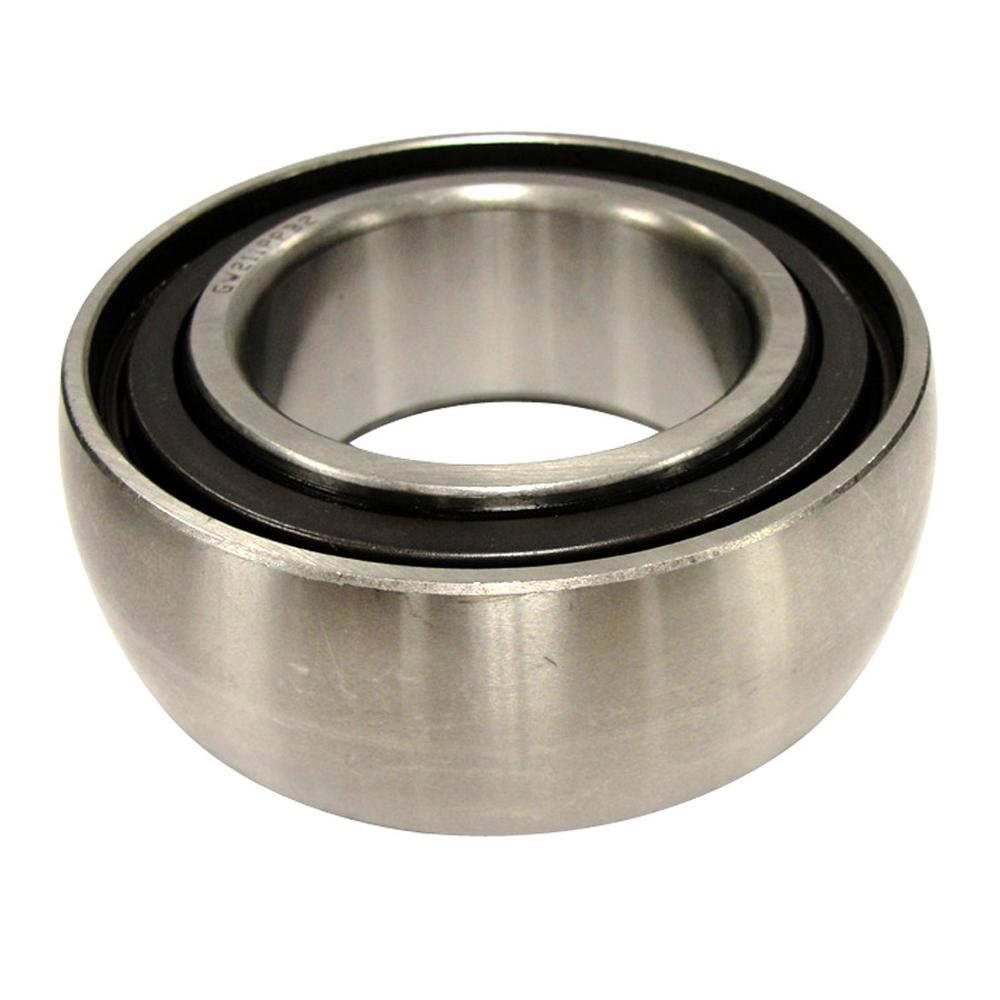

GW211PPB2-IMP Bearing for Universal Products

One New Aftermarket Replacement Disc Harrow Bearing - GW211PPB2 Agricultural Ball Bearing

This heavy-duty agricultural disc harrow bearing features a 2-3/16" round bore and spherical outer diameter, designed for use on disc harrows and other tillage implements. It is a relubricable bearing fitted with triple lip seals to protect against dirt, moisture, and corrosive field environments. The bearing is a direct aftermarket replacement for OEM numbers from Fafnir/Torrington, BCA/Federal Mogul, NTN, Link-Belt, and Wil-Rich, making it one of the most widely interchangeable disc harrow bearings in agricultural tillage applications.

Specifications

• Bore: 2.188" (2-3/16") Round
• Outside Diameter: 100mm (3.937") Spherical
• Inner Ring Width: 1.3125"
• Outer Ring Width: 1.3125"
• Radial Dynamic Load Capacity: 10,800 lbf
• Radial Static Load Capacity: 6,570 lbf
• Seal Type: Triple lip seals (both sides)
• Lubrication: Relubricable (drilled groove for grease fitting)
• Weight: approx. 2.62 lbs

Compatible Equipment

This bearing is a standard 2-3/16" round bore disc harrow bearing used across a wide range of agricultural tillage equipment brands and models, including disc harrows, disc gangs, and tillage implements from Fits Case IH, Krause, Wil-Rich, Landoll, Sunflower, and other manufacturers using the GW211PPB2 / DS211TTR2 bearing specification.

Replaces Part Number(s):

GW211PPB2, GW211PPB2-IMP, DS211TTR2, DS211TTR2-BEARING, 3AC11-2-3/16D1, 3AC11-2-3/16D1-BEARING, 35RG3-211E3, 35RG3-211E3-BEARING, T57559, T57559-BEARING, T57559-PLUG, 24022, 24022-BEARING, 24022-BEARINGS, HIB10-0180, 851-SMAGW211PPB2, 308-GW211PPB2, 2631-DS211TTR2

Aftermarket Interchange Numbers

Fafnir/Torrington: GW211PPB2 | BCA/Federal Mogul: DS211TTR2 | NTN: 3AC11-2-3/16D1 | Link-Belt: 35RG3-211E3 | Wil-Rich: 24022 | Fits Case IH OEM: T57559

New aftermarket replacement part - not remanufactured, not used.
