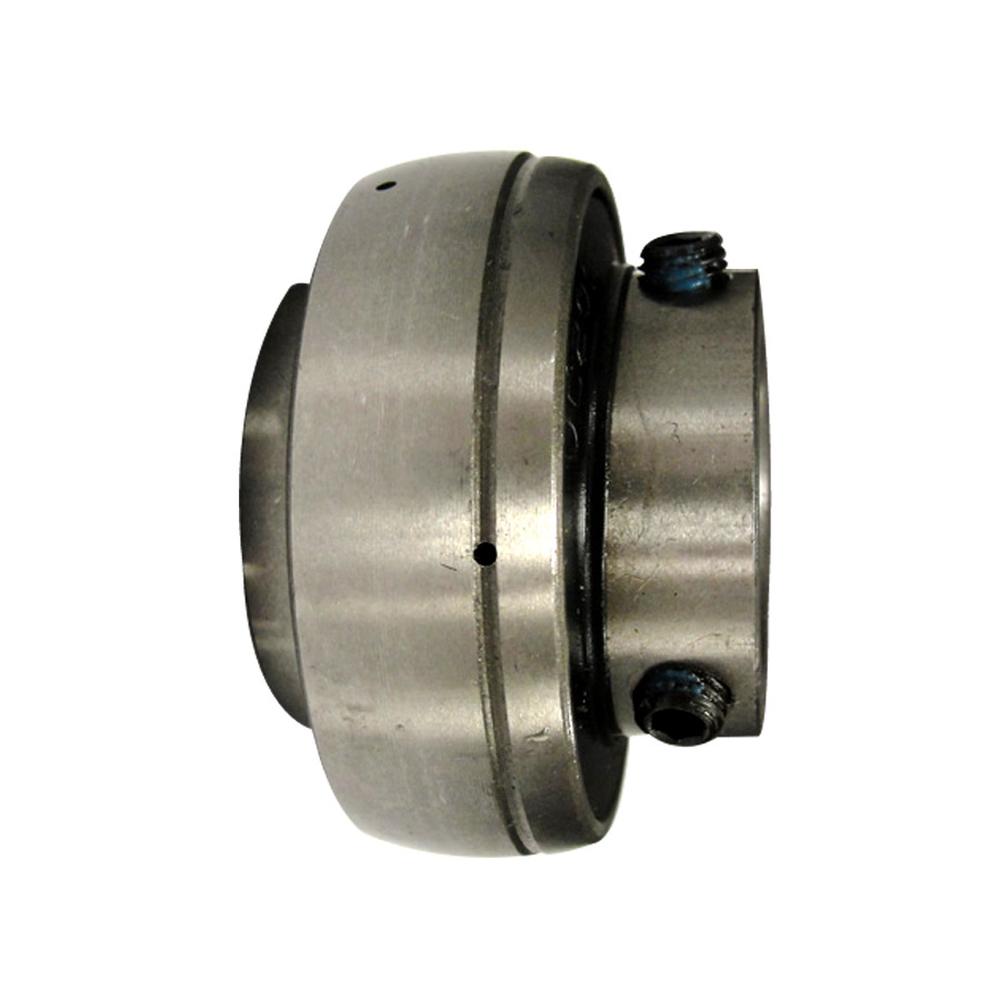

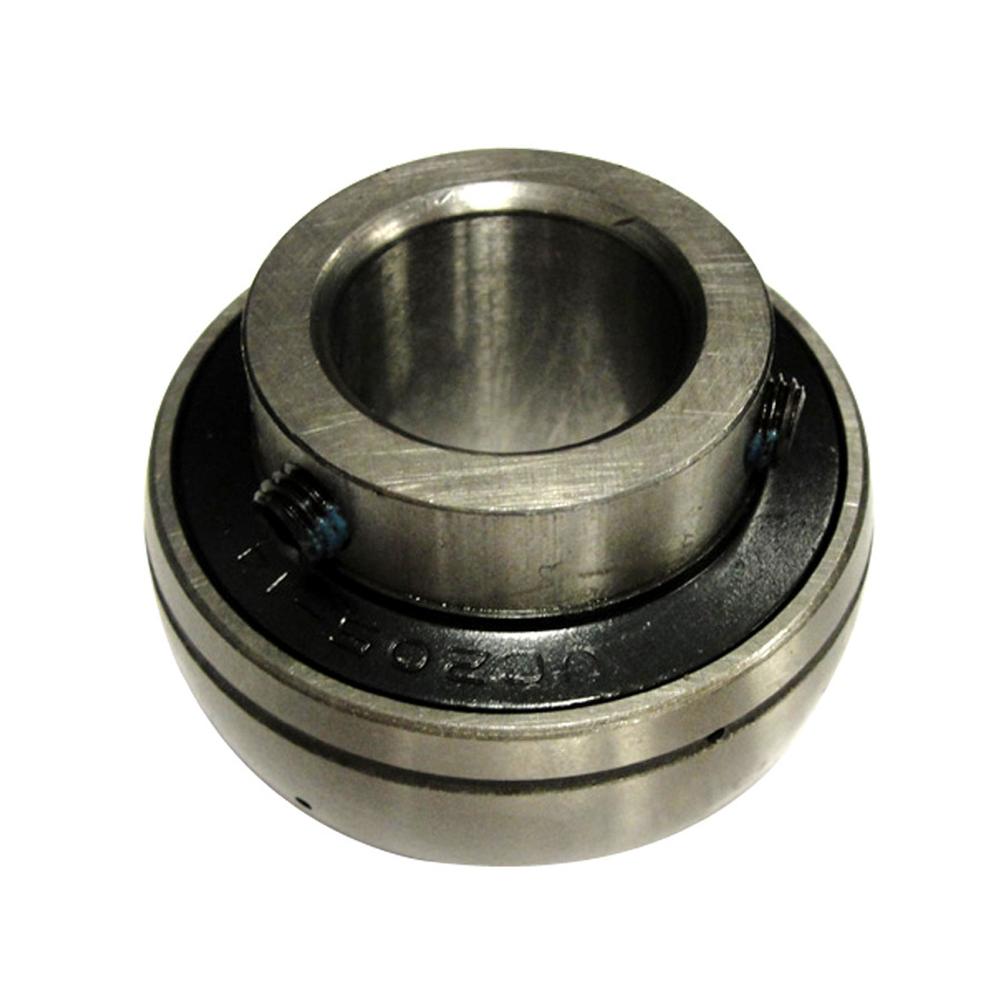

UC205-14 Bearing for Universal Products
UC205-14 Bearing for Universal Products
Couldn't load pickup availability
One New Aftermarket Replacement UC205-14 Insert Ball Bearing - Universal Fit for Agricultural, Construction, and Industrial Equipment
The UC205-14 is a wide inner ring insert ball bearing designed to mount onto a 7/8" shaft using two set screws. It fits into a matching spherical bore housing and handles combined radial and axial loads, making it a standard replacement bearing for shaft support points on agricultural machinery, conveyor systems, construction equipment, and related applications.
Specifications
- Bearing Number: UC205-14
- Type: Insert Ball Bearing (UC200 Series), Set Screw Locking
- Bore (Inner Diameter): 7/8" (0.875")
- Outer Diameter: 52mm
- Inner Ring Width: 34.1mm
- Outer Ring Width: 16mm
- Locking Method: Two set screws on extended inner ring
- Features: Wide inner ring, spherical OD for self-aligning, pre-lubricated with grease, relubricatable, anti-rotation pin on OD
Compatible Applications
The UC205-14 is a universal-fit industry-standard insert bearing used across a broad range of equipment. Common applications include agricultural machinery (planters, combines, tillage equipment), conveyor systems, construction equipment, forestry machinery, fans, packaging equipment, and general industrial shaft support assemblies. Verify housing bore compatibility (52mm spherical seat) before ordering.
Replaces Part Number(s):
UC205-14
Aftermarket Interchange Numbers
GY1014KRRB, VS-214, INS-SC-014, UC205-014D1, YAR205-014, UG214NL, 2-7/8 INSERT, LRS114, 479205-014, SC014FF, 2-014, 123333
New aftermarket replacement part - not remanufactured, not used.
