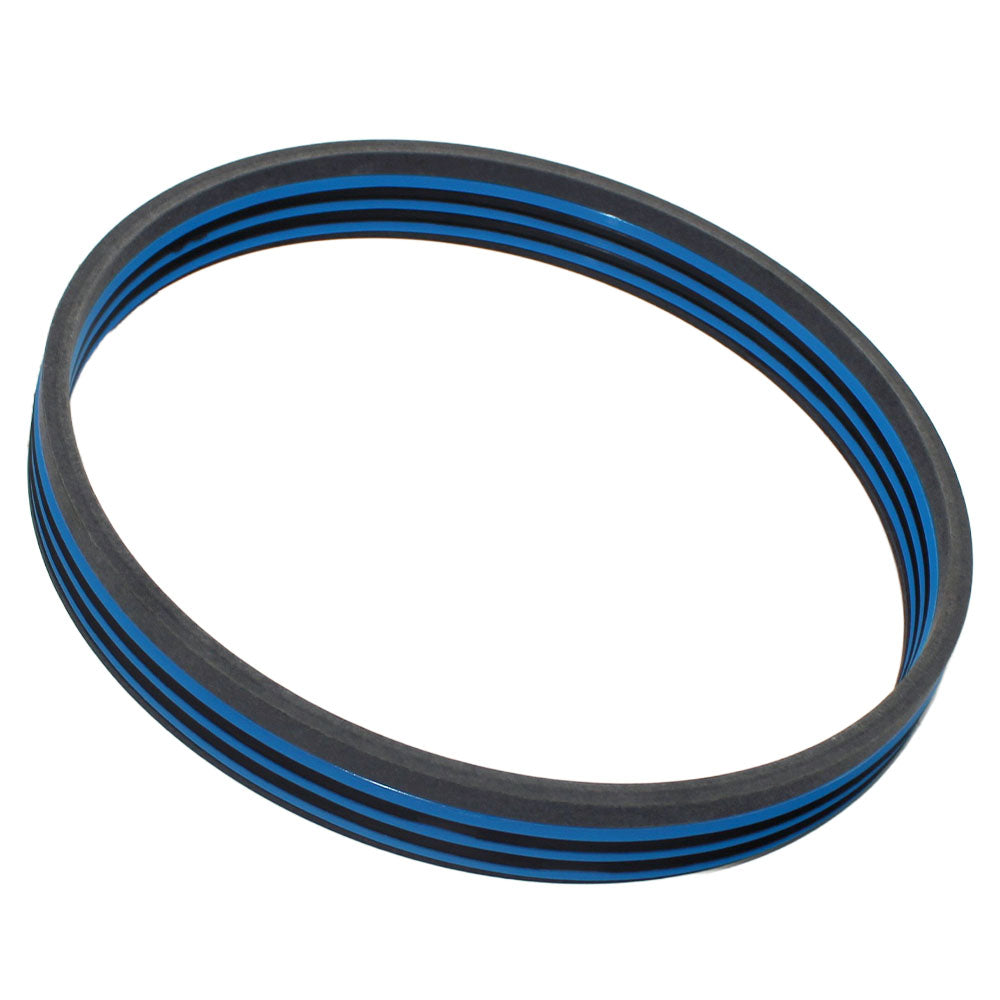

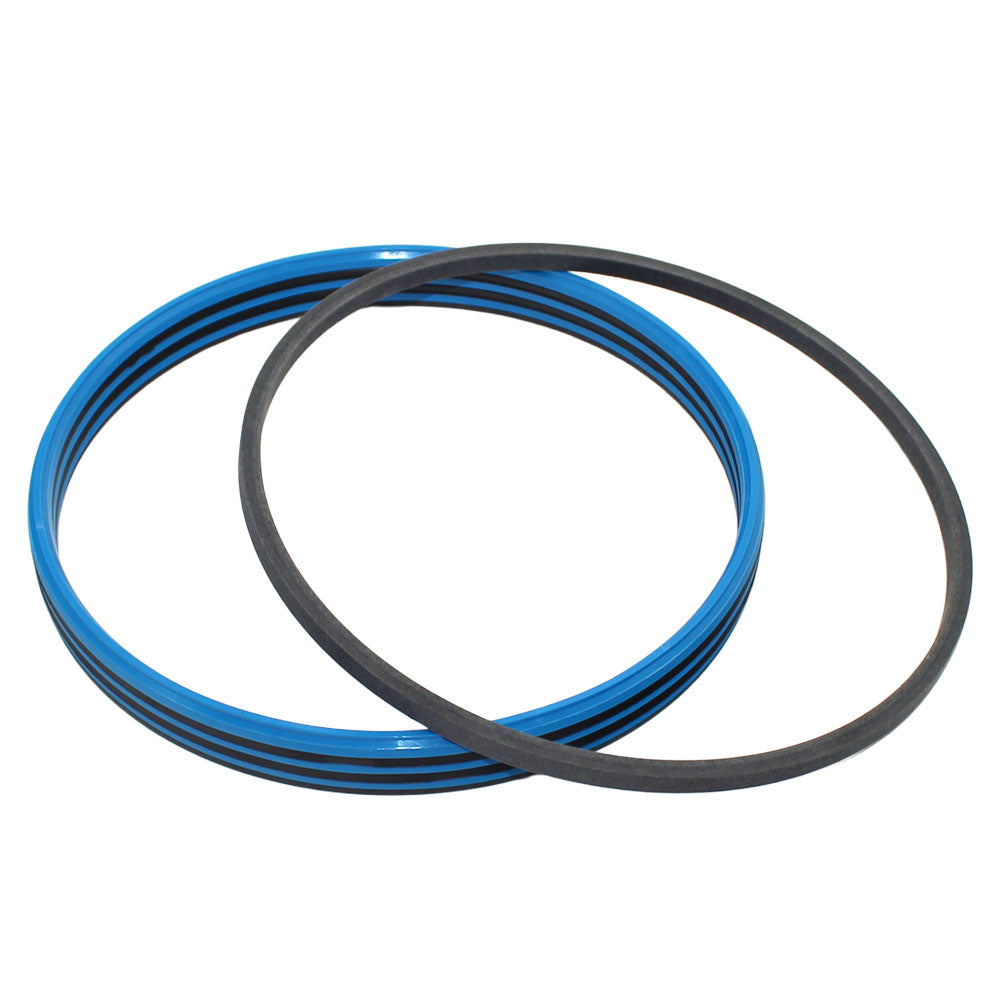

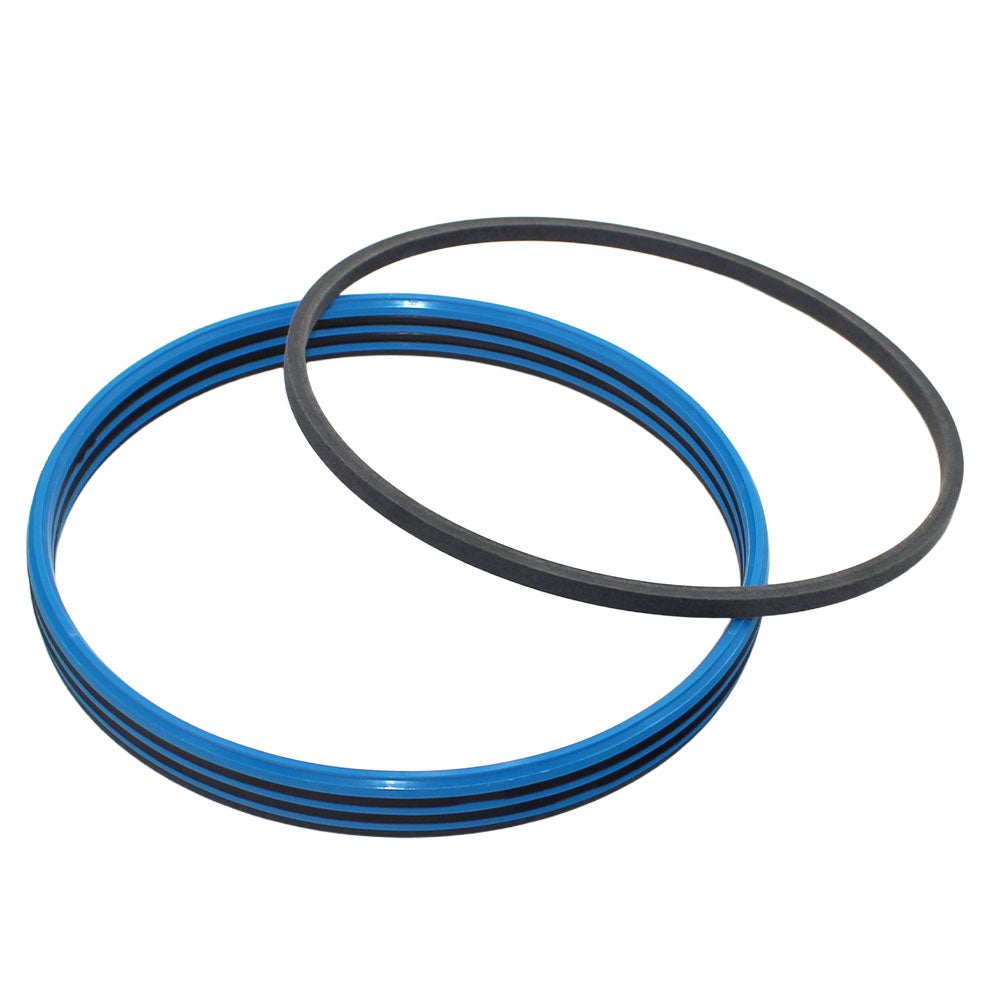

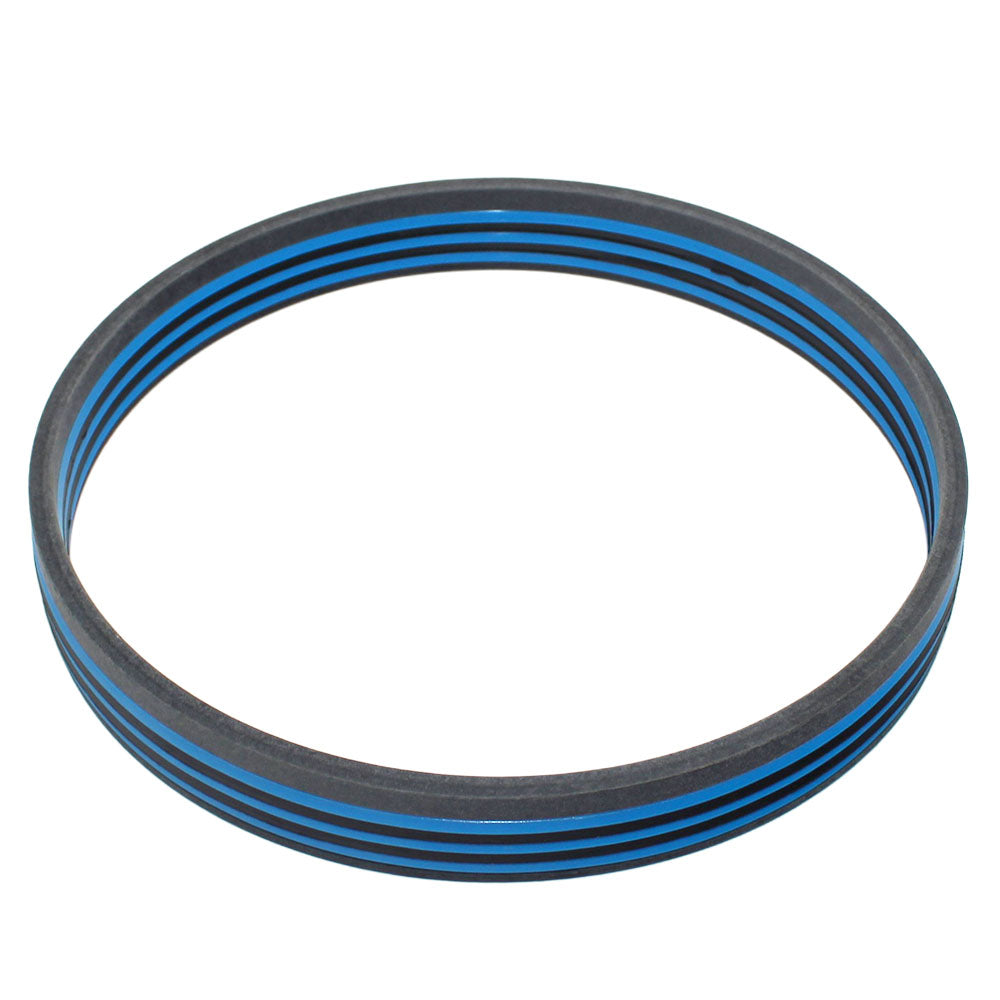

HDLV-1742-900 STANDARD VEE PACKING

Name: HDLV-1742-900 STANDARD VEE PACKING
SKU: HDLV-1742-900-HER
Price: 180.0 USD
Availability: OutOfStock

HDLV-1742-900 STANDARD VEE PACKING

£180.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket STANDARD VEE PACKING

Tech Info:
-A Nom ID: 8-1/2
-SKU: HDLV-1742-900
-Weight: 0.39191000 lbs
-A Nom ID: 8-1/2
-B Nom OD: 9
-C Nom Height: 1
-H Groove Diameter: 8.500
-D Groove Width: 1.000
-MATERIAL: HYTREL & NYLON
-TEMPERATURE RANGE: -40° to +220° F
-PRESSURE RANGE: 0 to 6,000 PSI
-SPEED: 1.5 FT/SEC
-PART NUMBER: (Prefix) - (# of vees) - (OD) - (Bearing Height)
-D2 Base Groove Width: .377
-J Bore Diameter: 9.000

Additional Information:

Nom ID - 8 1/2" Nom OD - 9" Nom Height - 1" Groove Diameter - 8.5" Groove Width - 1" Bore - 9" Base Groove Width - 0.377" Bearing Groove Diameter - 8.125" Temperature Range - -40° TO +220°F Pressure Range - 0 TO 6,000 PSI Speed - 1.5 FT /SEC Material - Hytrel and Nylon
