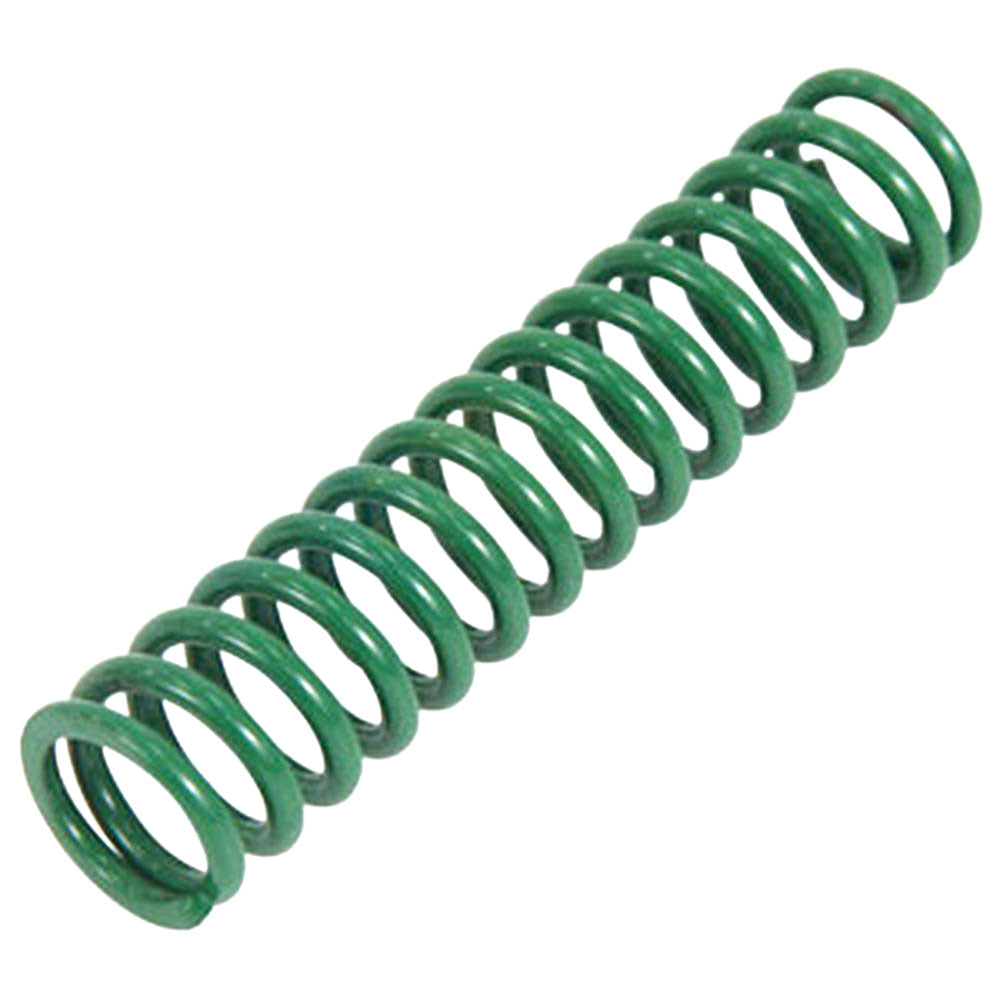

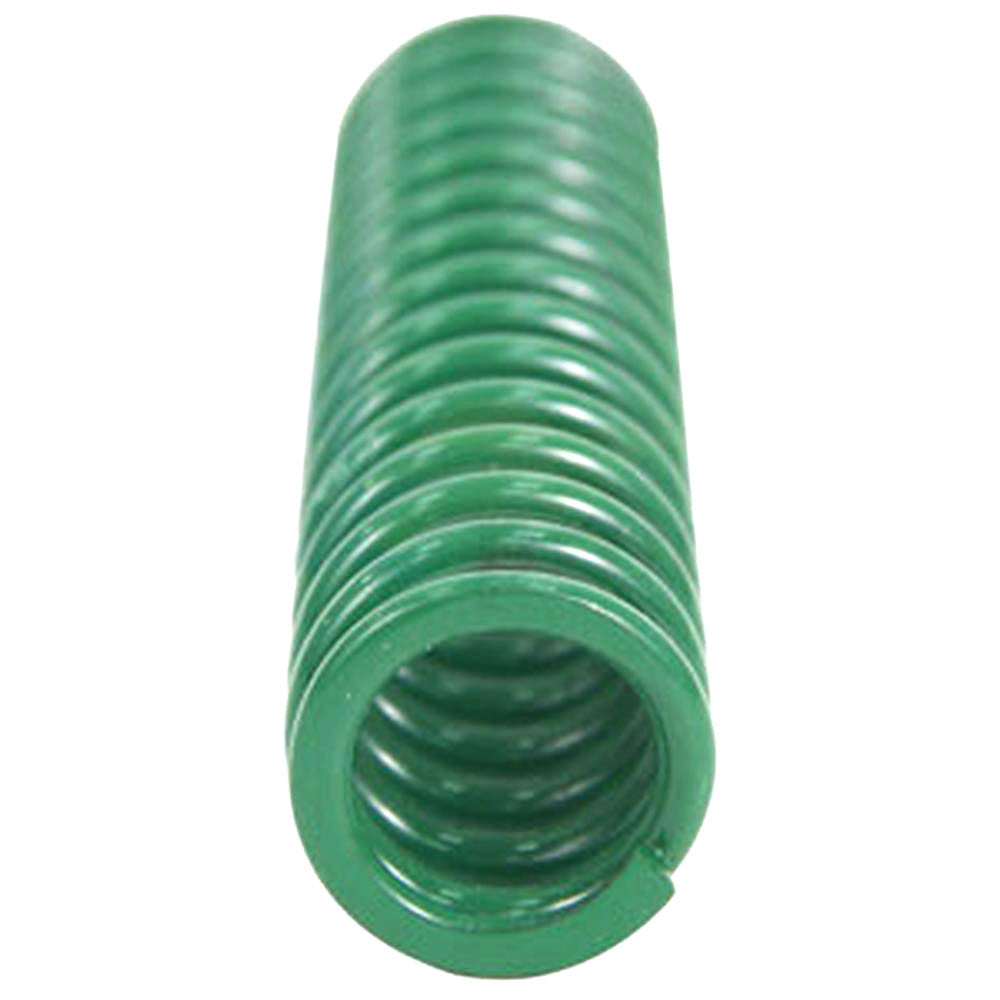

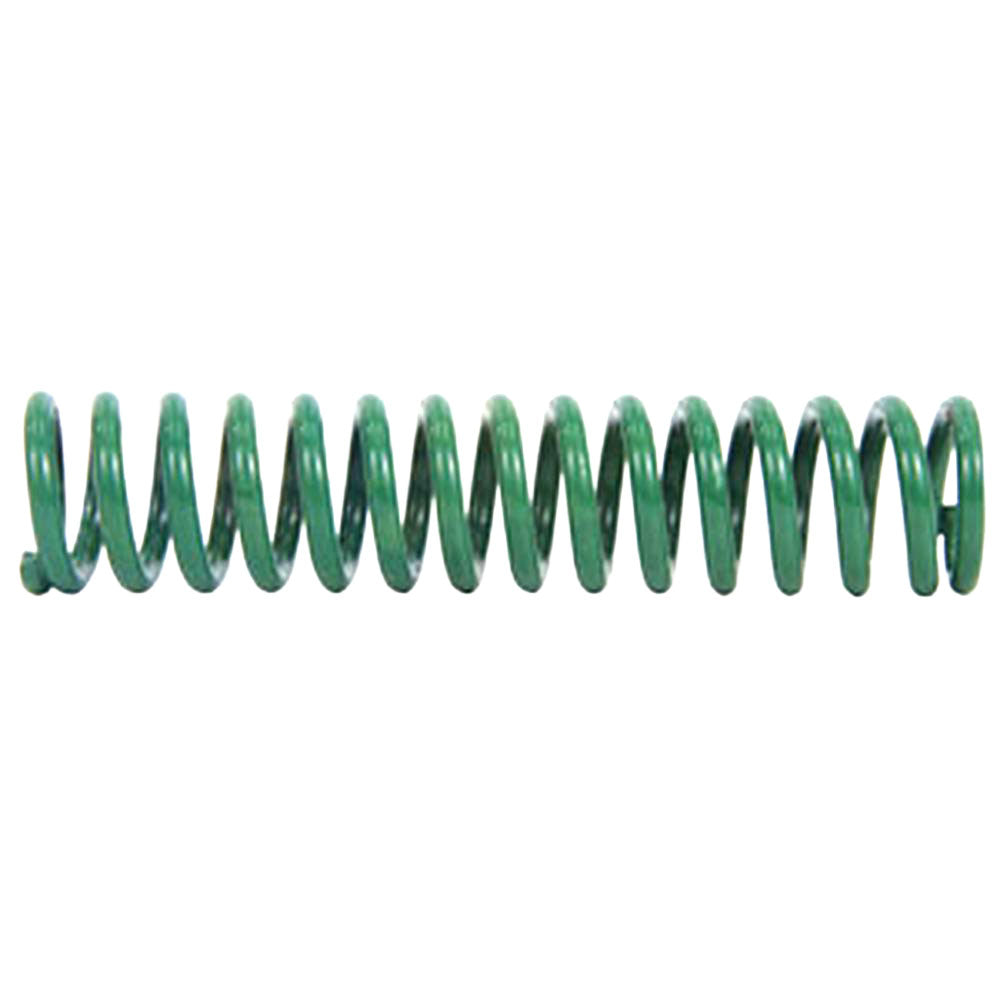

H93399 SPRING COMPRESSION

One New Aftermarket Replacement Compression Spring Fits John Deere Combines

This compression spring is a direct aftermarket replacement Fits John Deere OEM part number H93399. Used in the rotary screen and side screen assembly on a wide range of Fits John Deere combines, this spring provides reliable tension and retention for screen components. It features a 2.90 mm (0.114 in) wire diameter, an outer diameter of 19.74 mm (0.777 in), a free length of 91.19 mm (3.59 in), and a spring rate of 62.1 lb/in (10.88 N/mm). Finished with a phosphate coating for corrosion resistance.

Specifications

• Wire Diameter: 2.90 mm (0.114 in)
• Outer Diameter: 19.74 mm (0.777 in)
• Free Length: 91.19 mm (3.59 in)
• Spring Rate: 62.1 lb/in (10.88 N/mm)
• Finish: Phosphate coated
• Weight: approx. 0.10 lb

Compatible Models

Fits John Deere (Fits JD) Combines: 1450, 1470, 1550, 1570, 6620, 6622, 7700, 7720, 7721, 8820, 9400, 9410, 9450, 9470 STS, 9500, 9501, 9510, 9540, 9550, 9560, 9560 STS, 9570 STS, 9580, 9600, 9610, 9640, 9650, 9650 STS, 9660, 9660 STS, 9670, 9670 STS, 9680, 9750 STS, 9760 STS, 9770 STS, 9780, 9860 STS, C670, CTS, CTSII, S550, S560, S670, S670HM, S680, S680HM, S685, S685HM, S690, S690HM, T550, T560, T660

Fits John Deere Hay Equipment: 3430, 3830

Replaces Part Number(s):

H93399, A-H93399, A-H93399-AI

New aftermarket replacement part - not remanufactured, not used.
