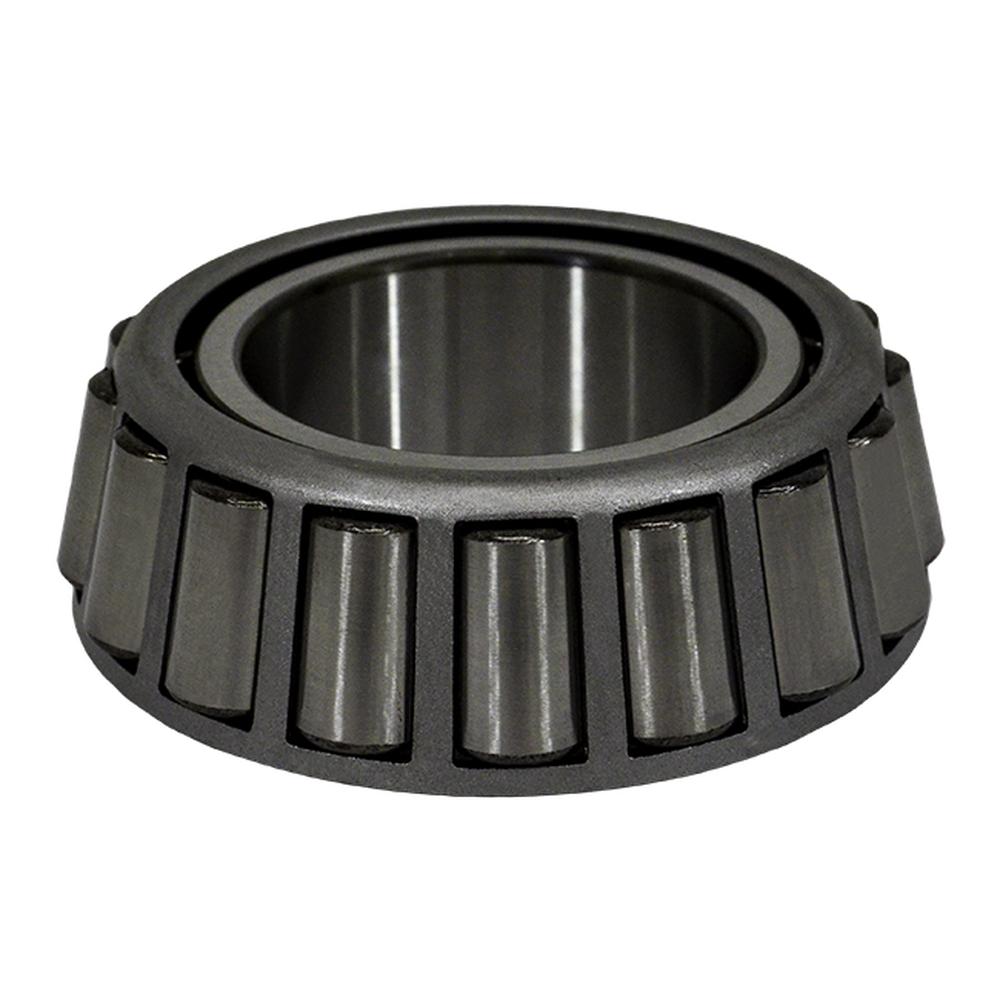

H414249 Bearing Cone Fits NTN

One New Aftermarket Replacement H414249 Bearing Cone for NTN

This H414249 is a single-row tapered roller bearing cone (inner ring assembly) manufactured to NTN specifications. The cone serves as the inner race of a tapered roller bearing assembly, handling both radial and axial (thrust) loads, and is typically mounted in opposing pairs on a shaft. Common applications include construction machinery, industrial gearboxes, drivetrain assemblies, and heavy-duty equipment where high load capacity and precise fit are required. The matching cup (outer ring) is part number H414210.

Specifications

• Bearing Type: Single-Row Tapered Roller Bearing Cone
• Series: H410000
• Bore (Inside Diameter): 2.8125 in (71.44 mm)
• Width: 1.625 in (41.28 mm)
• Fillet Radius: 0.14 in (3.60 mm)
• Material: Fits Case Carburized Steel
• Weight: 3.936 lb

Compatible Applications

This is a standard industrial bearing used across construction equipment, agricultural machinery, heavy-duty trucks, industrial gearboxes, and drivetrain applications. Refer to your equipment's service manual to confirm this bearing number before ordering.

Replaces Part Number(s):

H414249

Aftermarket Interchange Numbers

NTN H414249 | Timken H414249 | Precision H414249 | AXIS H414249 | World American H414249 | Assembly: H414249-H414210 (cone and cup set)

New aftermarket replacement part - not remanufactured, not used.
