Fits AYP Fits Sears Fits Husqvarna Switch PTO 8 Terminal BLK Part# 582107601

Fits AYP Fits Sears Fits Husqvarna Switch PTO 8 Terminal BLK Part# 582107601

£12.00 GBP
£12.00 GBP
Sale Sold out
Shipping calculated at checkout.

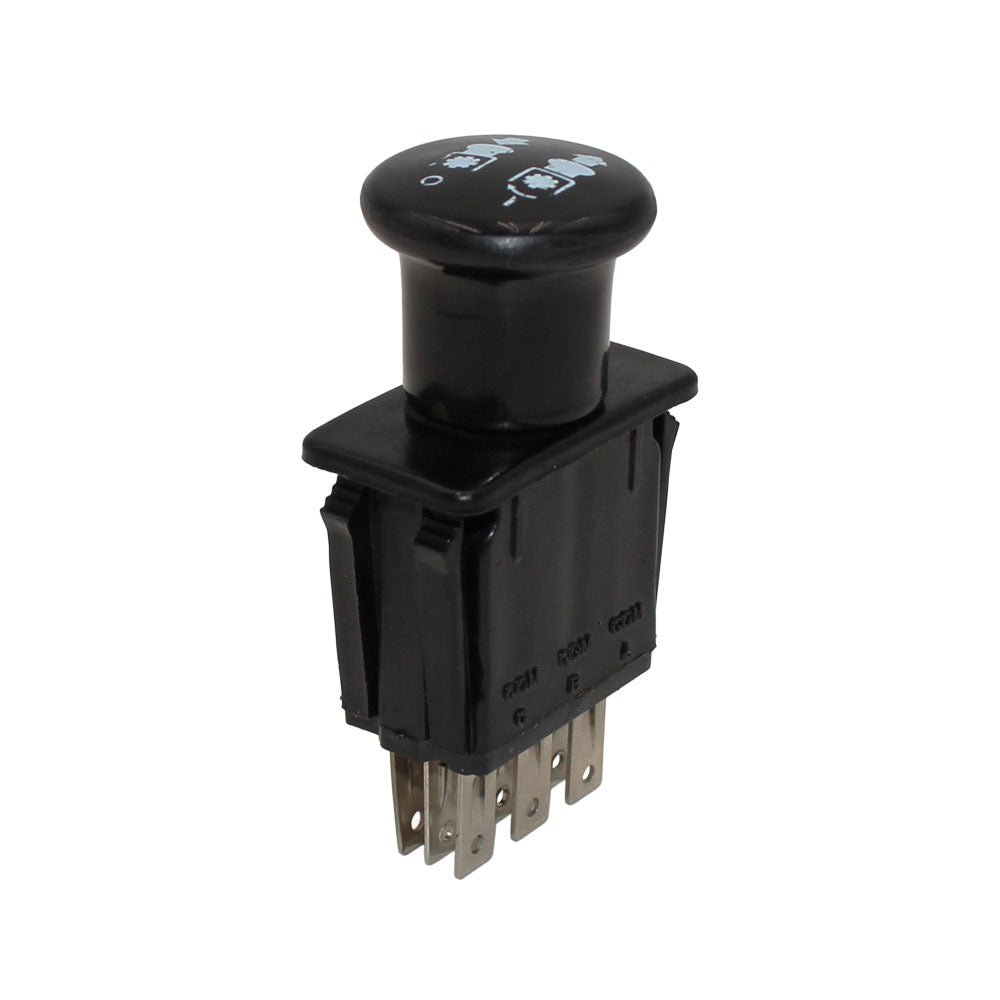

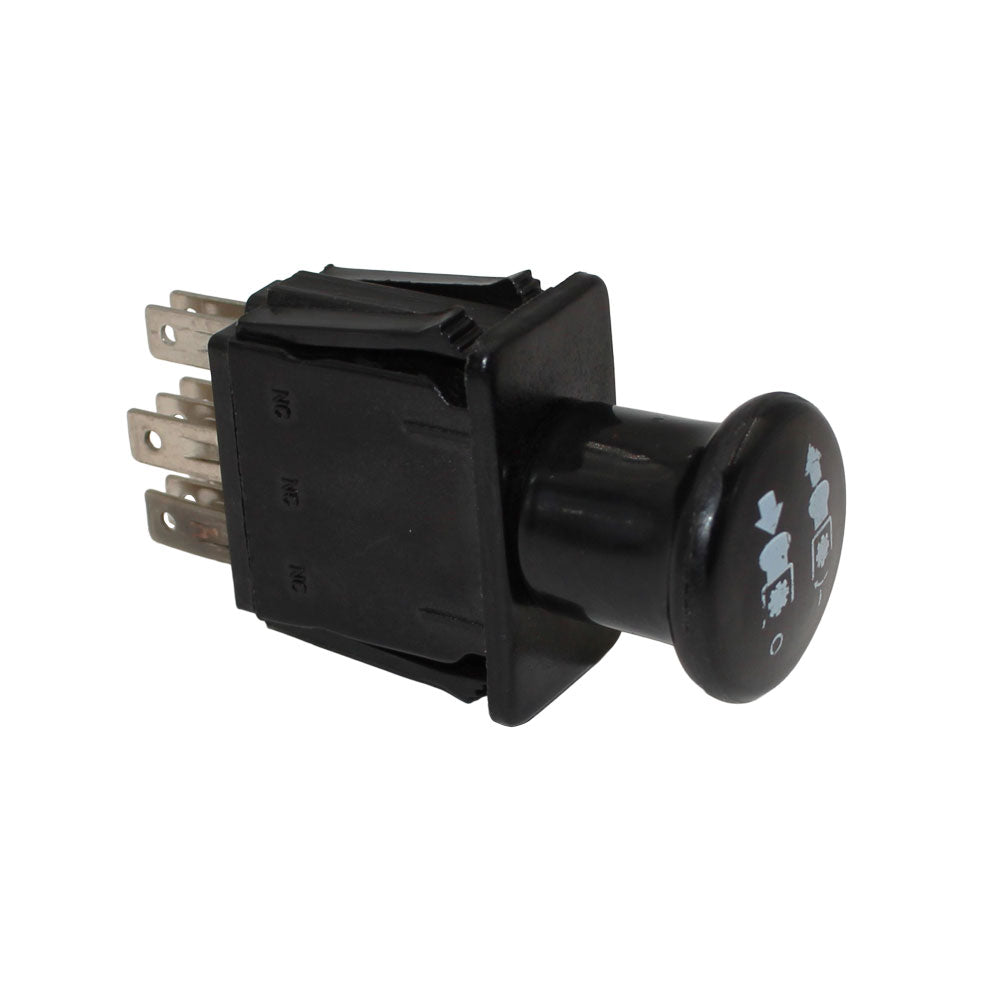

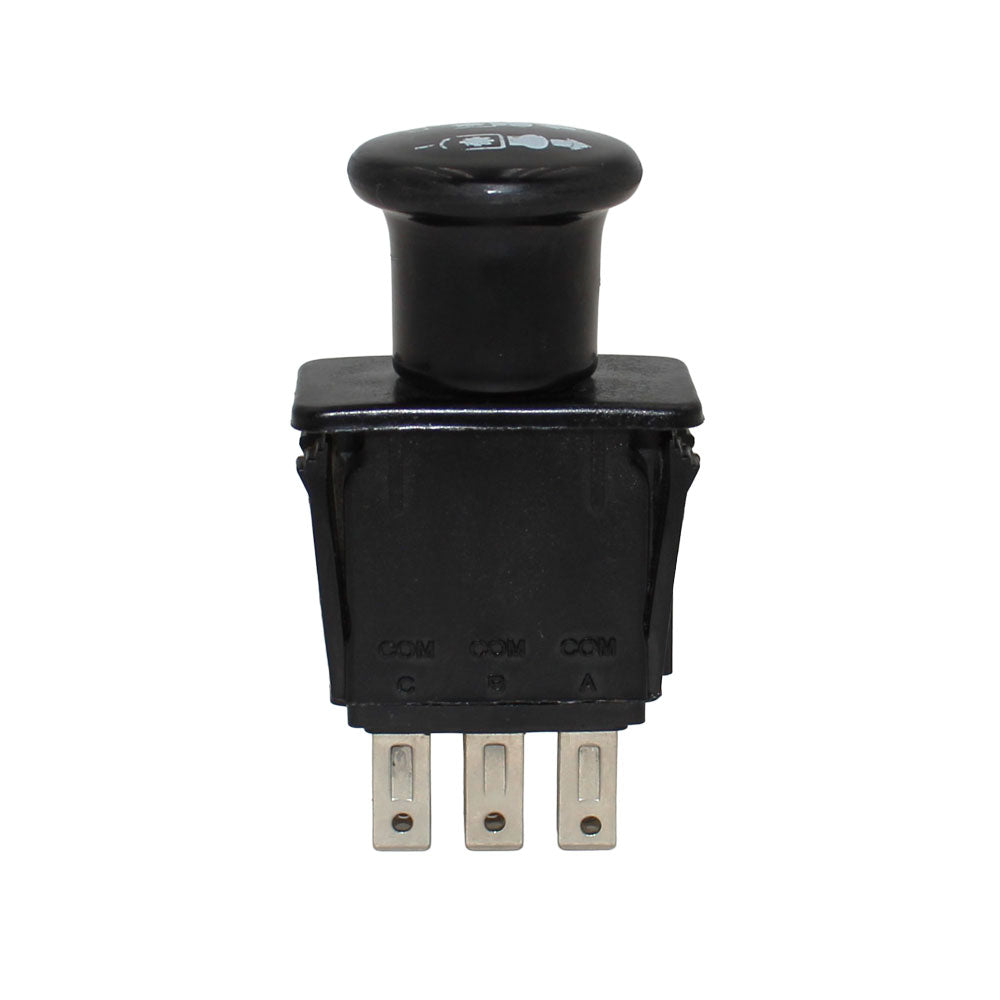

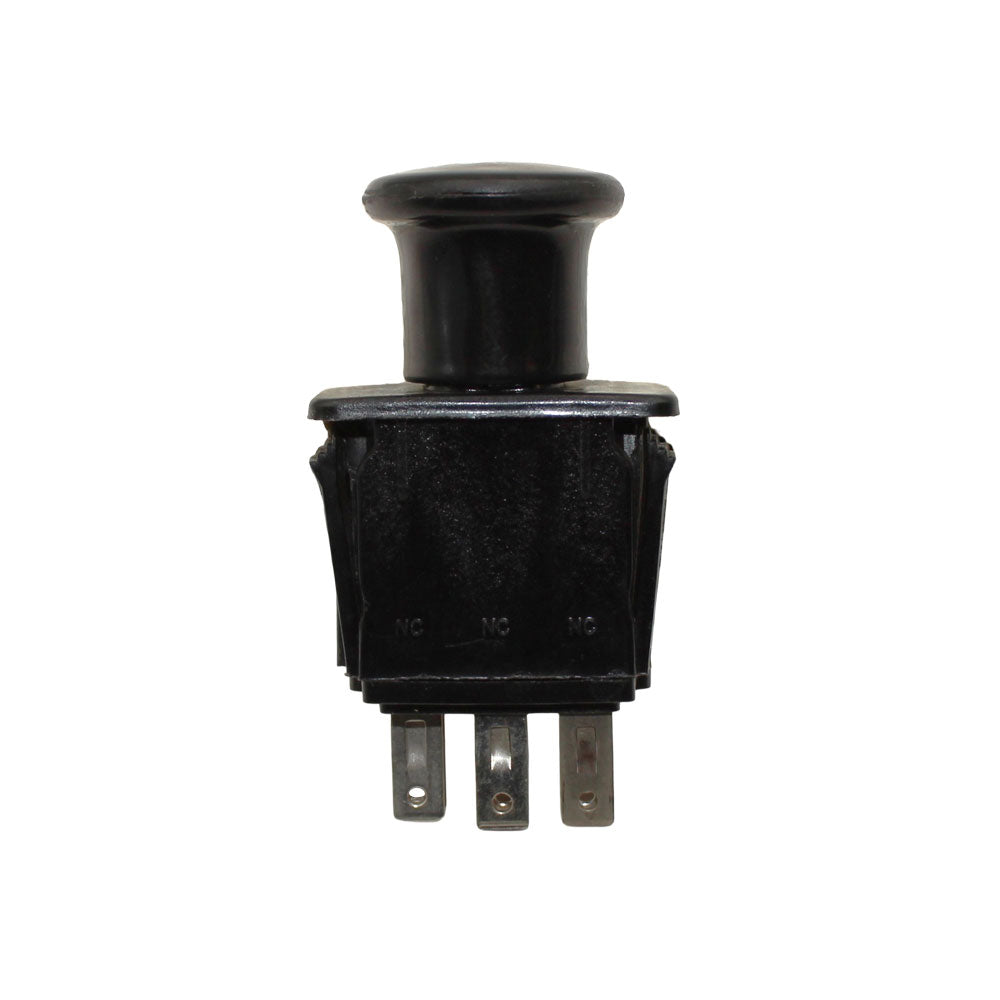

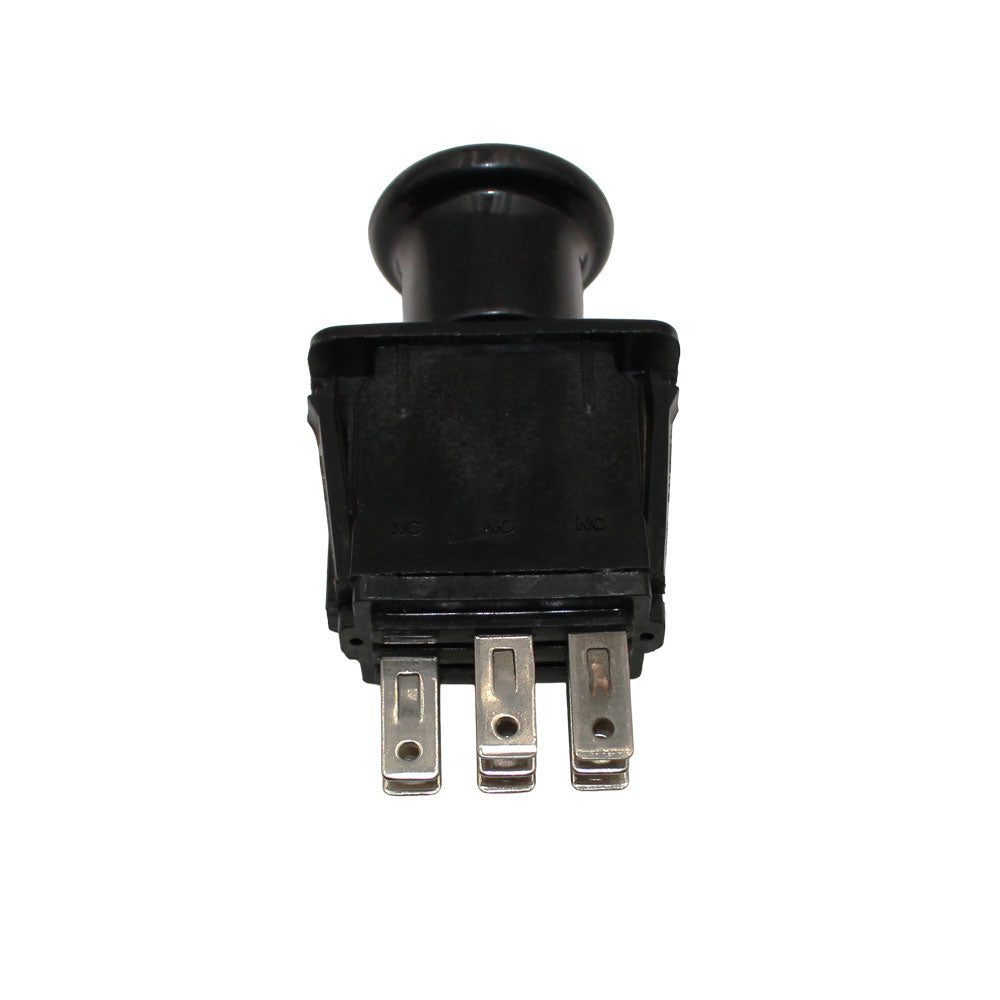

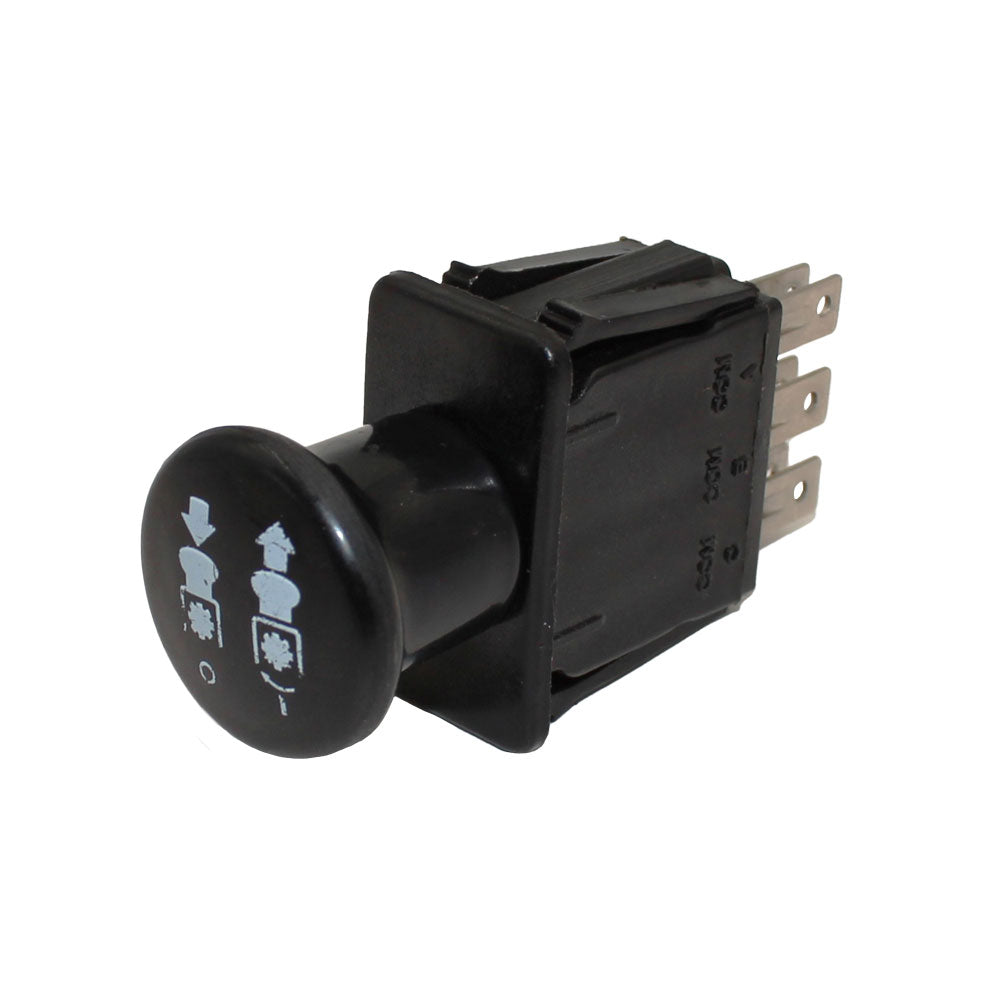

One New Aftermarket Replacement PTO Switch for AYP, Husqvarna, Scag, Ferris, Simplicity, Bad Boy, and More

This multi-application 8-terminal push/pull PTO (Power Take-Off) blade clutch switch controls engagement and disengagement of the mower deck on a wide range of riding mowers and zero-turn mowers. It features a snap-in mount design with a black knob and is rated for 2-position, non-momentary operation -- making it a direct plug-and-play replacement for numerous OEM numbers across many major brands.

Specifications

  • Type: Push/Pull, 2-Position, Non-Momentary
  • Terminals: 8
  • Knob Color: Black
  • Mount Type: Snap-In
  • Operating Voltage Range: 9-16V DC
  • Operating Current: 5 Amps
  • Contact Resistance: 50 mΩ rated load
  • Electrical Life: 40,000 cycles (inductive); 1,000,000 cycles (resistive)

Compatible Models

AYP / Husqvarna: BZ34D 968999316, GTH225 954140103A, YTH1542XP, YTH1542XPG, YTH1848XP, YTH1848XPF, YT180 (954000652), LGTH24V54 96048006200, LZ with 52"/60"/72" decks, GTH2548B, YTH2148, GT2254, LGT2554, LGT2654

Husqvarna / Craftsman / Sears: TS148X, TS242, TS242XD, TS248G, TS248XD, TS254XG, TS354, TS354X, TS348D, TS348XD, YTA24V48, YT42LS, YT42DXLS, YT46LS, YT48XLS, YT48DXLS, YTH20V46, YTH24K48, YTH24K48D, GT52XLS, LGT48DXL, Z142, Z146, Z242E, Z242F, Z246, Z248F, Z254, Z254F, MZ48, MZ54, MZ61, MZT52, MZT61

Scag: Cheetah, Freedom Z, Turf Tiger, Tiger Cat, Tiger Cat walk-behinds

Hustler: Super Z (2002-2007, 52"/60"/72" decks, excluding XR-7 deck drive units), FasTrak, Raptor

Ferris / Snapper / Simplicity: IS500Z, IS600Z, IS700Z, IS1500Z, IS2000Z, IS3100; Snapper Pro S50XT, S75X, S75XT, S150X, S150XT, S200X, S200XT

Bad Boy: ZT, CZT, MZ, Outlaw series

Great Dane: 52" and 61" Chariot Sr. Rear deck; 48", 52" and 61" Super Surfer Frame

Encore, Dixon, Bunton, Murray, Bush Hog, Yazoo/Kees, Bobcat, Hustler, Bobcat: Various models -- see cross-reference numbers below

Replaces Part Number(s):

523030, 523031, 77146, 776476, 6201316, 94927, 5321694-17, 5321746-51, 5391017-68, 532154959, 582107601, 582107601-A, 582107602, 140404, 146283, 154959, 154959-A, 154963, 169416, 169417, 169417-A, 174651, 174651-A, 174653, 532174651, 532174651-A, 532140404, 532140404-A, 532169417, 539101768, 539101768-A, 539117238, 539120023, 539129512, 1985032, 101768, 35658, 7035658, 7035658YP, D38005, 171348, 1714772, 1716332, 1716332SM, 1722887, 1722887SM, 1713480SM, 50018299, 481687, 483162, 483162-A, 483957, 483957-A, 463034, 22180, 5022180, 5022182, 056-8058-00, PL7994, 5961, CLO70-0156

Aftermarket Interchange Numbers

430-798, 1372643, CVB1SC88, 300680MA, D38005, 52420003, 21546196 (Ariens)

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

YTH1848XP, YTH1542XP, YTH1542XPG, YTH1848XPF, LGTH24V54 96048006200, BZ34D 968999316, YT180 (954000652), Several, GTH225 954140103A

Additional Information:

"Push/Pull" snap-in switch Snap In Mount Position: 2 Terminal: 8

Reference Numbers:

140404, 146283, 154959, 169416, 169417, 174651, 174653, 532174651, 582107601, PL7994, 481687, 483162, 483957, 463034, 1985032, 35658, 7035658, 7035658, 7035658YP, 7035658YP, 6201316, 94927, 22180, 5022180, 5022182, D38005, 523030, 523031, 171348, 1714772, 1716332, 1722887, 1722887SM, 1716332SM, 1713480SM, 056-8058-00, 50018299, 101768, 539101768, 539101768, 539117238, 539120023, 539129512, 5961, 77146, 776476, 5321694-17, 5321746-51, 5391017-68, 532154959, 582107601, 582107602

Product Category:

Lawn & Garden
