6 Volt Generator Repair kit Fits Ford/New Holland

6 Volt Generator Repair kit Fits Ford/New Holland

£14.00 GBP
£14.00 GBP
Sale Sold out
Shipping calculated at checkout.

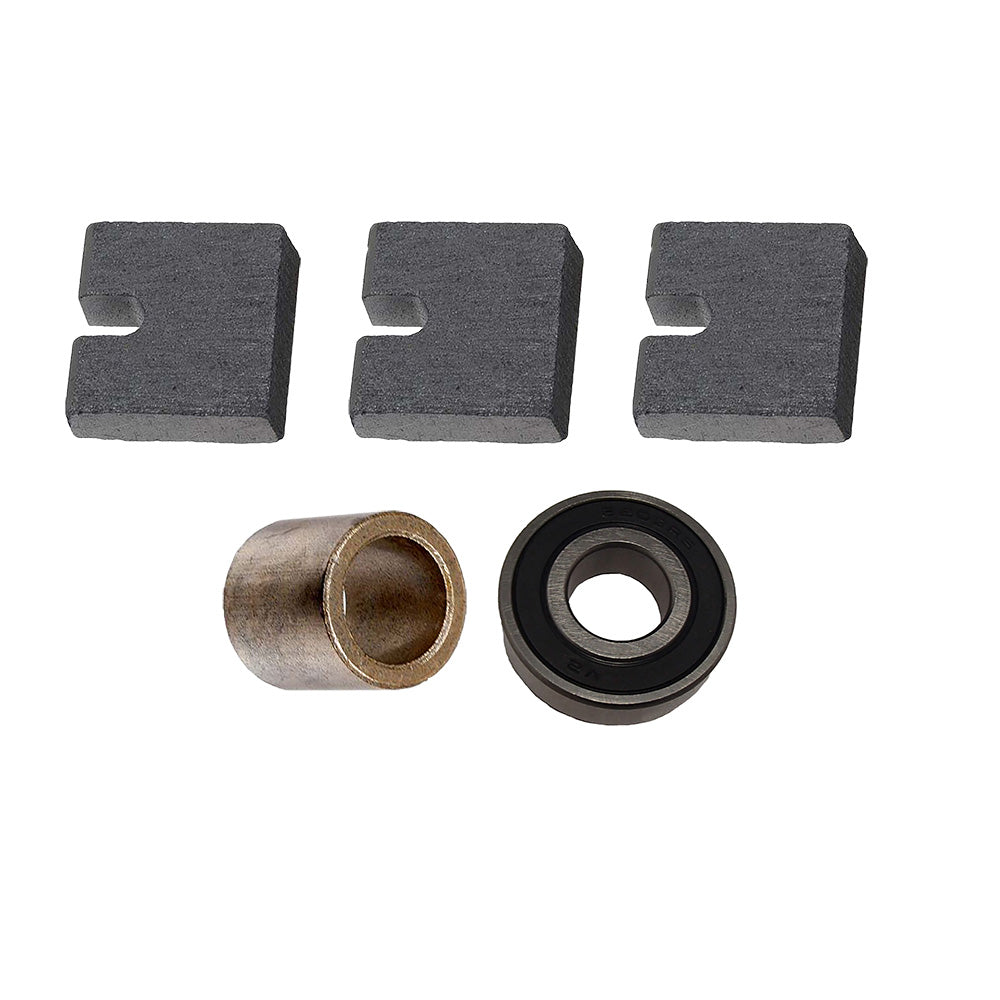

One New Aftermarket 6 Volt Generator Repair kit

Tech Info:
 -Includes:
 -
 -(3) Generator Brush:
 -Height: 0.256" (6.500mm)
 -Length: 0.709" (18 mm)
 -Width: 0.728" (18.500mm)
 -Replaces Part Numbers:
 -1836664, 1880225, 1880998, 1906939, 1964716, 809637, 820225, D709
 -
 -(1) Generator Bushing:
 -ID: 0.563" (14.300 mm)
 -OD: 0.783" (19.900 mm)
 -Width: 0.801" (20.350 mm)
 -Location Used: CE Housing
 -Replaces Part Numbers:
 -1850786, 812823, D1634
 -
 -(1) Sealed Ball Bearing (Econ Version):
 -ID: 0.669" (17mm)
 -OD: 1.575" (40mm)
 -Width: 0.472" (12mm)
 -Bearing Type: Double Sealed
 -Replaces Part Numbers:
 -6203, 6203-2RS, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1C

Models This Part Fits:

1107357, 1951-1955, TO-30

Additional Information:

Includes: (3) Generator Brush: Height: 0.256" (6.500mm) Length: 0.709" (18 mm) Width: 0.728" (18.500mm) Replaces Part Numbers: 1836664, 1880225, 1880998, 1906939, 1964716, 809637, 820225, D709 (1) Generator Bushing: ID: 0.563" (14.300 mm) OD: 0.783" (19.900 mm) Width: 0.801" (20.350 mm) Location Used: CE Housing Replaces Part Numbers: 1850786, 812823, D1634 (1) Sealed Ball Bearing (Econ Version): ID: 0.669" (17mm) OD: 1.575" (40mm) Width: 0.472" (12mm) Bearing Type: Double Sealed Replaces Part Numbers: 6203, 6203-2RS, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1C

Reference Numbers:

1100529, 1100530, 6203-2RS
