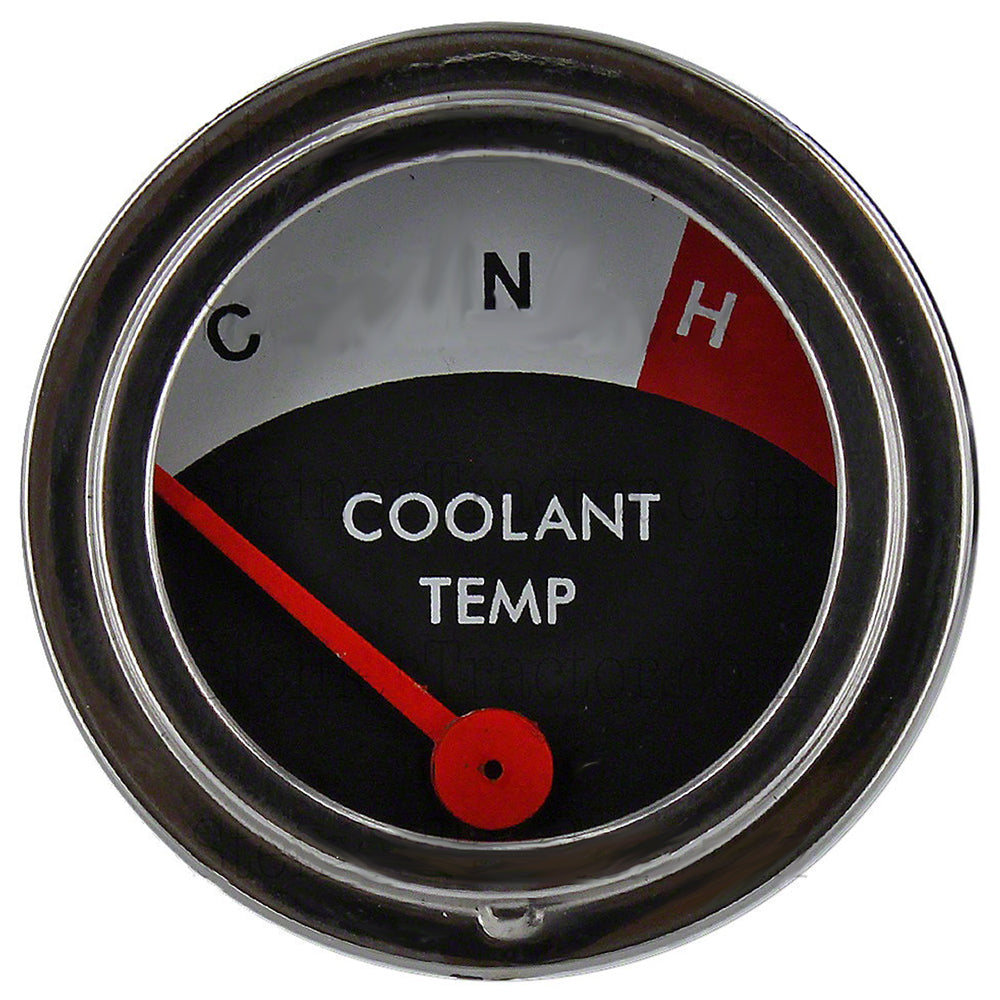

AR36383 Water Temp Gauge Fits John Deere 2510 3020 4020 5010 5020 Tempature

Name: AR36383 Water Temp Gauge Fits John Deere 2510 3020 4020 5010 5020 Tempature
SKU: GAH30-0067
Price: 37.0 USD
Availability: OutOfStock

AR36383 Water Temp Gauge Fits John Deere 2510 3020 4020 5010 5020 Tempature

£37.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Water Temp Gauge

Fits John Deere - [ 2510, 5010 (For Gas & Diesel through 1968) ], 3020 (For gas & Diesel through 1968 (up to SN: 122999)), 4020 (For gas & Diesel through 1968 (up to SN: 200999)), 5020 (For Gas & Diesel through 1968 (up to SN: 024999))

Tech Specs:

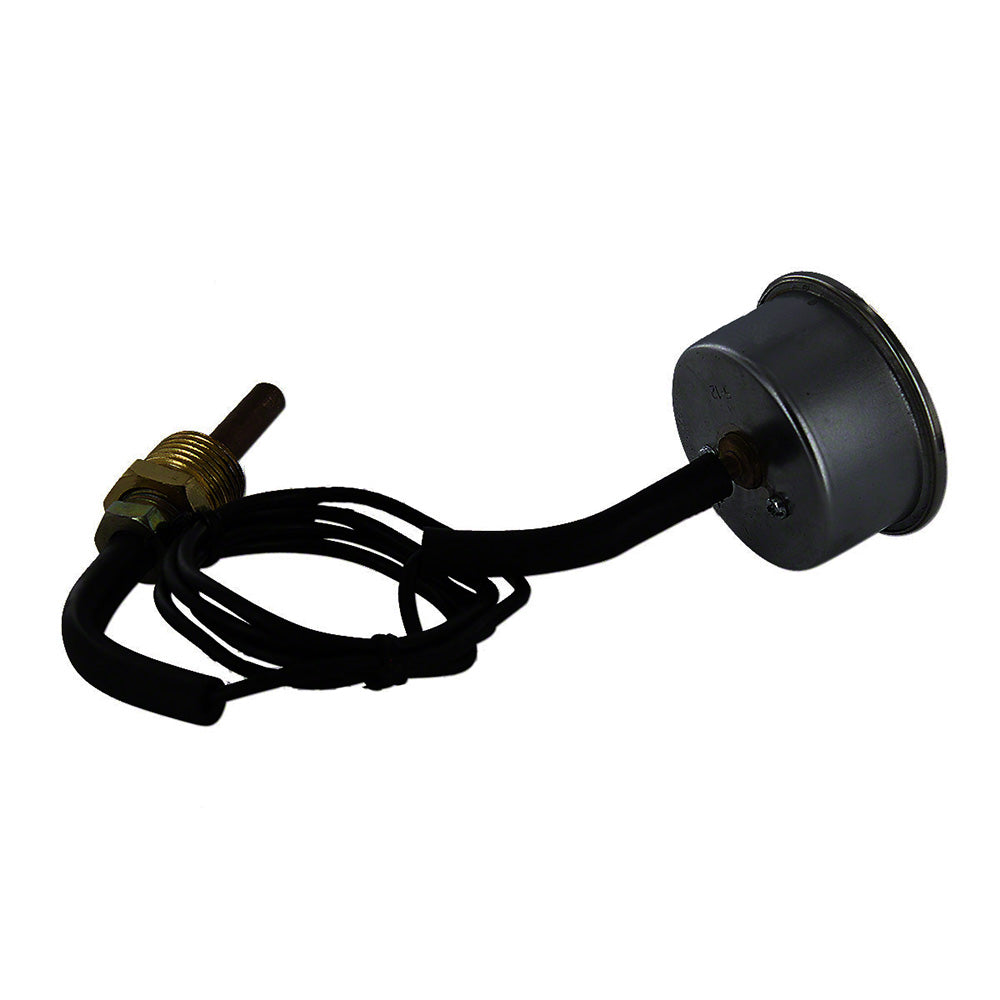

29" capillary tube
Has 5/8-18 UNF end w/ 1/2" NPT pipe bushing
Max temperature is 250 F
Minimum temperature is 100 F
0.950" Housing depth
2.045" Housing O.D
2.324" Bezel O.D.
No provision for fiber optic light.
No studs/clamp on rear of the gauge

Replaces Part Numbers: AR36383, R34263, GAH30-0060

Additional Information:

29" capillary tube Has 5/8"-18 UNF end with 1/2" NPT pipe bushing Maximum temperature is 250 F Minimum temperature is 100 F 0.950" Housing depth 2.045" Housing O.D 2.324" Bezel O.D. No provision for fiber optic light No studs or clamp on rear of the gauge
