G1203KRRB-IMP Bearing for Universal Products

One New Aftermarket Replacement Wide Inner Ring Ball Bearing for John Deere, Massey Ferguson (AGCO), GEHL, Hesston, and New Holland Equipment

This relubricatable wide inner ring ball bearing (G1203KRRB series) features a spherical outside diameter and eccentric locking collar for secure shaft mounting. Designed for extremely dirty or wet agricultural conditions, it uses double R-seals with flared lips to seal out dust and contaminants while retaining lubricant. The extra-wide inner ring provides additional shaft support and extra-large grease capacity, making it ideal for demanding harvesting and hay equipment applications.

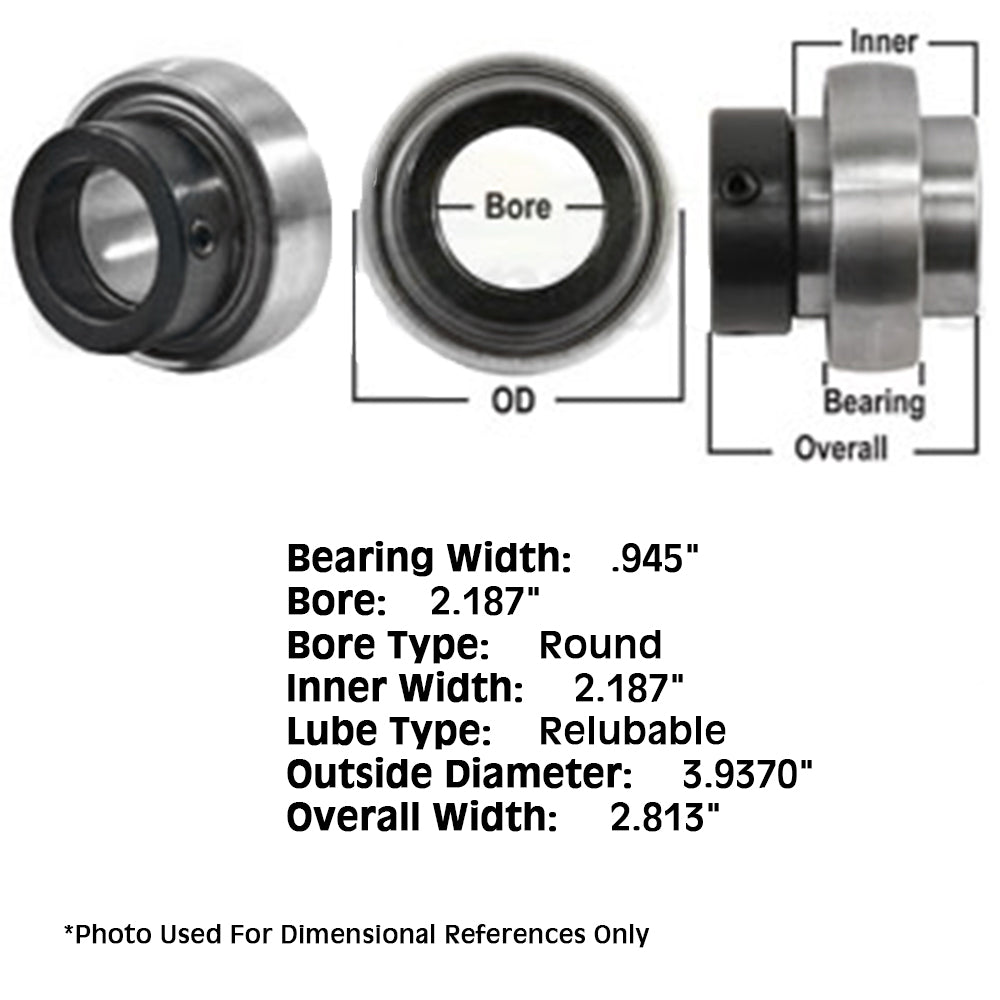

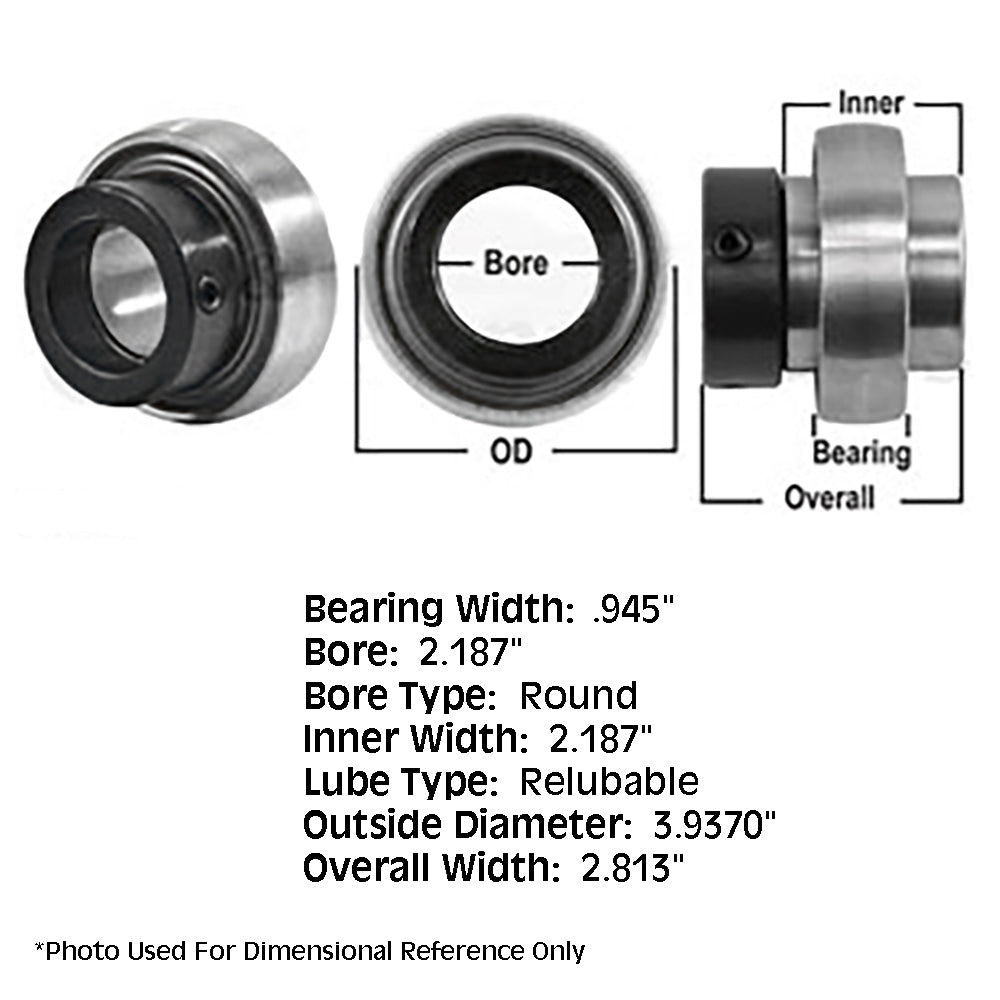

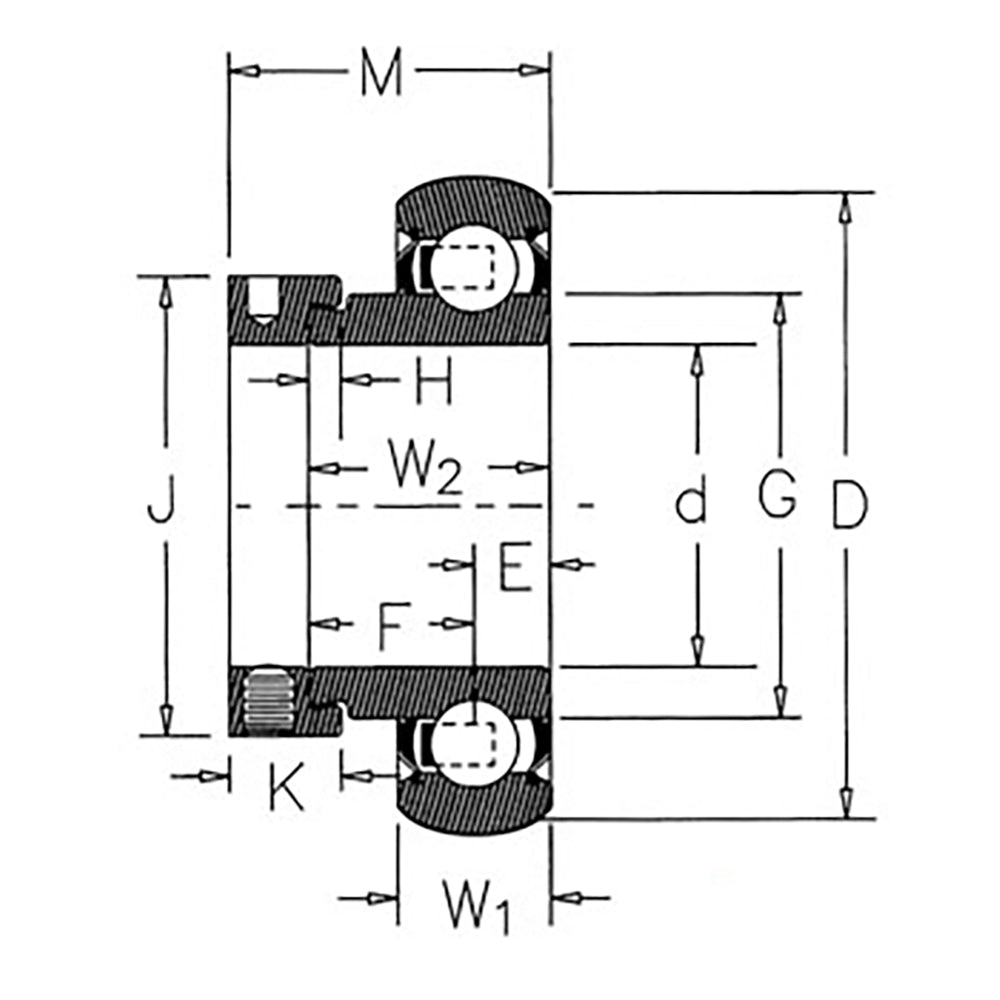

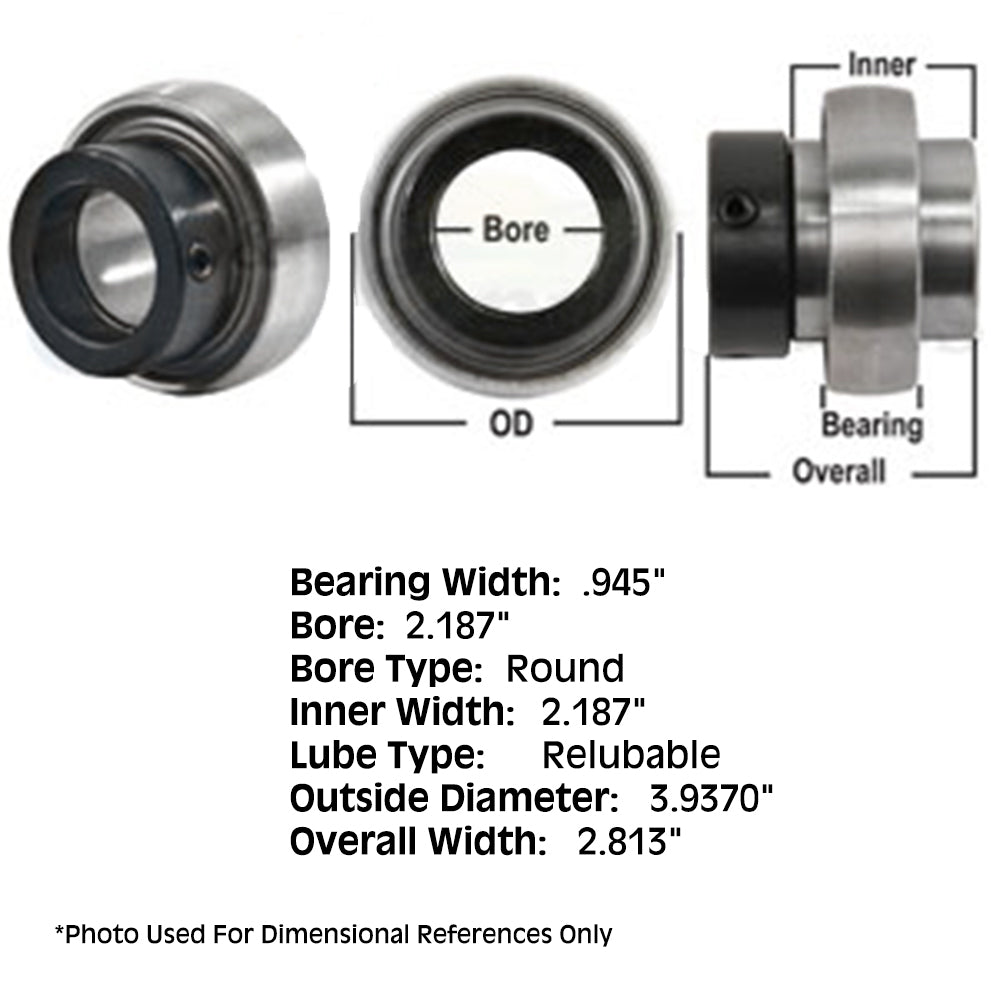

Specifications

• Bore (Inner Diameter): 2-3/16 in (55.563 mm)
• Outside Diameter: 3.937 in (100 mm)
• Inner Race Width: 2.187 in (55.55 mm)
• Outer Race Width: 0.827 in (21 mm)
• Overall Width: 2.813 in (71.4 mm)
• Bore Type: Round / Cylindrical
• Outer Race Design: Spherical
• Locking Method: Eccentric Collar
• Seal: Double-Sealed (Contact / R-Seal)
• Lubrication: Prelube / Relubricatable (grease fitting)
• Cage Material: Nylon
• Dynamic Load Rating: 10,800 lb
• Static Load Rating: 6,570 lb
• Max RPM: 2,260
• Temperature Range: -50 to 120 deg C
• Material: Steel

Compatible Equipment - Replaces OEM Part Numbers Used On

John Deere: Equipment using OEM part numbers JD9255 / JD9311

Massey Ferguson / AGCO: Equipment using OEM part number 832455M1

Hesston: Equipment using OEM part number 713743

GEHL: Equipment using G1203KRRB

International Harvester: Equipment using OEM part number 172406C91

New Holland: Equipment using OEM part number 689205

AVCO New Idea: Equipment using OEM part number 012705

AMCO: Equipment using OEM part number 11381

Replaces Part Number(s):

G1203KRRB, G1203KRRB-I, G1203KRRB-IMP, 308-G1203KRRB, JD9255, JD9311, 11381, 832455M1, 713743, 689205, 172406C91, 012705, 20926, HIB10-0097

Aftermarket Interchange Numbers

Fafnir/Timken G1203KRRB series; Massey Ferguson / AGCO 832455M1; HIB10-0097

New aftermarket replacement part - not remanufactured, not used.
