G101228 Tilt Cylinder Fits Case 450, 450B, 450C, 550
G101228 Tilt Cylinder Fits Case 450, 450B, 450C, 550
Regular price
£926.00 GBP
Regular price
Sale price
£926.00 GBP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
One New Aftermarket Replacement Tilt Cylinder Assembly Fits Case (IH) Crawler Dozers

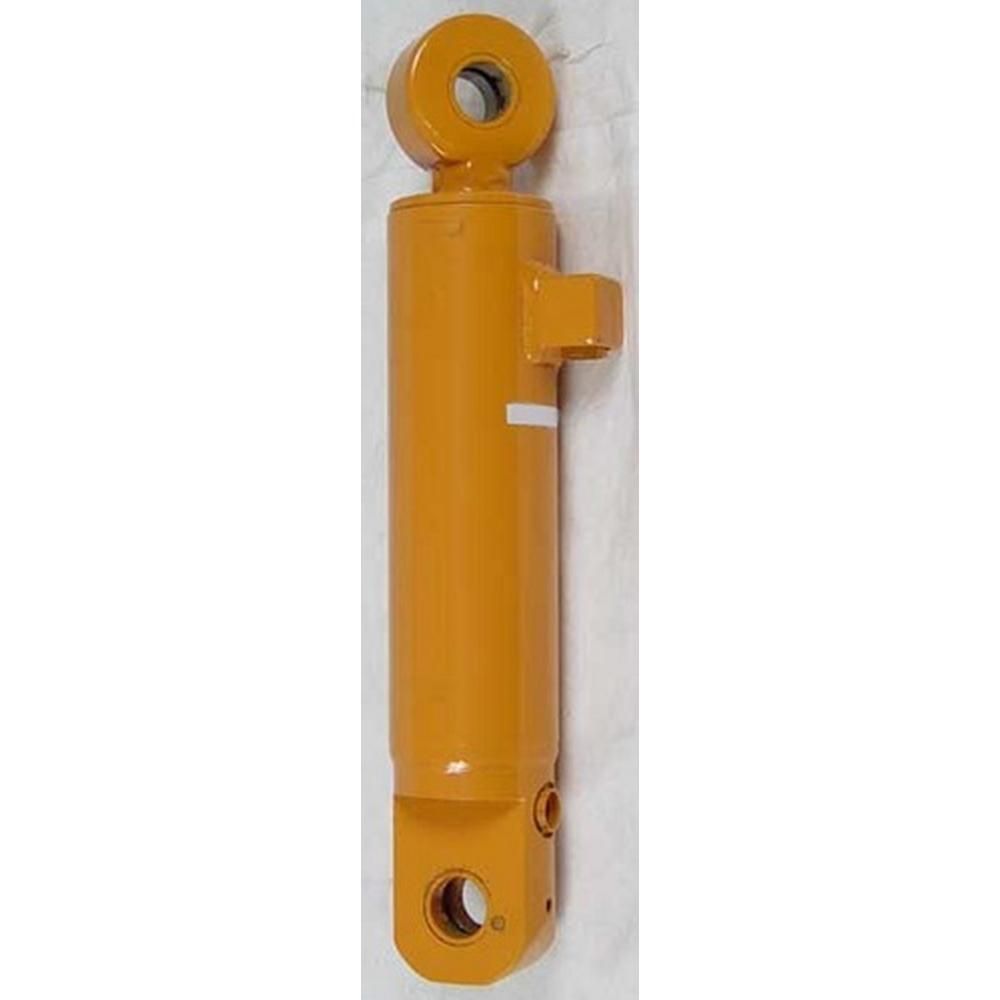

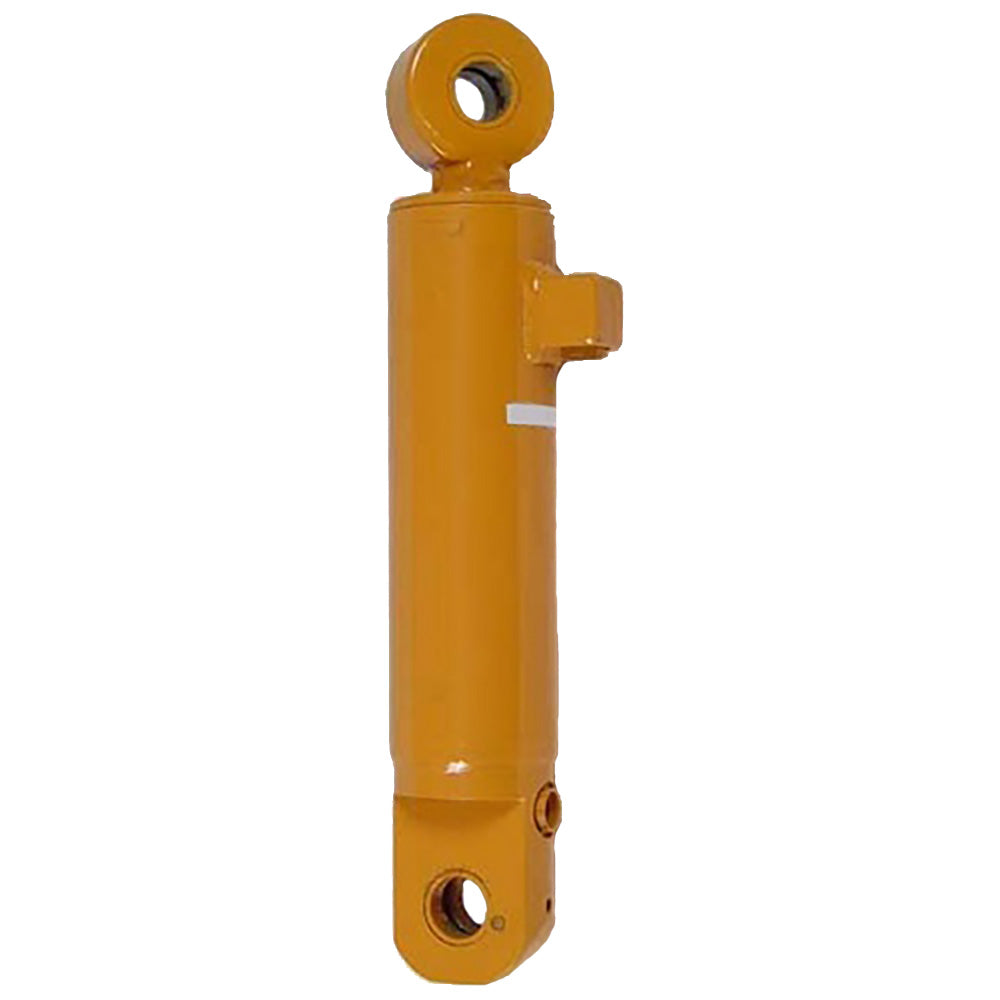

This blade tilt cylinder assembly (part number G101228) controls the side-to-side angle of the dozer blade on Fits Case 450-series and 550 crawler dozers. The cylinder includes pre-installed bushings for straightforward installation and is a direct-fit replacement for the hydraulic blade tilt system. Fits all serial numbers.
Specifications
- Rod Diameter: 2 in.
- Bore: 3-1/2 in.
- Stroke: 8 in.
- Includes pre-installed bushings
Compatible Models
Fits Case Crawler Dozers: 450, 450B, 450C, 550
Replaces Part Number(s):
G101228, G101228-A, G34345
Aftermarket Interchange Numbers
JIC-G101228 (Hercules/JIC catalog reference)
New aftermarket replacement part - not remanufactured, not used.
