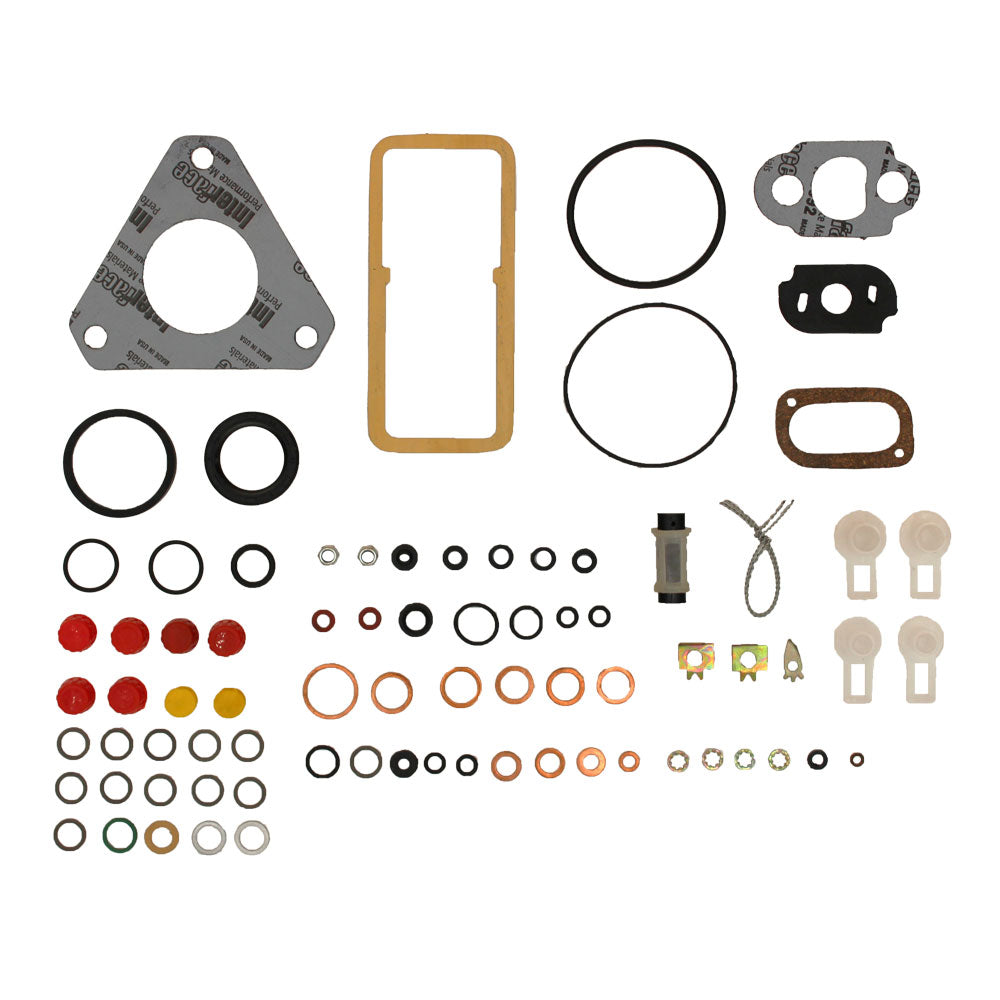

Fuel Injection Pump Repair Seal Kit Fits Ford Tractor 535 540 545 550 555 Backho

Fuel Injection Pump Repair Seal Kit Fits Ford Tractor 535 540 545 550 555 Backho

£12.00 GBP
£12.00 GBP
Sale Sold out
Shipping calculated at checkout.

One New Aftermarket Replacement Fuel Injection Pump Repair Seal Kit Fits Ford, Fits Massey Ferguson, Fits John Deere, and More

This repair seal kit contains all gaskets, seals, O-rings, and washers needed to reassemble and reseal a CAV / Fits Lucas / Delphi DPA series mechanically governed distributor-type diesel injection pump. It addresses external pump leaks including throttle and cut-off shaft leaks. Designed for CAV (also marketed under Fits Lucas and Delphi) DPA rotary injection pumps as fitted to a wide range of agricultural tractors and diesel engines from the mid-1960s onward.

Specifications

  • Fits CAV / Fits Lucas / Delphi DPA style injection pumps with 3-bolt style drive hub
  • Compatible with 2, 3, 4, and 6 cylinder CAV DPA rotary injection pumps
  • Note: For pumps with a keyed drive shaft, two additional 5393-252R seals are also required (not included)

Compatible Models

Fits Ford/New Holland Tractors: 2000, 2110, 2120, 2150, 2300, 230A, 231, 2310, 233, 234, 2600, 2610, 2810, 2910, 3000, 3010S, 3055, 3110, 3120, 3150, 3230, 3300, 3310, 333, 334, 335, 340, 340A, 340B, 3400, 3500, 3550, 3600, 3610, 3910, 4110, 4140, 4400, 4410, 445, 445A, 445 GAS, 450, 4500, 455D, 4600, 4600SU, 4610, 5000, 5110, 515, 530A, 531, 532, 535, 540, 540A, 540B, 545, 545A, 5600, 5610, 5610S, 5700, 5900, 6410, 6600, 6610, 6700, 6710, 6810, 7000, 7010, 7410, 7600, 7610, 7700, 7710, 7810, 7910

Fits Massey Ferguson Tractors: 20, 20C, 20D, 30, 30B, 30E, 31, 35, 40, 40B, 40E, 50, 65, 122, 130, 133, 135, 135 Petrol, 140, 145, 148, 150, 152, 154, 155, 158, 165, 168, 175, 178, 180, 185, 188, 202, 203, 204, 205, 230, 231, 235, 240, 245, 250, 253, 255, 265, 270, 275, 282, 283, 285, 290, 298, 302, 304, 360, 362, 375, 383, 390, 390T, 398, 399, 550, 560, 565, 575, 590, 595, 670, 675, 690, 698, 698T, 699, 1080, 1085, 1200, 1250, 2620, 2625, 2640, 2645, 2675, 3050, 3055, 3060, 3070, 3075, 3080, 3085, 3090, 3095, 3165

Fits John Deere Tractors: 1020, 1030, 1130, 1520, 1530, 1630, 1830, 2020, 2030, 2040, 2120, 2130, 2240, 2310, 2360, 2440, 2510, 2600, 2630, 2640, 2840, 2910, 2940, 3010S, 3030, 3120, 3130, 3150, 3230, 4.202

Fits Allis Chalmers Tractors: 160, 170, 175, 180, 190XT, 5040, 5050, 6040

Fits Case / Fits Case IH: 354, 364, 384, 424, 444, 460, 470, 530, 570, 580B, 580C, 580CK, B414, 2424, 2444, 3414

David Brown Tractors: 990, 995, 996, 1200, 1210, 1212, 1290, 1294, 1390, 1394, 1410, 1412, 1490, 1494

Long Tractors: 350, 445, 460, 510, 550, 560, 610, 920, 930, 1030, 2300, 2360, 2460, 2510, 2610

IMT Tractors: 539, 542, 560, 577

Landini Tractors: various models equipped with CAV DPA injection pumps

Also fits: Fits Caterpillar, Fiat/Hesston, Hyster, Fits JCB, Fits Kubota, Leyland, Mahindra, Fits Massey-Harris, McCormick, Oliver, Perkins, Fits Volvo, White, and other equipment equipped with CAV / Fits Lucas / Delphi DPA series rotary injection pumps

Replaces Part Number(s):

CAV7135-110, 7135-110, 7135110, 9059041A, 9059-041A, 9059156, 9059-156, 905941A, 9059-41A, 1987240106, TX10252, TX10417, TX11234

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

3010S, 2460, 160, 2424, 270, 1520, 6610, 375, 3400, 7910, 2640, 3300, 20, 1490, 515, 335, 990, 540B, planting equipment, 1290, tillage equipment, 3110, 3150, 532, 2440, 699, 1294, 444, 235, 233, 6600, 255, 2810, 65, 830, 340A, 535, 2150, 2600V, 6700, 2130, 1830, 2310, 7700, 690, 4110, 2360, 30E, 205, 5600, 4140, 165, 202, 300B, 1130, 364, 1020, 400, 2630, 2610, 2110, 333, 1530, 340B, 7710, 5000, 204, 3910, 2840, 31, 3610, 2940, 383, 4500, 2030, 2300, 2444, 2600, 2510, 577, 50, 996, 2040, 240, 1200, 445A, 540A, 5610S, 3130, 3055, 5610, agricultural, 245, 531, 298, 545A, 550, 2135, 282, 3030, 350, 5110, 4610, 3230, 7810, 2020, 302, 4410, 920, 40, 7000, 424, 3120, 20C, 250, 290, 1080, 4600, 175, 410, 6710, 362, 1030, 30, 265, 670, 6810, 354, 460, 230A, 1085, 510, 150, 4.202, 2910, 4600SU, 2240, 1212, 304, 3165, 5900, 530A, 398, 253, 390, tractors, B414, 300, 450, 995, 610, 20D, 30B, 5500, 234, 6040, 2120, 3000, 170, 4400, 7010, 310, 698, 6410, 445 GAS, 455D, 1410, 5700, 360, 3550, 384, 930, 285, 7600, 420, 3600V, 1210, 283, 445, 340, 545, 1394, 390T, 231, 1494, 539, 301, 3414, 3500, 2000, 560, 334, 3600, 1630, 180, 1390, 3310, 7410, 230, 542, 40B, 275, 35, 399, 540, 203, 40E, 7610, 1412, 401, 135

Additional Information:

Total: 70 Piece Kit Fits CAV DPA Style Pumps With 3 Bolt Style Drive Hub For Pumps With Keyed Drive Shaft

Reference Numbers:

7135-110, 7135110, 9059041A, 9059-041A, 9059156, 9059-156, 905941A, 9059-41A, 1987240106, 7135110, 7135-110, 9059041A, 9059-041A, 9059156, 9059-156, 905941A, 9059-41A, 1987240106, tractors, agricultural, tillage equipment, planting equipment, 1987240106, TX10252, TX10417, TX11234, CAV7135-110, 7135110, 7135-110, 9059041A, 9059-041A, 9059156, 9059-156, 905941A, 9059-41A

Product Category:

Agriculture
