191-7946 Fuel Injection Pumps Fits Caterpillar * FREE SHIPPING *
191-7946 Fuel Injection Pumps Fits Caterpillar * FREE SHIPPING *
Couldn't load pickup availability

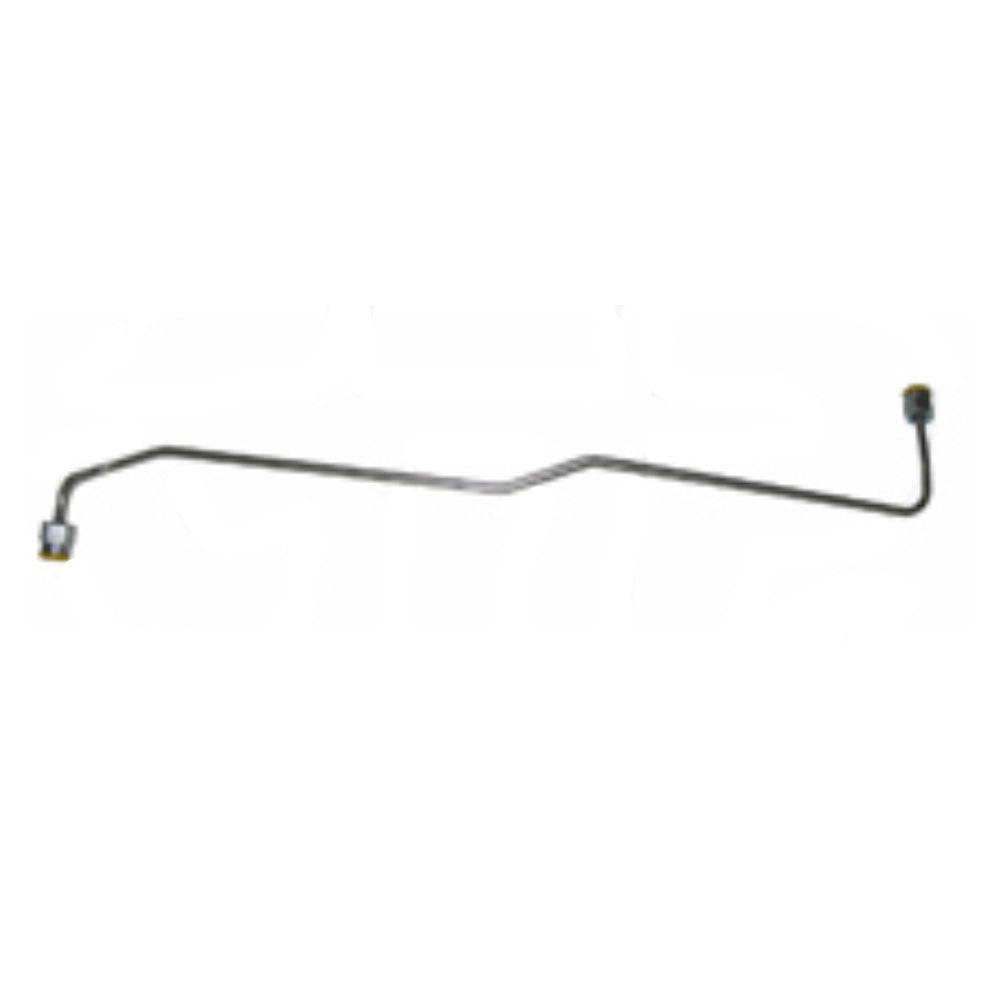

One New Aftermarket Replacement Fuel Injection Line Assembly Fits Caterpillar (Fits CAT) 3406 Engines and Equipment
This aftermarket replacement fuel injection line (Line #6 of 6) carries high-pressure fuel from the injection pump to the number six cylinder injector on Fits Caterpillar 3406-series diesel engines. The 3406, 3406B, and 3406C engines power a wide range of Fits Caterpillar construction, agricultural, and industrial equipment. Important: This line does not fit the 3406E engine. The Fits CAT OEM part is described as a 1.83mm inner diameter injector line with collar and swivel nut on both ends.
Specifications
- Inner Diameter: 1.83mm
- Length: 24.5 in (622.3 mm)
- Width: 2.5 in (63.5 mm)
- Height: 1.5 in (38.1 mm)
- Weight: 0.56 lbs (0.25 kg)
- Fitting Torque: 35 ft-lb +/- 5 ft-lb
- Fittings: Collar and swivel nut on both ends
Compatible Models
Fits Caterpillar Engines: 3406B, 3406C (does NOT fit 3406E)
Fits Caterpillar Articulated Dump Trucks: D350E, D400E, D400D
Fits Caterpillar Cold Planers: PM-465
Fits Caterpillar Excavators: 375, 375-A, 375-A L
Fits Caterpillar Front Shovels: 5080
Fits Caterpillar Landfill Compactors: 826C, 826G, 826G II
Fits Caterpillar Motor Graders: 16G, 16H NA
Fits Caterpillar Pipelayers: 578, 583R, 587R
Fits Caterpillar Road Reclaimers / Stabilizers: RR-250, RR-250B, RM-250C, RM-350, RM-350B, SM-350, SS-250, SS-250B
Fits Caterpillar Scrapers: 621, 621B, 621E, 621F, 623B, 623E, 623F, 627B, 627E, 627F
Fits Caterpillar Soil Compactors: 825G
Fits Caterpillar Track-Type Tractors: D8N, D8R, D8R II, D8GC, D8 GC
Fits Caterpillar Wheel Dozers: 814B, 824G, 824G II
Fits Caterpillar Wheel Loaders: 980C, 980F, 980F II, 980G, 980G II
Fits Caterpillar Generator Sets / SR4: SR4, SR4B
Fits Caterpillar Other: D35HP, D40D, HT400
Replaces Part Number(s):
191-7946, 1917946
Aftermarket Interchange Numbers
7C3426, 4P9666, 4P3926, PAI 380306, CA1917946
New aftermarket replacement part - not remanufactured, not used.
