Fractional V-Belt 5L630 for Universal Several

Fractional V-Belt 5L630 for Universal Several

£10.00 GBP
£10.00 GBP
Sale Sold out
Shipping calculated at checkout.

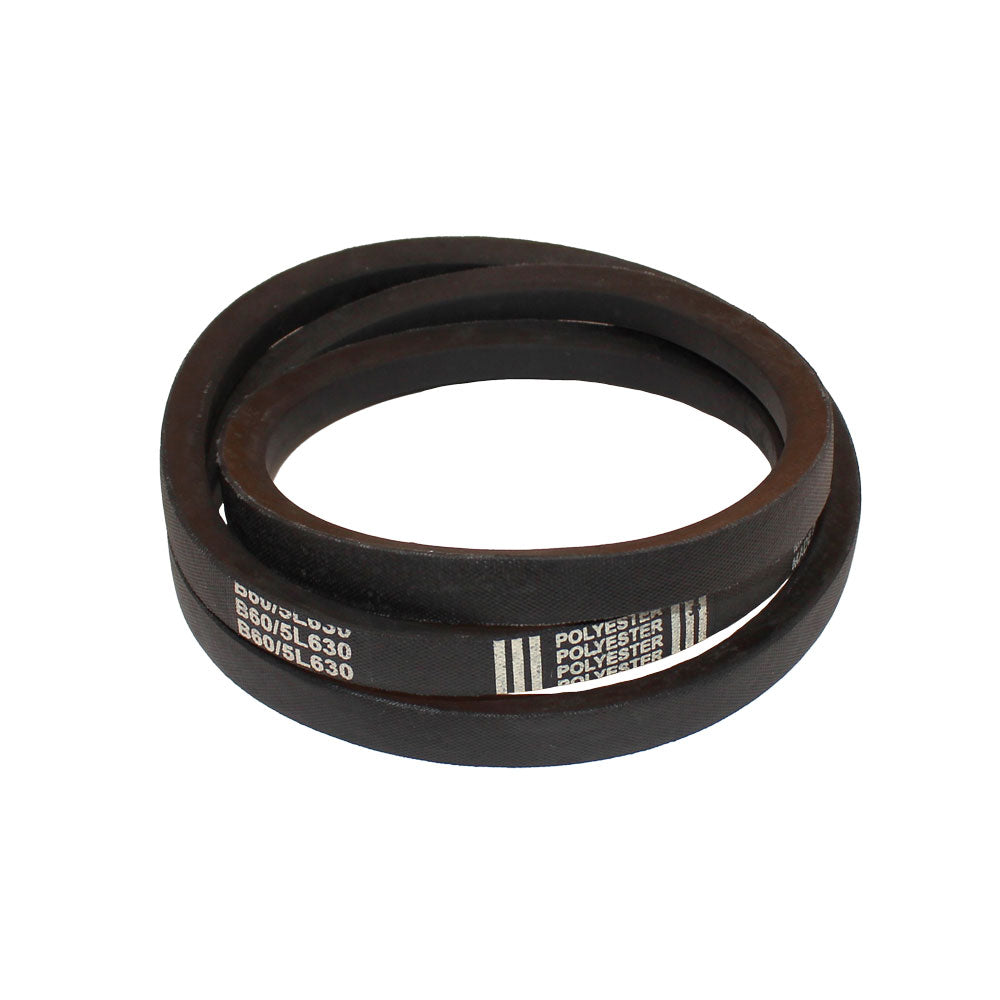

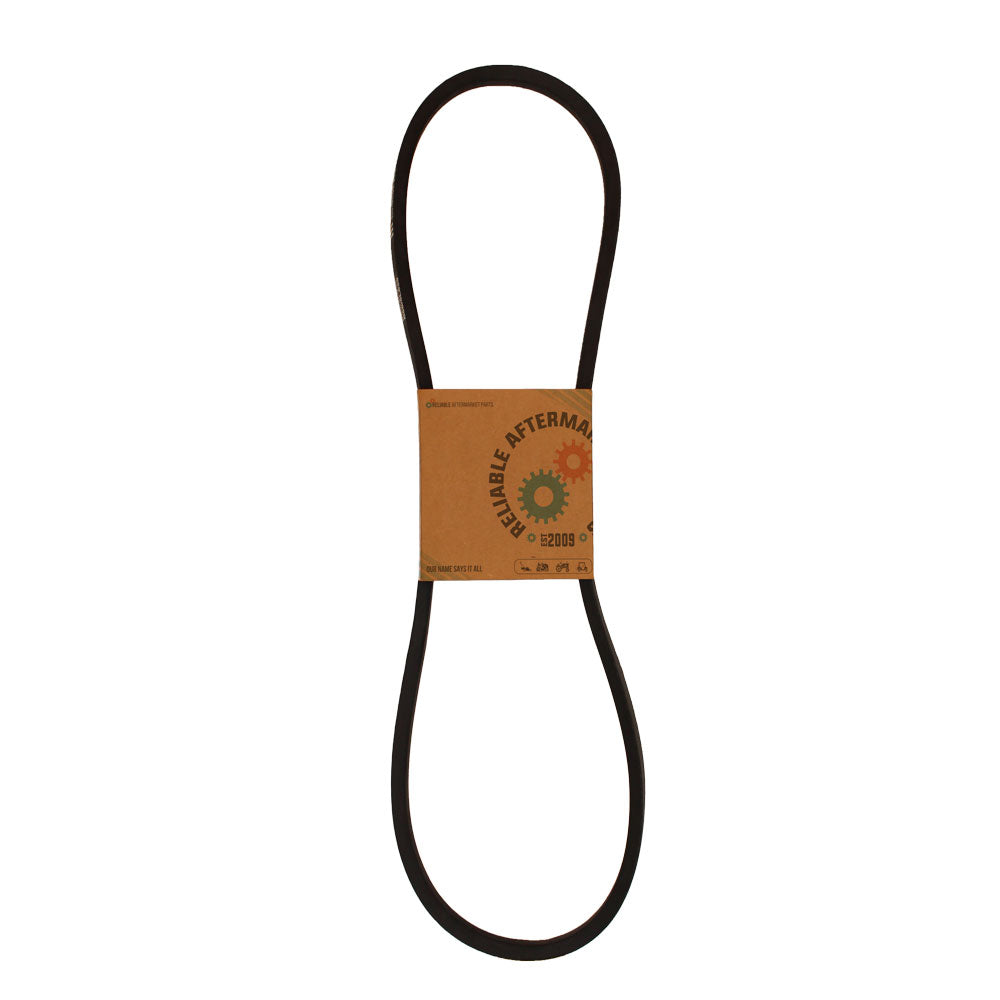

One New Aftermarket Replacement Fractional V-Belt 5L630 for Lawn Mowers, Tractors, and Walk-Behind Mowers

This 5L-section fractional horsepower (FHP) drive belt is a direct replacement for a wide range of lawn and garden tractors, walk-behind mowers, and other small engine-driven equipment from Troy-Bilt, Fits Honda, Murray, Snapper, MTD, Fits John Deere, Fits Kubota, Fits Massey Ferguson, and many other brands. The wrapped polyester cord construction delivers cool running, flexibility, and crack resistance for reliable power transmission in mower and tractor drive systems.

Specifications

  • Belt Section: 5L (Fractional Horsepower)
  • Outside Length: 63 in
  • Top Width: 21/32 in (approximately 5/8 in)
  • Thickness/Height: 3/8 in (0.381 in)
  • Construction: Wrapped, helically wound polyester tensile cord

Compatible Models

Bunton: 52" Commercial Walk-Behind Mower

Fits Honda: H4013 SA/A (MZAR) (SN: MZAR-1000001 - MZAR-1999999), H4013 SA/B (MZAR) (SN: MZAR-2000001 - MZAR-2999999), HT-R3811 SA (MABT) (SN: MABT-5000001 - MABT-9999999), 76182-758-M01, 76184-751-701

Fits Massey Ferguson / Hesston / AGCO: SPLH 140KH (80898), SPLH 140KW (84336), SPLH 140KWE (84276), SPLH 141KH, SPLH 141KW (84394), SPLH 141KWE (84396), SPLH 150KH (84277), SPLH 151KH (84395), SPLH 152KW (84912), SPLH 153KW (84235), SPLH 160BV (80914), SPLH 170KW (84275), SPLH 171KW (84397), SPLH 173KW (82436), SPLH 180KHE (80901), SPLH 220KHE (84282), SPLH 221KHE (84398), SPLH 231KHE (84618), SPA 480 (84406), SPA 481 (84622), SPA 520 (84407), SPA 521 (84623), SPA 610 (84408), SPA 611 (84624)

Fits Kubota: CD4038 B SA (RZAT) (SN: RZAT-9000001A - RZAT-9999999A)

Also fits: Troy-Bilt, White, Fits Allis Chalmers, Fits Ford/New Holland, Dayco, Snapper, MTD, Fits John Deere, Long, Fits Case, Fits Case/International Harvester, Macdon, Murray equipment using any of the cross-reference part numbers listed below.

Replaces Part Number(s):

5L630, B60, B60/5L630, B60DC, BP60, GATB60, 85630, 1108572, 954-0227, 754-0227, 754-0118, 954-0118, 57034, 785547, 856872, 15A14777, 32-0060461, 36607, M77673, AM30965, AM116693, 76517-61670, 7651761670, 1029730M1, 1035667M1, 1037667M1, 1039570M1, 1042873M1, 222822M2, 222882M1, 222882M2, 2318, 924327M1, K4228, L563, 165421, 062288-6700, 10429C, 1108427, 160952, 17991, 198-7221, 1987221, 1AB60A, 255FG, 258-063, 258063, 33-023-021, 33023021, 3926963, 420867, 501542, 62160, 6963, A21482, C22-8700-00, MHC00581, S18851, 0502437, 1112834, 248330, 501512, 502437, 7042735YP, 7042735, 1309332X1, 413324R1, 469615R1, 579964R1, 826733R1, C11946, PL4732, PL4811, 76182-758-M01, 76184-751-701, 76184-7517, 76184-7517-010, COB40-0482

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

SPLH 173KW (82436), SPLH 150KH (84277), SPA 521 (84623), SPLH 152KW (84912), H4013 SA/B (MZAR) (SN: MZAR-2000001 - MZAR-2999999), SPLH 141KW (84394), 52" Commercial Walk Behind Mower, SPLH 140KW (84336), SPLH 220KHE (84282), SPLH 141KWE (84396), SPLH 153KW (84235), SPLH 170KW (84275), HT-R3811 SA (MABT) (SN: MABT-5000001 - MABT-9999999), SPLH 140KH (80898), SPLH 160BV (80914), SPLH 231KHE (84618), SPA 520 (84407), CD4038 B SA (RZAT) (SN: RZAT-9000001A - RZAT-9999999A), SPA 610 (84408), SPLH 140KWE (84276), SPLH 141KH, SPLH 151KH (84395), SPA 480 (84406), H4013 SA/A (MZAR) (SN: MZAR-1000001 - MZAR-1999999), SPA 611 (84624), SPLH 180KHE (80901), SPLH 221KHE (84398), SPA 481 (84622), SPLH 171KW (84397)

Additional Information:

Width: 5/8" Length: 63" Thickness: 0.381" Wrapped Polyester Cord

Reference Numbers:

PL4732, PL4811, 57034, 785547, 856872, 36607, L563, 76517-61670, 7651761670, 062288-6700, 10429C, 1108427, 160952, 17991, 198-7221, 1987221, 1AB60A, 255FG, 258-063, 258063, 33-023-021, 33023021, 3926963, 420867, 501542, 5L630, 62160, 6963, 85630, A21482, B60, B60/5L630, B60DC, BP60, C22-8700-00, GATB60, MHC00581, S18851, K4228, M77673, AM30965, AM116693, 7042735YP, 7042735, 1309332X1, 413324R1, 469615R1, 579964R1, 826733R1, 15A14777, 32-0060461, 1029730M1, 1035667M1, 1037667M1, 1039570M1, 1042873M1, 222822M2, 222882M1, 222882M2, 2318, 924327M1, 0502437, 1112834, 248330, 501512, 502437, 76182-758-M01, 76184-751-701, 76184-7517, 76184-7517-010, 1108572, 954-0227, 754-0227, 165421, 954-0227, 754-0227, 754-0118, 954-0118, C11946, 757347
