Fractional V-Belt 4L470 fits Universal Several

Fractional V-Belt 4L470 fits Universal Several

£11.00 GBP
£11.00 GBP
Sale Sold out
Shipping calculated at checkout.

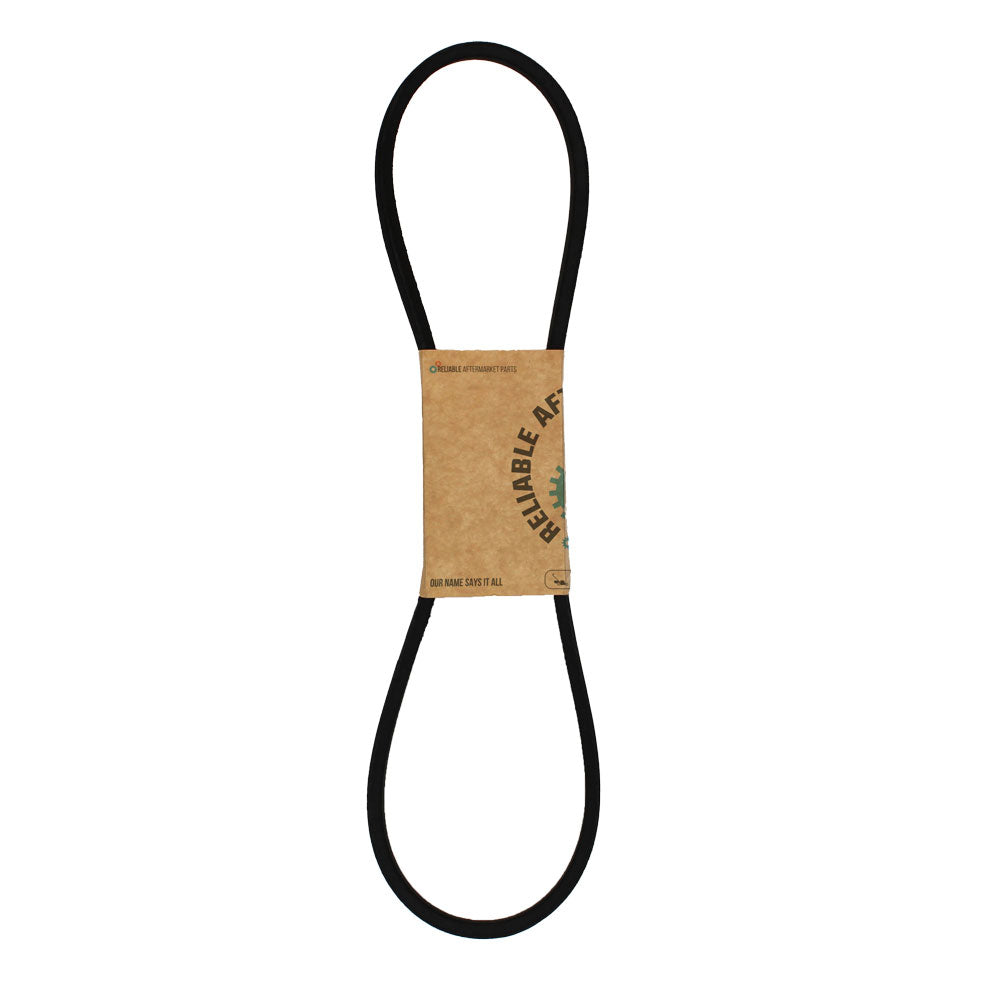

One New Aftermarket Replacement Fractional Horsepower V-Belt 4L470 (A45) for Ariens, Fits Cub Cadet, Fits John Deere, MTD, Simplicity, Fits Toro and More

This 4L Section fractional horsepower drive belt (industry number 4L470, also known as the A45) is a wrapped polyester cord replacement belt for drive systems on walk-behind mowers, lawn and garden tractors, and snow blowers/throwers from a wide range of manufacturers. The wrapped construction makes it suitable for clutching applications and provides smooth, quiet operation with resistance to heat and oil.

Specifications

  • Belt Section: 4L / A
  • Outside Length: 47 in
  • Top Width: 1/2 in
  • Thickness: 5/16 in
  • Construction: Wrapped
  • Cord Material: Polyester
  • Application: Fractional Horsepower Drive Belt

Compatible Models

Ariens: 30185, 30186, 30187, 30188, 30189, 30190, 30191, 30192, 30290, 30291, 30291 TE, 834006 36" Sno-Thro, 834009 40" Sno-Thro, 835006 36" Two Stage Sno-Thro, 835029 36" Two Stage Sno-Thro, 935003, 935009, 935014, 935015, 935020, 935026, 935030, 935031

Fits Cub Cadet: 1002

Fits John Deere: 322, 330, 332

MTD: 131-510-000, 131-511-000, 131-512-000, 131-513-000, 131-514-000, 131-515-000, 131-516-000, 131-517-000, 131-518-000, 131-519-000, 131-520-000, 131-520D045, 131-520D046, 131-521-000, 131-522-000, 131-523-000, 131-524-000, 131-525-000, 131-526-000, 131-527-000, 131-528-000, 131-529-000, 131-530-000, 130-530D000, 130-530D009, 32" Deck, 49" Snow Thrower, 350 40" Single Stage Snow Thrower

Simplicity: 804, Baron, H-212, HB-112, Landlord, ProLine, Sovereign, 3112 H, 3212 H, 3410 H, 3412 H (see R-10), 3414 H, 3415 H, 3416 H, R-10

Fits Toro: See ref numbers for applicable models

Also fits equipment from: Fits Allis Chalmers, Fits Case/International Harvester, Deutz, Fits Ford/New Holland, Fits Massey Ferguson, White

Replaces Part Number(s):

4L470, A45, M91270, M45682, GATA45, GAT2470, 2166172SM, 2166172, 475694R1, 613449R1, 576774, 82-4110, 954-0290, 754-0290, 1175.026.160.00, 763775M1, 07211800, 2029657, BT0095, TD-066, 17924, 248-5047, 304023, 382850, 62045, 753-2146, 7532146, 76045, 886671

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

131-524-000, 131-518-000, 30189, 30186, 30291 TE, ProLine, 935031, 32" Deck, 935015, 131-521-000, 49" Snow Thrower, 130-530D009, H-212, 935009, 131-522-000, 131-513-000, 3112 H, 3212 H, 835006 36" Two Stage Sno-Thro, 131-514-000, Landlord, 935030, 131-519-000, HB-112, 131-511-000, 131-528-000, 131-523-000, 131-510-000, 350 40" Single Stage Snow Thrower, 804, 834009 40" Sno-Thro, R-10, 332, Sovereign, 131-520D045, 131-517-000, 131-529-000, 1002, 30187, 30185, 131-516-000, 131-527-000, 131-515-000, 935020, 322, 30290, 935014, 130-530D000, 131-525-000, 330, Baron, 131-526-000, 3414 H, 3415 H, 131-520D046, 935003, 131-512-000, 3410 H, 3416 H, 131-520-000, 30191, 30291, 131-530-000, 835029 36" Two Stage Sno-Thro, 30190, 30188, 30192, 935026, 834006 36" Sno-Thro

Additional Information:

Width: 1/2" Length: 47" Thickness: .315" Wrapped Polyester Cord

Reference Numbers:

1175.026.160.00, M91270, M45682, 954-0290, 754-0290, GATA45, GAT2470, 763775M1, A45, 4L470, 2029657, BT0095, TD-066, 17924, 248-5047, 304023, 382850, 62045, 753-2146, 7532146, 76045, 886671, 82-4110, 2166172SM, 2166172, 576774, 07211800, 475694R1, 613449R1
