Forward/Reverse Switch 70180296 fits Several Fits JCB Models
Forward/Reverse Switch 70180296 fits Several Fits JCB Models
Couldn't load pickup availability

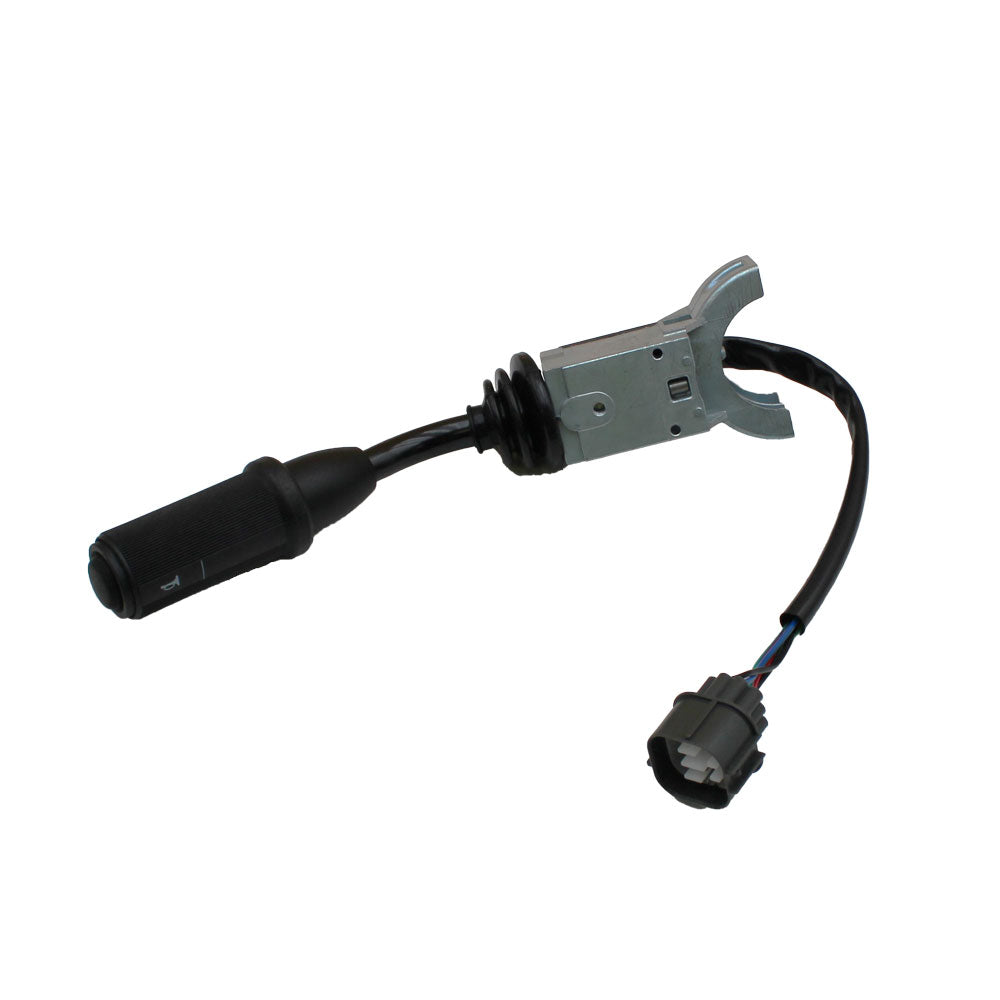

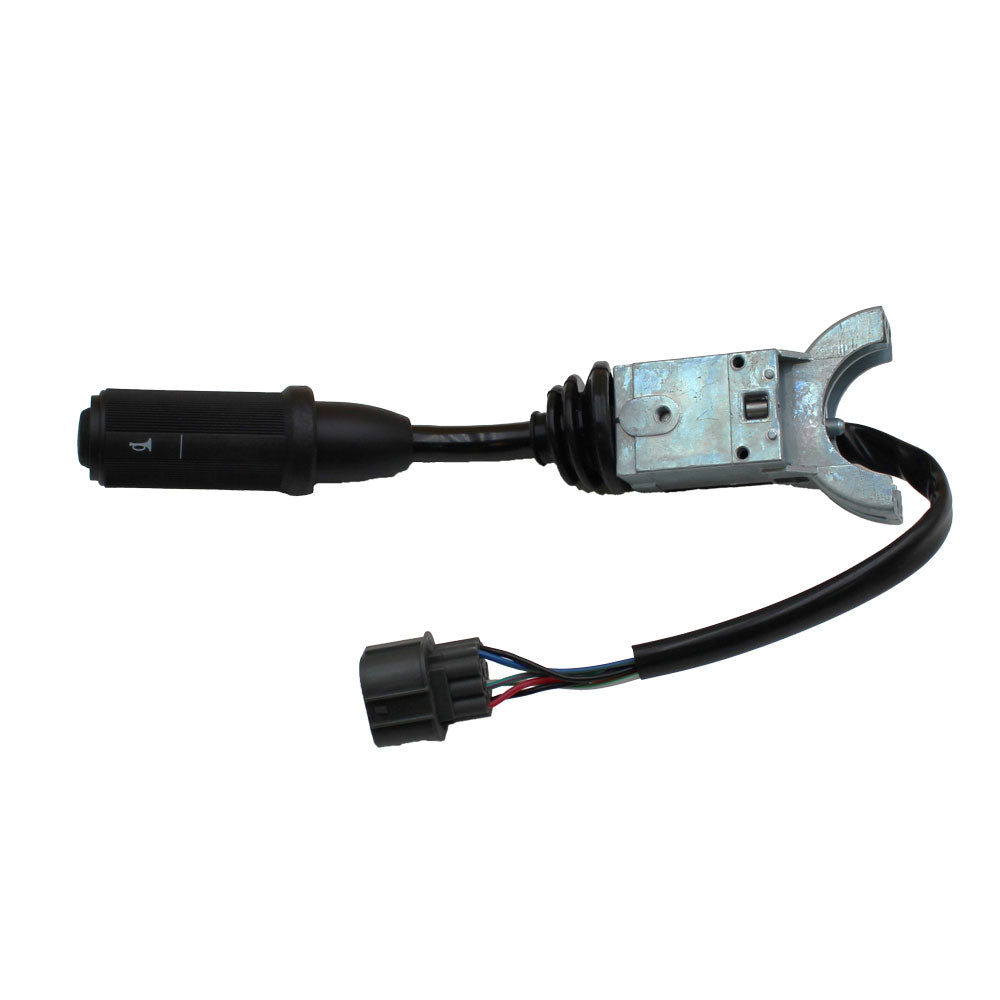

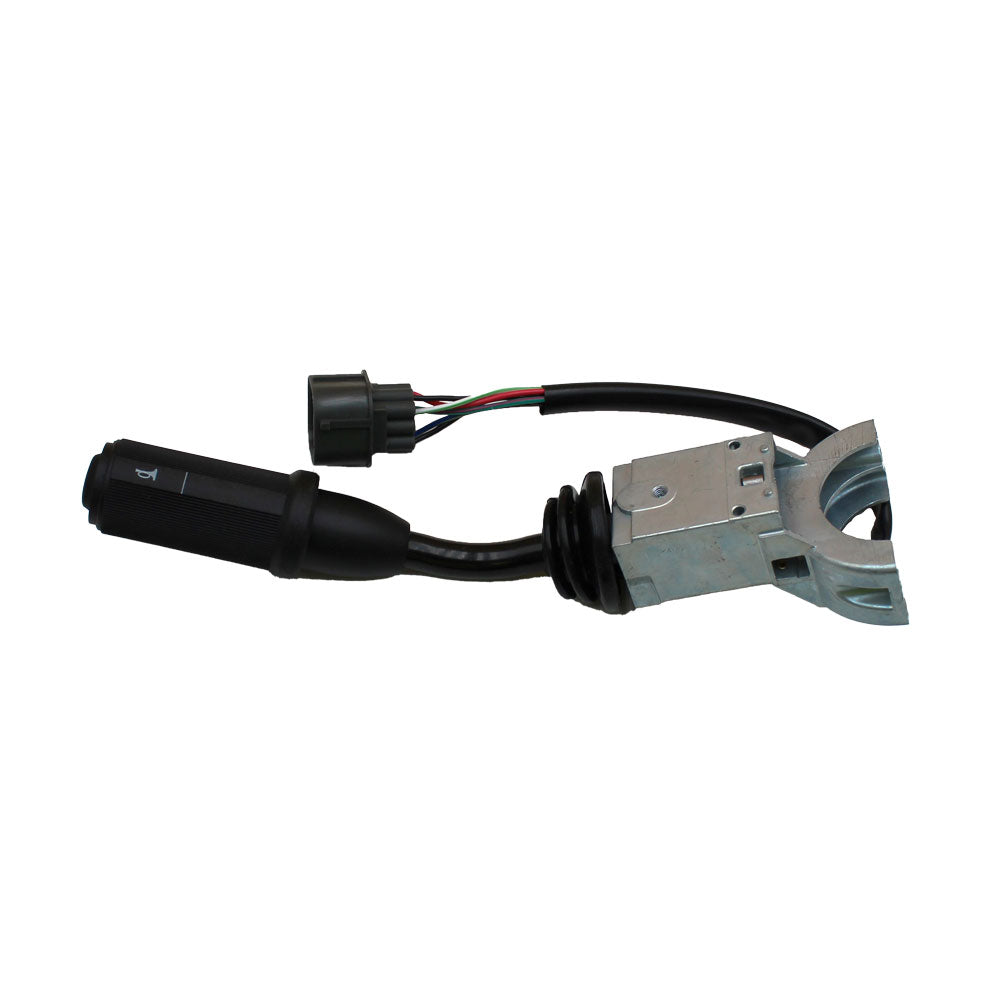

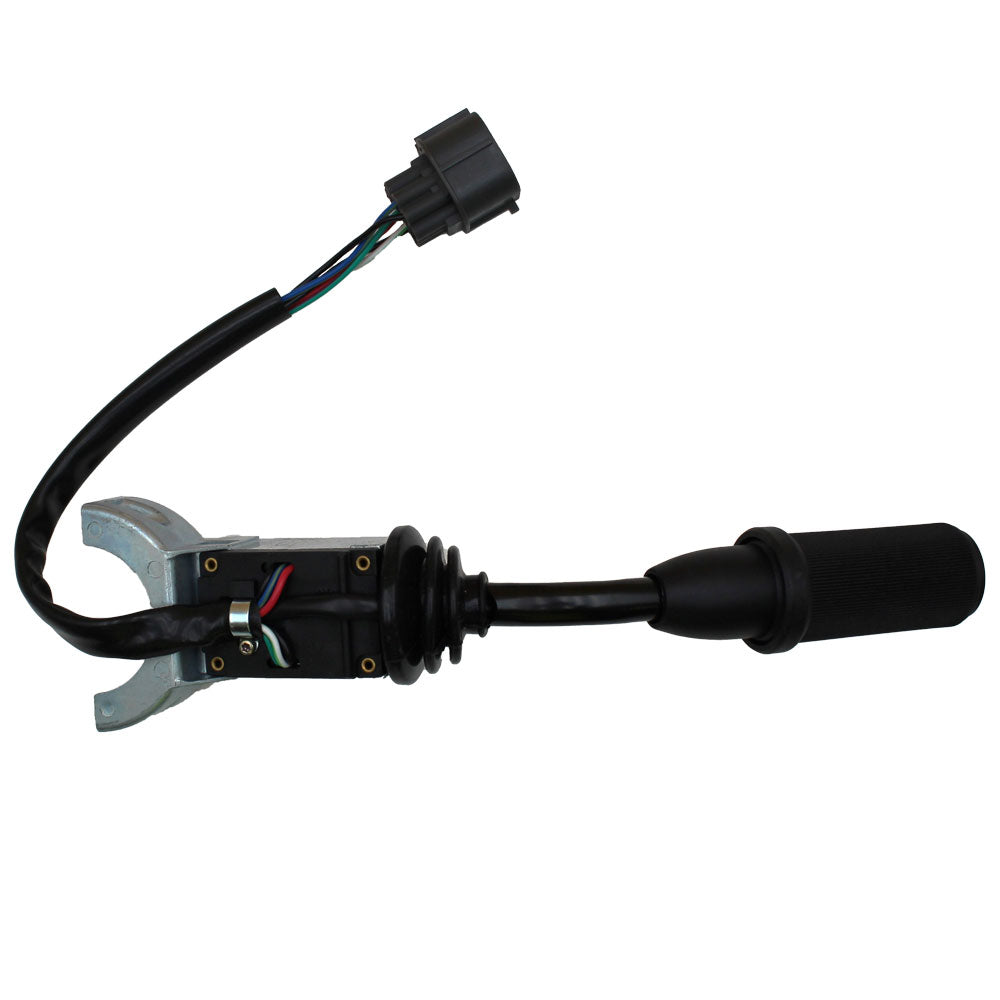

One New Aftermarket Replacement Left Hand Forward/Reverse Column Switch for JCB Backhoe Loader
This left hand forward/reverse column switch (also called a shuttle column switch or combination switch) mounts on the steering column of JCB backhoe loaders and controls directional travel -- Forward, Reverse, Neutral, and Neutral Lock. It features an integrated horn button and connects via a single wire harness connector. Designed for JCB machines equipped with Manual or SynchroShuttle transmission.
Specifications
- Total Length: 10.0 in.
- Total Width: 2.7 in.
- Total Height: 4.4 in.
- Built-In Diameter: 1.8 in.
- Number of Mounting Holes: 2
- Mounting Hole Diameter: 0.21 in.
- Shortest Center Distance Between Mounting Holes: 2.4 in.
- Connection Type: Wire with Connector
- Number of Connections: 1
- Number of Levers: 1
- Control Functions: Neutral, Neutral Lock, Forward, Reverse
- Additional Features: Horn
- Hand: Left Hand (LH)
Compatible Models
JCB Backhoe Loaders: 1400B, 1550B, 1600B, 1700B, 2CX, 2CX-AIRMASTER, 2CX-SM, 2CXL, 2CXS, 2CXSL, 2CX Utility, 3C, 3CX, 3CXS-PC, 3D, 3DX, 4C, 4CN, 4CN444 Super, 4CX, 4CX444 Super, 4D, 4DX, 214, 215, 216, 217
JCB Loadall Telescopic Handlers: 525-60, 526-56, 527-58, 535-95, 536-70, 540-170, 540-200, 541-70, 550-80, 550-170, 560-80
JCB Telemaster: TM320
Replaces Part Number(s):
701/80296, 701-80296, 70180296
New aftermarket replacement part - not remanufactured, not used.
