for AYP Fits Craftsman DECK SPINDLE 121657X, 121617X
for AYP Fits Craftsman DECK SPINDLE 121657X, 121617X
Couldn't load pickup availability

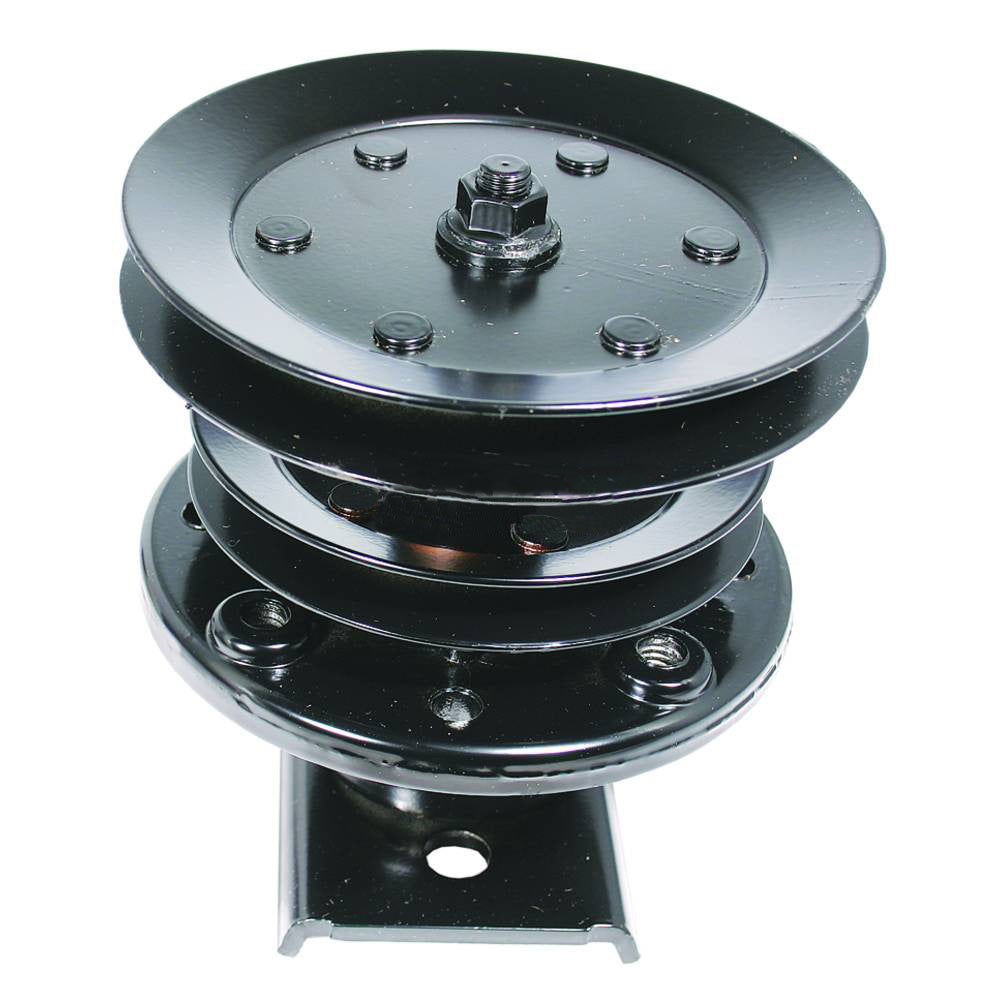

One New Aftermarket Replacement Deck Spindle Assembly with Pulley for AYP / Fits Husqvarna / Fits Craftsman Riding Mowers
This deck spindle assembly (mandrel) with double pulley is a direct-fit replacement for American Yard Products (AYP), Fits Husqvarna, and Sears/Fits Craftsman riding lawn tractors equipped with 44-inch or 50-inch mower decks built between 1985 and 1993. The spindle assembly mounts in the mower deck and houses the blade-drive shaft, allowing the cutting blade to rotate smoothly. It features a dual-pulley design -- a top pulley and a bottom pulley -- that links to the deck drive belt system.
Specifications
- Top Pulley OD: 5-5/16"
- Bottom Pulley OD: 4-1/4"
- Saddle Width: 2-5/16"
- Overall Height: 5-3/8"
- Includes pulley -- complete assembly
Compatible Models
AYP / Sears / Roper / Fits Craftsman (44" and 50" decks, 1985-1993): 4181E94, 4200-14, 4200-34, 951940, 8208A29, AYP8208A29, AYP8208A39, AYP8208B39, CP2050A, CT2050A, GT180BE, GT180BT, GT180CR, GT180CT, GT180DR, GT180ER, GT180ET, HVGTK180, TS2050A, TS2051A, TS2051B, WP2050A, Y2050A, Y2050B, Y2050C
Fits Husqvarna (44" and 50" decks, 1985-1993): GT180, HVGTK180
Replaces Part Number(s):
121657X, 121617X, 532121657, 532121617, 5321216-17, 532 12 16-17, 5321216-57, 532 12 16-57, 105477X, 106038X
Aftermarket Interchange Numbers
Oregon 82-679, Fits Stens 285-878
New aftermarket replacement part - not remanufactured, not used.
