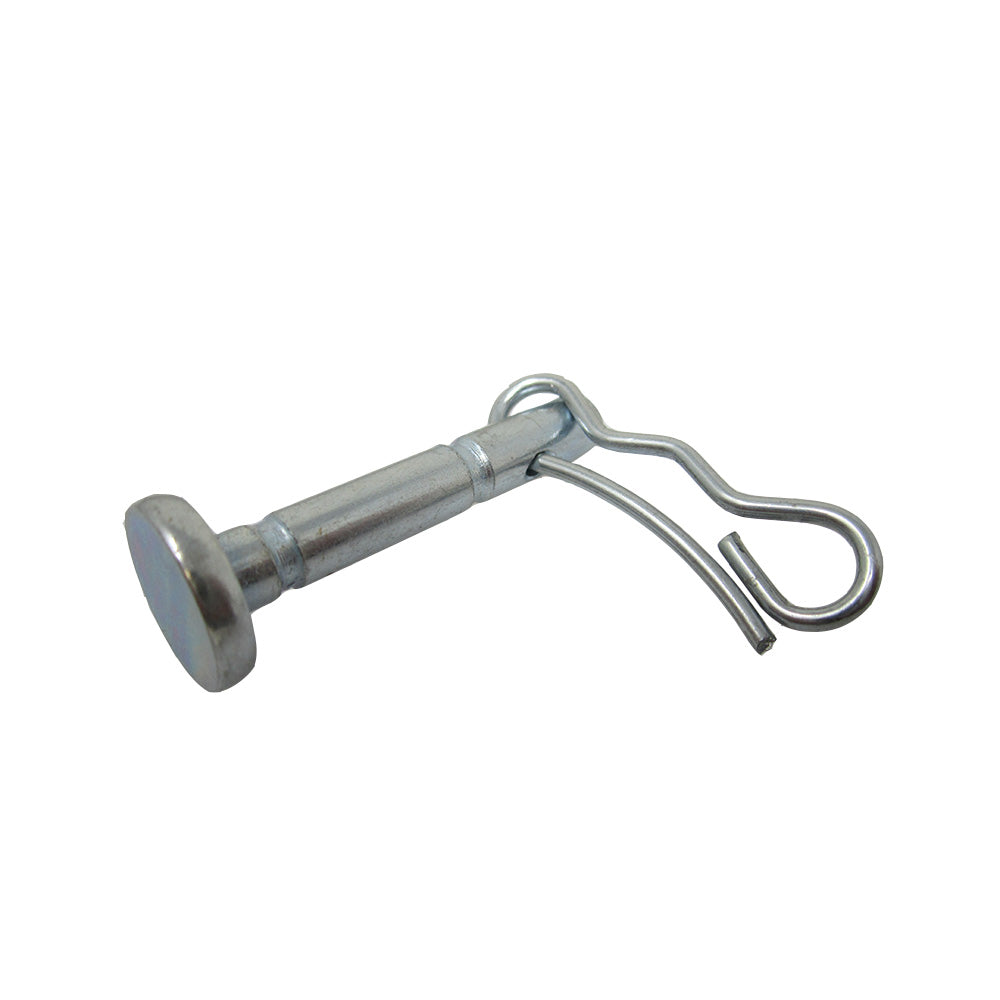

One New Aftermarket Replacement Snow Blower Shear Pin and Bow Tie Cotter Pin for Craftsman, MTD, Cub Cadet, Troy-Bilt, Bolens and More
This shear pin and bow tie cotter pin set secures the auger to the drive shaft on 2-stage snow blowers. The shear pin is engineered to snap when the auger strikes a solid object -- protecting the gearbox and drivetrain from costly damage. The bow tie cotter pin locks the shear pin in place and releases easily for fast field replacement. Keeping a spare set on hand is strongly recommended throughout the winter season.
Specifications
- Shear Pin Diameter: 0.25 in.
- Shear Pin Length: 1.5 in.
- Material: Grade 2 Steel
- Includes: One (1) Shear Pin and One (1) Bow Tie Cotter Pin
Compatible Models
Craftsman (Sears): 24788033, 24788045, 24788833, 24788835, 24788845, 24788846, 24788848; most 22 in., 24 in., and 26 in. 2-stage snow throwers
MTD / Yard Machines / Yard-Man: 300, 500, 600 series; 31A-3BAD700 series; most 2-stage snow blower models
Troy-Bilt: Most 2-stage snow blower models
Cub Cadet: Most 2X and 3X 2-stage snow thrower models; 900 series 2-stage snow throwers
Bolens: Select 2-stage snow blower models
Husqvarna / Ryobi: Select compatible snow blower models -- verify with your model number before ordering
Replaces Part Number(s):
738-04124A, 73804124A, 714-04040, 71404040, 416-819, 416-819-A
New aftermarket replacement part - not remanufactured, not used.
