Fits Caterpillar Tractor Parts Armature 3500-8651 7M8651
Fits Caterpillar Tractor Parts Armature 3500-8651 7M8651
Couldn't load pickup availability

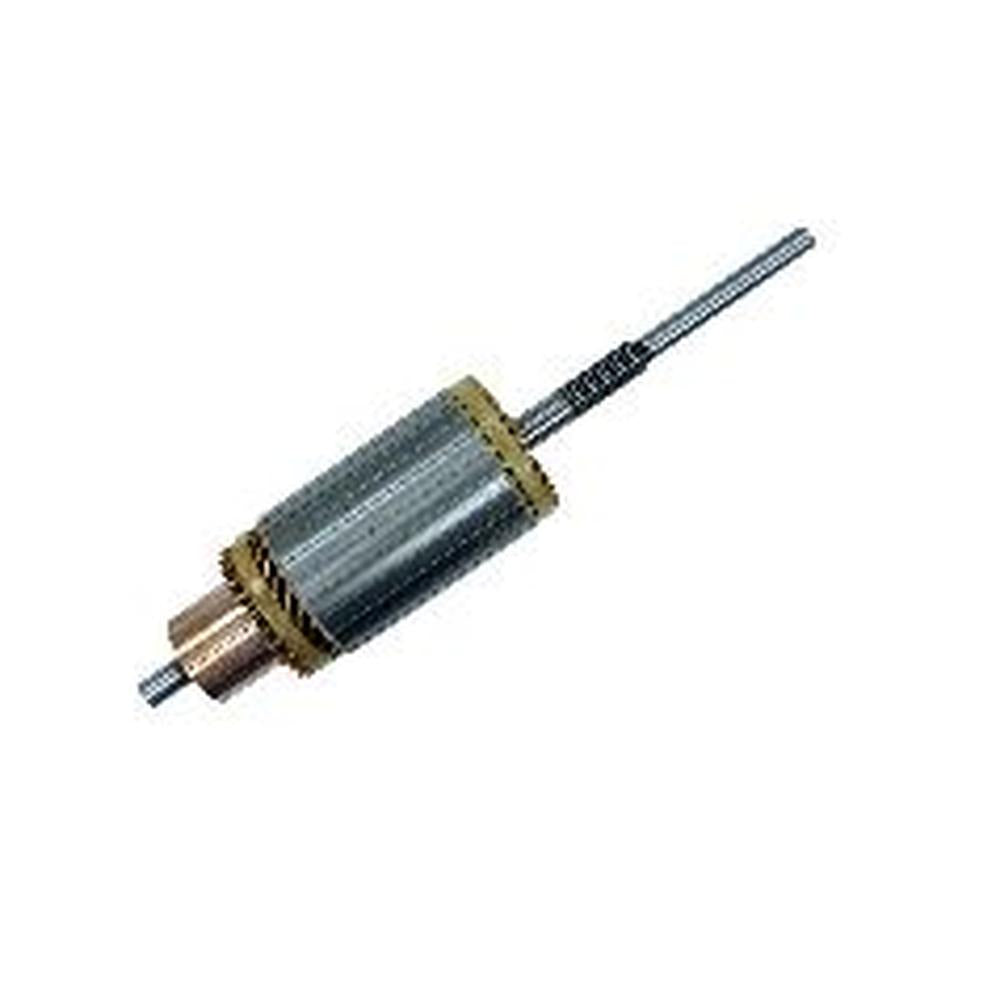

One New Aftermarket Replacement Starter Armature Fits Caterpillar (Fits CAT) Equipment
This aftermarket replacement starter armature Fits Caterpillar (Fits CAT) OEM part number 7M8651 (also referenced as 7M-8651 and 3500-8651). The armature is the rotating core of the Fits Delco 50MT series starter motor, converting electrical energy into the mechanical torque needed to crank the engine. It fits a wide range of Fits Caterpillar agricultural, construction, and industrial equipment powered by Fits CAT diesel engines.
Specifications
- Voltage: 24/32V
- Body OD: 3.783 in / 96.100 mm
- Overall Length: 19.031 in / 483.400 mm
- Lamination Stack Thickness: 5.189 in / 131.800 mm
- CE OD: 0.685 in / 17.400 mm
- DE OD: 0.622 in / 15.800 mm
- Number of Splines: 19 (Straight type)
- Weight: approx. 21.3 lbs
- Starter Series: Fits Delco 50MT
Compatible Models
Fits Caterpillar Articulated Trucks: 725, 730, 735, D350E II, D400E II
Fits Caterpillar Compactors / Soil Compactors: 815, 814, 816F II, 826C, 836K
Fits Caterpillar Scrapers: 627, 637, 641B, 650B, 651B, 657B, 660B, 666B
Fits Caterpillar Wheel Dozers / Tractors: 977L, 980B
Fits Caterpillar Excavators: 235, 330 L
Fits Caterpillar Trucks / Haulers: 772, 773
Fits Caterpillar Engines / Engine-Powered Equipment: 3306, 3406, 3406B, 3456, 3408E, D346, C-9, C-16, G3406
Fits Caterpillar Other: 992, 996C, Cold Planer PM620, 6040 FS
Fits Caterpillar Motor Graders: 120M, 120M 2, 12M 2, 12M 3, 12M 3 AWD, 140M, 140M 2, 140M 3, 140M 3 AWD, 14H, 14M, 160M, 160M 2, 160M 3, 160M 3 AWD, 16H NA
Fits Caterpillar Agricultural / Other: 1090, 1190, 1190T, 1290T, 1390
Replaces Part Number(s):
7M8651, 7M-8651, 3500-8651
Aftermarket Interchange Numbers
Fits Delco: 10528031, 1945840, 1953233, 1960554 | Fits Ford: SM451 | Fits John Deere: AR89421 | Arrowhead / J&N: 300-12005, 300-12005R, 300-12123, 300-12123-3 | Lester: 2097 | WAI: 61-124
New aftermarket replacement part - not remanufactured, not used.
