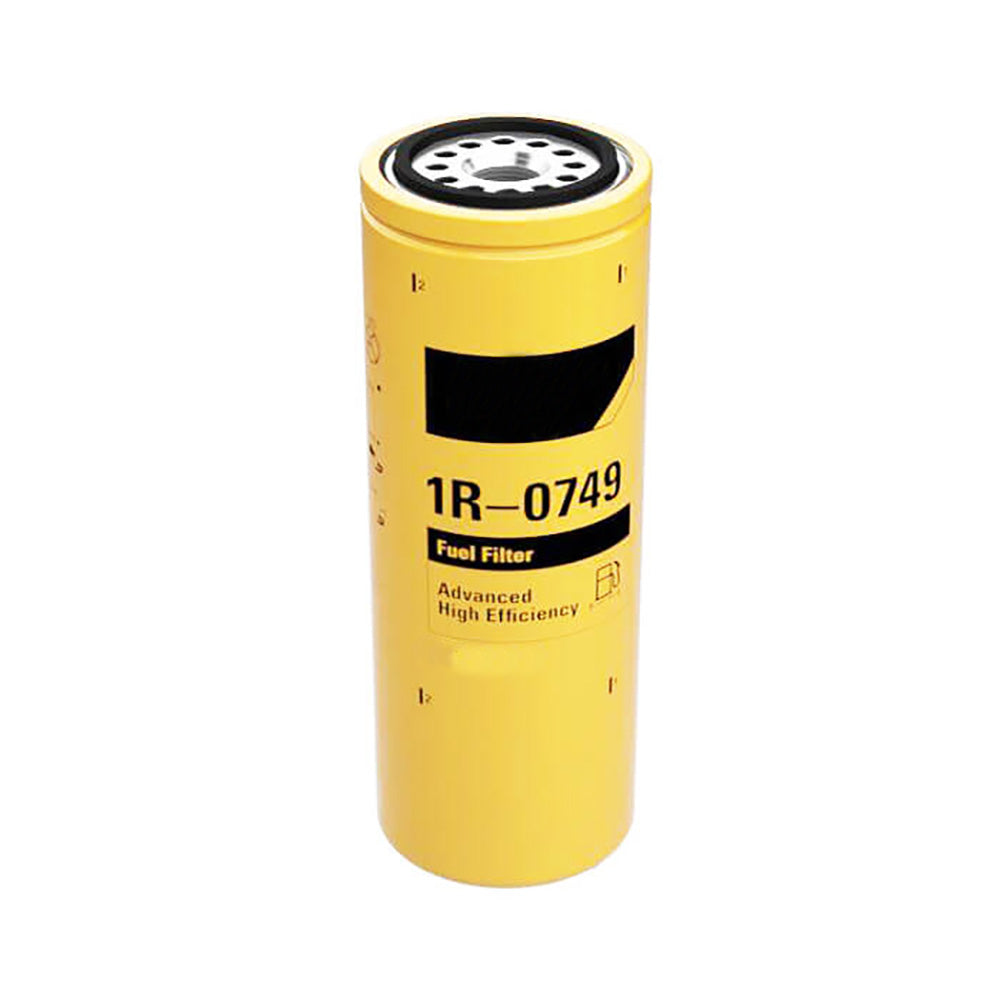

Fits Caterpillar Filter As-Fuel 1R0749

One New Aftermarket Replacement Fuel Filter for Caterpillar (Cat) Diesel Engines

This spin-on fuel filter replaces Caterpillar (Cat) OEM part number 1R-0749 and is designed to protect diesel fuel injectors and fuel system components from contaminants. The advanced efficiency cellulose filter media captures particles as small as 2 microns absolute, keeping fuel clean and helping extend engine life across a wide range of Cat-powered heavy equipment and trucks.

Specifications

• Style: Spin-on fuel filter
• Height: approximately 266-267 mm
• Outer Diameter: approximately 93.5-94 mm
• Thread Size: 1-14 UN
• Filter Media: Advanced efficiency cellulose
• Micron Rating: 2 micron absolute

Compatible Caterpillar Engines

Caterpillar In-Line 6 Diesel Engines: 3176, 3406B, 3406C, 3406E, C10, C11, C12, C13, C15, C16, C18

Compatible Caterpillar Equipment (representative)

Articulated Dump Trucks: 725, 730, 730C, 730C2, 735, 735B, 735C, 740, 740B, 740C, 745C

Wheel Loaders: 950H, 962H, 966H, 972H, 980C, 980F, 980F II, 980G, 980G II, 980H, 980K, 980K HLG, 980L, 980M, 982M, 982XE, 986H, 988B, 988F, 988F II, 988G, 988K, 990, 990 II, 992C, 992D

Wheel Tractor-Scrapers: 621, 621B, 621E, 621F, 621G, 621H, 621K, 623, 623B, 623E, 623F, 623G, 623H, 623K, 623K LRC, 627, 627B, 627E, 627F, 627G, 627H, 627K, 627K LRC, 631, 631D, 631E, 631G, 631K, 632, 633D, 633E II, 637D, 637E, 637G, 637K, 639D, 651, 651B, 651E, 657, 657B, 657E

Excavators: 235B, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F L

Also used in Cat articulated trucks, asphalt pavers, motor graders, track-type tractors, material handlers, pipelayers, and other Cat C-series and 3400-series engine-powered equipment. Verify your engine model before ordering.

Replaces Part Number(s):

1R0749, 1R-0749

Aftermarket Interchange Numbers

Baldwin BF7587 | Donaldson P551311 | Fleetguard FF5308, FF5319, FF5473, FF5473S1 | Fleetrite FFR85308, FFR85319, FFR85473, FFR85473S1 | Fram P8335 | Hastings FF1056 | Ingersoll Rand 35362243, 57294829 | Kralinator F298R | Luber-Finer LFF2749 | Mann+Hummel WK980/1 | NAPA 3674, 3674MP | Purolator F75185 | Sure Filter SFF7587 | WIX 33674, 33674MP | Woodgate WGF7587

New aftermarket replacement part - not remanufactured, not used.
