Fits Caterpillar EDGE-CUTTING 4T3010 NEW
Fits Caterpillar EDGE-CUTTING 4T3010 NEW
Couldn't load pickup availability

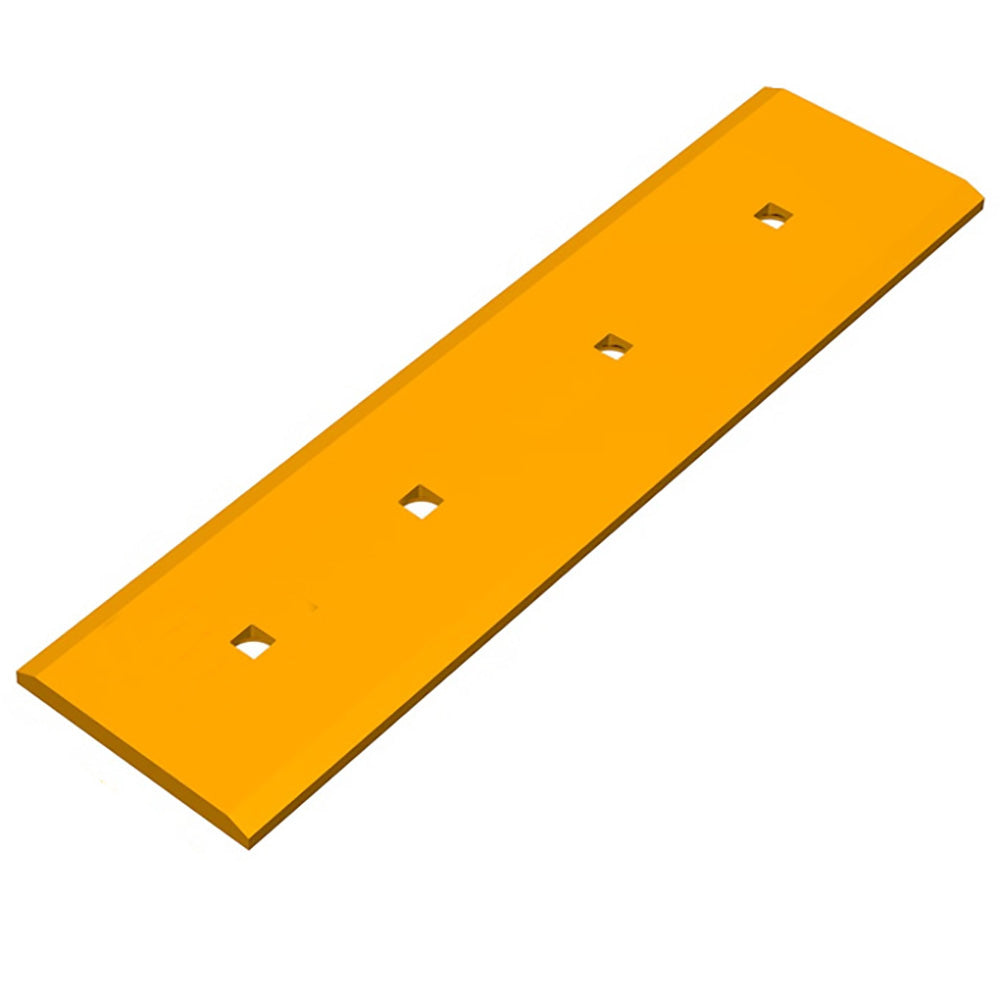

One New Aftermarket Replacement Cutting Edge Fits Caterpillar (Fits CAT) Motor Graders and D6 Series Dozers
This aftermarket replacement cutting edge replaces OEM part number 4T3010 and Fits Caterpillar (Fits CAT) motor graders and D6 series track-type tractors. It is a double-bevel, reversible end cutting edge used as a ground engaging tool (G.E.T.) on the blade of the machine to protect it from wear during grading and dozing operations. Sold individually (each).
Specifications
- Position: Left/Right (reversible)
- Overall Length: 25.88 in (658.2 mm)
- Width: 8 in (203.2 mm)
- Thickness: 0.75 in (19 mm)
- Number of Bolt Holes: 4
- Bolt Hole Size: 3/4 in (21 mm) plow bolt
- Hole Spacing: 6 in (152.4 mm) center to center
- End Hole Offset: 3.94 in from edge to center of first hole
- Weight: approx. 40 lb (18 kg)
- Edge Type: Double bevel, continuous
- Hardware: 4x 3/4 in x 2-1/4 in plow bolts and 4x 3/4 in hex nuts required
Compatible Models
Fits Caterpillar Motor Graders: 120K, 120K 2, 120M, 120M 2, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 140K, 140K 2, 140M, 140M 2, 140M 3, 140M 3 AWD, 160K, 160M, 160M 2, 160M 3, 160M 3 AWD, 6A, 6S
Fits Caterpillar Track-Type Tractors (Dozers): D6, D6C, D6D, D6E, D6E SR, D6F SR, D6G, D6G SR, D6G2 LGP, D6G2 XL, D6H
Replaces Part Number(s):
4T3010, 4T-3010
Aftermarket Interchange Numbers
DBD90-0035, CA4T3010, 4T3010-A
New aftermarket replacement part - not remanufactured, not used.
