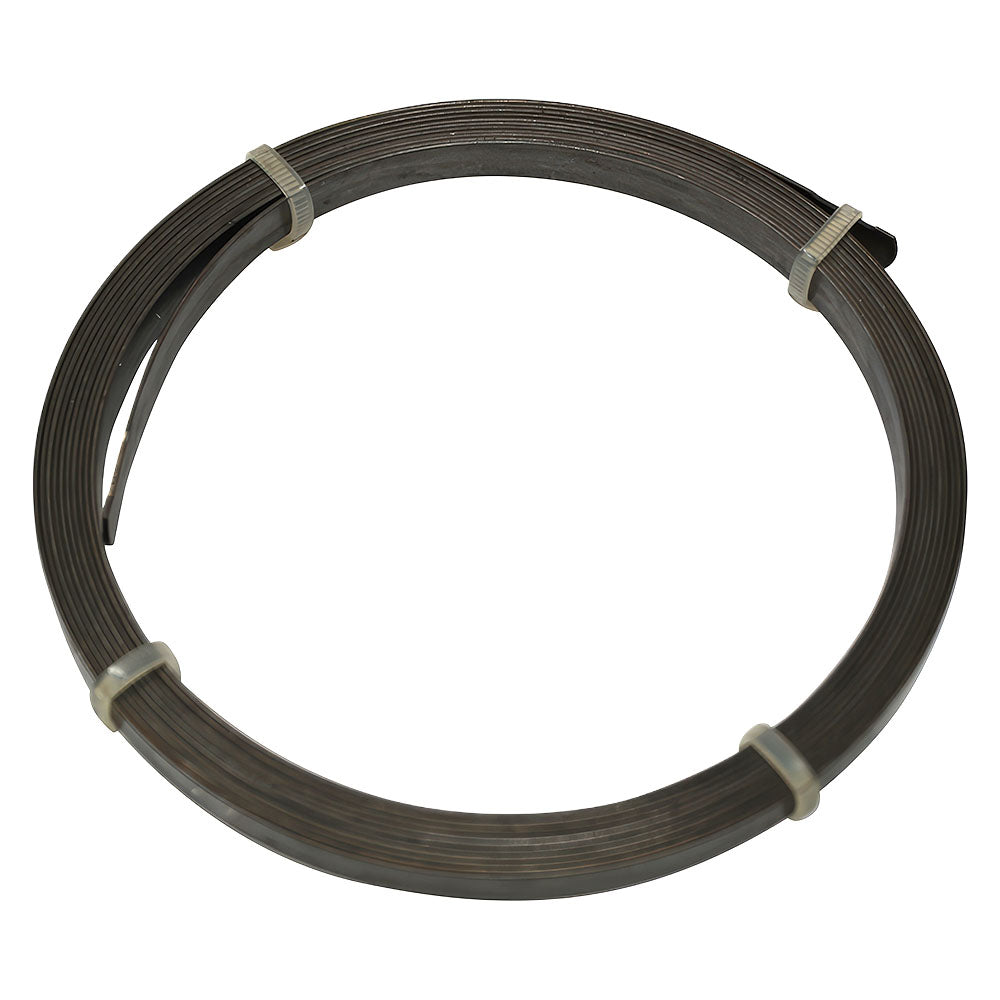

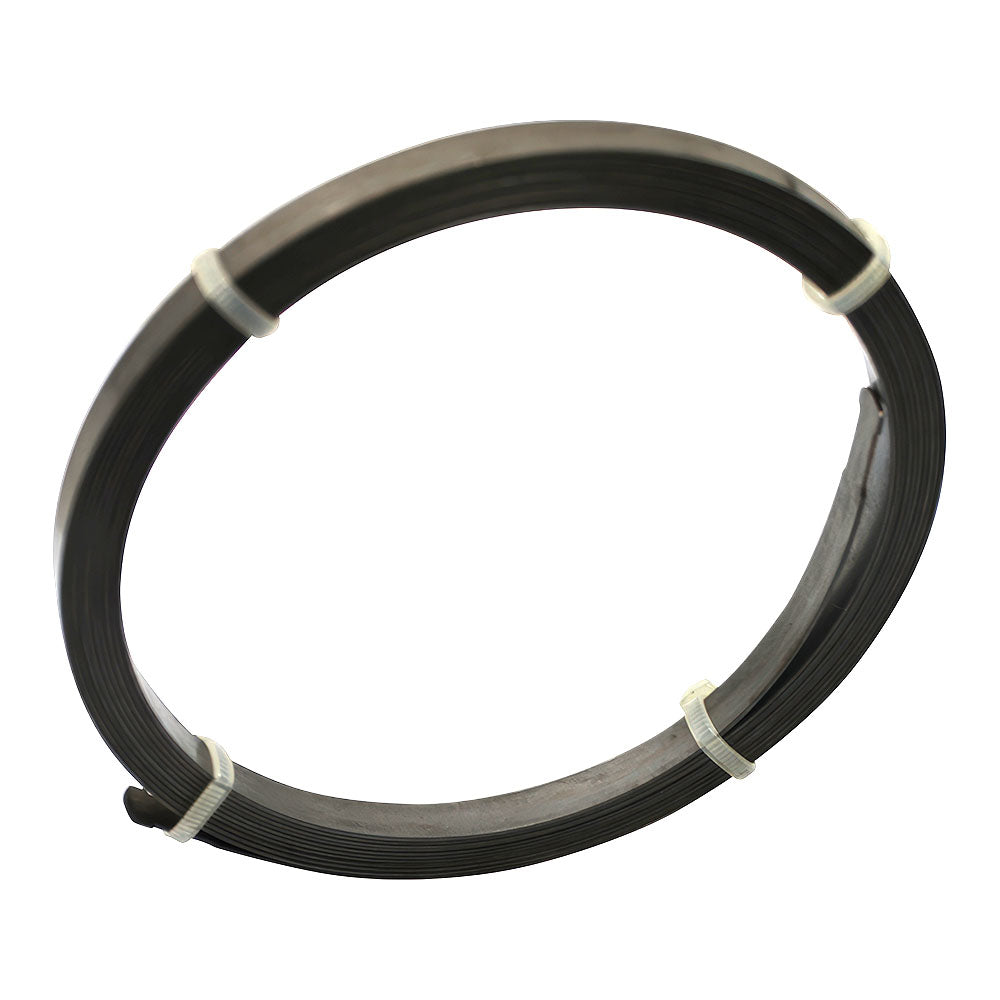

Fits Briggs and Stratton 490179 Starter Spring

One New Aftermarket Replacement Rewind Starter Spring for Briggs & Stratton Small Engines

This rewind starter spring (also called a recoil starter spring) is the key tension component inside the pull-cord recoil starter housing. When the starter rope is pulled, the spring stores energy and retracts the rope back into the housing, readying the engine for the next start. This replacement fits horizontal pull engines and most rewind starter engines equipped with a starter clutch, covering a wide range of Briggs & Stratton (Briggs and Stratton) 2-16 HP small gasoline engines used in lawn mowers, generators, pressure washers, and other outdoor power equipment. Also fits John Deere and Lesco equipment powered by compatible Briggs & Stratton engines.

Specifications

• Type: Recoil / Rewind Starter Spring
• Application: Horizontal pull engines and most rewind starter engines with starter clutch

Compatible Engine Series

Briggs & Stratton: Series 60000, 80000, 82000, 92000, 93000, 100000, 111000, 130000, 131000, 146000, 147000, 170000, 171000, 190000, 191700, 195000, 220000 -- most top-mount side-pull configurations

John Deere: Equipment fitted with compatible Briggs & Stratton engines (see John Deere cross-reference PT15165, M47810)

Lesco: Equipment using compatible Briggs & Stratton recoil-start engines (see Lesco cross-reference 050100)

Replaces Part Number(s):

490179, 294303, 555226, LG490179, PT15165, M47810, 050100, 1326, 5010, 5010B, 5010D, 5010H, 050100

Aftermarket Interchange Numbers

Stens 155-002, 155-002-A; Oregon 43-400-0; Rotary 1326

New aftermarket replacement part - not remanufactured, not used.
