Filter Service Kit Fits Fiat Replaces 1022005

Filter Service Kit Fits Fiat Replaces 1022005

£107.00 GBP
£107.00 GBP
Sale Sold out
Shipping calculated at checkout.

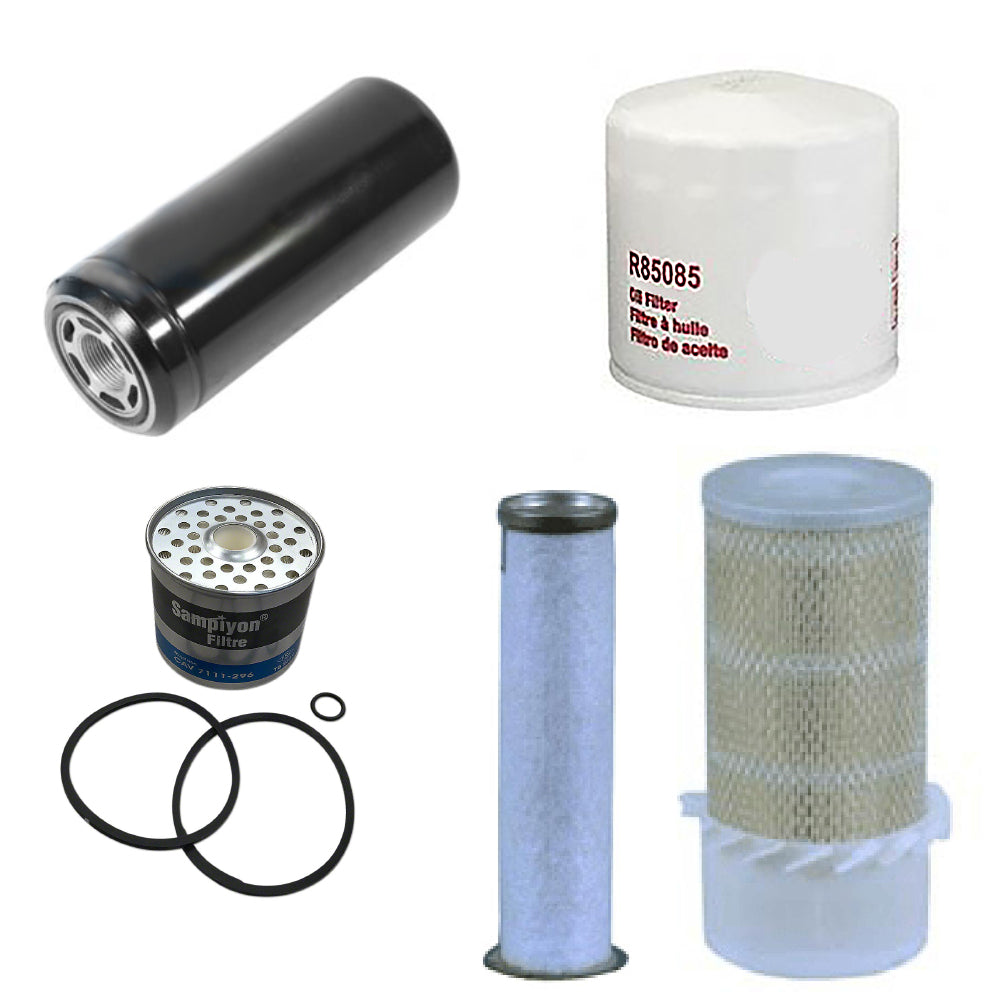

One New Aftermarket Filter Service Kit

Tech Info:
 -Kit Includes:
 -
 -(1)Primary Air Filter
 -Inside Diameter: 2.713" (68.9mm)
 -Length: 11.425" (290.2mm)
 -Outside Diameter: 5.24" (133.1mm)
 -Replaces Part Numbers: 1560611080, 18A42222, 42222, 721779, 811138
 -
 -(1) Air Filter
 -Replaces Part Numbers: AF1966
 -
 -(1) Fuel Filter
 -Inside Diameter: 3/4" (19.05 mm)
 -Outside Diameter: 3-7/16" (87.3 mm)
 -Length: 2-13/16" (71.4 mm)
 -Replaces Part Numbers: CAV7111/296, WIX 33166
 -
 -(1) Spin-on Oil Filter
 -Outside Diam.: 3-5/8 (92)
 -Length: 6-3/4 (172)
 -Thread: 3/4 x 16 UNF
 -Features: anti-drip valve, by-pass valve
 -Lube filter for diesel and gas applications
 -Replaces Part Numbers: LF3376J
 -
 -(1) Hydraulic Filter
 -3.810" Top O.D.
 -9.490" Height
 -1-3/8"-12 Thread Size
 -Style - Spin-On Hydraulic Filter
 -Service - Hydraulic
 -Type - Full Flow
 -Media - Microglass
 -Outer Diameter Bottom - Closed
 -By-Pass Valve Setting-PSI - None
 -Beta Ratio - 20/75=17/23
 -Burst Pressure-PSI - 1000
 -Max Flow Rate - 24-28 GPM
 -Nominal Micron Rating - 17
 -Replaces Part Numbers: AL118036, RE34958, 1346028C1, 32910601, 3515328M92

Fits Fiat:
 Tractor Models: 3830, 4030, 4230, 4430, 45-66, 45-66S, 466, 50-66, 50-66S, 55-46, 55-46DT, 55-56, 55-65, 55-66, 55-66LP, 55-66S, 55-66T, 55-75, 55-88, 55-90, 565C, 566, 580, 580DT, 60-56, 60-65, 60-66, 60-66DT, 60-66LP, 60-66S, 60-75, 60-76, 60-88, 60-90, 62-86, 65-46, 65-46DT, 65-56, 65-66, 65-66S, 65-88, 665C, 666, 70-56, 70-65, 70-66, 70-66F, 70-66LP, 70-66S, 70-75, 70-76, 70-88, 765C, 766, 80-65, 80-66, 80-66F, 80-66S, 80-75, 80-76, 80-88, 85-55, 955C
 Replaces Part Number(s): 1909138, 1022005, 87035489

Models This Part Fits:

65-66, 80-66F, 566, 665C, 62-86, 80-88, 666, 85-55, 80-66, 55-46DT, 70-76, 55-66S, 466, 55-46, 80-75, 65-66S, 3830, 65-56, 565C, 55-66, 45-66, 4430, 55-75, 60-66DT, 65-46DT, 45-66S, 80-66S, 60-66, 955C, 765C, 65-88, 70-66F, 55-65, 60-56, 60-76, 55-90, 70-66LP, 70-88, 70-75, 55-66T, 80-76, 80-65, 4030, 60-88, 580, 60-65, 60-66LP, 70-65, 60-75, 55-66LP, 50-66S, 70-66, 50-66, 55-56, 55-88, 60-66S, 70-56, 70-66S, 4230, 580DT, 60-90, 65-46, 766

Additional Information:

(1) Primary Air Filter Inside Diameter: 2.713" (68.9mm) Length: 11.425" (290.2mm) Outside Diameter: 5.24" (133.1mm) Replaces Part Numbers: 1560611080, 18A42222, 42222, 721779, 811138 (1) Air Filter Replaces Part Numbers: AF1966 (1) Fuel Filter Inside Diameter: 3/4" (19.05 mm) Outside Diameter: 3-7/16" (87.3 mm) Length: 2-13/16" (71.4 mm) Replaces Part Numbers: CAV7111/296, WIX 33166 (1) Spin-on Oil Filter Outside Diameter: 3-5/8" (92mm) Length: 6-3/4" (172mm) Thread: 3/4 x 16 UNF Features: anti-drip valve, by-pass valve Lube filter for diesel and gas applications Replaces Part Numbers: LF3376J (1) Hydraulic Filter 3.810" Top Outer Diameter 9.490" Height 1-3/8"-12 Thread Size Style - Spin-On Hydraulic Filter Service - Hydraulic Type - Full Flow Media - Microglass Outer Diameter Bottom - Closed By-Pass Valve Setting-PSI - None Beta Ratio - 20/75=17/23 Burst Pressure-PSI - 1000 Max Flow Rate - 24-28 GPM Nominal Micron Rating - 17 Replaces Part Numbers: AL118036, RE34958, 1346028C1, 32910601, 3515328M92

Reference Numbers:

1909138, 1022005, 87035489
