5196057 Diaphragm Clutch 13-3/4 in Fits New Holland TS Case IH MXU
5196057 Diaphragm Clutch 13-3/4 in Fits New Holland TS Case IH MXU
Regular price
£741.00 GBP
Regular price
Sale price
£741.00 GBP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

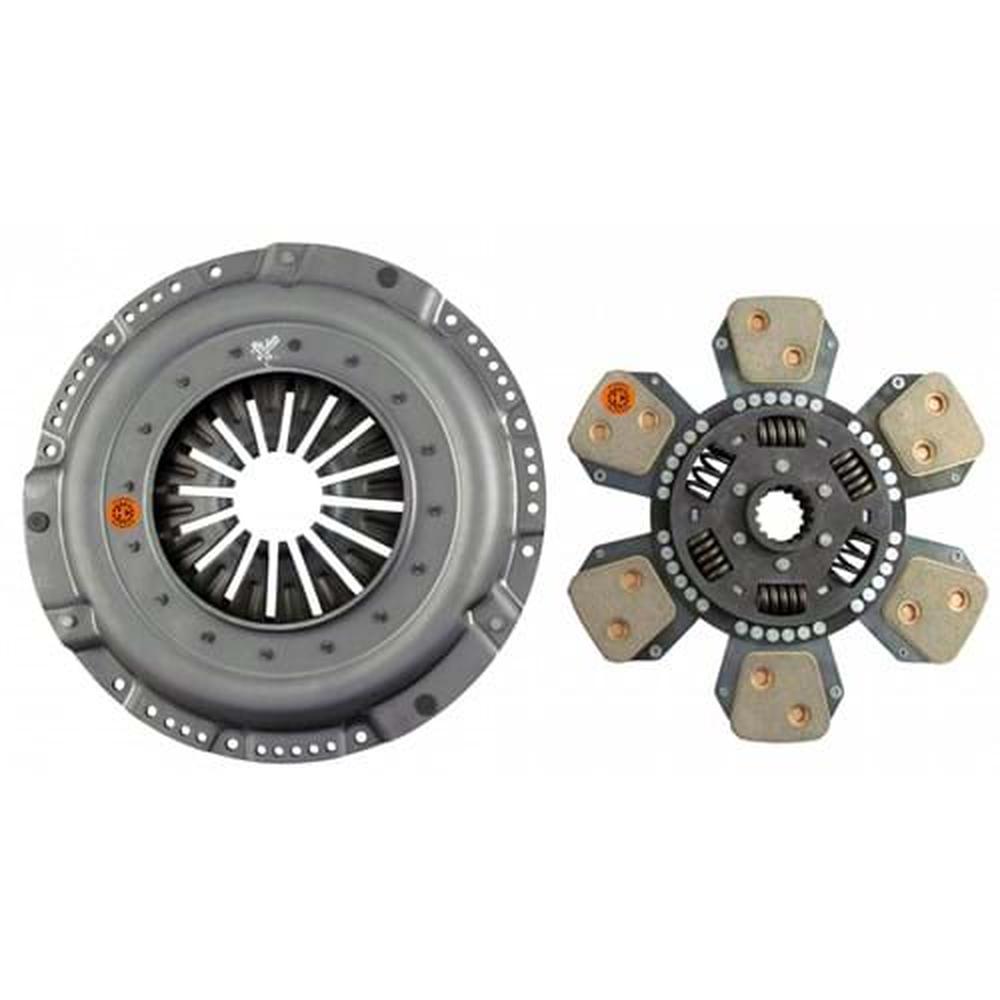

Fits New Holland and Case IH mid-horsepower tractors. This is a complete 13-3/4 inch (350 mm) diaphragm clutch unit, the diaphragm-spring pressure plate with its matched six-pad, 16-spline, spring-center transmission disc, about a 34 mm flywheel step. It is one shared CNH platform clutch.
Specifications
- Component: Diaphragm clutch unit, complete
- Size: 13-3/4 in (350 mm)
- Disc: 6-pad, 1-3/4 in 16-spline, spring center
- Cover: Diaphragm type
- Fits: NH TS/TS-A, T5000, T6000; Case IH MXU, MXM100-110, Farmall A
Replaces part number
- 5196057
One clutch, both makes
This clutch is shared across both brand versions of the same tractor platform; a remanufactured version of the same unit also exists, so match the diameter and disc to your tractor.
Aftermarket replacement part. Not manufactured by, sponsored by or affiliated with any equipment maker named here. All makes, models and numbers are listed for reference only.
