Set of 4 Piston Standard Fits Case IH S.69151 K949474 251240R1 Fits Cub, Fits Cu

Name: Set of 4 Piston Standard Fits Case IH S.69151 K949474 251240R1 Fits Cub, Fits Cu
SKU: ENO20-0390_x4
Price: 558.0 USD
Availability: InStock

Set of 4 Piston Standard Fits Case IH S.69151 K949474 251240R1 Fits Cub, Fits Cu

£558.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

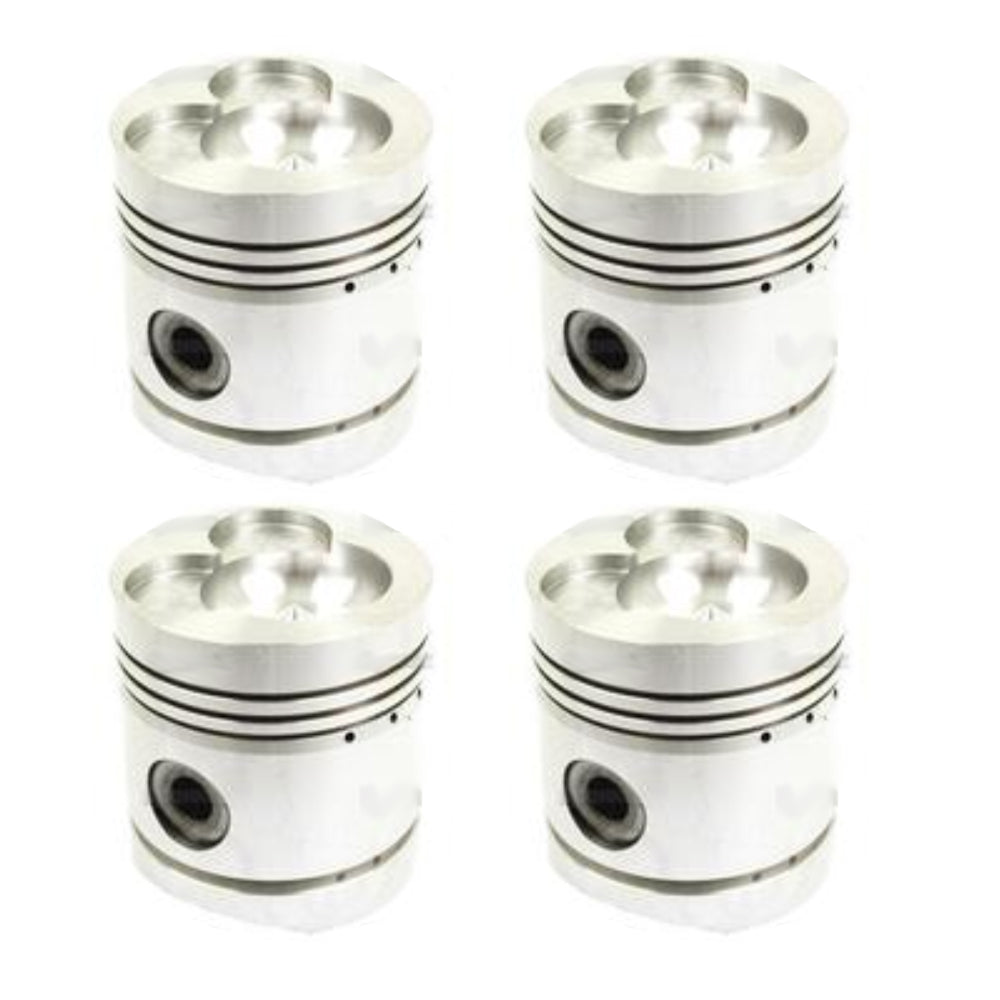

Set of Four (4) New Aftermarket Replacement Piston & Rings Set

Fits Case-Fits International Harvester Model(s):
Fits Cub, Fits Cub Lo-Boy

Specifications:
Piston Length = 105.68mm.
Chamber Depth = 20.45mm.
Chamber Ø58.73mm.
Pin Ø31.72mm.
Compression Height = 60.35mm.
To Fit Bore Dia. Ø99.41mm.
No. of Rings = 4.

Replaces Part Number(s): 251240R1, K949474

Models This Part Fits:

1390, 1212, 995, 880B, 1194, AD4/55, DH7, 1210, 1200, 885, 880A, 580, 880, 996, 580G, 380CK, 780, 1190, 1290, 1294

Additional Information:

Quantity: 4 Piston Length: 105.68 mm Chamber Depth: 20.45 mm Chamber Diameter: 58.73 mm Pin Diameter: 31.72 mm Compression Height: 60.35 mm Bore Diameter: 99.41 mm Number of Rings: 4
