ENGINE REBUILD KIT FOR LONG TRACTOR 4 CYL 102 MM

Models This Part Fits:

610C, 2610SD, 2610SD-DTC, 2610, 610DTE, 610

Additional Information:

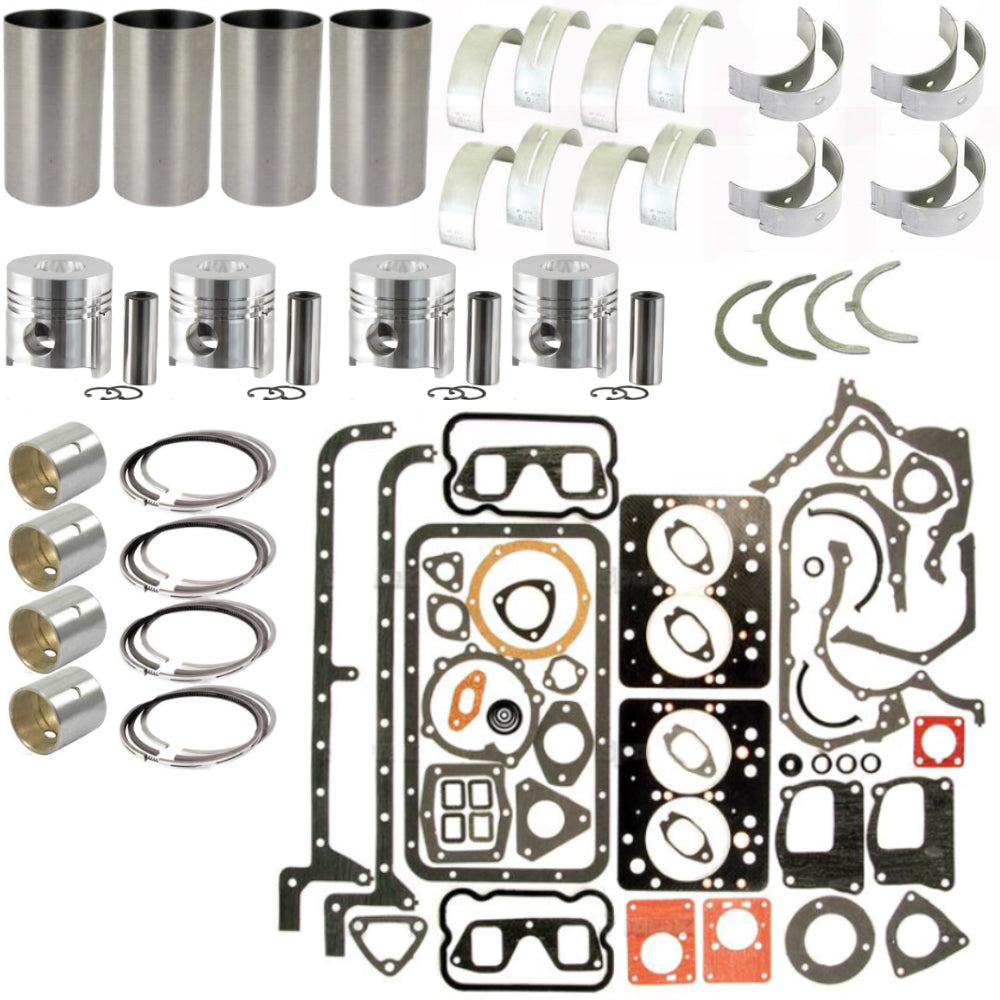

Kit Contains: (4) Standard Piston Piston Length: 3.99” (101.40mm) Compression Height: 2.34” (59.44mm) Bore: 4.01” (101.96mm) Bowl Depth: 0.96” (24.40mm) Chamber: 1.90” (48.46mm) Pin: 1.25” (31.93mm) No. of Rings: 3 Replaces Part Number: TX15107 (4) Liner Liner - 4.01” (102mm) Bore Replaces Part Number: TX12098 (4) Main Bearings (Pair) Main Bearing Kit (Std.) (4) Standard Connecting Rod Bearing Connecting Rod Bearing Pair (Std.) (4) Small End Bushing Inside Diameter 1.23” (31.4 mm) Wall Thickness 0.09” (2.35 mm) Overall Length 1.36” (34.7 mm) Lubrication Hole Yes Replaces Part Number: TX10196 (4) Piston Ring Set Replaces Part Number: TX15167 (1) Thrust Bearings Set Thrust Washer Set (Std.) (Centre Tab) (1) Full Gasket Set Replaces Part Number: TX16504

Reference Numbers:

TX15107, TX12098, TX16504, TX10196, TX15167

Product Category:

Agriculture
View More: Agriculture Replacement Parts

Product Group:

Engine Parts
View More: Engine Parts Replacement Parts
