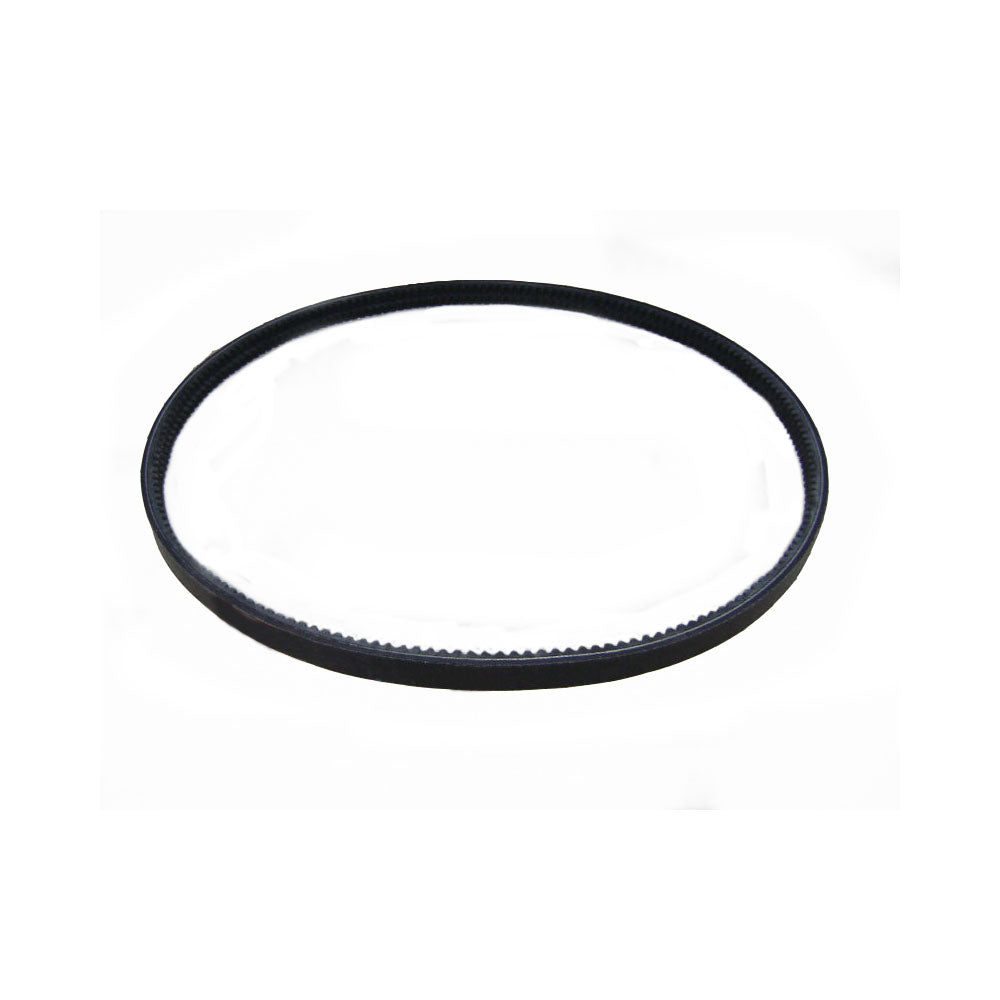

Polyester Cord Cogged Wedge 2-Banded Drive Belt 3/8" X 50" 3VX500/02 711728015
Polyester Cord Cogged Wedge 2-Banded Drive Belt 3/8" X 50" 3VX500/02 711728015
Couldn't load pickup availability
One New Aftermarket Replacement Cogged Wedge 2-Banded Drive Belt for Onan Lawn and Garden Equipment
This 3VX-section banded cogged wedge drive belt is a direct aftermarket replacement for Onan (Cummins Onan) lawn and garden engines and generator sets, including the L600, L700, LS70, and LS75 models. The 2-band banded design links multiple belt ribs into a single unit, eliminating belt whip and vibration common in multi-belt installations, while the cogged underside provides flexibility for smaller-diameter pulleys without sacrificing load capacity.
Specifications
- Belt Section: 3VX (Narrow Wedge Cogged)
- Number of Bands: 2
- Top Width: 3/8 in (0.81 in combined banded width)
- Outside Circumference (OC) Length: 50 in
- Inside Length: 48 in
- Height: 21/64 in
- Pitch Distance: 13/32 in
- Material: Polyester cord reinforcement
- Color: Black
Compatible Models
Onan / Cummins Onan: L600, L700, LS70, LS75 (lawn and garden equipment with Onan gas engine, including Prime Mover, Rounder, and Skid Steer applications)
Replaces Part Number(s):
3VX500/02, 711728015
Aftermarket Interchange Numbers
ENB40-0148; also sold as: 3VX500/2, 2/3VX500, 2-3VX500, 3VX500-2, 3VX500-02, A-3VX500/02, 2R3VX500, R3VX500, BTQ-2/3VX500, 2H3VX500, 3VX500H2
New aftermarket replacement part - not remanufactured, not used.
