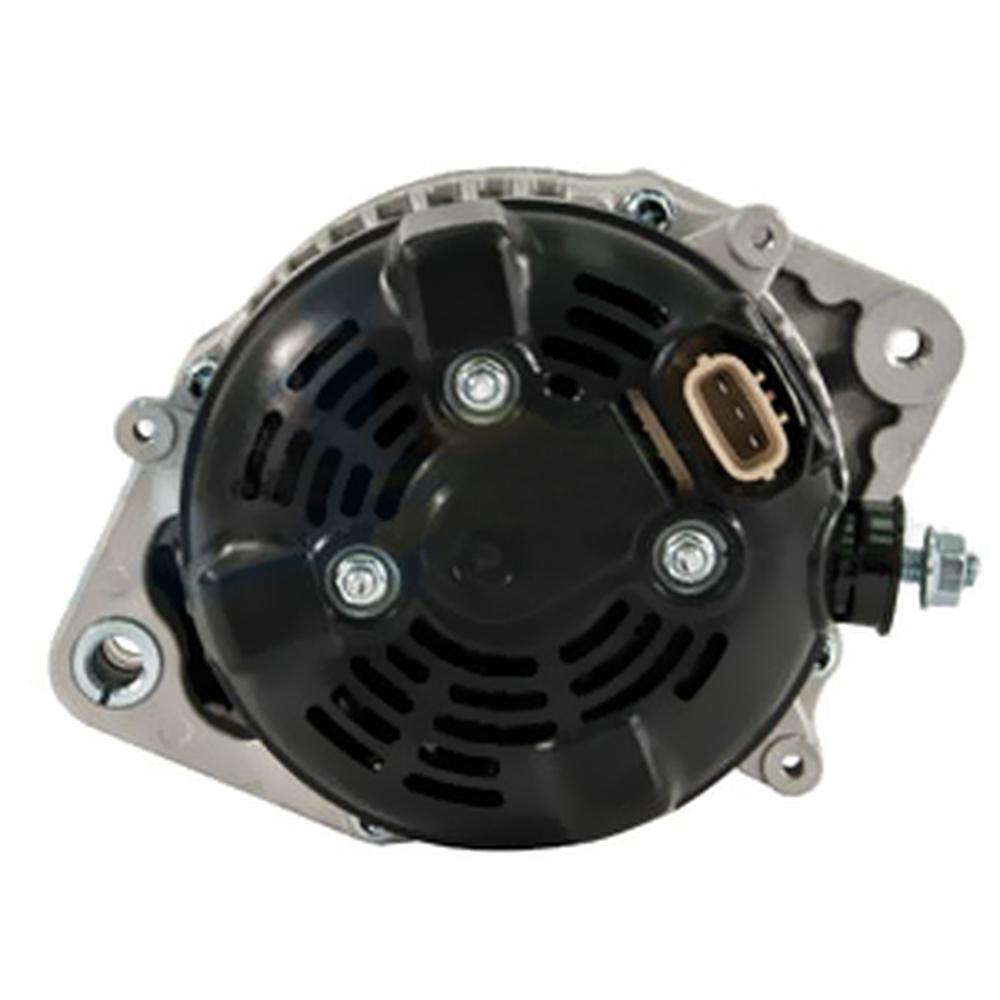

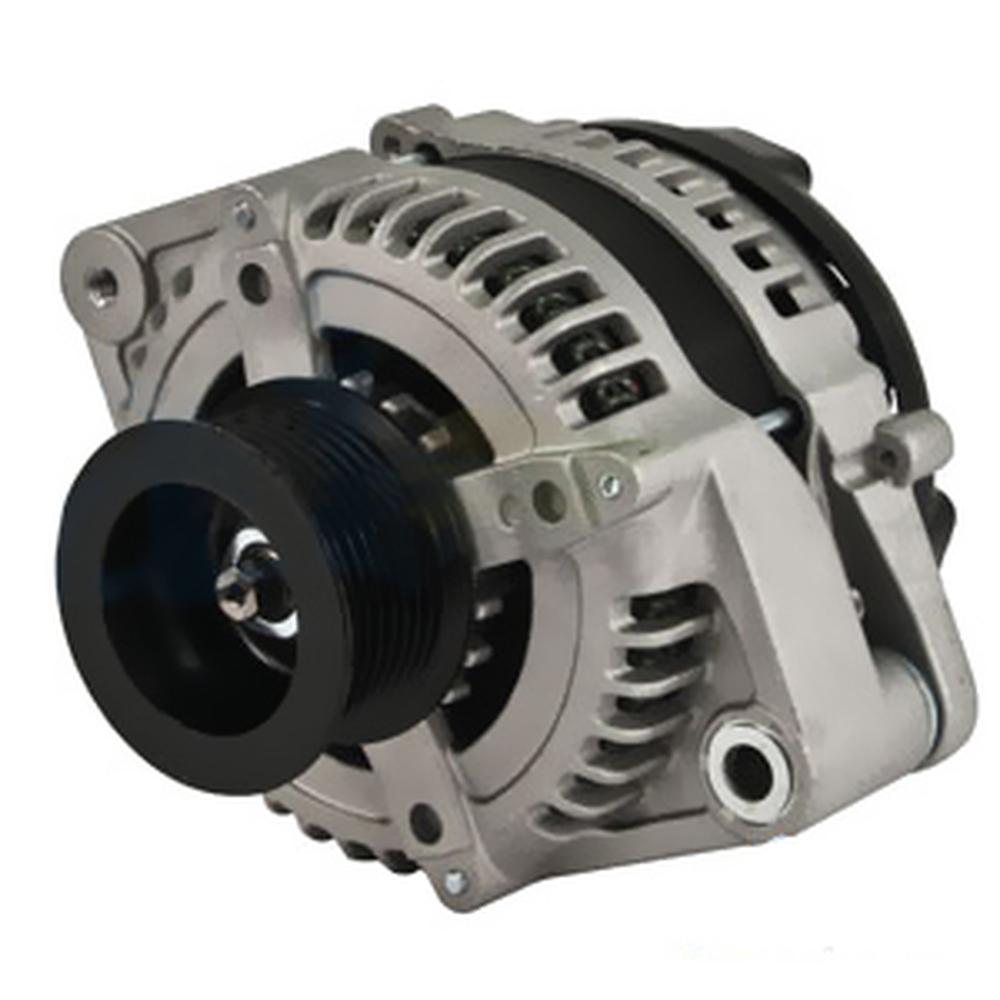

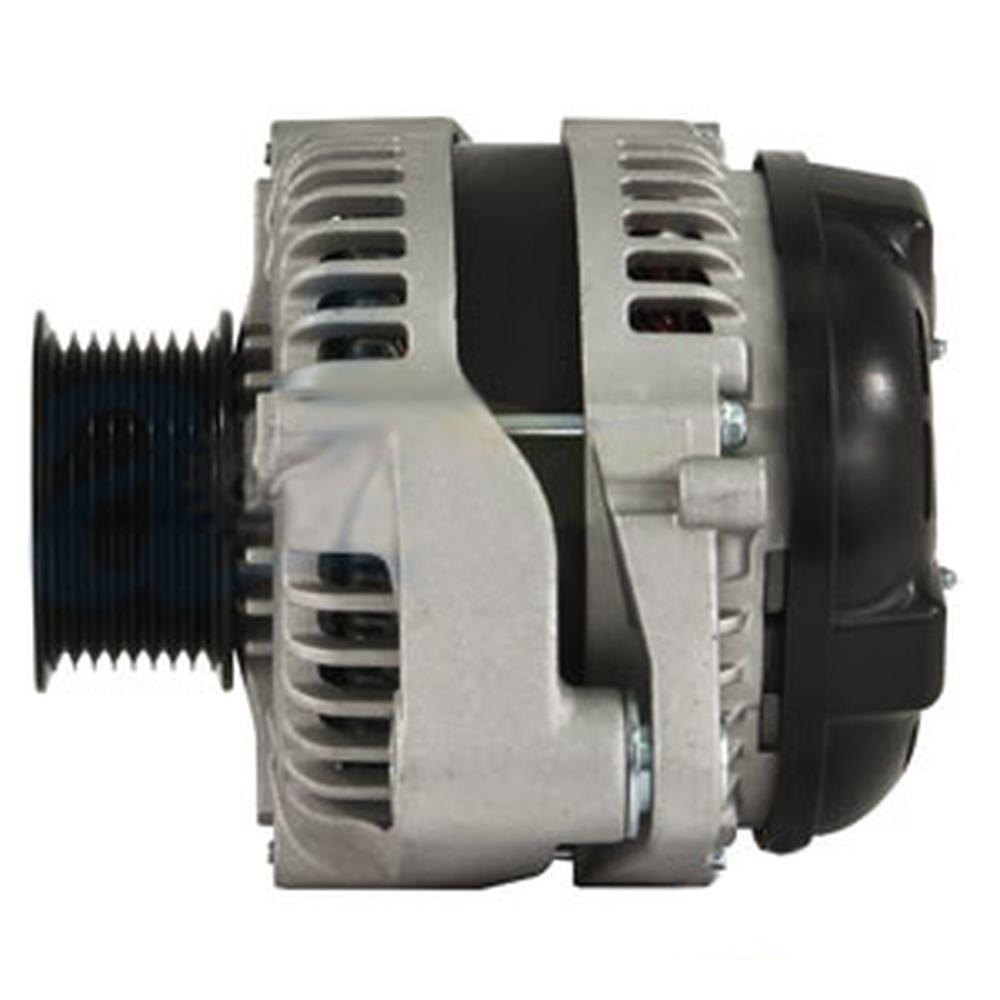

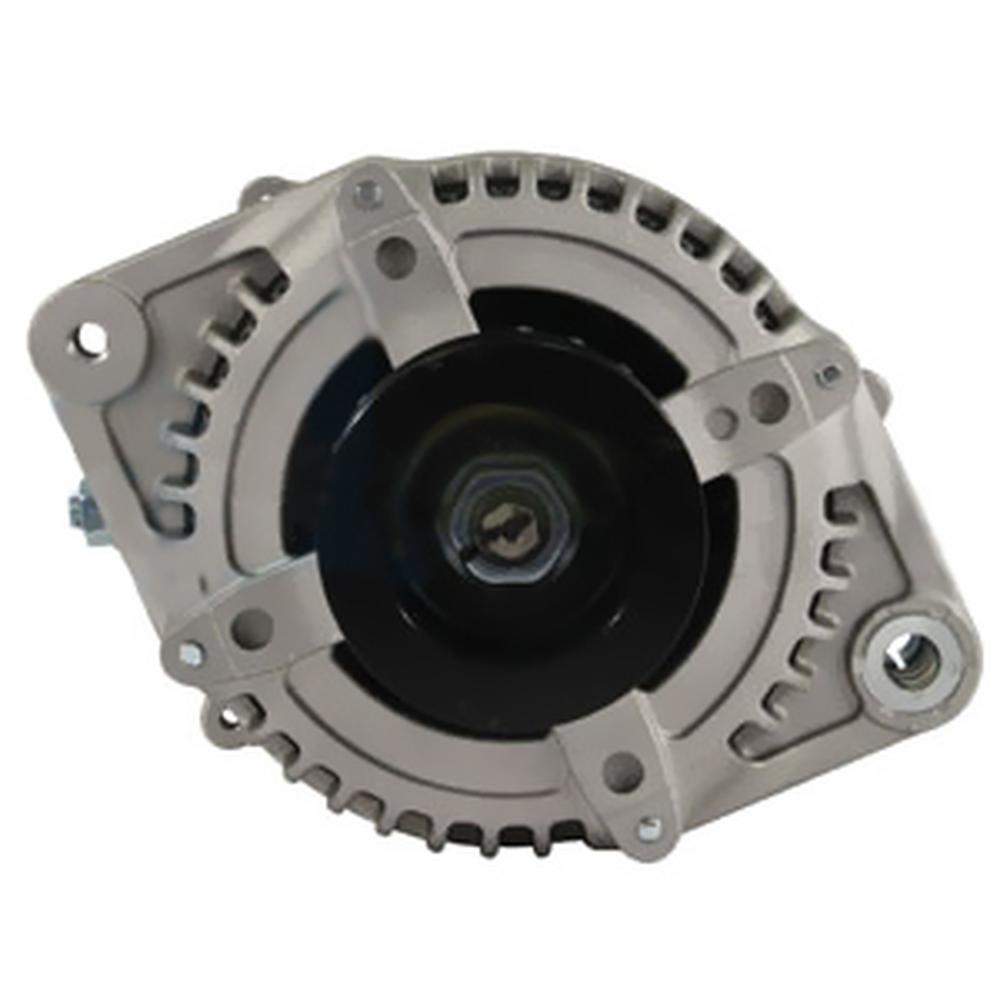

Fits John Deere Part RE186320 RE257541 Alternator
Fits John Deere Part RE186320 RE257541 Alternator
Couldn't load pickup availability
One New Aftermarket Replacement Alternator Fits John Deere (Fits JD) Tractors and Sprayers
This 12-volt, 150-amp Fits Denso-style alternator is a direct aftermarket replacement for the charging system on Fits John Deere (Fits JD) large-frame farm tractors and self-propelled sprayers. It features an internal fan, internal regulator, 8-groove serpentine pulley, and negative ground polarity -- a drop-in fit for machines originally equipped with OEM part RE186320 or RE257541.
Specifications
- Voltage: 12V
- Amperage: 150 Amps
- Unit Type: Fits Denso SC (Hairpin) style
- Fan: Internal
- Regulator: Internal
- Pulley: Serpentine, 8-groove, 2.756 in / 70 mm OD
- Regulator Clock Position: 11:30
- Polarity: Negative
- B+ Terminal: M8-1.25
- Mounting Ear 1: M8-1.25 Threaded
- Mounting Ear 2: 10.2 mm Unthreaded
- Weight: approx. 13.95 lbs / 6.34 kg
- Compatible Engines: Fits John Deere 6068, 6081, 6125 diesel
Compatible Models
Fits John Deere Sprayers: 4720 (2004-2009)
Fits John Deere Farm Tractors: 7720 (2003-2006, 2WD and MFWD), 7815, 7820, 7920, 9120 (S/N 011283 and later), 9220 (S/N 011175 and later), 9320 (S/N 011175 and later), 9320T (S/N 902186 and later), 9420 (S/N 011175 and later), 9420T (S/N 902186 and later), 9520 (S/N 011175 and later), 9520T (S/N 902186 and later), 9620, 9620T
Replaces Part Number(s):
RE186320, RE257541, SE501837
Aftermarket Interchange Numbers
Fits Denso: 104210-3920, 104210-3921 -- Also known as: 021080-0140, 12660, 113975
New aftermarket replacement part - not remanufactured, not used.
