Starter For Diesel Fits Kubota Turf Mower ZD25 ZD28 D1105 25HP-28HP
Starter For Diesel Fits Kubota Turf Mower ZD25 ZD28 D1105 25HP-28HP
Couldn't load pickup availability

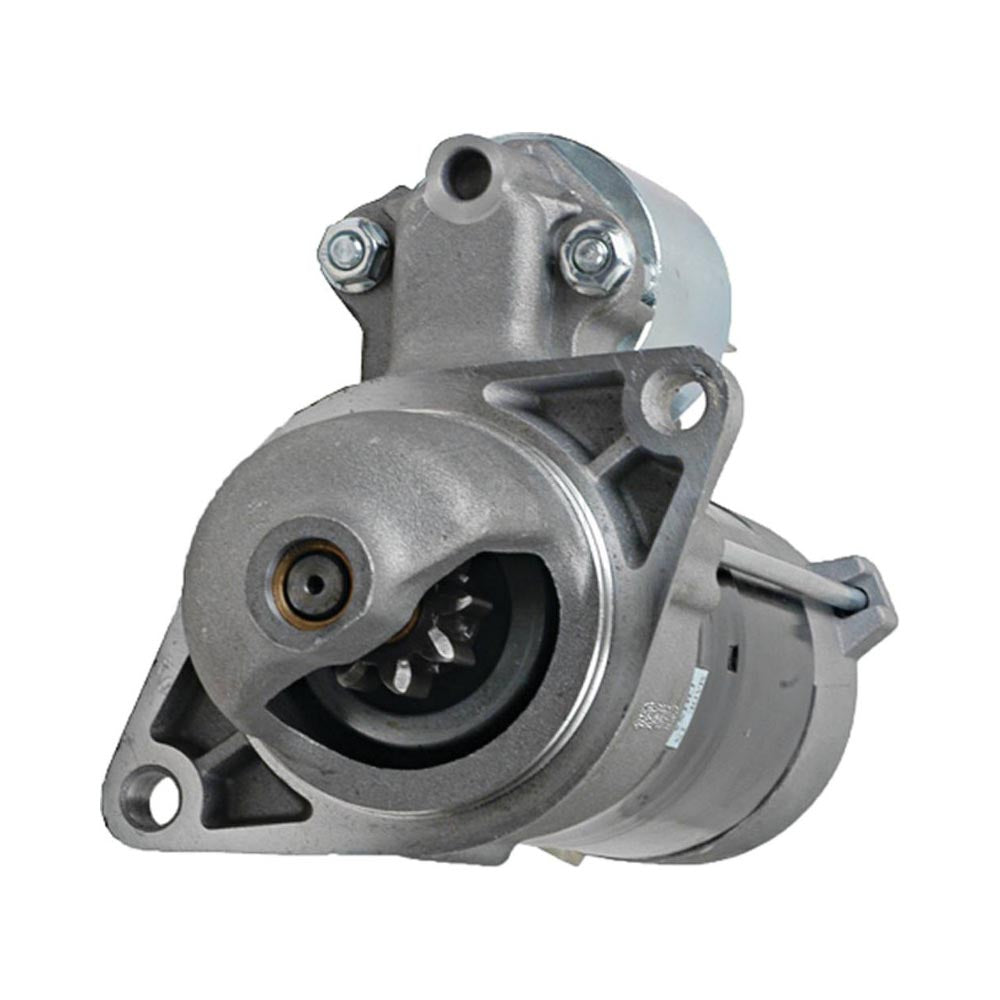

One New Aftermarket Replacement Starter Fits Kubota Zero-Turn Turf Mowers - D1105 Diesel Engine
This aftermarket replacement PLGR-type starter Fits Kubota ZD25 and ZD28 zero-turn turf mowers equipped with the Fits Kubota D1105 25HP-28HP diesel engine and Fits Denso ignition system. It is a direct-fit, drop-in replacement delivering 1.1kW of cranking power through a 9-tooth pinion gear at 12 volts with clockwise rotation.
Specifications
- Type: PLGR (Permanent Magnet Gear Reduction)
- Voltage: 12V
- Power: 1.1 kW
- Rotation: Clockwise
- Teeth: 9-Tooth Pinion
- Gear OD: 29mm / 1.142 in.
- Mounting: 2-ear mount, 9.0mm ID unthreaded
Compatible Models
Fits Kubota Zero-Turn Turf Mowers (D1105 Diesel Engine): ZD25, ZD28
Additional Fits Kubota Models (from catalog and research): BX1500D, F2260, F2560, F3060, G2160, GR2100, GR2110, GR2120, TG1860, ZD18, ZD21, ZD221, ZD321, ZD323, ZD326, ZD326P, ZD326S, ZD331, ZD331LP, ZD331P
Replaces Part Number(s):
Fits Kubota OEM: 1G069-63010, 1G069-63011, 1G069-63012, 77700-02596
Fits Denso: 428000-1160, 428000-1161, 9742809-116
Lester: 18413
WAI: 18413N
Fits Lucas Electrical: LRS02702
Arrowhead: SND0476
J&N: 410-52242
Aftermarket Interchange Numbers
ELS60-1639, ND9742809-116, 57-3299, 190-6123, STR70293, 435-030
New aftermarket replacement part - not remanufactured, not used.
