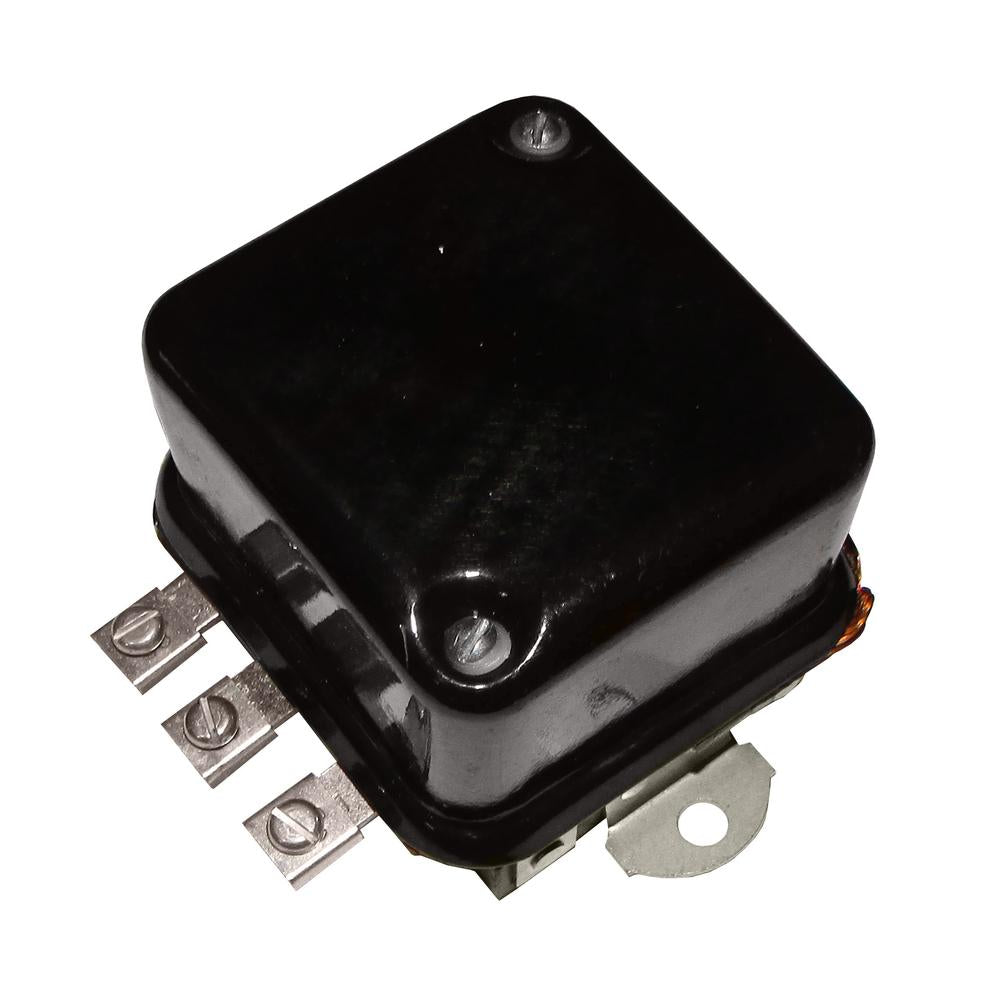

Voltage Regulator 6 Volt Fits John Deere M MT 40 320 420 330 430

Name: Voltage Regulator 6 Volt Fits John Deere M MT 40 320 420 330 430
SKU: ELP50-0024
Price: 31.0 USD
Availability: InStock

Voltage Regulator 6 Volt Fits John Deere M MT 40 320 420 330 430

£31.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement 6 Volt Voltage Regulator Fits John Deere (Fits JD), Fits International Harvester (IH), Fits Allis Chalmers, Fits Case, and Fits Massey Ferguson Tractors

This external voltage regulator replaces the OEM unit on vintage 6-volt positive-ground electrical systems equipped with a Fits Delco-Remy generator. It mounts flat to the firewall with a 4-terminal configuration covering Light, Battery, Field, and Generator terminals, with a separate Ground terminal on the underside of the base. Designed for type-A circuits in positive-ground systems, it is rated at 7-9 output amps.

Specifications

Voltage: 6 Volt
Polarity: Positive Ground
Type: External Voltage Regulator

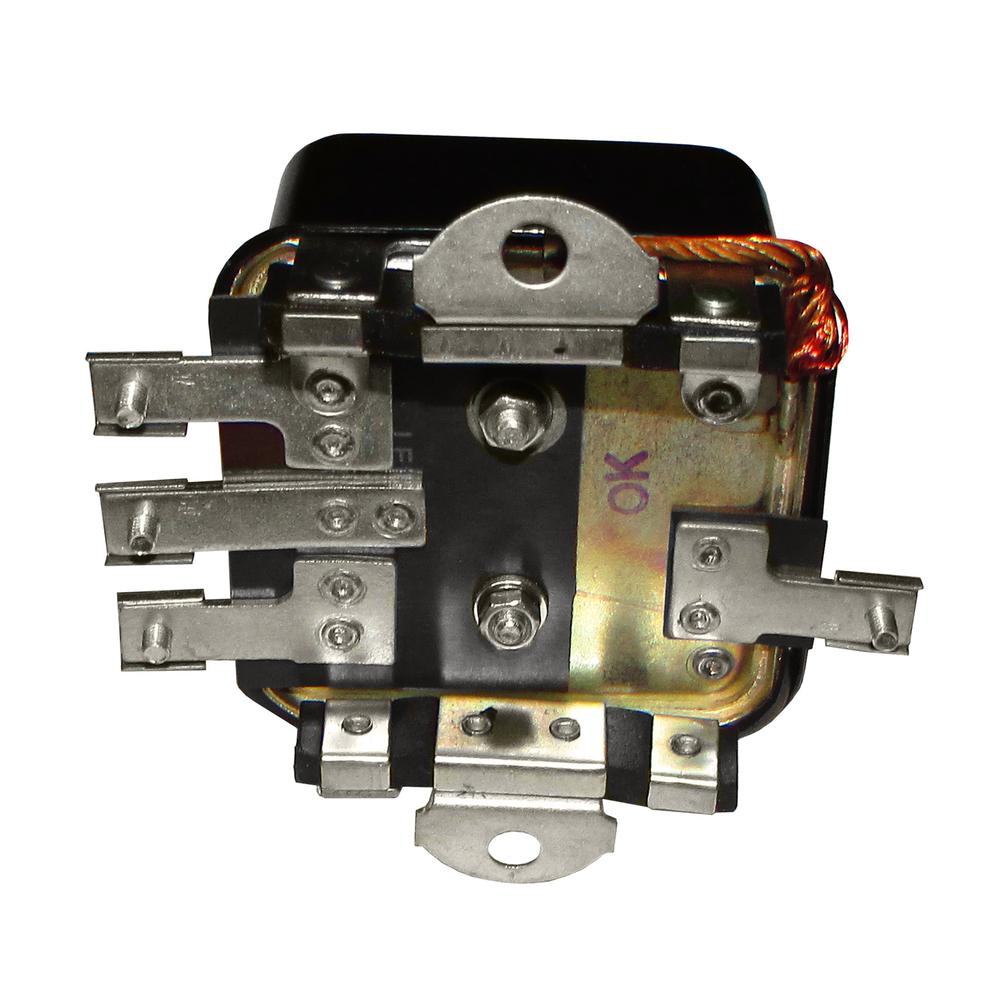

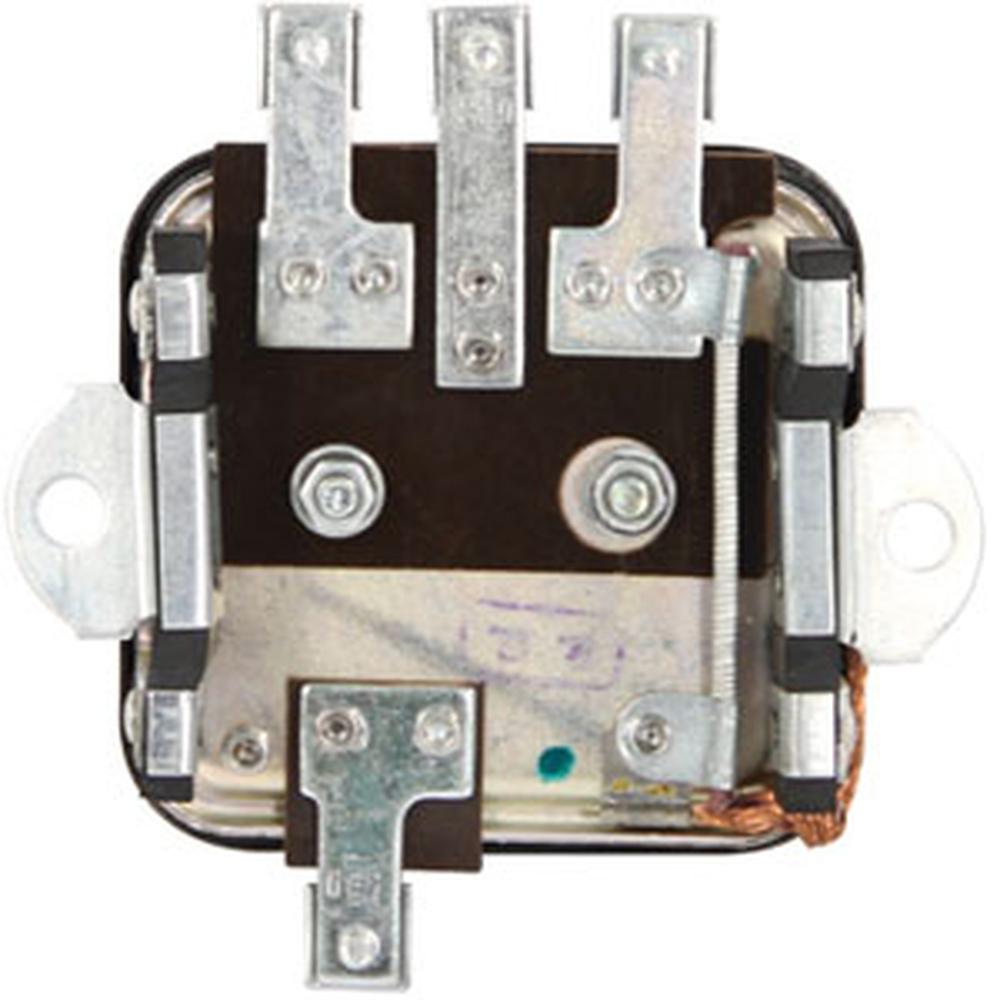

Terminals: 4-Terminal Flat Mount (Light, Battery, Field, Generator + Ground underside)
Output: 7-9 Amps
Circuit Type: Type A

Compatible Models

Fits John Deere Tractors: M, MT, 40, 320, 330, 420, 430

Fits John Deere Crawlers/Loaders: 440

Fits International Harvester / Fits FARMALL Tractors: C, Fits Cub, Fits Cub Lo-Boy, H, I4, I6, I9, M, MD, MI, O4, Super A, Super C, Super H, Super M, Super MTA, Super W4, Super W6, Super W6TA, W4, W6, W9, WD9, WR9, WR9S, 100, 130, 140, 200, 230, 240, 300, 330, 340, 350, 400, 450

Fits International Backhoe Loaders: 140, 240, 340

Fits Allis Chalmers Tractors: D10 (s/n 3501 and earlier), D12 (s/n 3001 and earlier), D14 (s/n 19001 and earlier), WD6

Fits Case Tractors: 200, 200B, 210, 210B, 211, 211B

Fits Massey Ferguson / Fits Massey Harris Tractors: TE20, TEA20, TO20, TO30, TO35 (s/n 161250 and earlier)

Replaces Part Number(s):

AM2702T, AM1863T, 360898R91, 365775R91, 121578C1, 354234R91, 376121R91, 180142M92, 180142M1, 228365, 70228365, 1118308, G44861

Aftermarket Interchange Numbers

ELP50-0024; Fits Delco-Remy: 1119575, 1116807, 1116816, 1118291, 1118308, 1118780, 1118982, D645, D657; Fits Delco-Remy Generator: 1100043, 1100529, 1100530, 1101859; Prestolite: 8-291, GRX-291; CockShutt/CO-OP: 1100530, 1100043, 1100529

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

Super W6, WR9S, WD6, M, I6, TEA20, Super H, I4, 211B, I9, 130, C, D14, 70, 450, Cub, Super W4, 200, WR9, 420, 330, 340, MI, Super A, TO20, 300, Super W6TA, WD9, Cub Loboy, H, 400, 211, Super M, O4, Super MTA, MD, 210, Super C, D10, 240, W4, W6, 40, 350, TO35, 230, TE20, 440, 140, 320, MT, W9, 200B, 430, D12, MC, TO30, 100, 210B

Additional Information:

6 Volt Positive Ground Designed for A type circuits in positive ground systems with 2 brush generators External Voltage Regulator This external voltage regulator has a flat base for mounting 4 Terminal Flat Mount There are 4 terminals (lights, battery, field and generator) Measures 7 to 9 output amps

Reference Numbers:

360898R91, 354234R91, 121578C1, G44861, 228365, 70228365, 180142M92, 180142M92, 180142M1, AM2702T, AM1863T, AM2702T, 1118308, 360898R91, 365775R91, 121578C1, 354234R91, 376121R91
