ATO15 Fuse Cartridge for Universal Products
ATO15 Fuse Cartridge for Universal Products
Couldn't load pickup availability

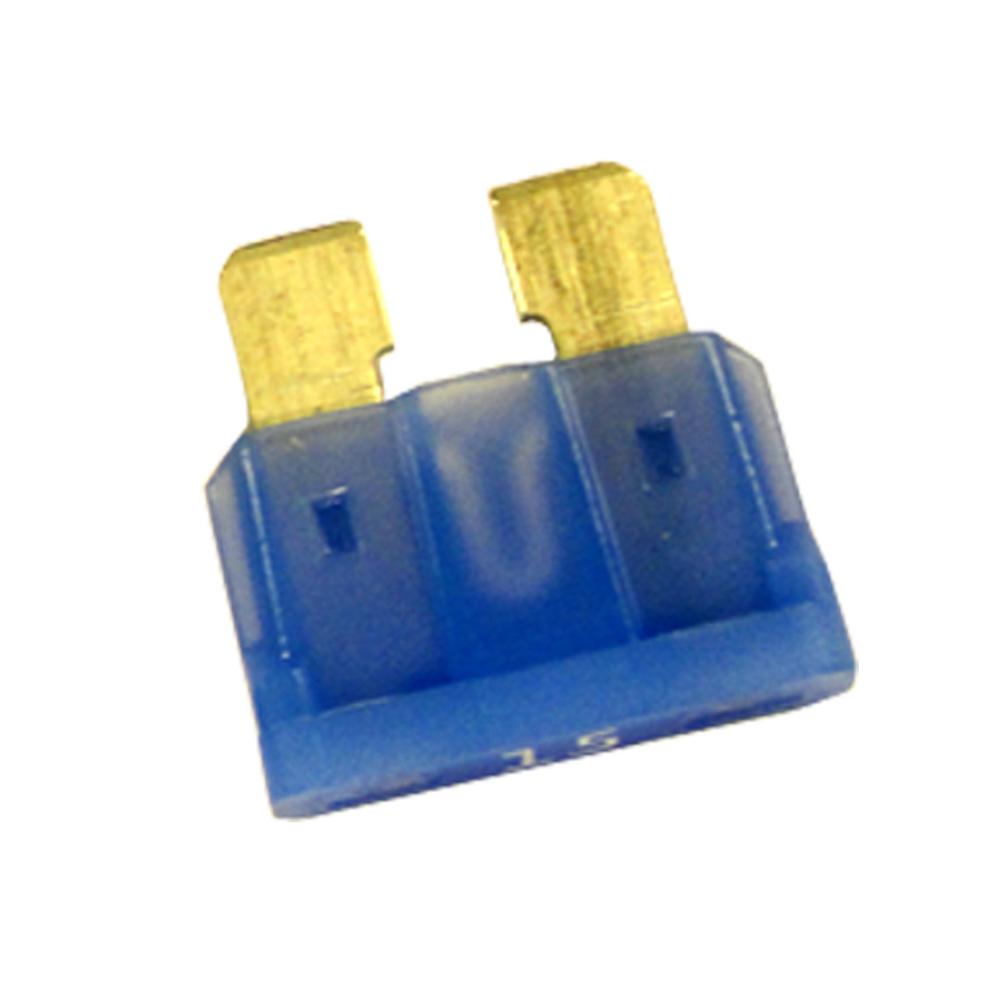

One New Aftermarket Replacement ATO15 Fuse Cartridge - 15 Amp Standard Blade Fuse
This 15 amp ATO/ATC standard blade fuse cartridge is a fast-acting automotive circuit protection fuse designed to protect low-voltage electrical circuits in tractors, combines, agricultural machinery, construction equipment, and other equipment using 12V or 24V fuse blocks. The ATO/ATC blade fuse is the industry-standard format for equipment fuse panels and is compatible with any fuse holder or fuse block that accepts standard ATO or ATC blade-type fuses.
Specifications
- Type: ATO / ATC Standard Blade Fuse
- Current Rating: 15 Amp
- Voltage Rating: 32V DC
- Color Code: Blue (industry standard for 15A)
- Terminal Material: Tin-plated zinc alloy
- Housing: High-temperature, impact-resistant thermoplastic
- Interrupt Rating: 1000A @ 32V DC
- Compliance: SAE J1284, ISO 8820-3, UL Recognized
Compatible With
Fits any fuse block or fuse holder accepting standard ATO or ATC blade-type fuses. Commonly used in agricultural equipment (tractors, combines, sprayers), construction equipment, trucks, RVs, marine vessels, and general low-voltage electrical applications. ATO and ATC fuse types are fully interchangeable.
Replaces Part Number(s):
ATO15
New aftermarket replacement part - not remanufactured, not used.
