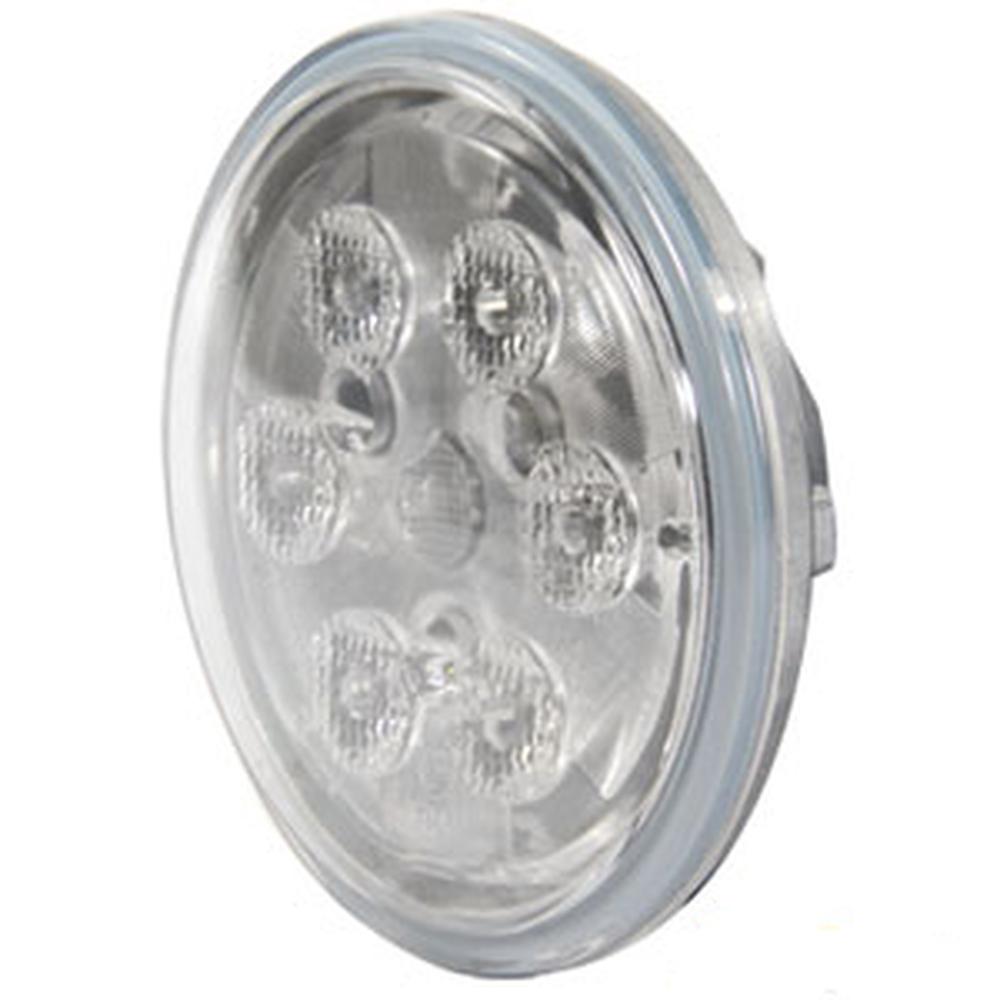

LED Conversion Headlight Bulb - 18W 4.5" Round Trapezoid Beam Fits John Deere
LED Conversion Headlight Bulb - 18W 4.5" Round Trapezoid Beam Fits John Deere
Couldn't load pickup availability
One New Aftermarket Replacement LED Conversion Headlight Bulb - 18W 4.5" Round Trapezoid Beam Fits John Deere (Fits JD) Tractors

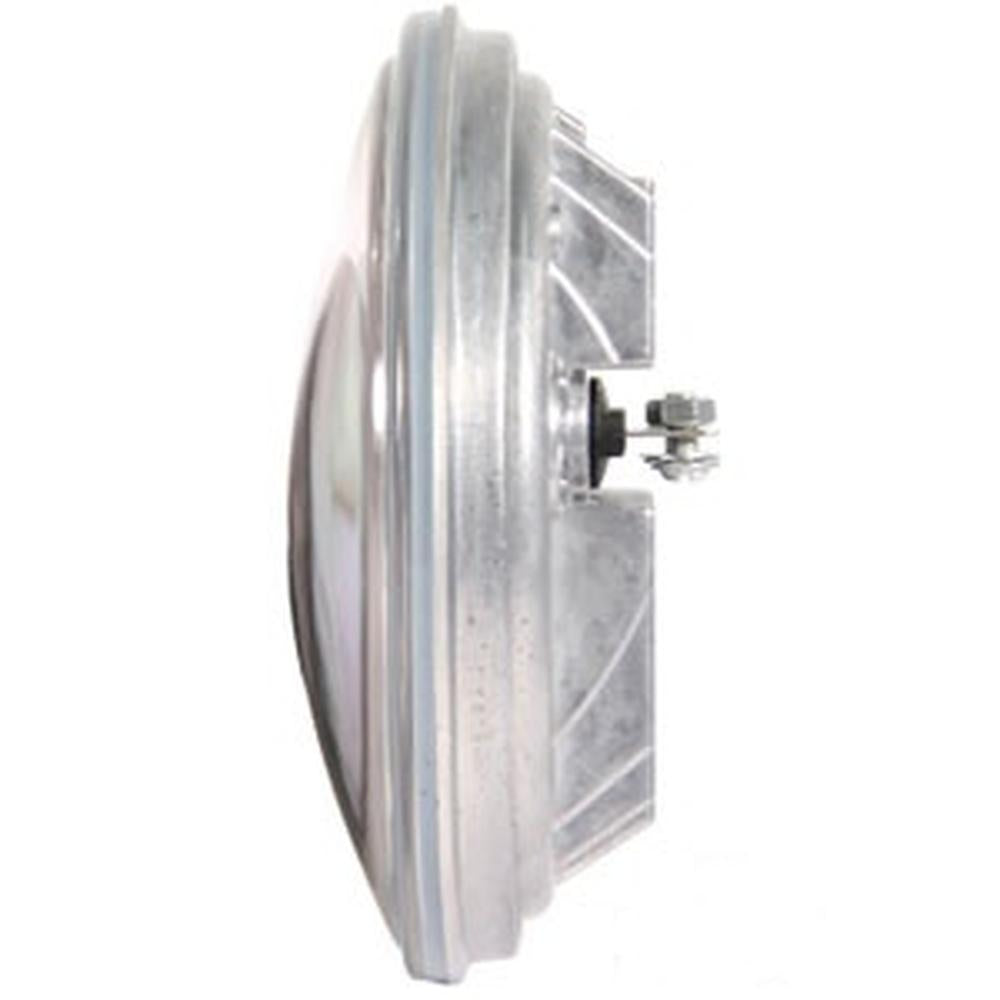

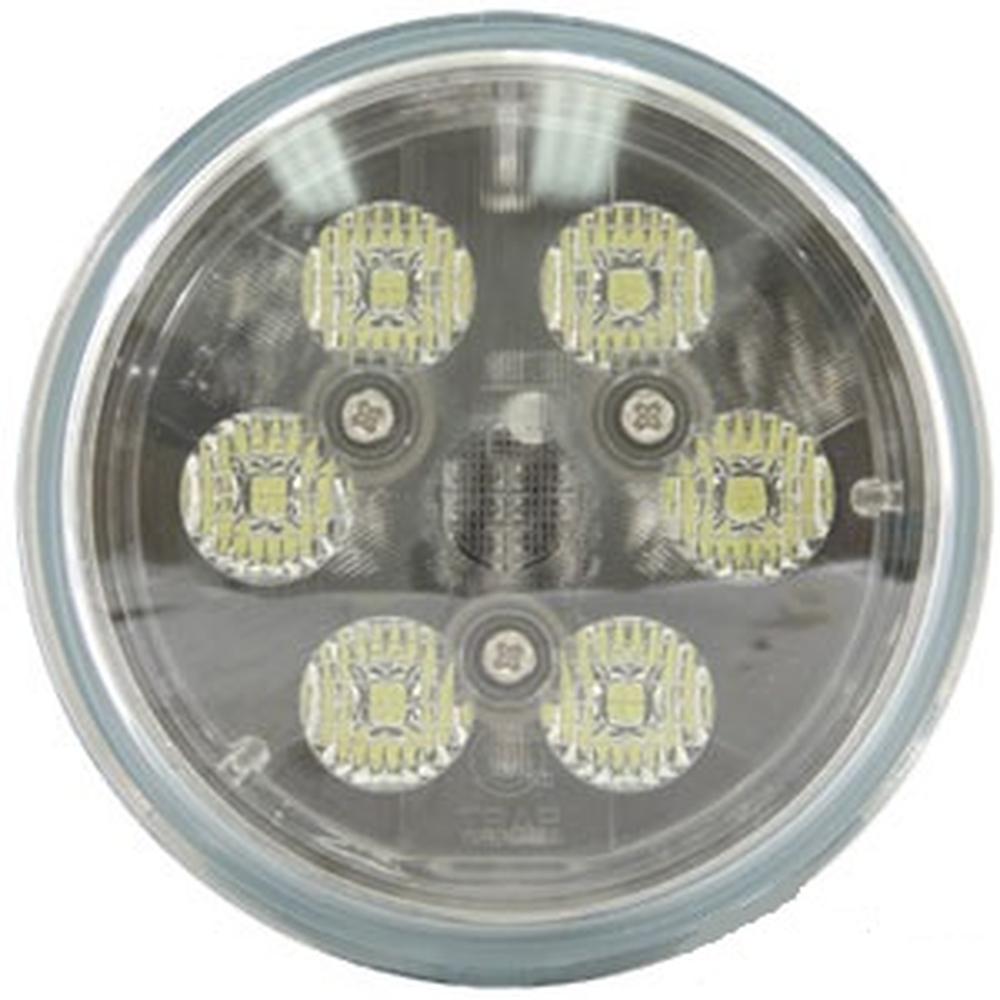

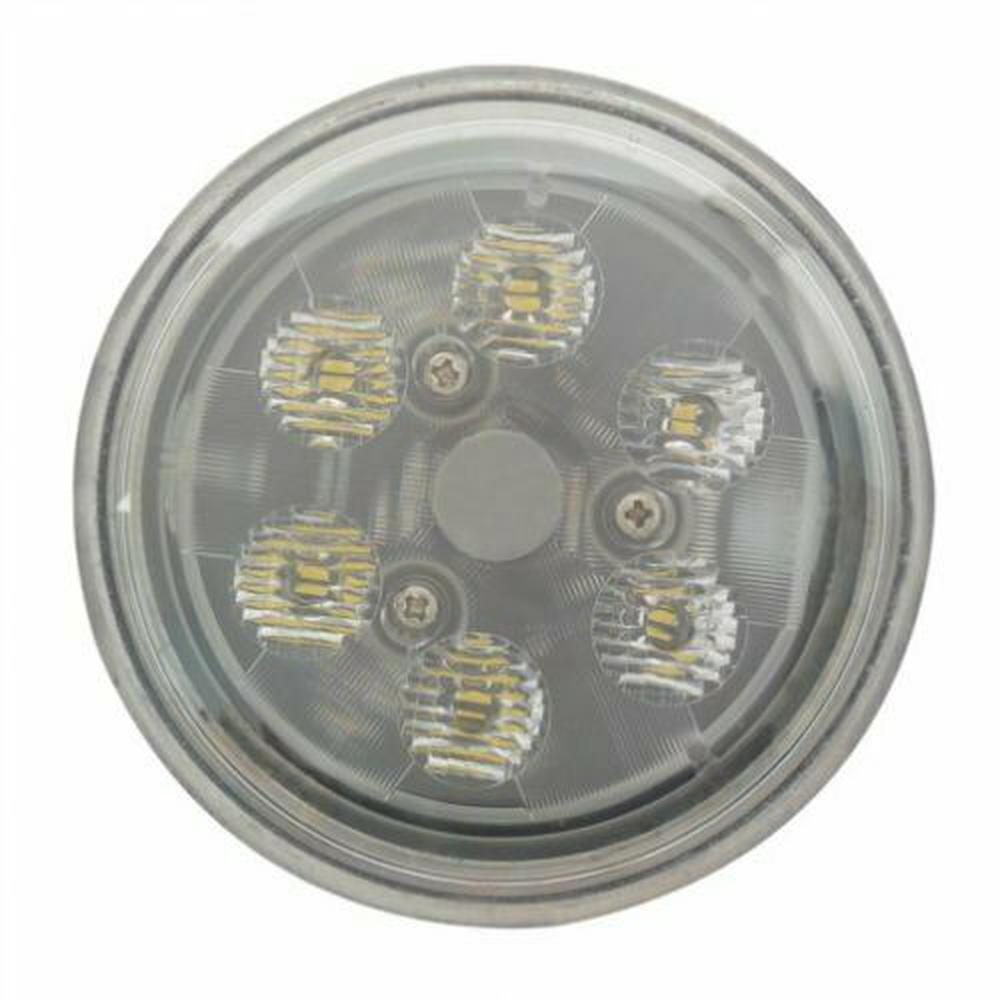

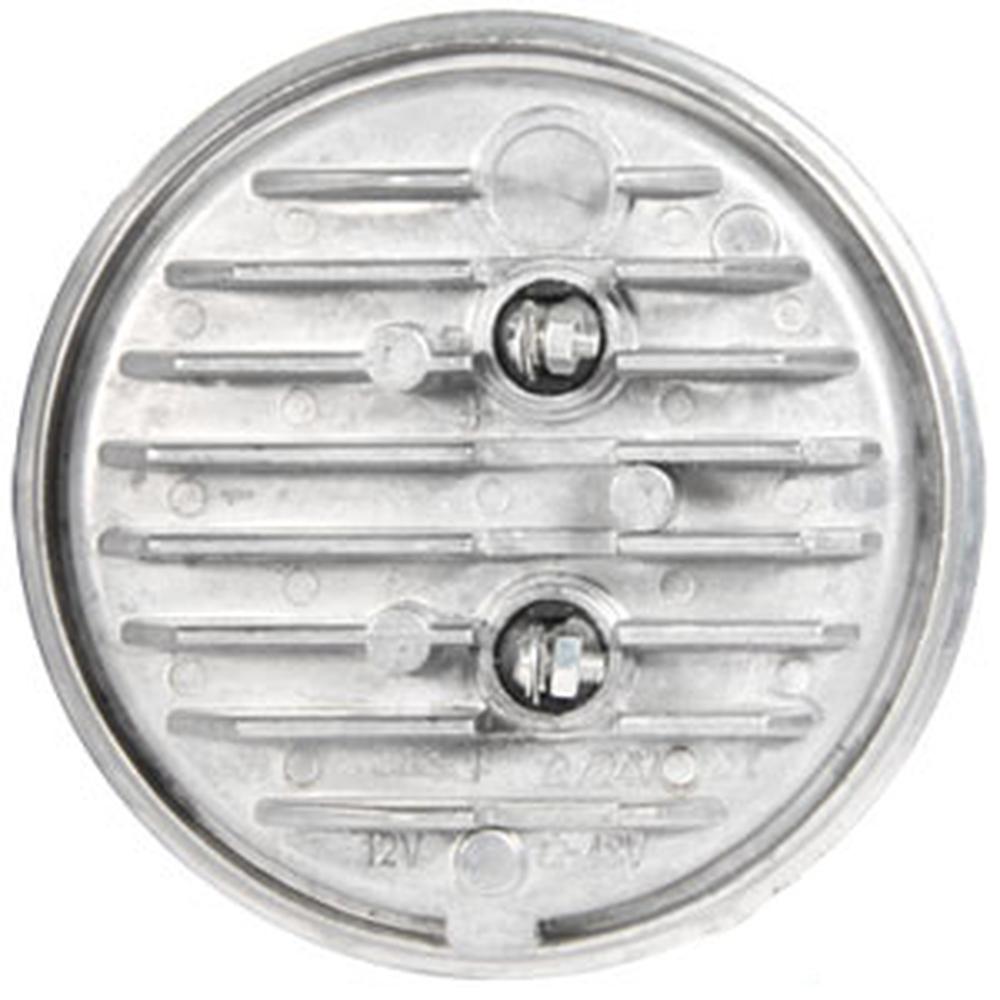

This 18W PAR 36 LED sealed round light is a direct plug-and-play replacement for original sealed beam halogen headlights on Fits John Deere tractors. Featuring a trapezoid beam pattern, it mounts in fender, hood, and cab light positions using the original wiring connection and hardware - no modifications required.
Specifications
- Wattage: 18W
- Lumens: 1,250
- Voltage: 12-24V DC
- Amperage: 1.5A
- Diameter: 4.5" (4-1/2") round (PAR 36 form factor)
- Depth: 1.5" (1-1/2")
- Beam Pattern: Trapezoid
- Housing: Die-cast aluminum
- Lens: Polycarbonate
- Waterproof/Dustproof Rating: IP68
- Voltage Range: 12-24V DC
- Connection: Terminal spades (plug-and-play, uses original mount and wiring)
Compatible Models
Fits John Deere Tractors: 2010, 2040, 2240, 2510, 2520, 2840, 2940, 3010, 3020, 4000, 4010, 4020, 4030, 4040, 4050, 4055, 4230, 4240, 4250, 4255, 4320, 4430, 4440, 4450, 4455, 4520, 4555, 4560, 4620, 4630, 4640, 4650, 4755, 4760, 4840, 4850, 4955, 4960, 5010, 5020, 6030, 7020, 7520, 8430, 8440, 8450, 8560, 8570, 8630, 8640, 8650, 8760, 8770, 8850, 8870, 8960, 8970, 9100, 9200, 9300, 9300T, 9400, 9400T
Replaces Part Number(s):
RE285628-TRAPEZOID, RE336112, RE285629, RE336111-TRAPEZOID
Aftermarket Interchange Numbers
Also replaces: RE285628, RE336111, RE561116, RE561117, AF3892R, AT25451
New aftermarket replacement part - not remanufactured, not used.
