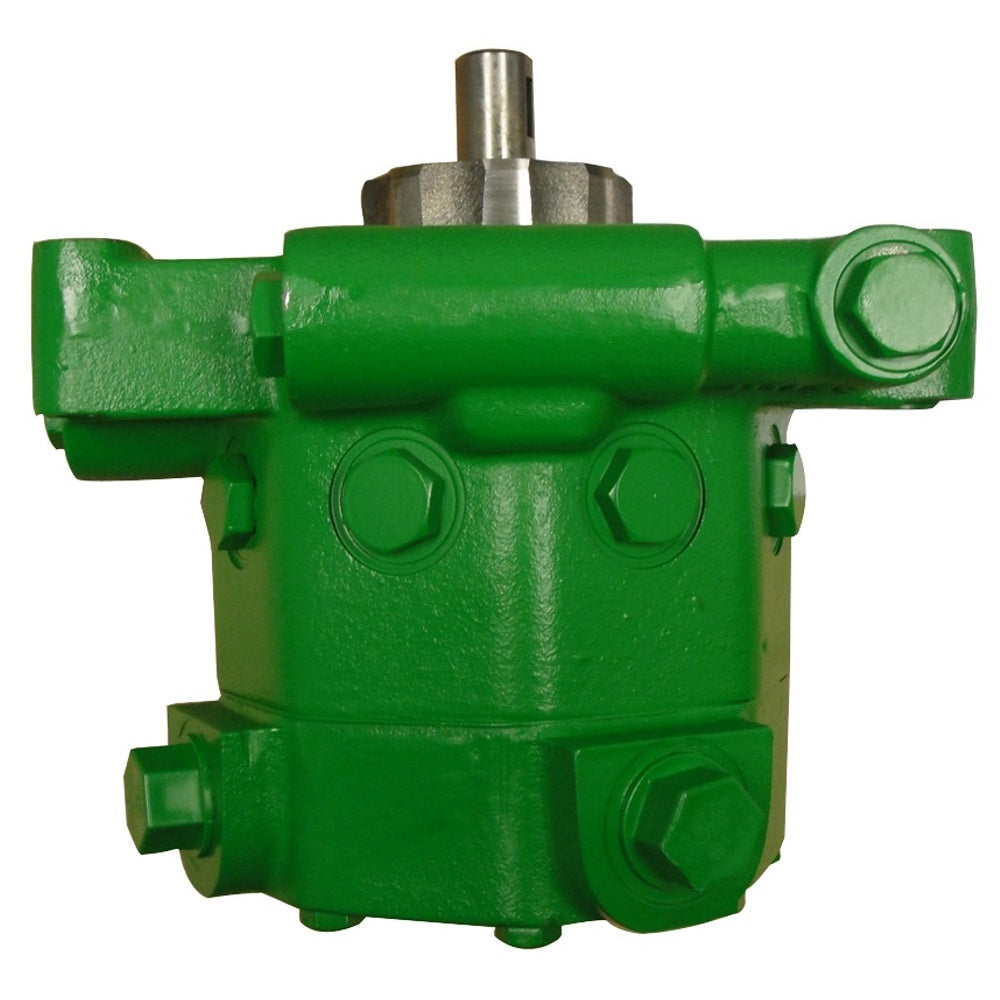

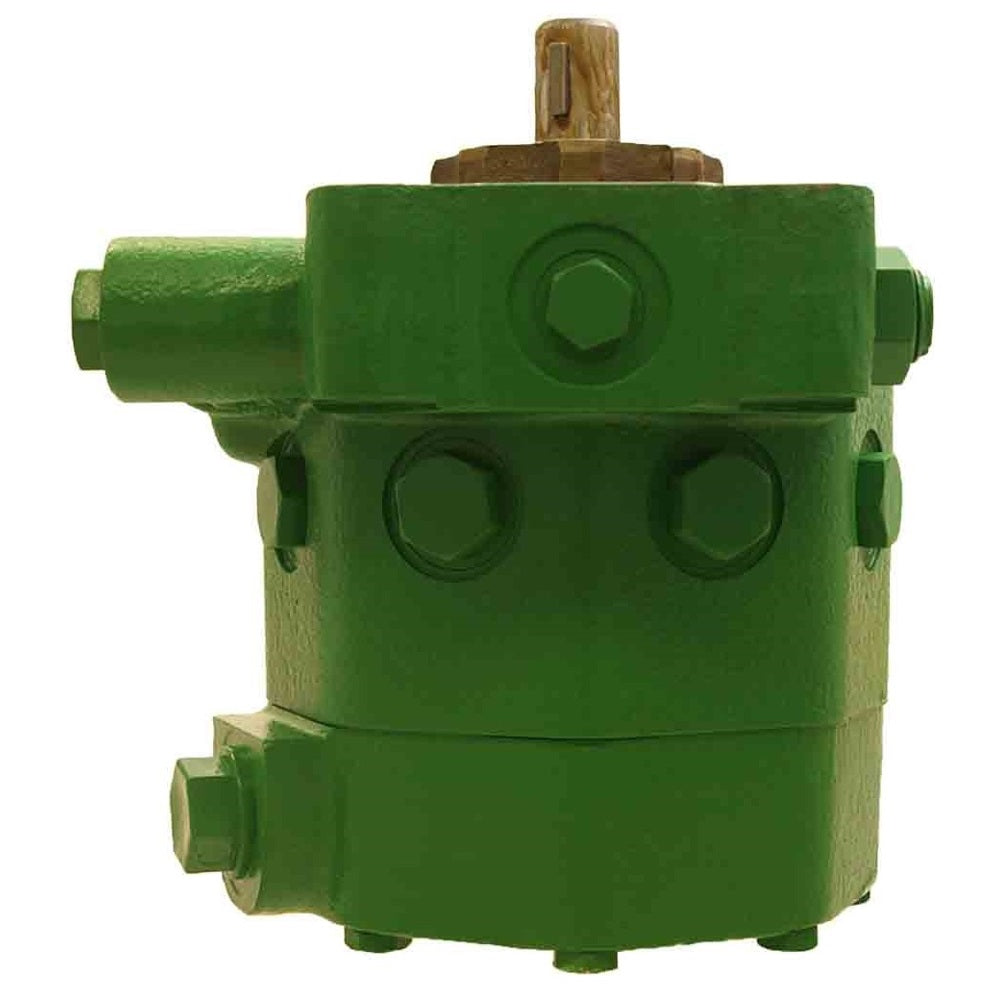

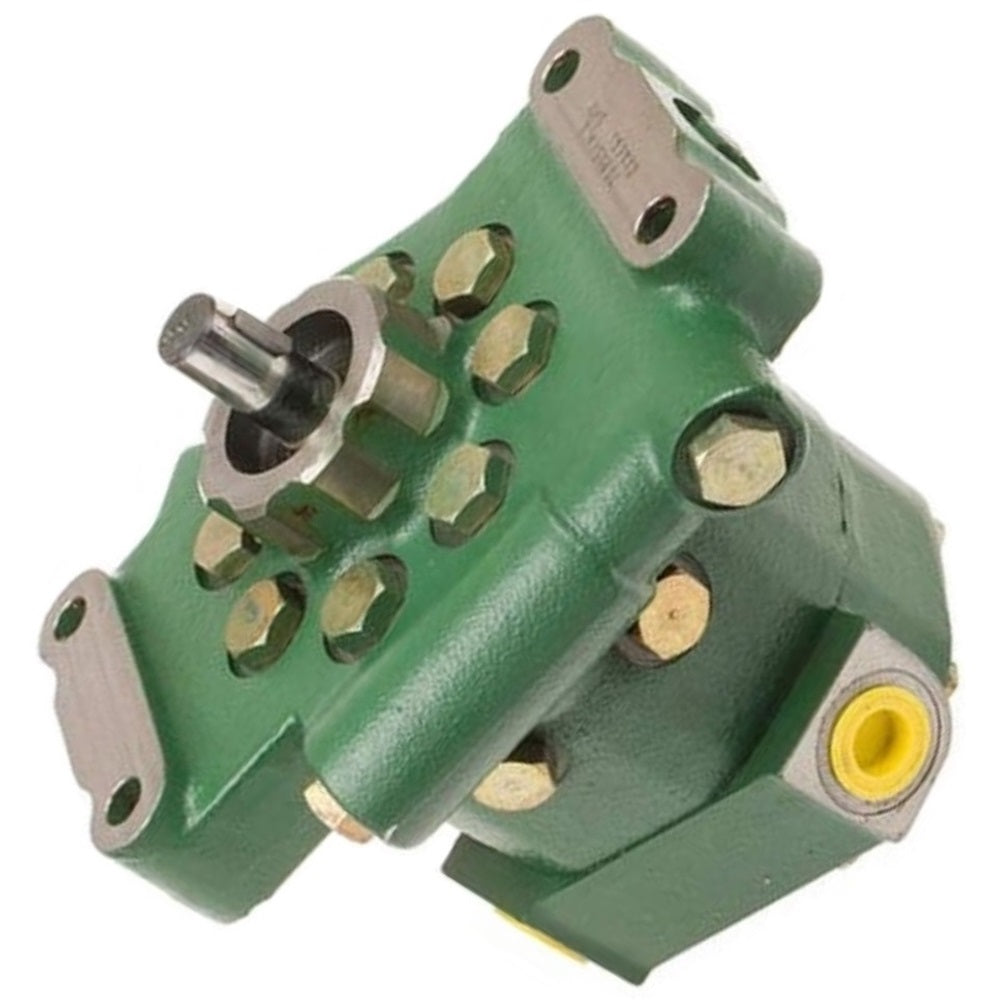

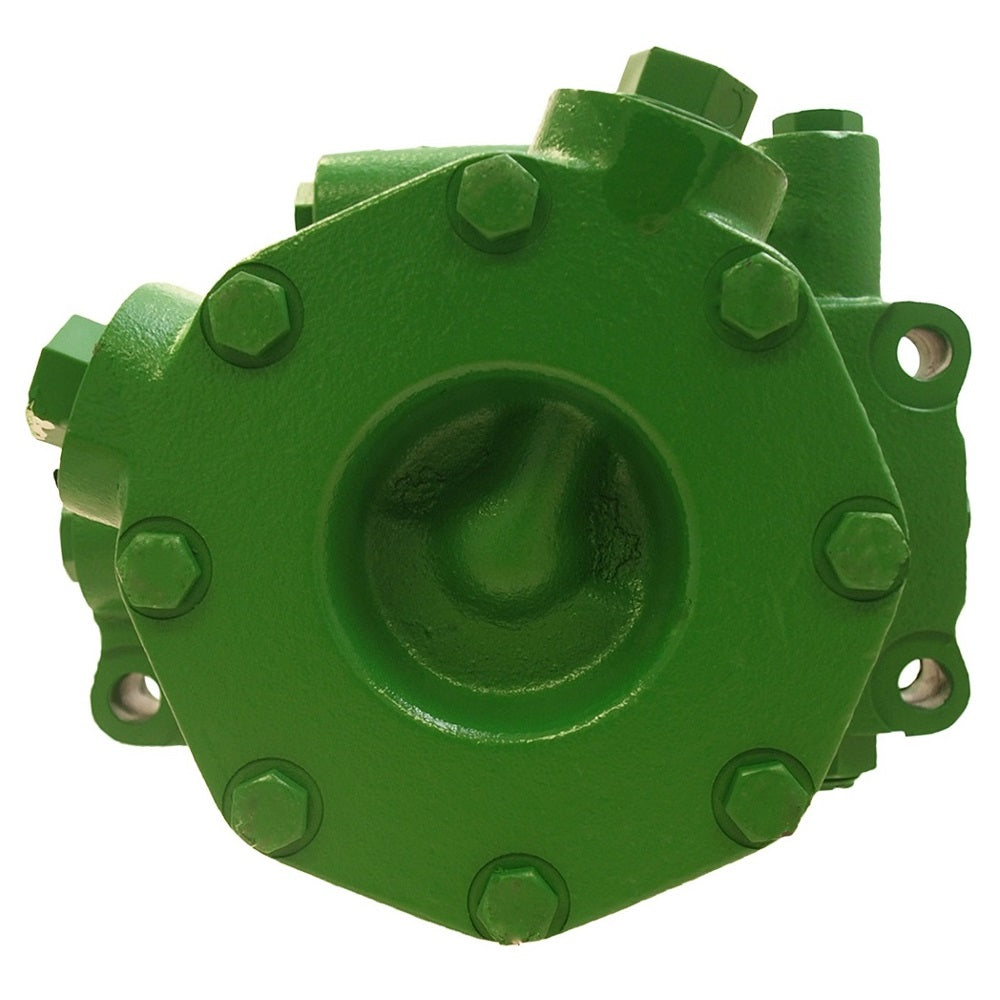

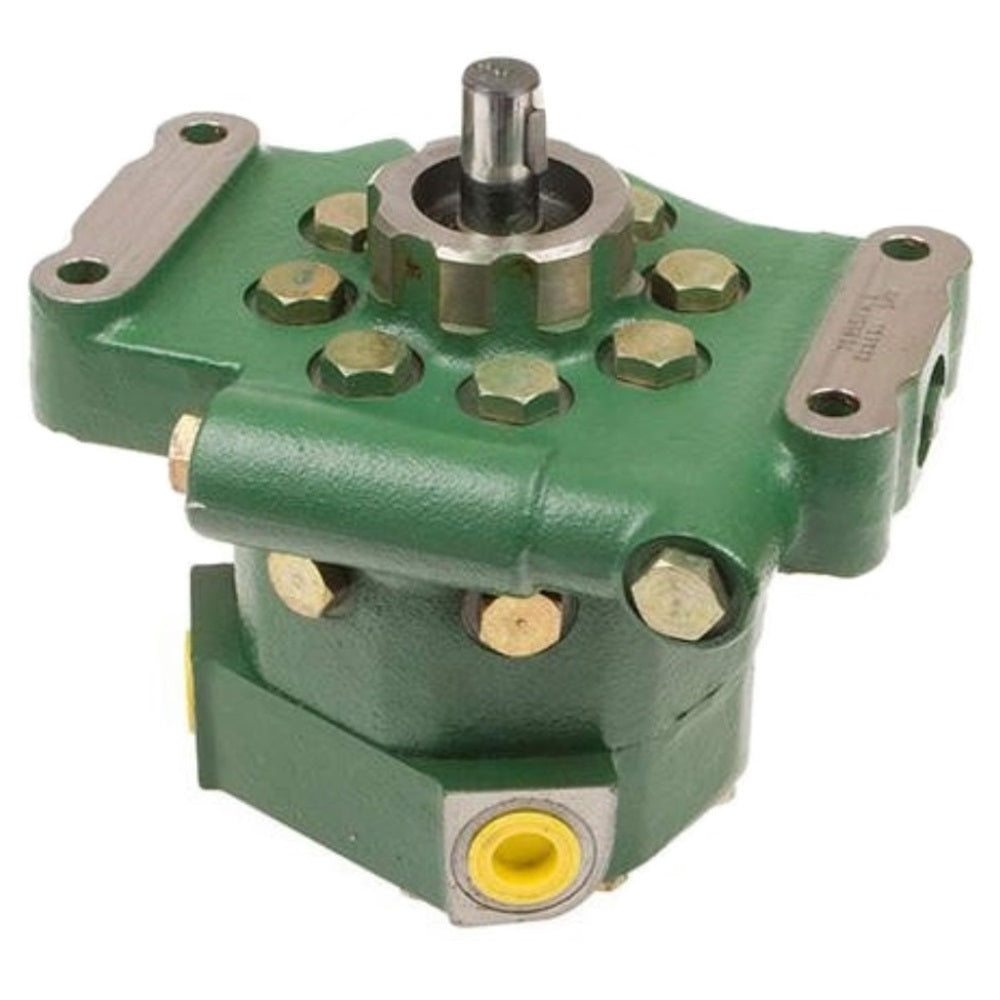

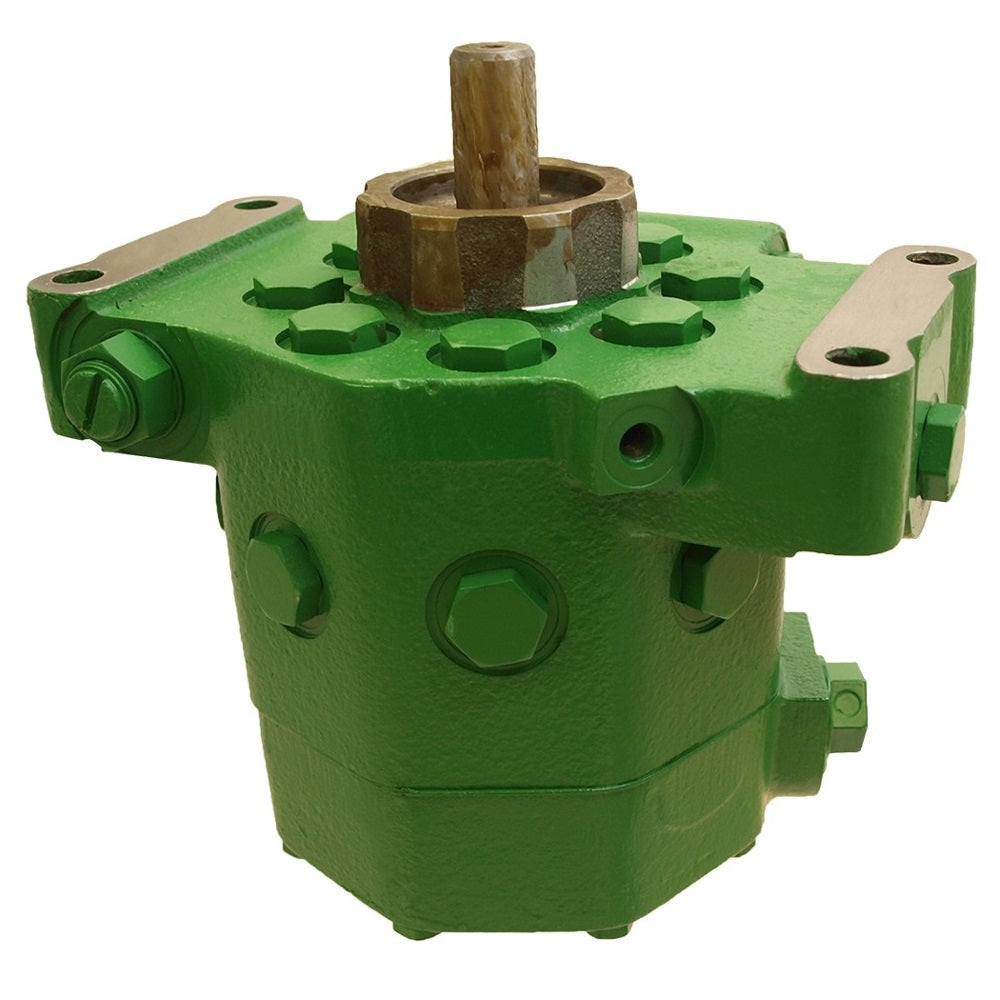

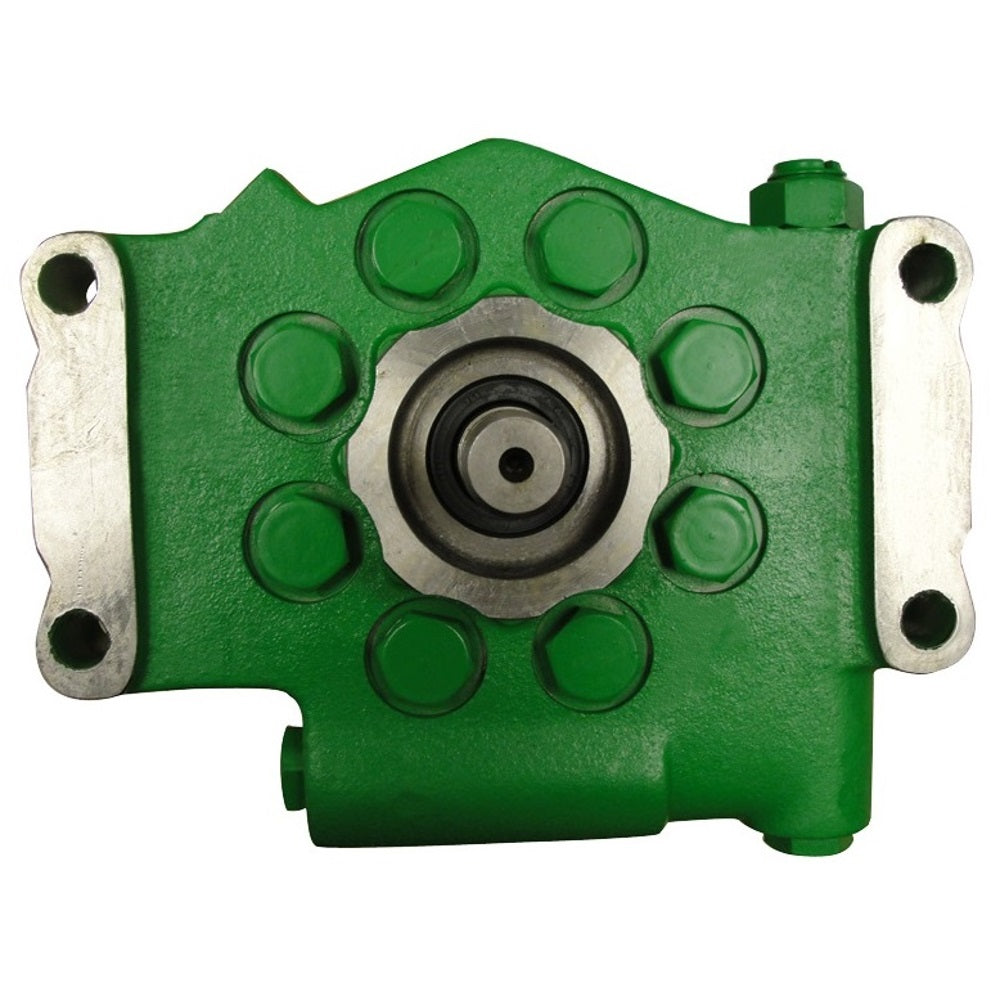

One New Aftermarket Replacement Hydraulic Pump for John Deere (JD) Tractors, Harvesters, and Industrial Equipment

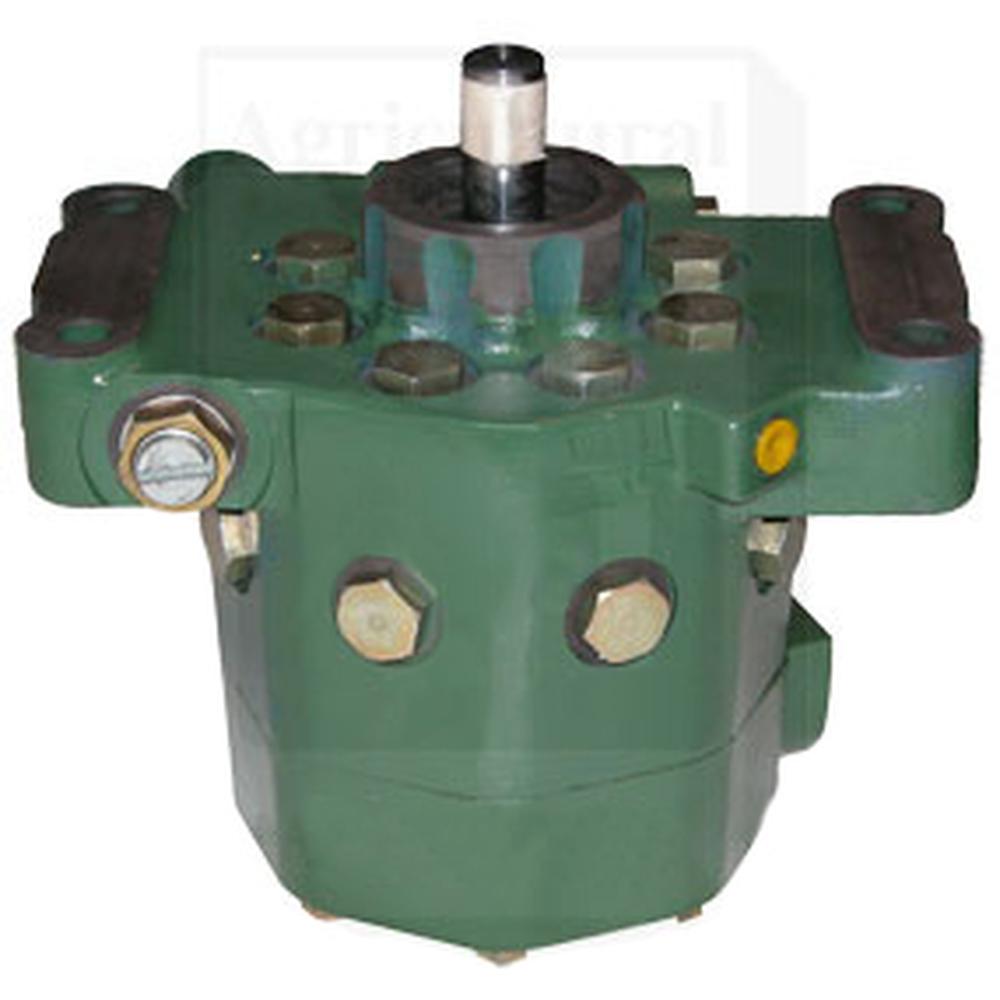

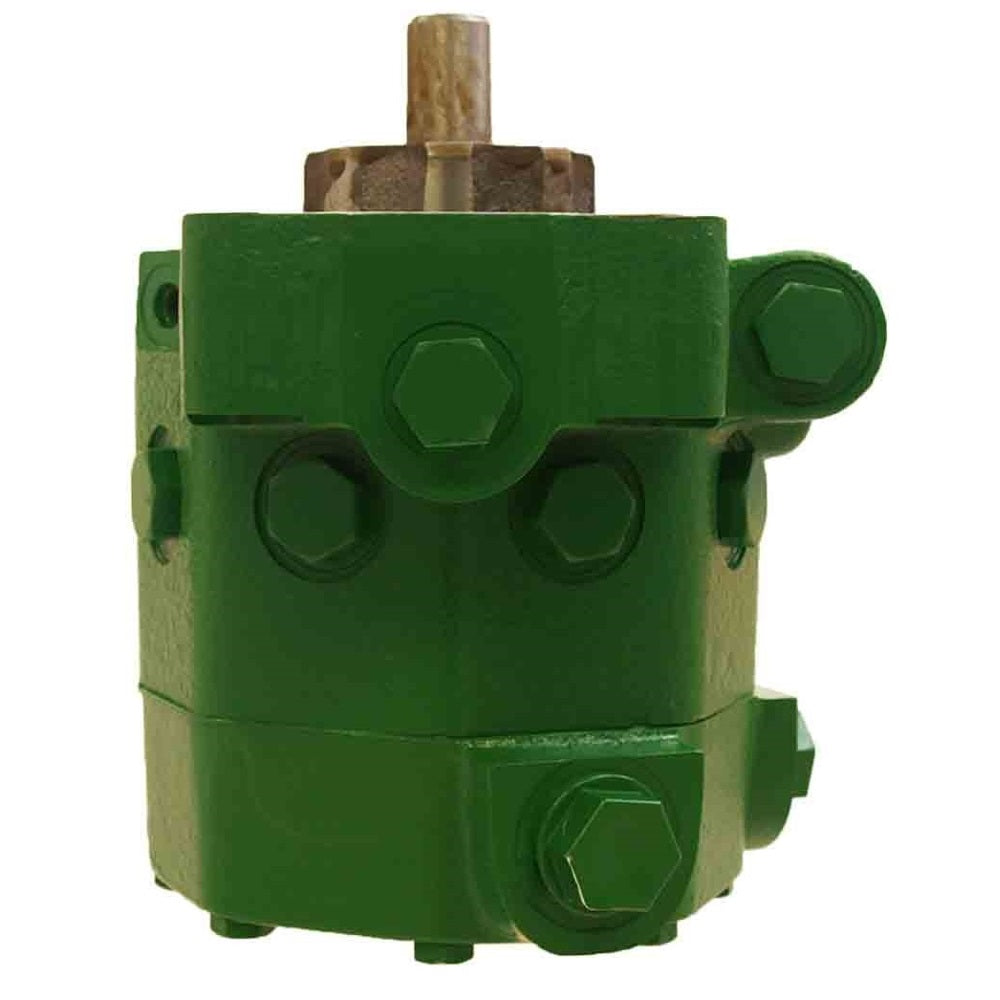

This aftermarket replacement hydraulic pump fits a wide range of John Deere (JD) tractors, cotton pickers, cotton strippers, and industrial/construction equipment. It is an axial radial piston-type pump supplying hydraulic flow to the tractor's lift and hydraulic system, featuring a keyed shaft drive, a built-in relief valve, and an 8-piston design for smooth, efficient pressure delivery up to 2600 PSI. Before installation, the hydraulic system must be fully drained and flushed, the sump screen cleaned, and the transmission pump inspected -- metal debris from a failed pump can damage the replacement unit if the system is not cleaned first.

Specifications

Pump Type: Single, Axial Radial Piston
Pistons: 8
Drive Type: Keyed Shaft
Displacement: 23 cc (1.4 ci) per revolution
Max Pressure: 2600 PSI
Relief Valve: Included

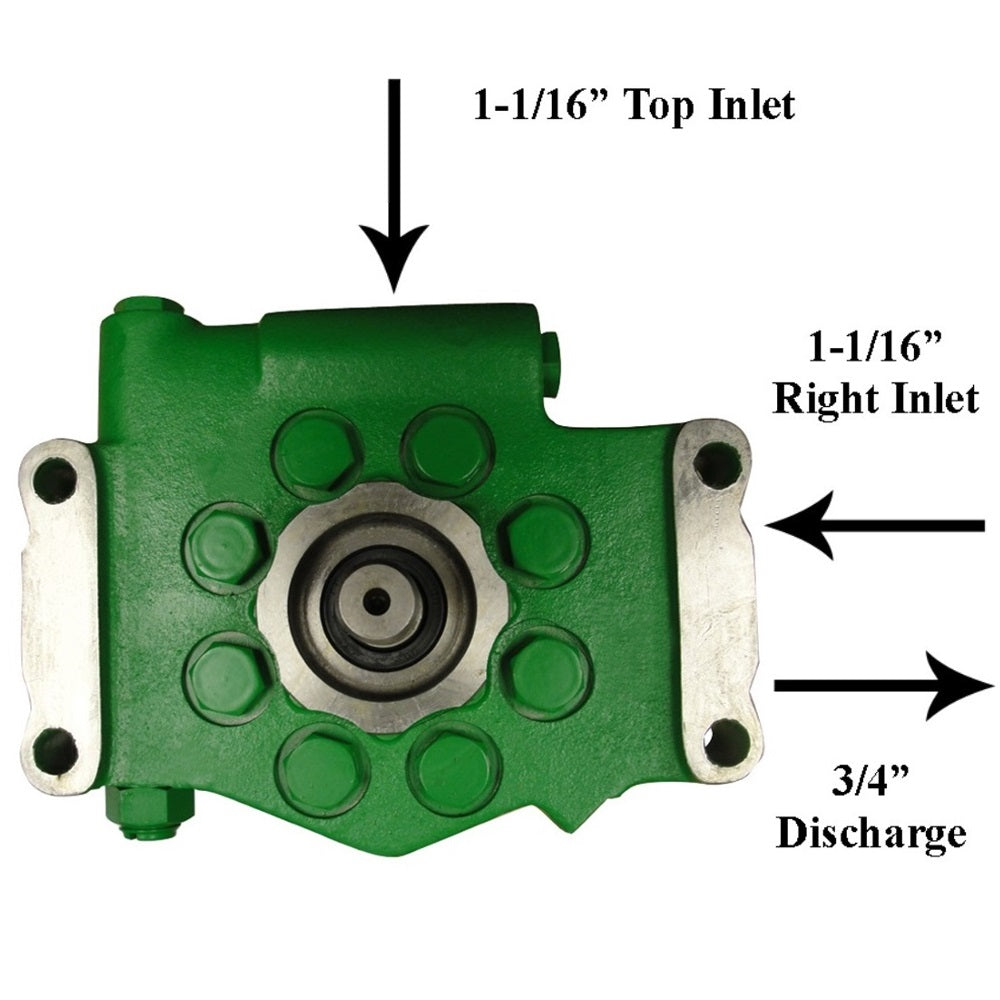

Top Inlet: 1-1/16 in.
Right Inlet: 1-1/16 in.
Discharge Port: 3/4 in.

Compatible Models

John Deere Tractors: 830, 830 (3-cylinder), 840, 940, 1020, 1030, 1030OU, 1035, 1035EF, 1040, 1040V, 1120, 1130, 1140, 1140F, 1140V, 1350, 1520, 1530, 1550, 1630, 1630OU, 1635, 1635EF, 1640, 1750, 1830, 1840, 1850, 1950, 1950N, 2020, 2030, 2035, 2040, 2040S, 2120, 2130, 2135, 2140, 2150, 2155, 2240, 2250, 2255, 2350, 2355, 2355N, 2440, 2450, 2550, 2555, 2630, 2640, 2650, 2750, 2755, 2840, 2850, 2855N, 2940, 2950, 3030, 3040, 3050, 3120, 3130, 3135, 3140, 3150, 3340, 3350, 3640, 3650

John Deere Cotton Pickers/Strippers: 7440, 7445, 9920, 9930, 9940, 9950

John Deere Industrial/Construction: 300, 301, 301A (S/N 352536 and up), 302 (S/N 352536 and up), 400, 401, 401B (S/N 352536 and up), 401D

Replaces Part Number(s):

AR103033, AR103033-A, AR103035, AR103036, AR103036-A, AR39019, AR39168, AR39168-A, AR89061, AR89064, AL70641, 640-217B

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

4440, 2555, 2155, 302, 930, 3135, 2450, 2240, 2350, 3130, 2255, 840 940 1040 1140 1350 1550 1640 1750 1840 1850 1950 1950N 2040 2040S 2140 2150 2155 2250 2255 2350 2355 2355N 2450 2550 2555 2650 2750 2755 2850 3040 3050 3140 3350 3640 3650, 1030, 2150, 3640, 1830, 2040S, 1630OU, 4250, 840, 401B, 1030OU, 3030, 2020, 1550, 1950N, 4650, 1020, 2250, 7445, 1350, 4450, 1140F, 4430, 301, 2135, 1950, 1140V, 2650, 300, 4240, 2640, 3150, 1635EF, 2550, 1840, 1035, 1635, 2850, 4850, 830 3 cylinder, 8450, 1530, 2355, 2750, 1630, 2130, 4840, 3120, 3350, 830, 1750, 2040, 9940, 1520, 2840, 3340, 2030, 2140, 4640, 4230, 1140, 7440, 2355N, 4050, 2950, 1120, 1850, 2755, 401, 3140, 1130, 2440, 301A, 2120, 4030, 2630, 401D, 400, 2035, 1040V, 2940, 9930, 1640, 3050, 3040, 940, 9920, 4630, 2855N, 1040, 3650, 4040, 1035EF, 9950

Additional Information:

Keyed shaft The system needs be flushed and replaced with clean, new fluid Drive Type Keyed Max PSI 2600 Pump Type Single Relief Valve Included Volume 23 cc

Reference Numbers:

AR103036, AR89064, AR103033, AR103036, AR103033, AR103036, AR39019, AR39168, AR89064, AR39168, AR103035, AR103036, AR89064, AR39019, AR103033, AR89061, AL70641, 640-217B
