E-1348047C1 Fits CAT II Top Link Assembly Fits Case IH/McCormick MX120, MX135,

E-1348047C1 Fits CAT II Top Link Assembly Fits Case IH/McCormick MX120, MX135,

£341.00 GBP
£341.00 GBP
Sale Sold out
Shipping calculated at checkout.

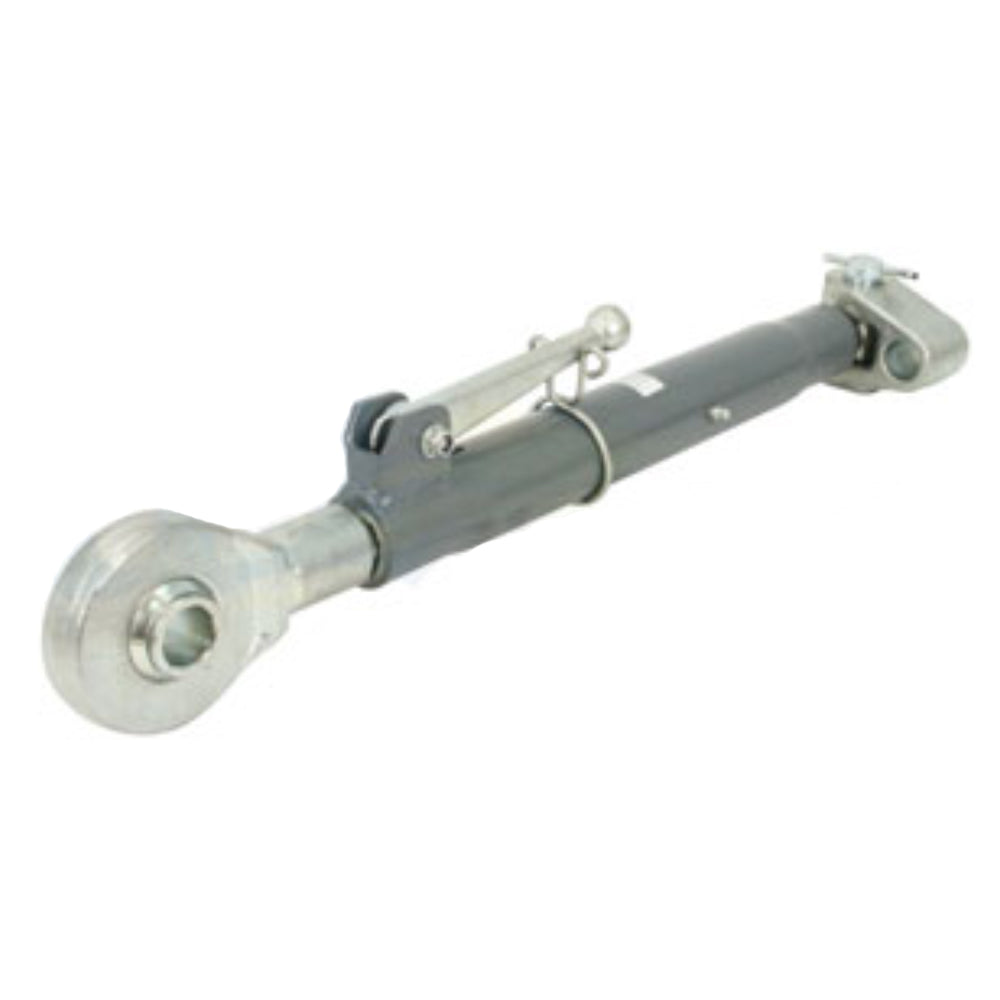

One New Aftermarket Replacement Category II Top Link Assembly for Case IH (Case International Harvester) Tractors

This heavy-duty Category II (Cat II) top link assembly is a 3-point hitch component used to connect implements to the tractor's upper hitch point. Featuring a knuckle end at the tractor side and a ball end at the machine side, it provides a swivel connection for smooth implement articulation. Compatible with Case IH (Case International Harvester) MX-series and 5000-series tractors as well as select McCormick models.

Specifications

  • Category: II (Cat II / Cat 2)
  • Tube Length: 19.02 in (483 mm)
  • Minimum Length: 24.41 in (620 mm)
  • Maximum Length: 36.50 in (927 mm)
  • Thread Size: M36 x 3
  • Tractor End: Knuckle
  • Implement End: Ball
  • Construction: Heavy Duty

Compatible Models

Case IH MX Series: MX80C, MX90C, MX100, MX100C, MX110, MX120, MX135

Case IH 5000 Series: 5120, 5130, 5140, 5150, 5220, 5230, 5240, 5250

McCormick (2002 and newer): MC80, MC90, MC100, MTX110, MTX120, MTX125, MTX135

Replaces Part Number(s):

1348047C1, 1533258C1, 3619106M91, 47137574, 84414384

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

T6.165, T7.170, T7.210 - AUTOCOMMAND, T6050 - PLUS, 3125, T6030 - PLUS, 5120, T6040, T6030 - POWER COMMAND, T6080 - RANGE COMMAND, T7.200 - POWER COMMAND, T6.175, T6070 - POWER COMMAND, 5475, 6280, T6020 - ELITE, T6010, T6050 - DELTA, 5220, TS115, 8160, T6050 - POWER COMMAND, T7.210 - RANGE COMMAND, T7.210 - POWER COMMAND, T6050, T6050 - ELITE, 3655, T6.120, MX110, T6030 - DELTA, T7.170 - POWER COMMAND, 3115, T6010 - DELTA, TS110A, 8130, 3120, 8120, T7.200, 5465, T6070 - RANGE COMMAND, 8140, T6090 - POWER COMMAND, 6465, MX120, 8150, 5480, T6010 - PLUS, T6020 - PLUS, MX135, T7.200 - RANGE COMMAND, 5130, T6060 - ELITE, T6060, 5240, 6180, TS100A, T7.185, 8110, TS100, TS125A, T6030 - ELITE, 5250, T6070 - PLUS, T6.160, T7.210, T6080, T7.185 - POWER COMMAND, T6020, T7.170 - RANGE COMMAND, TS110, 5140, 6475, T6080 - POWER COMMAND, TS130A, 5230, 3645, T6.155, T6090 - RANGE COMMAND, MX100, T7.170 - AUTOCOMMAND, T6030 - RANGE COMMAND, T6020 - DELTA, 6480, 3670, MX100C, T6090, T6.150, MX80C, T6040 - ELITE, T7.200 - AUTOCOMMAND, T6.140, T6070 - ELITE, MX90C, T6070, 3635, T6050 - RANGE COMMAND, 5150, 6270, 6290, T7.185 - AUTOCOMMAND, T7.185 - RANGE COMMAND, T6030

Additional Information:

Category II Tube Length: 19.02" (483mm) Min: 24.41" (620mm) Max Length: 36.50" (927mm) Thread size: M36 x 3 Heavy Duty Tractor End: Knuckle Machine End: Ball

Reference Numbers:

3619106M91, 1348047C1, 1533258C1, 47137574, 84414384
