Drive Disc fits 00170800 00300300 1725428 1725428SM AM122115 Snow Blower 42040
Drive Disc fits 00170800 00300300 1725428 1725428SM AM122115 Snow Blower 42040
Couldn't load pickup availability

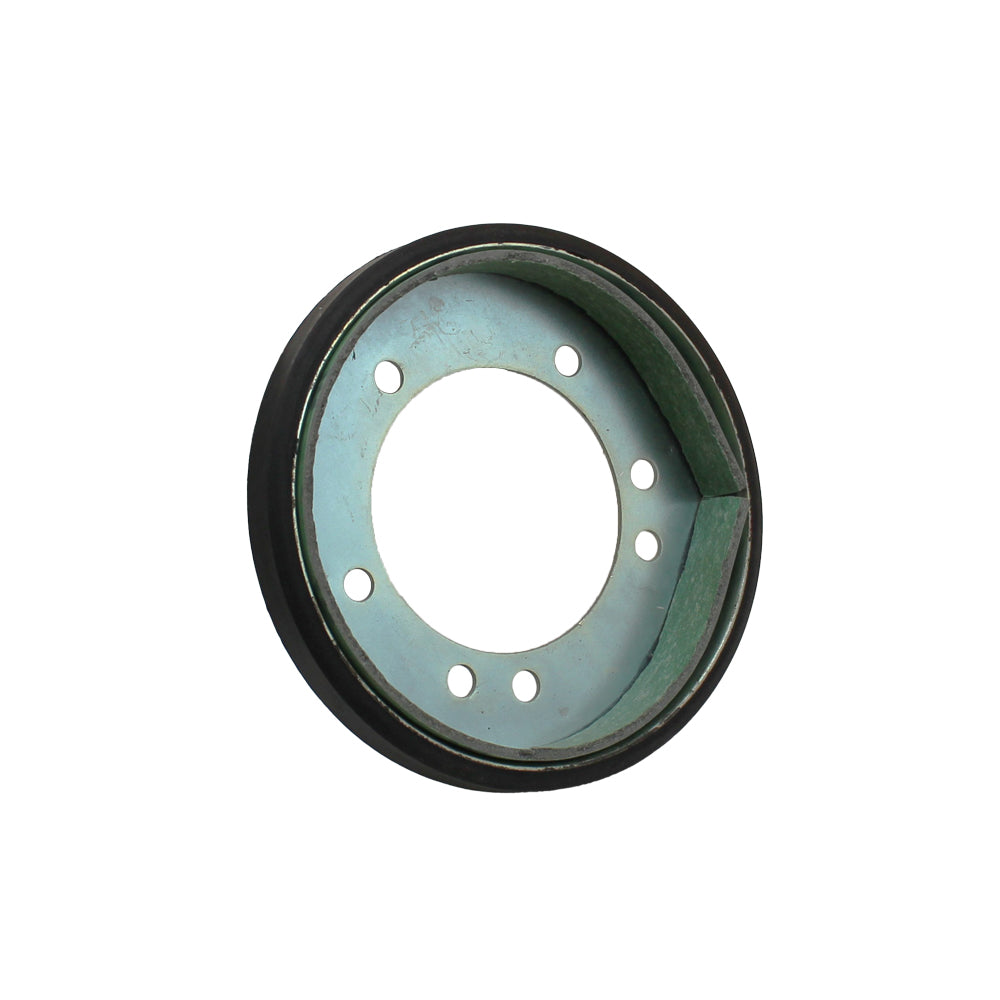

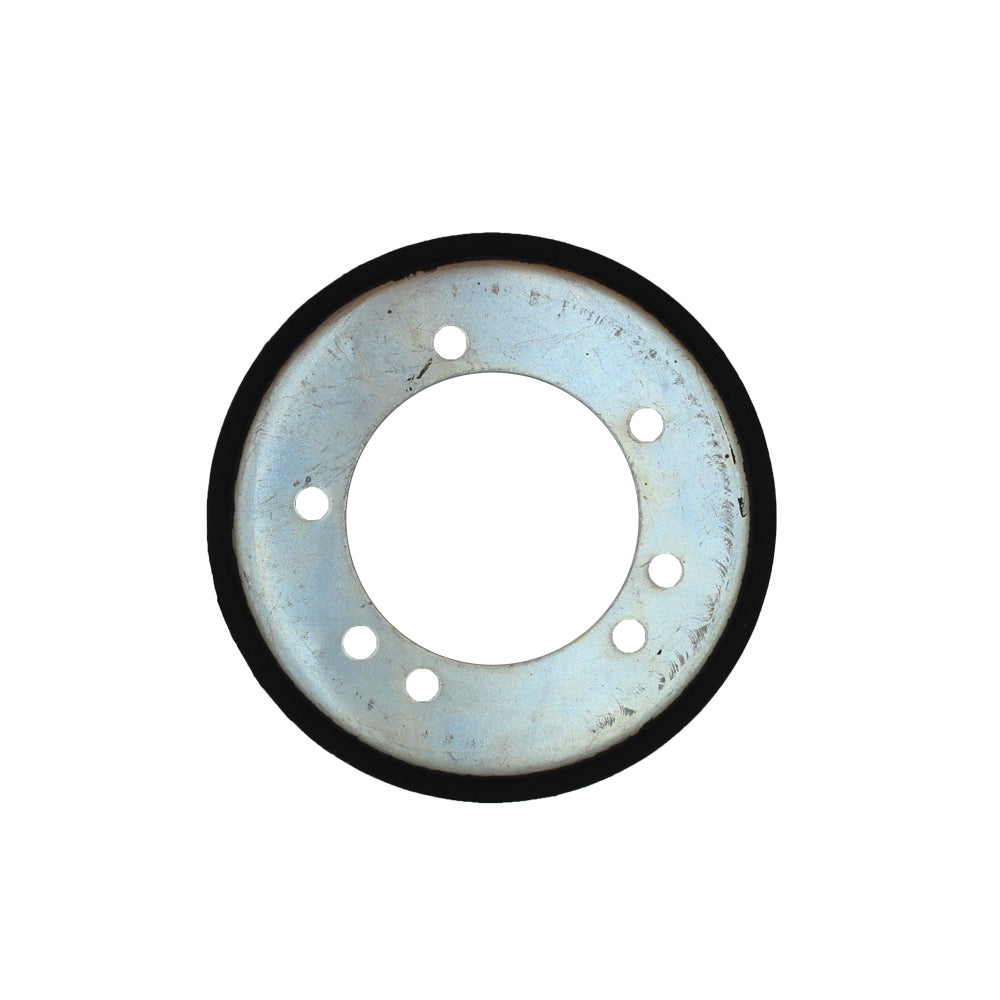

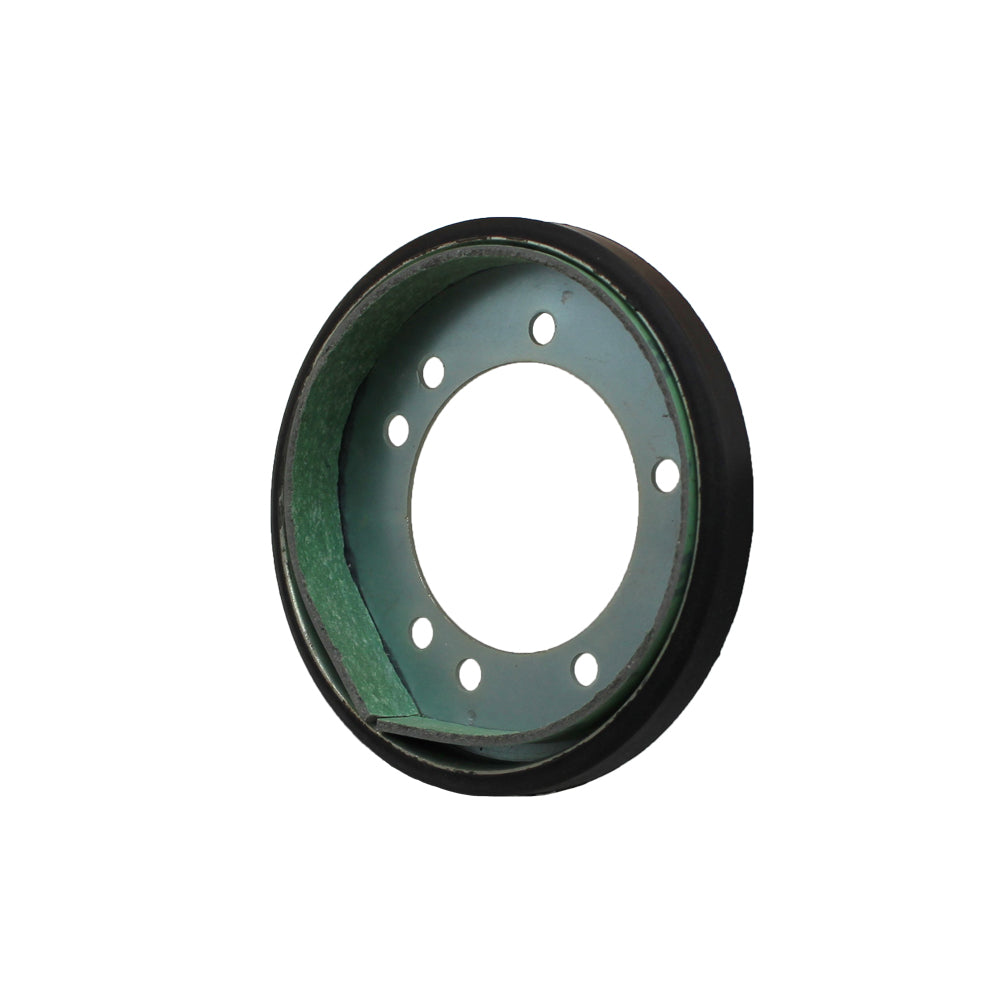

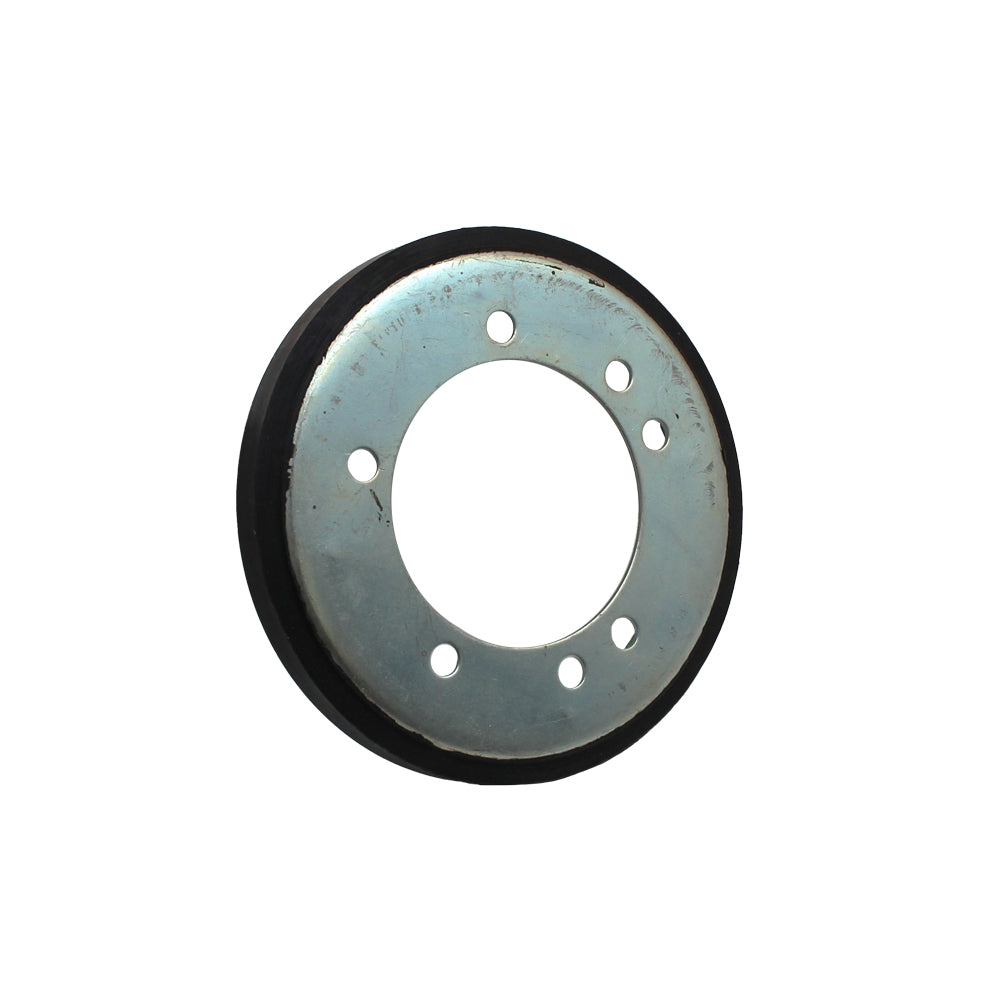

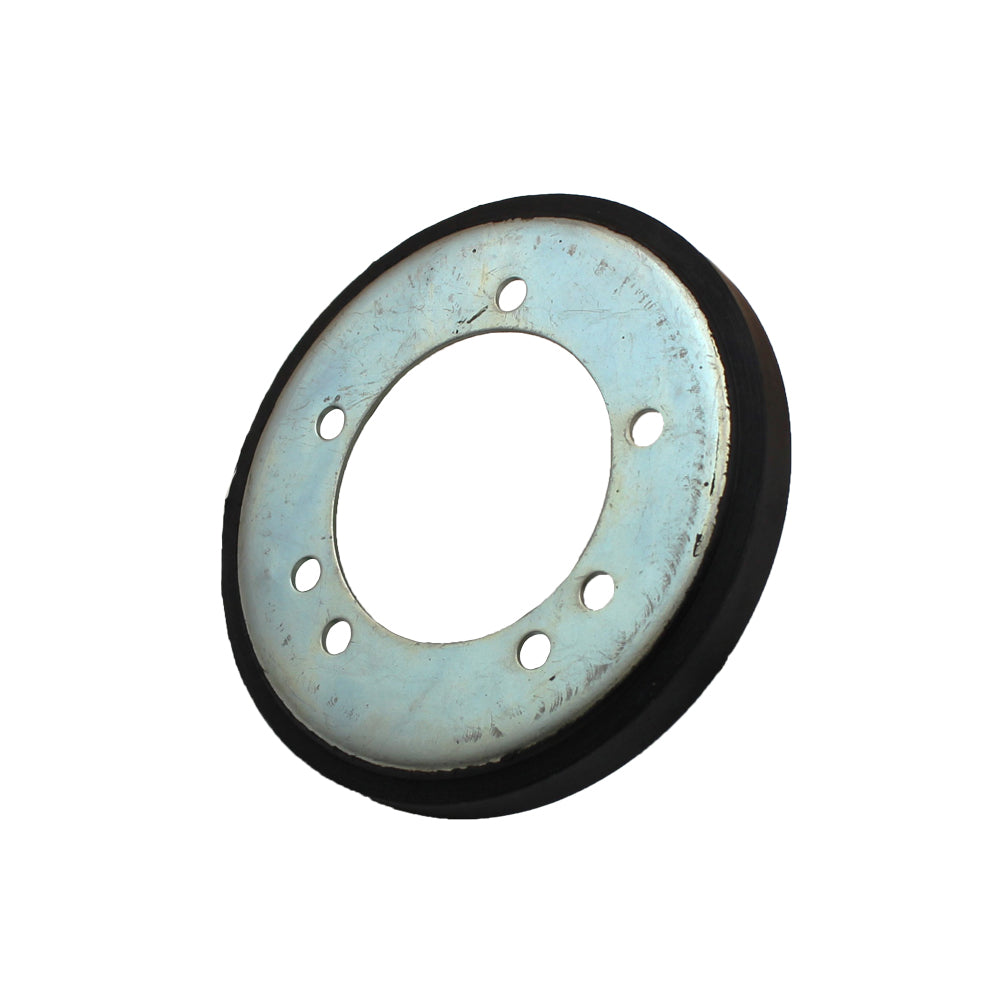

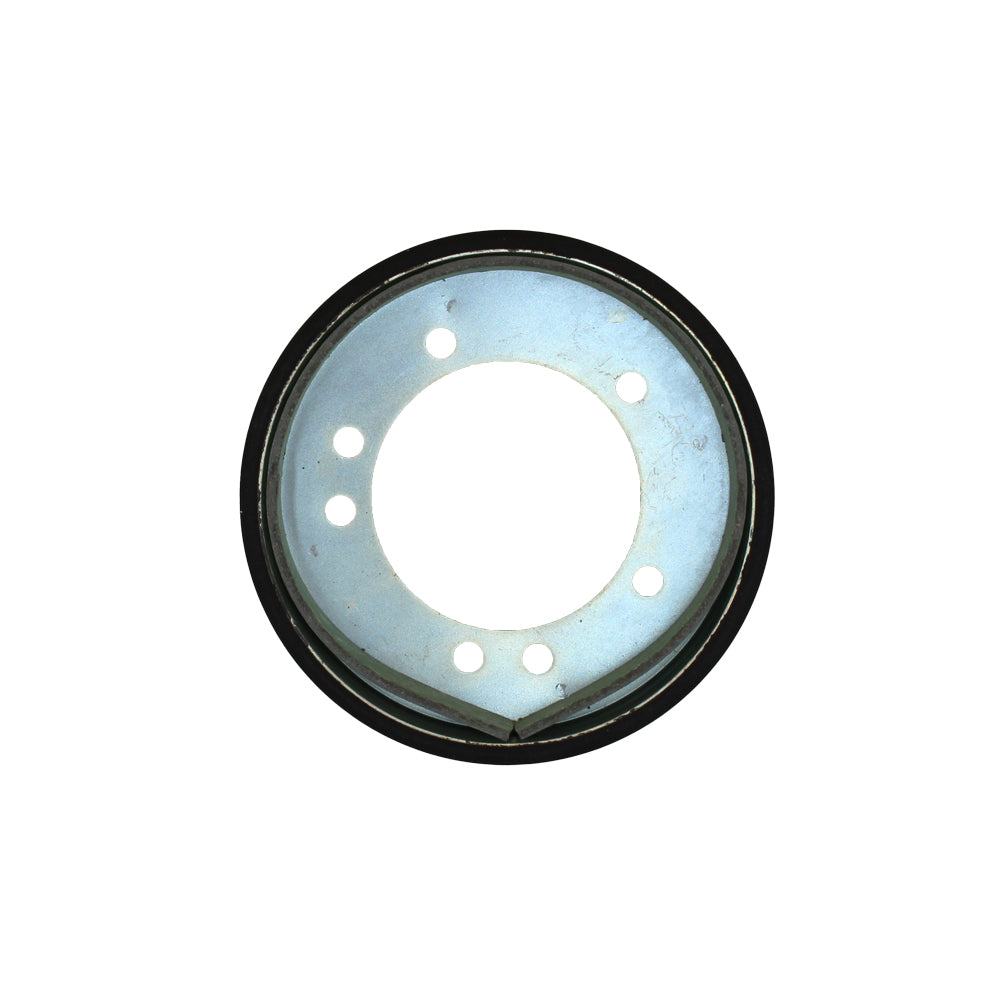

One New Aftermarket Replacement Friction Drive Disc with Liner for Ariens, John Deere, Simplicity, Snapper, Troy-Bilt, and More Snow Blowers
This friction drive disc (with liner) is a key component of the self-propelled drive system on two-stage snow blowers. The rubber-faced disc contacts the spinning friction wheel to transfer power to the drive wheels, enabling forward and reverse travel. The included liner is required for models equipped with a smooth (non-grooved) clutch plate. When the disc face wears out, the snow blower loses traction -- replacing this disc restores full self-propelled drive operation.
Specifications
- Inside Diameter: 3 in.
- Outside Diameter: 6 in.
- Includes liner for models with smooth clutch plate
Compatible Models
Ariens: 826R; Sno-Thro series 10954, 10962, 10965, 10969, 10970, 10M4, 10M5, 10M6, 10M6D, 10M7D, 10ML35, 10ML60, 10ML60D, 910002, 910006, 910008, 910009, 910010; Compact 22, Compact 24, Compact Track 24, Deluxe 24, Deluxe 28, Deluxe 30, Platinum 24, Platinum 28, Platinum 30, Pro 28, Pro 32, Pro Track 28
John Deere (JD): 828D, 1032D, 924DE, 1128DE, 1128DDE, 1332DDE (walk-behind snow blowers)
Simplicity: 1060E, 1080, 1080DC, 1080M, 1080S, 1170E, 1390E, 8560El, P1728E
Snapper: 10287E, 105287E, 11327E, 115327E
Troy-Bilt: 42010, 42012, 42033, 42034, 42036, 42039, 42040, 42041, 42047, 42048, 42049, 42051, 42052 (self-propelled snow blowers and rear-engine riders)
Murray: Friction drive snow blowers (replaces part 35550)
Lawn-Boy: Large frame snow throwers (replaces part 741316)
Jacobsen: Snow blowers (replaces part 158458)
Bolens / MTD: Snow blowers (replaces part 1720859)
Case: Snow blowers (replaces part C22891)
Gilson: Snow blowers (replaces part 18915 / 1891532222)
Lesco: Snow blowers (replaces part 050559)
Replaces Part Number(s):
00170800, 00300300, 1725428, 1725428SM, 2017356, 239076, 240975, 439508, 5-3103, 5-7423, 53103, 57423, 6975-00, 697500, 703493, 704211, 7010765, 7053103, 7600135, 7600135YP, 91543, 170800, 1720859, 1812-9003-01, 1812900301, 177220-03930, 17722003930, 18915, 1891532222, 01027900, 050559, 530-091543, 530091543, AM122115, B1SN75, C22891
Aftermarket Interchange Numbers
Stens 240-394; Oregon 76-014, 76-067, 76-067-0, 76014, 76067, 760670; Prime Line 7600135, 7600135YP; DPE70-0012
New aftermarket replacement part - not remanufactured, not used.
