102-8406 Quick Disconnect Yoke for Universal Products
102-8406 Quick Disconnect Yoke for Universal Products
Couldn't load pickup availability

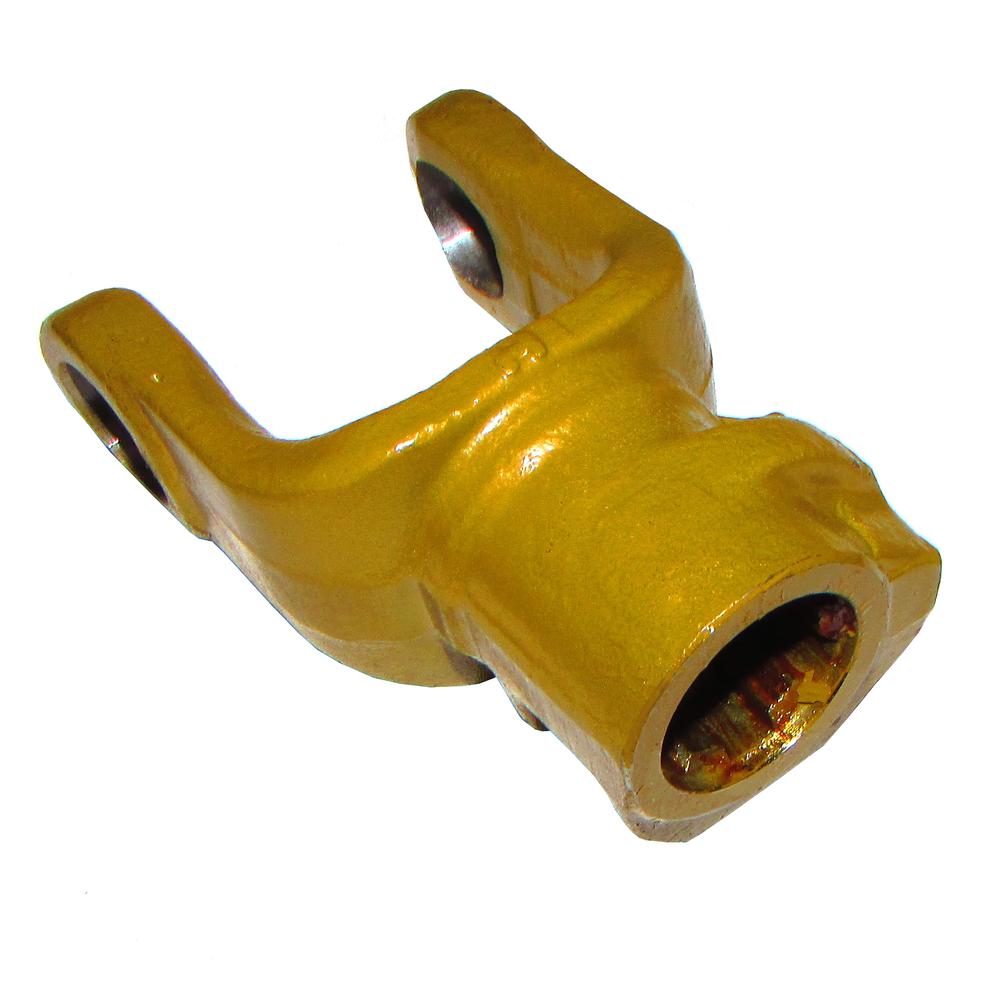

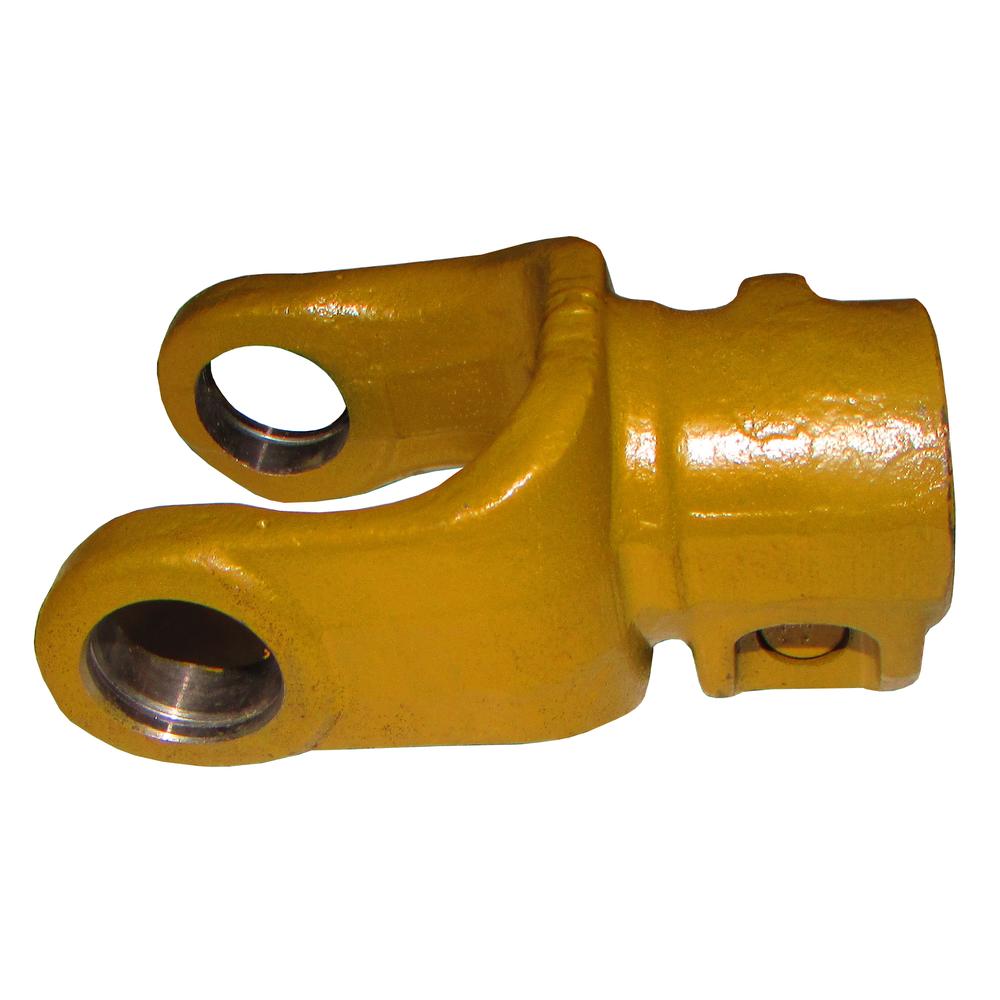

One New Aftermarket Replacement Quick Disconnect Tractor Yoke - Weasler 102-8406 AB4/AW21 Series
This aftermarket replacement quick disconnect (QD) tractor yoke fits Weasler AB4 and AW21 series PTO driveline shafts. It connects the tractor PTO output shaft to the driveline assembly, using a push-pin quick disconnect mechanism for fast, tool-free engagement and disengagement. The 1-3/8 in. 6-spline bore is a standard Type 1 agricultural PTO configuration compatible with a wide range of tractors and implements including rotary cutters, mowers, tillers, and spreaders.
Specifications
- Bore: 1-3/8 in., 6-spline (Type 1)
- Series: AB4 / AW21 (Weasler) | 2300/210 and Series 4 (metric)
- U-Joint Cap Size: 27.0 mm / 1-1/16 in. (1.063 in.)
- Cap-to-Cap: 74.6 mm / 2-15/16 in. (2.937 in.)
- Material: Cast iron
- Dimensions: approx. 4.21 in. L x 2.36 in. W x 3.82 in. H
- Weight: approx. 2.62 lb.
- Power rating: 70 HP / 52 kW @ 1000 RPM | 45 HP / 34 kW @ 540 RPM
- Connection type: Quick disconnect pin
Compatible PTO Shaft Series
Weasler / Metric: AB4, AW21, Series 2300, Series 210, Series 4 (Metric BYPY 4, W/S 2300)
This tractor yoke is a universal-fit driveline component suitable for use across many agricultural tractor brands and PTO-driven implements. Verify your existing driveline series and spline count before ordering.
Replaces Part Number(s):
102-8406, 1028406, 21-10-00, 211000, 274023, 3734749M1, 4-05-07, 40060322, 41034010, 507040351, 53412, 64692, 65-01-12, 7-05-08, 779856, 971-1028406, BYQ4211138, BYQ7-23-7-138, BYQ7237138, PM102-8406, QDK-2M, QDK2M, WYQ4-21-1-138, WYQ4211138
New aftermarket replacement part - not remanufactured, not used.
