W359660-A Radial Pin Clutch for Walterscheid 2200
W359660-A Radial Pin Clutch for Walterscheid 2200
Couldn't load pickup availability

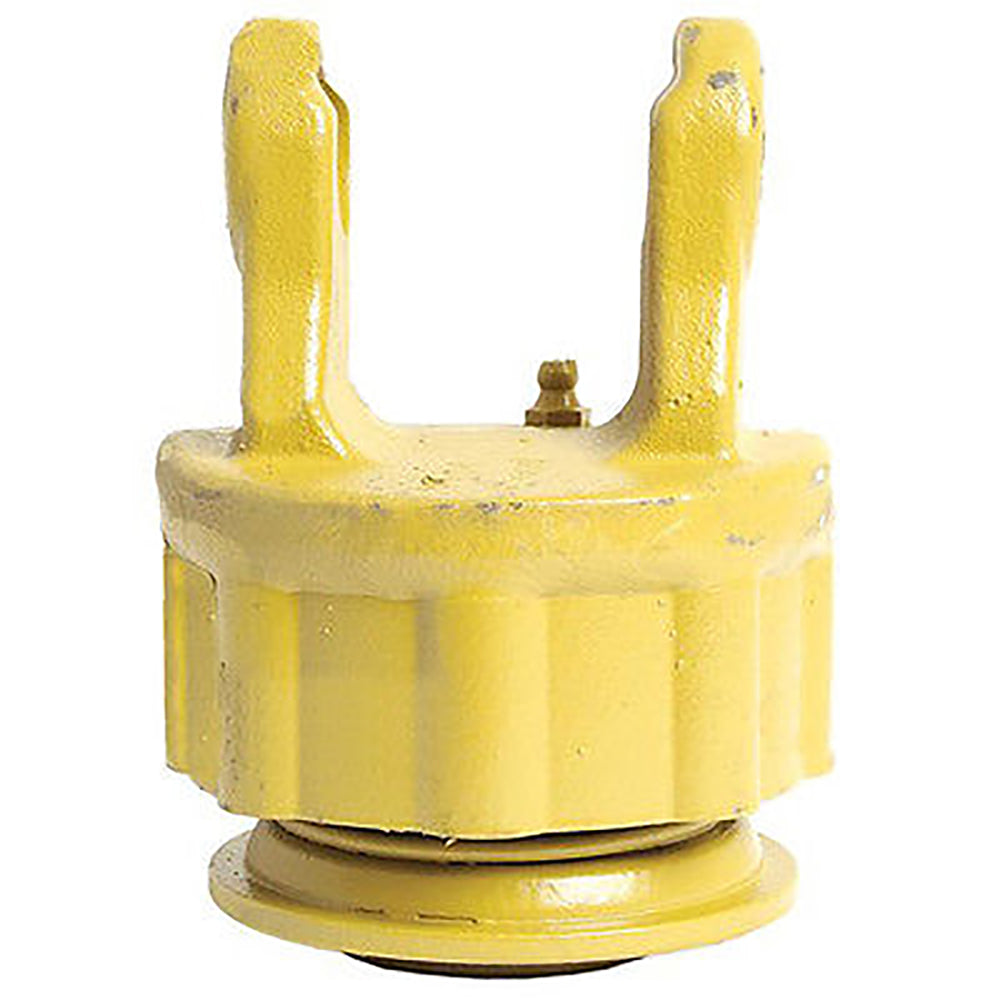

One New Aftermarket Replacement Radial Pin Clutch for Walterscheid 2200 Series PTO Driveline

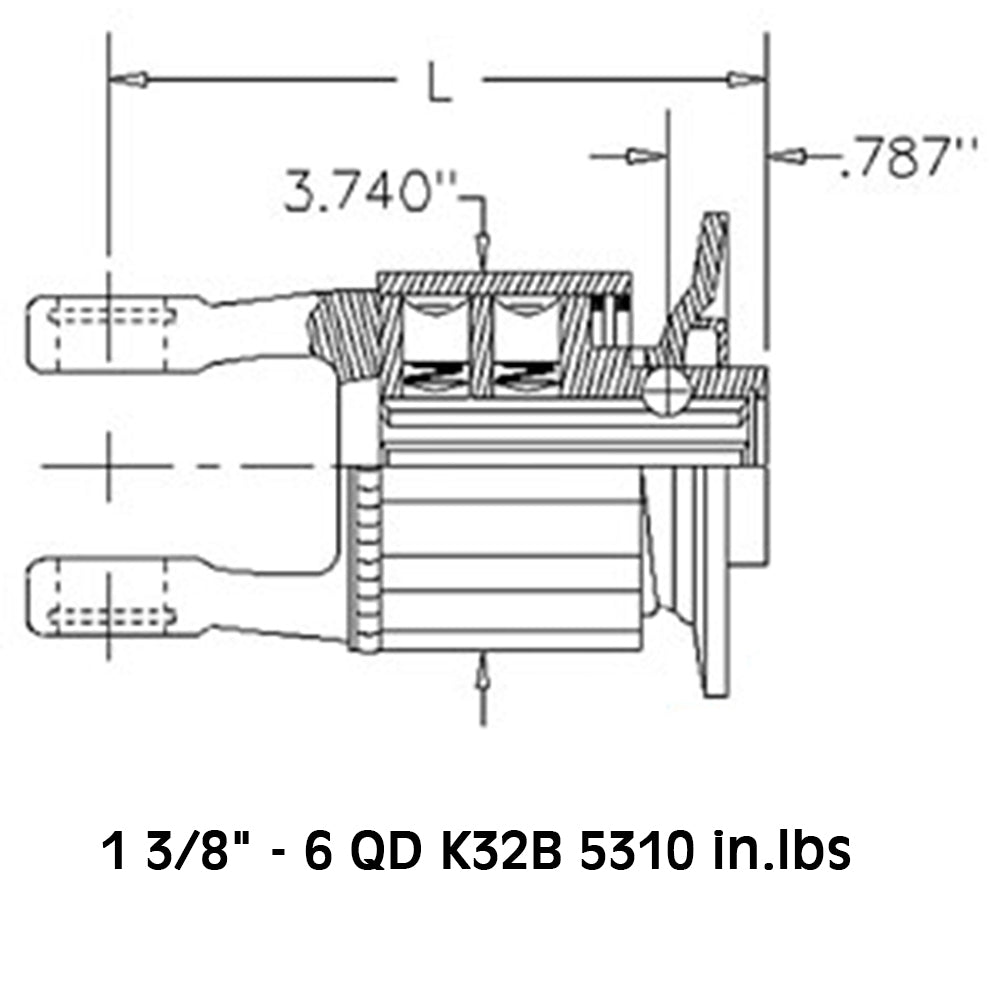

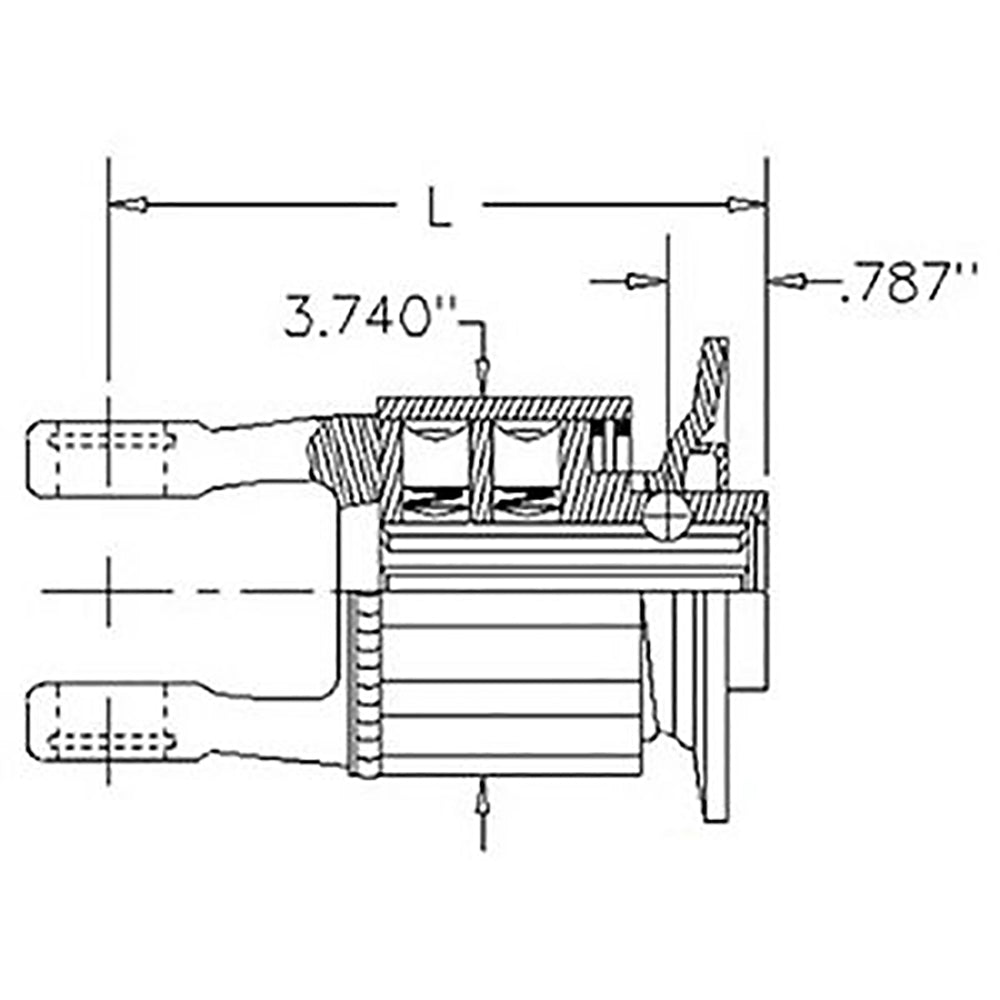

This aftermarket replacement radial pin clutch (type K32B) is a complete overload protection clutch assembly for use on Walterscheid 2200 Series agricultural PTO driveshafts. Radial pin clutches are torque-pulsating overload clutches in which spring-loaded cams engage grooves in the housing; when the set torque is exceeded, the cams release to protect downstream equipment from shock loads and blockages. The K32B features a quick-disconnect (QD) pull-lock collar and a 1-3/8 inch 6-spline bore, matching the standard PTO profile used on the Walterscheid W2200 driveshaft series. This is a complete clutch assembly, not a rebuild kit.
Specifications
- Clutch Type: Radial Pin, K32B
- Bore: 1-3/8 in. - 6 Spline
- Lock Type: Quick Disconnect (QD) Pull Lock
- Driveline Series: Walterscheid 2200
Compatible Models
Walterscheid PTO Driveline Series: 2200
Replaces Part Number(s):
DRF30-0034, W359660-A
New aftermarket replacement part - not remanufactured, not used.
