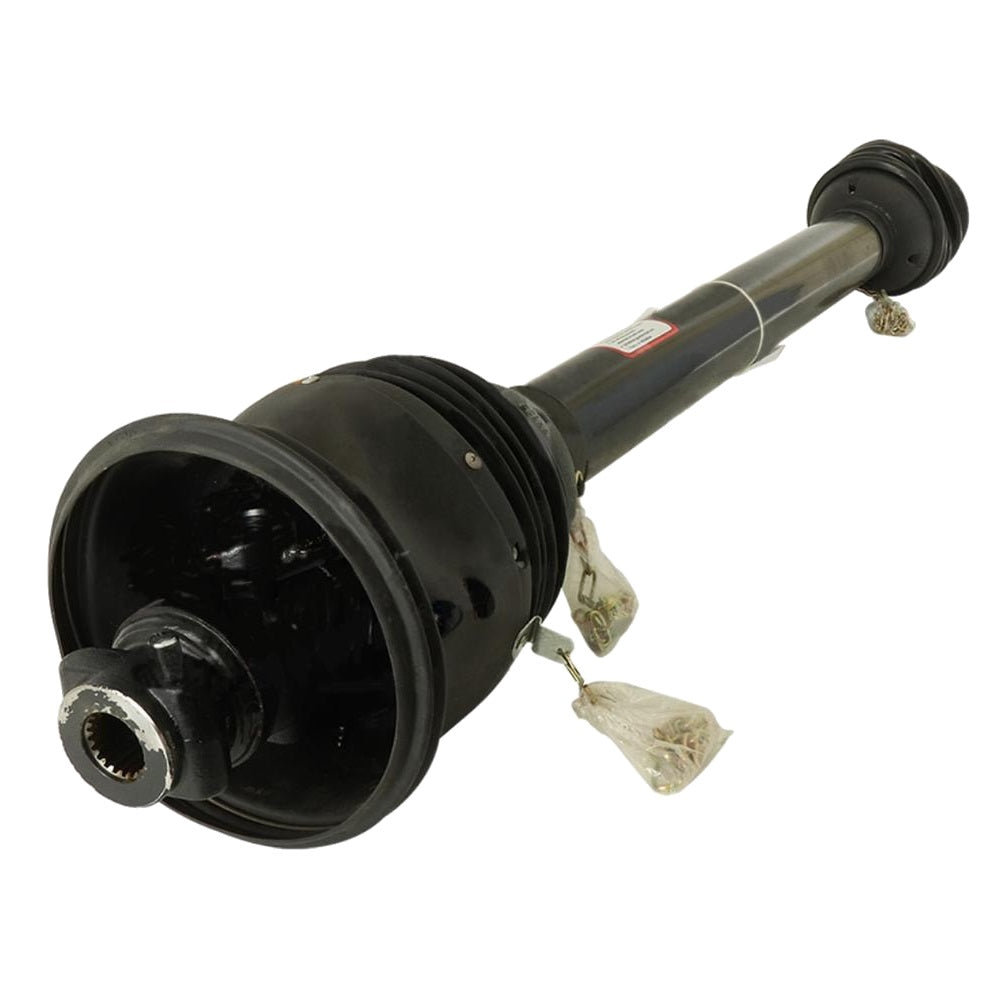

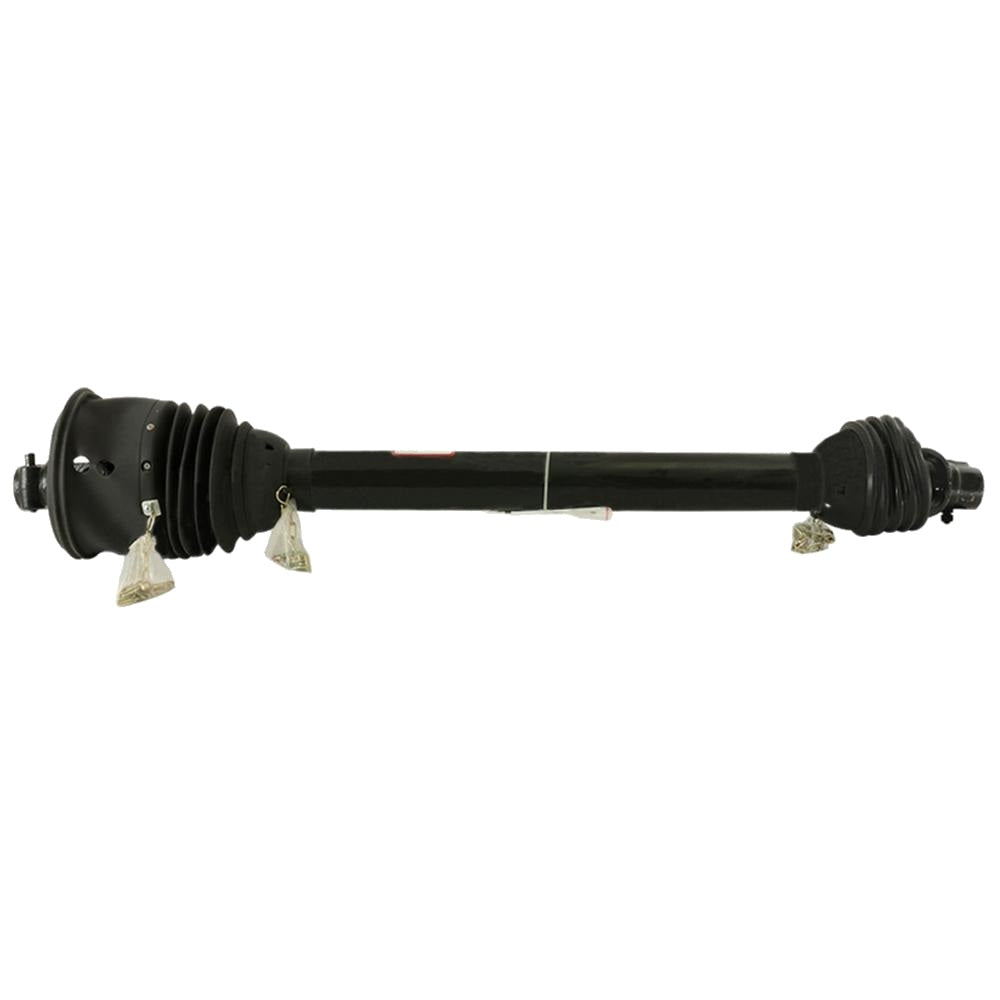

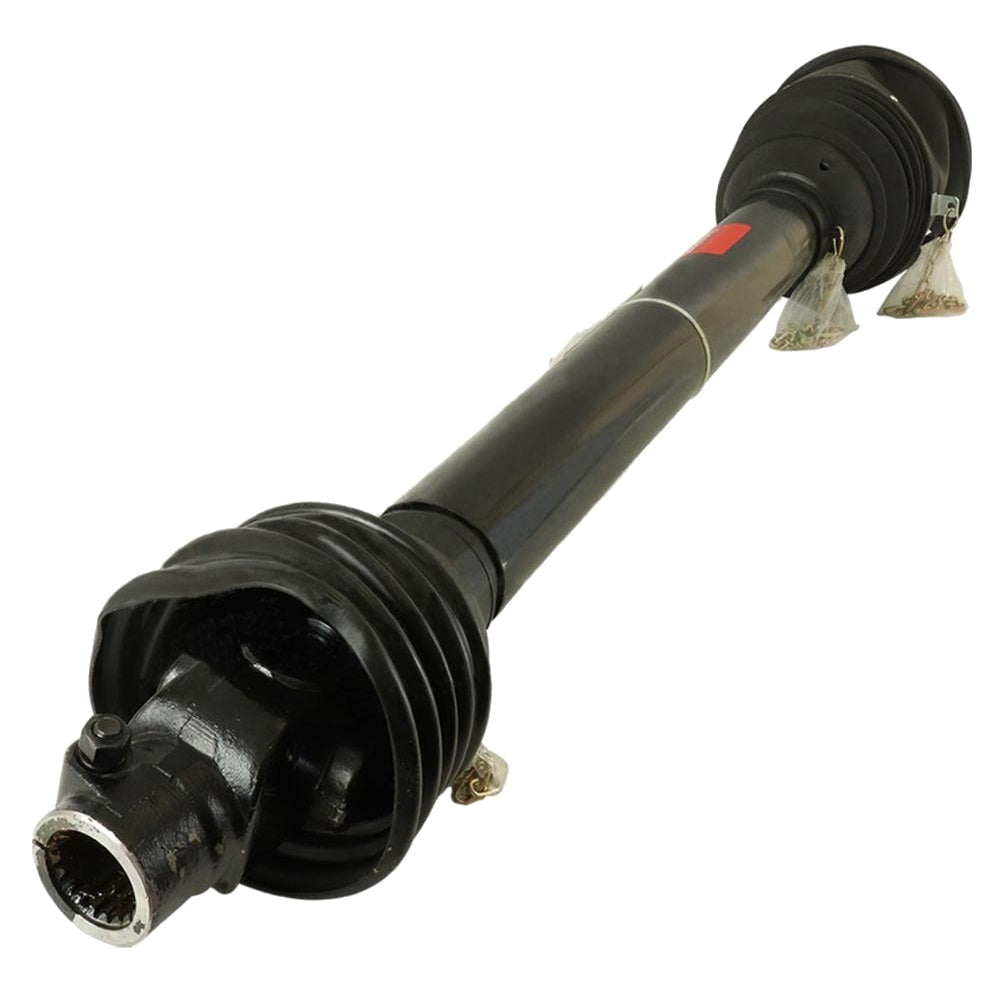

One New Aftermarket Replacement Complete Constant Velocity Driveline.
*** PLEASE NOTE *** It may be necessary to cut this Driveline to length. Verify the length by ensuring that sufficient overlap of the Drive Tubes exists in all working positions without the possibility of bottoming out.

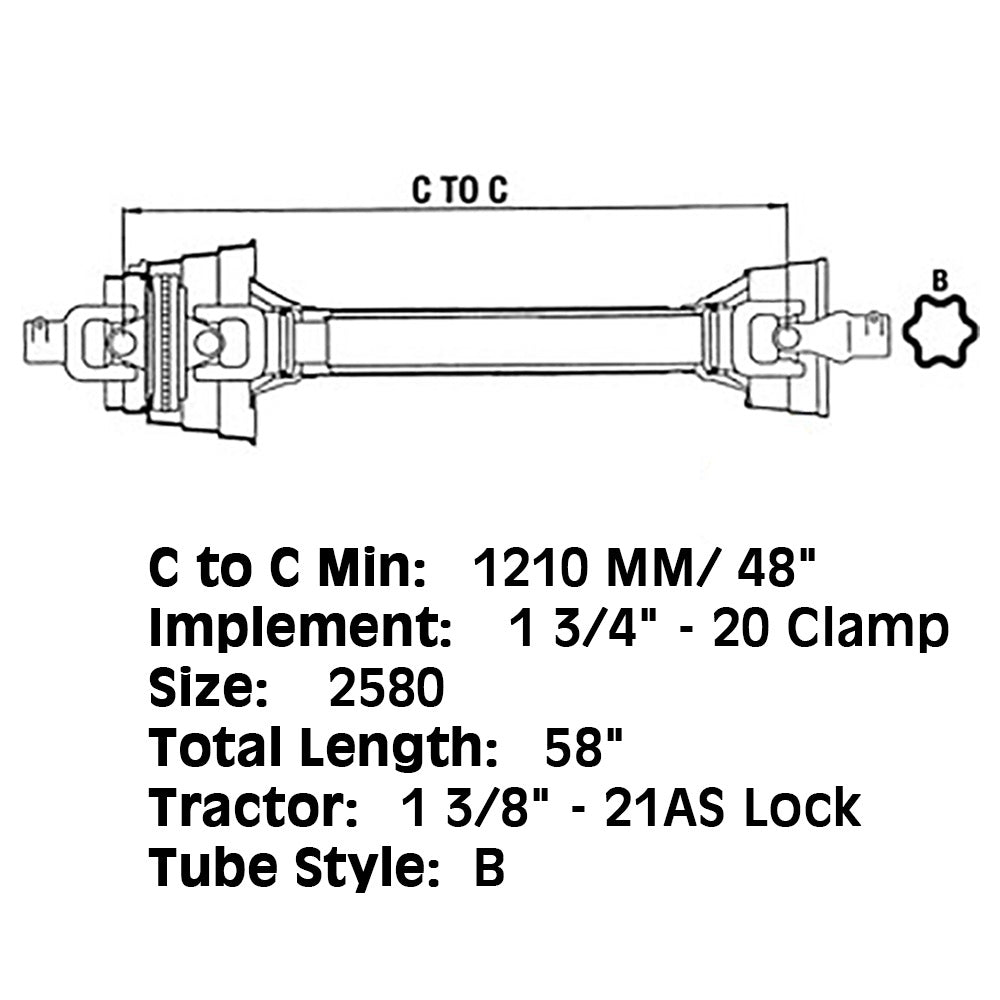

MEASUREMENTS:
Minimum C-to-C Length: 48" (1210 mm)
Total Collapsed Length: 58" (1462 mm)
Implement End: 1-3/4" 20 Spline, 20 Clamp
Tractor End: 1-3/8" 21 Spline, 21AS Lock
Style Tubing: Star
Tube Style Type: B
Size: 2580
-- Fits John Deere Rotary Cutters:
1517 (without Offset Shearbolt Clutch)
1518 (without Offset Shearbolt Clutch)
2018 (without Offset Shearbolt Clutch)
CX15 (Serial # 005317 & Above)
CX20 (Serial # 003526 & Above)
HX15 (Serial # 011945
